Soundcore A3117 Bluetooth Speaker With Stereo Sound 24h Playtime User Manual

A3117 Bluetooth Speaker with Stereo Sound 24H Playtime
User Manual

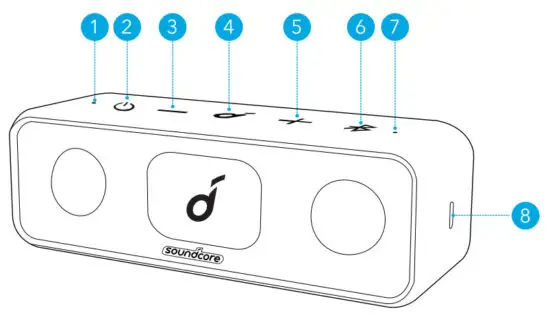

At a Glance

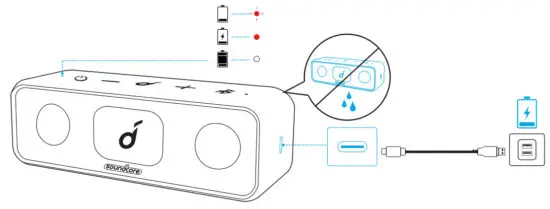

Charging

• Fully dry off the USB port before charging.
• Use the provided USB-C cable to prevent any damage.
• Fully charge this speaker before the first use to prolong the lifespan of the built-in battery.
• Disconnect this speaker from the charger when fully charged. Do not charge for extended periods.

	Flashing red	Low battery
	Steady red	Being charged
	Steady white	Fully charged

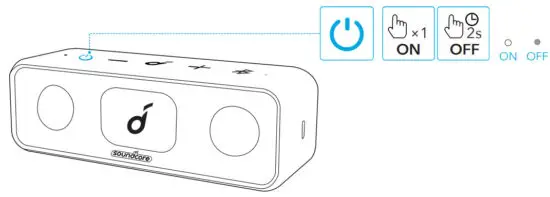

Powering On/Off

	Steady white		Press	Power on
	Light off		Press and hold for 2 seconds	Power off

This speaker will power off automatically after 30 minutes if no device is connected.

Using Your Soundcore 3

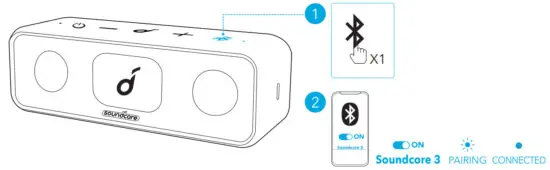

Bluetooth Mode
With this speaker, you can enjoy music through your Bluetooth-enabled devices.

	Press	Enter Bluetooth pairing mode
	Flashing blue	Bluetooth pairing
	Steady blue	Bluetooth connected

Dual Bluetooth Connection: This speaker can pair up to 2 mobile devices via To pair with another device, press the Bluetooth button to re-enter Bluetooth pairing mode.This speaker can only play music on one mobile device at a time. To play from another connected device, pause the currently active device first.Each time you power on your Soundcore speaker, it will automatically connect to your last connected device if available within the Bluetooth range. If not, press the Bluetooth button to enter Bluetooth pairing mode.

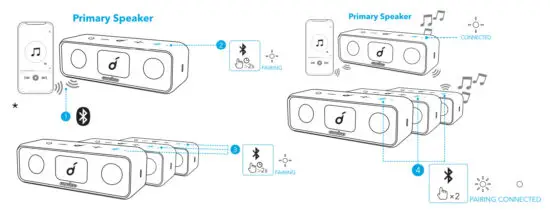

PartyCast Mode
You can wirelessly connect up to 100 identical Soundcore 3 speakers together. Soundcore speakers with the PartyCast function can be connected with Soundcore 3.

1. Press and hold the Bluetooth button for 2 seconds on the Soundcore 3 that’s currently connected to your device as the primary speaker.
2. Repeat Step 1 on the other Soundcore 3 you want to connect and then press the Bluetooth button twice to make them secondary speakers in PartyCast pairing.
3. The secondary speakers will automatically connect with the primary speaker.

	Press and hold for 2 seconds	Enter PartyCast pairing mode
	Slowly flashing white (Primary speaker)
	Rapidly flashing white (Secondary speakers)	PartyCast pairing
	Slowly flashing white (Primary speaker)
	Steady white (Secondary speakers)	PartyCast connected

When PartyCast mode is successfully entered:

• Any secondary speaker can be switched to become the primary speaker by pressing the Bluetooth button twice and connecting to your smartphone. Any primary speaker can be switched to become a secondary speaker by pressing the Bluetooth button twice and searching for an available primary speaker.
• To exit the PartyCast mode, press and hold the Bluetooth button on any speaker for 2 seconds.

Button Controls

	Press	Play/Pause
	Press twice	Next track
	Press three times	Previous track
	Press or press and hold	Adjust volume
	Press	Answer/End a call
	Press	Answer a second incoming call and put the current call on hold
	Press and hold for 2 seconds	Reject an incoming call
	Press and hold for 2 seconds	Switch between a call on hold and an active call
	Press and hold for 2 seconds	Activate Siri or other voice assistant software

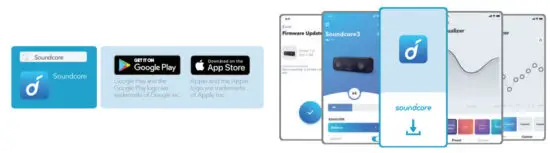

Soundcore App

Download the Soundcore app to enhance your experience.

• Check product information
• Update firmware
• Indicate battery status
• Remotely control the volume and play/pause
• Customize EQ settings
• Set Auto-power off time

Specifications

Specifications are subject to change without notice

DC power input	5V2 A
Battery capacity	5200 mAh
Audio output power	8 W x 2
Charging time	Appr. 4 hours
Playtime (varies by volume level and music content)	Up to 24 hours
Waterproof level	IPX7
Bluetooth version	5.0
Bluetooth range	20 m / 66 ft
