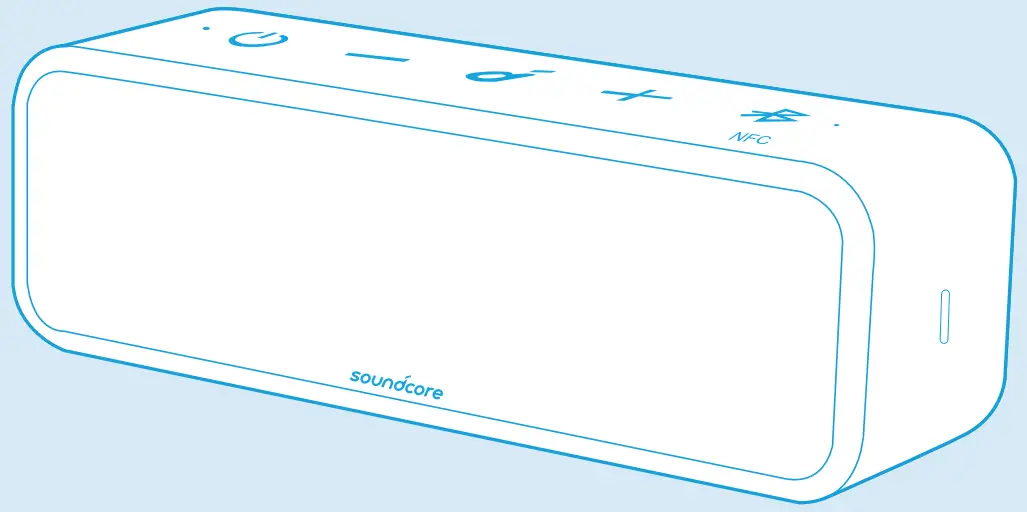

Soundcore A3125 Select 2 Portable Bluetooth SpeakerSoundcore Select 2
USER MANUAL

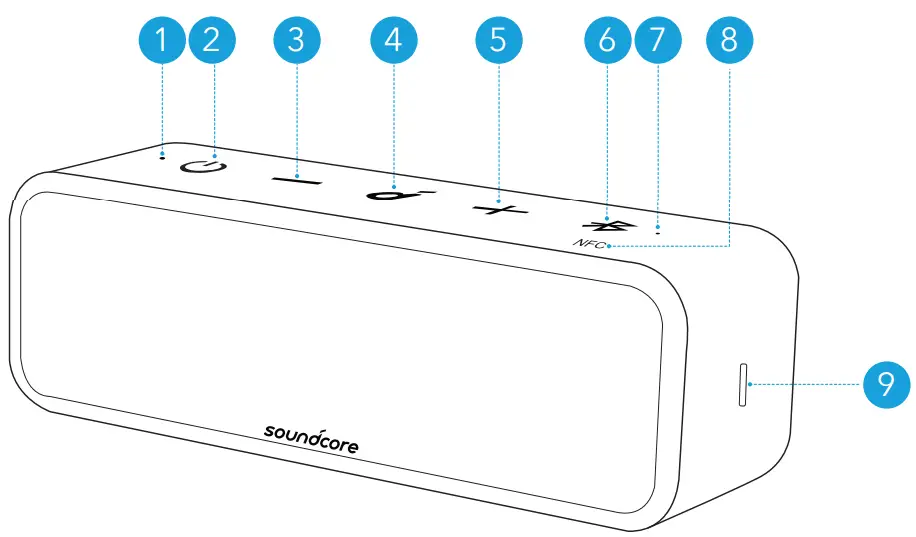

At a Glance

Soundcore A3125 Select 2 Portable Bluetooth Speaker - At a glance

1. Power LED
2. Power button
3. Volume down button
4. Multi-function button
5. Volume up button
6. Bluetooth/PartyCast button
7.Bluetooth LED
8. NFC tag
9. USB-C charging port

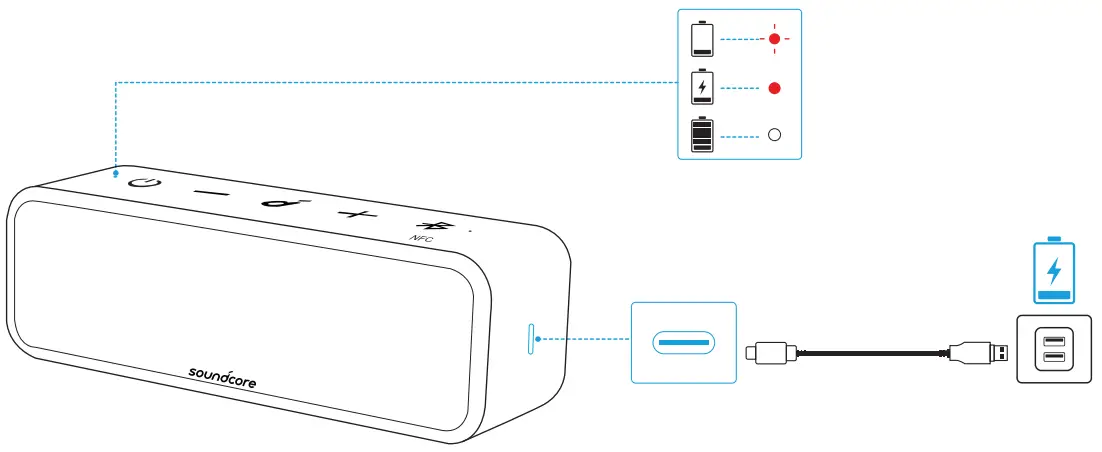

Charging

Soundcore A3125 Select 2 Portable Bluetooth Speaker - Charging icon

  • Use the provided USB-C cable to prevent any damage.
  • Fully charge this speaker before the first use to prolong the lifespan of the built-in battery.
  • Disconnect this speaker from the charger when fully charged. Do not charge for extended periods.
    Soundcore A3125 Select 2 Portable Bluetooth Speaker - Charging
Soundcore A3125 Select 2 Portable Bluetooth Speaker - ODVKLQJUHGFlashing red Low battery
Soundcore A3125 Select 2 Portable Bluetooth Speaker - 6WHDGUHGSteady redBeing charged
Soundcore A3125 Select 2 Portable Bluetooth Speaker - 6WHDGZKLWHSteady whiteFully charged

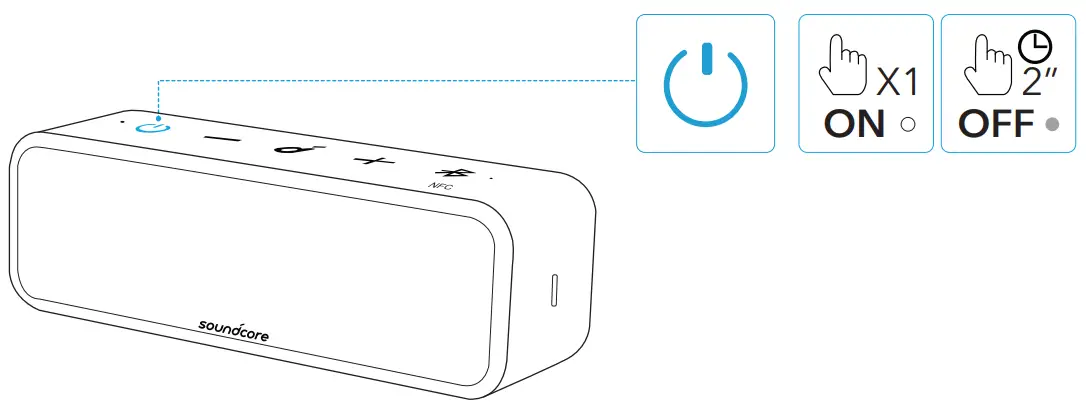

Powering On/Off

Soundcore A3125 Select 2 Portable Bluetooth Speaker - Powering On Off

Power onSoundcore A3125 Select 2 Portable Bluetooth Speaker - RQPress
Power offSoundcore A3125 Select 2 Portable Bluetooth Speaker - RQPress and hold 2 seconds

Soundcore A3125 Select 2 Portable Bluetooth Speaker - Charging icon
• This speaker will power off automatically 30 minutes after no audio input or button inactivity.

Using your Soundcore Select 2

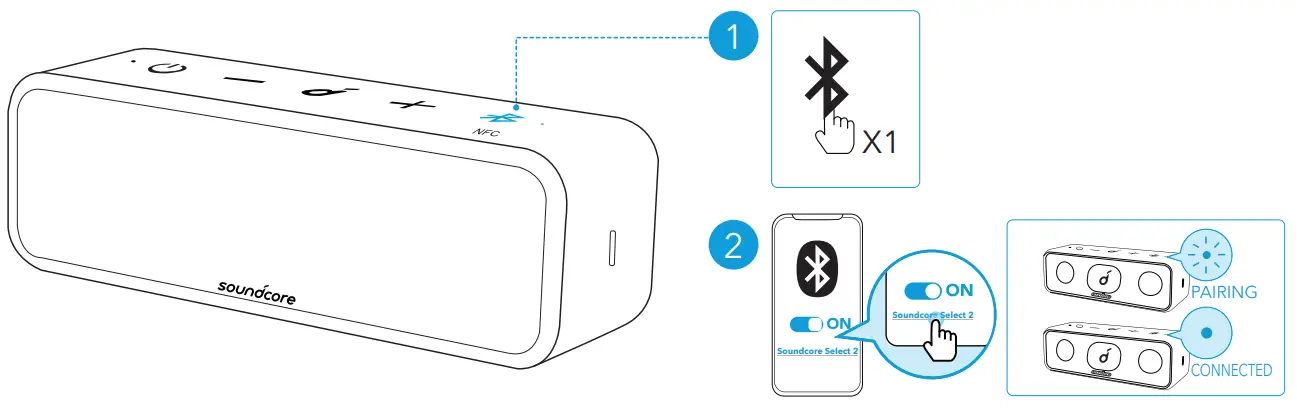

Bluetooth Mode
With this speaker, you can enjoy music through your Bluetooth-enabled devices.

Soundcore A3125 Select 2 Portable Bluetooth Speaker - Bluetooth Mode

Soundcore A3125 Select 2 Portable Bluetooth Speaker - 3UHVVPressEnter Bluetooth pairing mode
Soundcore A3125 Select 2 Portable Bluetooth Speaker - )ODVKLQJEOXHFlashing blueBluetooth pairing
Soundcore A3125 Select 2 Portable Bluetooth Speaker - 6WHDGOXHSteady blueBluetooth connected

Soundcore A3125 Select 2 Portable Bluetooth Speaker - Charging icon

  • Dual Bluetooth Connection: This speaker can pair up to 2 mobile devices via Bluetooth. To pair with another device, press the Bluetooth button to re-enter Bluetooth pairing mode.
  • This speaker can only play music on one mobile device at a time. To play from another connected device, pause the currently active device first.
  • Each time you power on your Soundcore speaker, it will automatically connect to your last connected device is available within the Bluetooth range. If not, press the Bluetooth button to enter Bluetooth pairing mode.

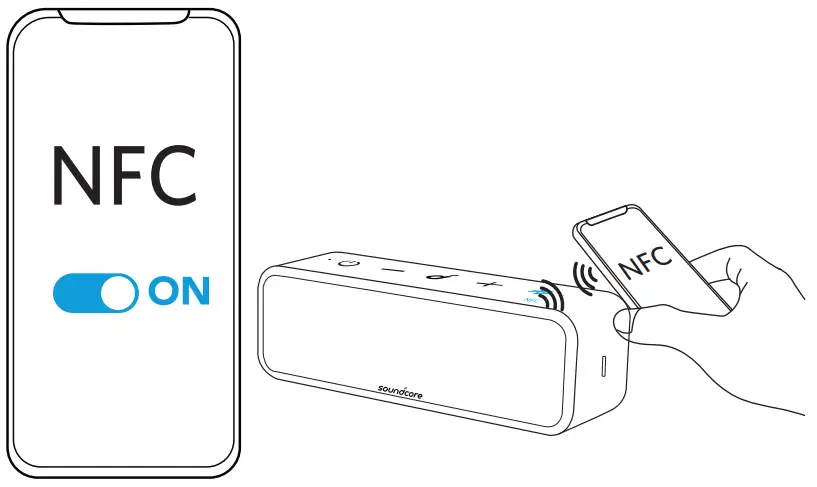

NFC Mode
If your Bluetooth device supports NFC, you can connect it with this speaker easily.

  1. Enable the NFC feature on your Bluetooth device.
  2. Touch the NFC tag on the speaker with the back of your Bluetooth device.
  3. On your Bluetooth device, accept the pairing request with “Soundcore Select 2”.

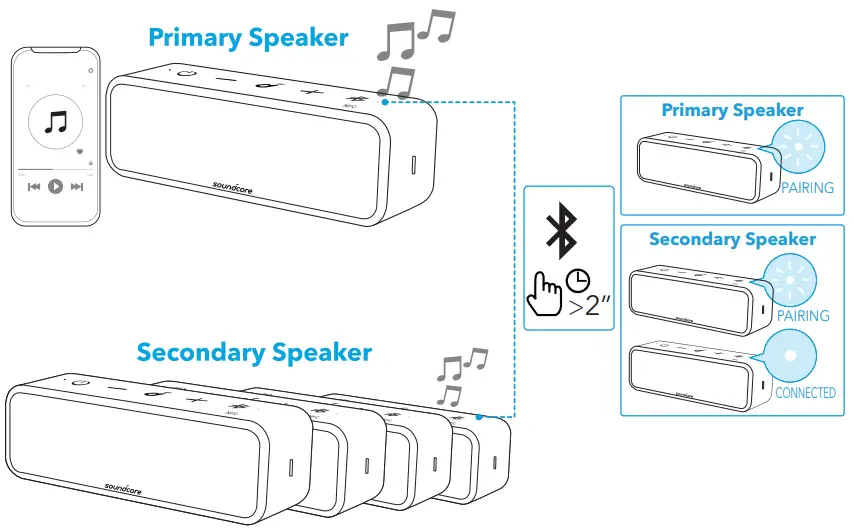

Soundcore A3125 Select 2 Portable Bluetooth Speaker - NFC ModePartyCast Mode
You can wirelessly connect up to 100 identical Soundcore Select 2 speakers together.

  1. Connect one Soundcore Select 2 speaker with your smartphone or tablet as the primary speaker.
  2. Press and hold the Bluetooth button on the primary speaker and all desired speakers to enter pairing mode. >>> When successfully connected, the Bluetooth LED on the primary speaker will continue flashing white, while on the secondary speakers will turn white.

Soundcore A3125 Select 2 Portable Bluetooth Speaker - PartyCast Mode

When PartyCast mode is successfully entered:

  • Any secondary speaker can be switched to become the primary speaker by pressing the Bluetooth button twice and connecting to your smartphone. Any primary speaker can be switched to become the secondary speaker by pressing the Bluetooth button twice and searching for an available primary speaker.
  • To exit the PartyCast mode, press and hold the Bluetooth button on any speaker for 2 seconds.

Button Controls

Soundcore A3125 Select 2 Portable Bluetooth Speaker - 6Button Controls

Soundcore A3125 Select 2 Portable Bluetooth Speaker - IconaPressPlay/Pause
Soundcore A3125 Select 2 Portable Bluetooth Speaker - IconaPress twiceNext track
Soundcore A3125 Select 2 Portable Bluetooth Speaker - IconaPress thricePrevious track
-/+Adjust volume

Soundcore A3125 Select 2 Portable Bluetooth Speaker - Call

Soundcore A3125 Select 2 Portable Bluetooth Speaker - IconaPress Answer/End a call
Soundcore A3125 Select 2 Portable Bluetooth Speaker - IconaPressAnswer a second incoming call and put the current call on hold
Soundcore A3125 Select 2 Portable Bluetooth Speaker - IconaPress and hold for 2 seconds Reject an incoming call
Soundcore A3125 Select 2 Portable Bluetooth Speaker - IconaPress and hold for 2 secondsSwitch between a call on hold and an active call

Soundcore A3125 Select 2 Portable Bluetooth Speaker - VHFRQGV

Soundcore A3125 Select 2 Portable Bluetooth Speaker - IconaPress and hold for 2 seconds Activate Sid or other voice assistant software

Soundcore App

Download the Soundcore App for an enhanced product experience.

  • Update firmware
  • Indicate battery status
  • Remotely control the volume and play/pause
  • Customize EQ settings
  • Set Auto-power off time

Soundcore A3125 Select 2 Portable Bluetooth Speaker - 6HWXWRSRZHURIIWLPH

Specifications

Soundcore A3125 Select 2 Portable Bluetooth Speaker - Charging iconSpecifications are subject to change without notice

DC power input5 Vmumin2 A
Battery capacity5200 mAh
Audio output power8 W x 2
Charging timeAppr. 4 hours
Playtime (varies by volume level and music content)Up to 20 hours
Waterproof level IPX7
Bluetooth version5.0
Bluetooth range20 m / 66 ft

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
