Soundcore Bluetooth Speaker User Manual

soundcore Bluetooth Speaker

Safety Instructions

• Avoid dropping.
• Do not disassemble.
• Do not submerge in water.
• Avoid extreme temperatures.
• Do not use the device outdoors during t thunderstorms.
• Do not use any corrosive cleaner/ oil to clean.

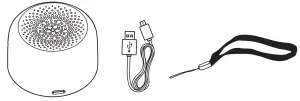

What’s Included

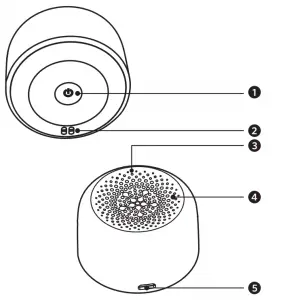

At a Glance

1. Power Button / Multifunction Button
2. Hand Strap Hole
3.  Status Indicator
4. Speaker
5. micro USB Port

Using Your Soundcore Ace A0

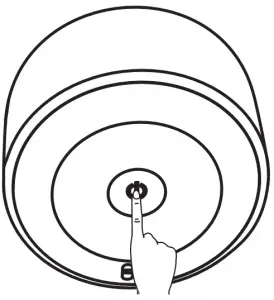

1. Turn On / Of


ON                 Press
OFF               Press and hold for more than 2 seconds

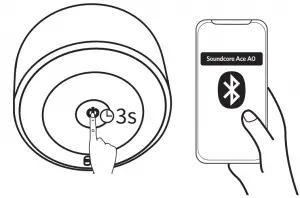

A. Bluetooth mode

Flashing Blue	Bluetooth Pairing Mode Note: Press and hold the power button for 3 seconds to enter Bluetooth pairing mode(When Ace A0 is off).
Solid Blue	Connected to a device
Slow Flashing Blue	Idle mode Note: The speaker enters idle mode when connection is taking too long or it’s disconnected for more than 3 mins. Press Bluetooth button to reenter Bluetooth pairing mod

B. Music

Play / Pause

Play Next Song

When turned on, Soundcore Ace A0 will automatically connect to the last connected device if available. If not, press the Bluetooth button to activate pairing mode. Having connection problems? Remove Soundcore Ace A0 from your device’s Bluetooth history and ensure it’s less than 3 feet away. Then try pairing again. To get the best sound quality, make sure there is a clear line of sight between the connected device and your speaker.

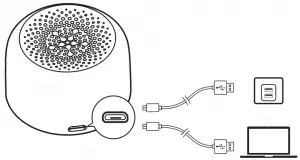

Charging your Soundcore Ace A0

Slow Flashing Red	Low Battery
Solid Red	Charging
Off	Fully Charged

Use the included USB cable to charge your Soundcore Ace A0 and make sure it is fully charged before its first use. Disconnect your speaker from the charger when fully charged. Do not charge your speaker for extended periods. When not in use, store your speaker in a cool place.

Specifications

Specifications are subject to change without notice.

• Input: 5 V 0.35 A
• Audio output: 2 W
• Battery capacity : max.500 mAh
• Charging time: 1 hour
• Playtime (varies by volume level and music content): 4 hours
• Size: 56 x 56 x 36 mm / 2.2 x 2.2 x 1.4 inch
• Weight (without packaging): 62 g / 2.2 oz
• Bluetooth version: V4.2
• Bluetooth range : 20m/66f

Customer Service

18-month limited warranty

Lifetime technical support

[email protected]

+1 (800) 988 7973 (US) Mon-Fri 9:00 – 17:00 (PT)
+44 (0) 1604 936200 (UK) Mon-Fri 6:00 – 11:00 (GMT)
+49 (0) 69 9579 7960 (DE) Mon-Fri 6:00 – 11:00

For FAQs and more information, please visit:

soundcore.com/support
