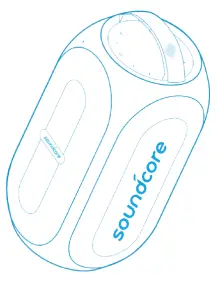

Soundcore Rave PartyCast
USER MANUAL
Charging

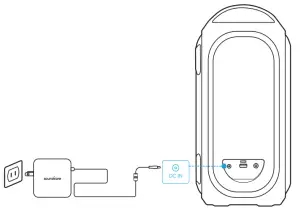

Charging Your Speaker
- Fully charge this speaker before the first use to prolong the lifespan of the built-in battery.
 | Battery level <25% |
 | Battery level 25% – 50% |
 | Battery level 51% – 75% |
 | Battery level 76% – 99% |
 | Fully charged |
| Checking Battery Level | |
| Battery level <10% |
 | Battery level 10% – 25% |
 | Battery level 26% – 50% |
 | Battery level 51% – 75% |
| Battery level 76% – 100% |

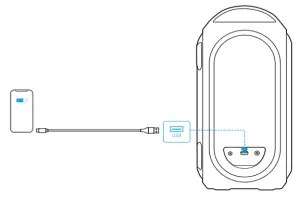

Charging Your USB Devices
Charge your USB devices through the USB port.

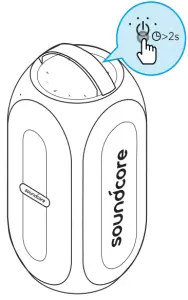

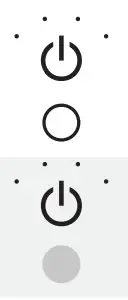

Powering On/Off
 | Press and hold for 2 seconds | |
| Steady white | Power on | |
| Press and hold for 2 seconds | Power off | |
| Light off |
This speaker will power off automatically after 30 minutes if no device is connected.
Using Your Soundcore Rave PartyCast

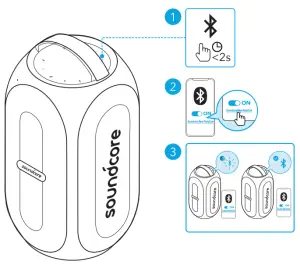

Bluetooth Mode
With this speaker, you can enjoy music through your Bluetooth-enabled devices.
 | Press | Enter Bluetooth pairing mode |
| Flashing blue | Bluetooth pairing | |
| Steady blue | Bluetooth connected |
- Each time you power on your Soundcore speaker, it will automatically connect to your last connected device is available within the Bluetooth range. if not, press the Bluetooth button to enter Bluetooth pairing mode.

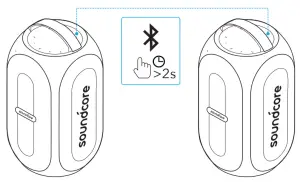

TWS (True Wireless Stereo) Mode
Two identical Soundcore Rave PartyCast speakers can pair with each other for stereo sound.
- Connect either speaker with your Bluetooth-enabled device.
- On both Soundcore speakers, press and hold the Bluetooth button for at least 2 seconds to enter TWS pairing mode.
 | Press and hold for 2 seconds | Enter TWS pairing mode |
| Flashing blue | TWS pairing | |
| Steady blue (Primary speaker) | TWS connected | |
| Light off (Secondary speaker) |

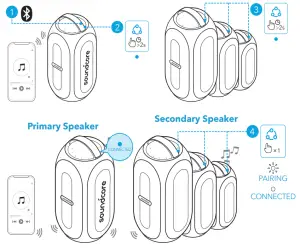

PartyCast Mode
You can wirelessly connect up to 100 identical Rave PartyCast speakers together.
• Soundcore speakers with the PartyCast function can also be connected with this speaker.
- Press and hold the PartyCast button for 2 seconds on the Soundcore Rave PartyCast that’s currently connected to your device as the primary speaker.
- Repeat Step 1 on the other Soundcore Rave PartyCast you want to connect and then press the PartyCast button to make them secondary speakers in PartyCast pairing.
• The secondary speakers will automatically connect with the primary speaker.
 | Press and hold for 2 seconds | Enter PartyCast pairing mode |
| Steady blue (Primary speaker) | PartyCast pairing | |
| Flashing white (Secondary speaker) | ||
| Steady blue (Primary speaker) | PartyCast connected | |
| Steady white (Secondary speaker) |
When PartyCast mode is successfully entered:
- You can power off, adjust the volume, or switch light modes for all speakers by controlling the primary speaker only.
- You can power off or switch light modes for each secondary speaker individually.
- You can’t adjust the volume for each secondary speaker individually.
- Any secondary speaker can be switched to become the primary speaker by pressing the PartyCast button and connecting to your smartphone. Any primary speaker can be switched to become the secondary speaker by pressing the PartyCast button and searching for an available primary speaker.

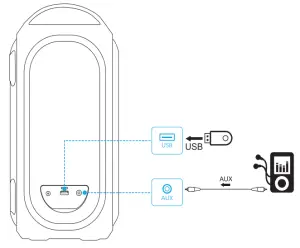

- To exit the PartyCast mode, press and hold the PartyCast button on any speaker for 2 seconds. AUX/USB Mode
- When using AUX mode, control audio playback via the connected device.
Button Controls
 | Press | Play/Pause
|
| Press | Next track | |
| Press | Previous track | |
| Press | Volume down/up | |
| Press | Turn BassUp on/off | |
| Press and hold for 2 seconds | Switch between indoor/outdoor sound modes | |
| Press | Answer/End a call | |
| Press | Answer a second incoming call and put the current call on hold | |
| Press and hold for 2 seconds | Reject an incoming call | |
| Press and hold for 2 seconds | Switch between a call on hold and an active call |

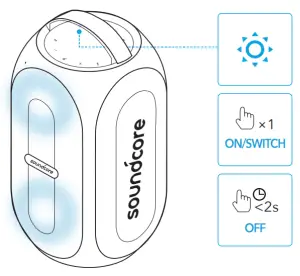

Light Effects
- Download the Soundcore app to check all available light modes.

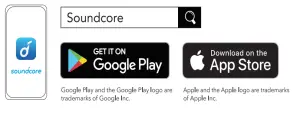

Soundcore App
Download the Soundcore app for an enhanced product experience.
- Set up Bluetooth connections
- Check product information
- Update firmware
- Indicate battery status
- Switch among multiple light modes
- Switch between indoor and outdoor sound modes
- Light DJ mode to support light and sound variation
- Enjoy party games
- Switch BassUp mode
- Remotely control the volume and play/pause
- Set Auto-power off
Specifications
Specifications are subject to change without notice.
| DC power input | 15V 3A |
| Battery capacity | 4900 mAh / 7.4 V |
| USB output | 5V2.1 |
| Output power | 80 W
|
| Charging time | Appr. 4.5 hours
|
| Playtime (varies by volume level and music content) | Up to18 hours
|
| Waterproof level | IPX7
|
| Bluetooth version | V5.0
|
| Bluetooth range | 20 m / 66 ft
|
| USB audio format | .mp3, .wma |
