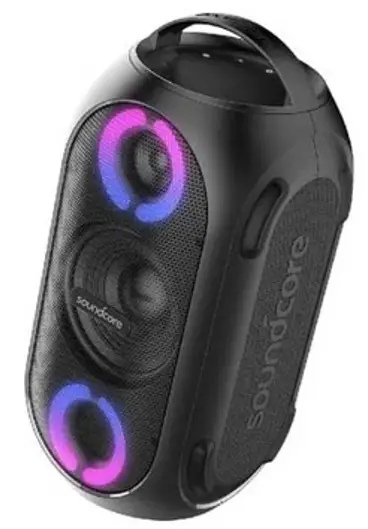

Soundcore A3107h11 Rave+ Portable Speaker User Manual

A3107H11 Rave+ Portable Speaker
User Manual

Charging

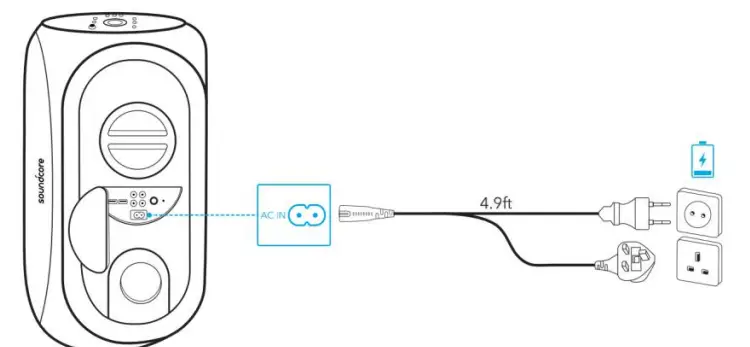

1.1 Charging Your Speaker
Use the included AC power cord to charge your speaker.

	Battery level <25%
	Battery level 25% – 50%
	Battery level 51% – 75%
	Battery level 76% – 95%
	Battery level >95%

• Fully charge this speaker before the first use to prolong the lifespan of the built-in battery.
• Disconnect your speaker from the power supply when fully charged. Do not charge for extended periods.

1.2 Checking Battery Level

	Battery level <15%
	Battery level 15% – 25%
	Battery level 26% – 50%
	Battery level 51% – 75%
	Battery level 76% – 100%

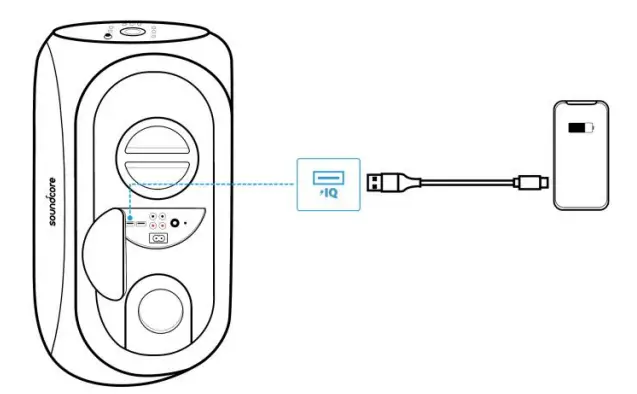

1.3 Charging Your USB Devices
Charge your mobile device through the Power IQ port on the back of this speaker.

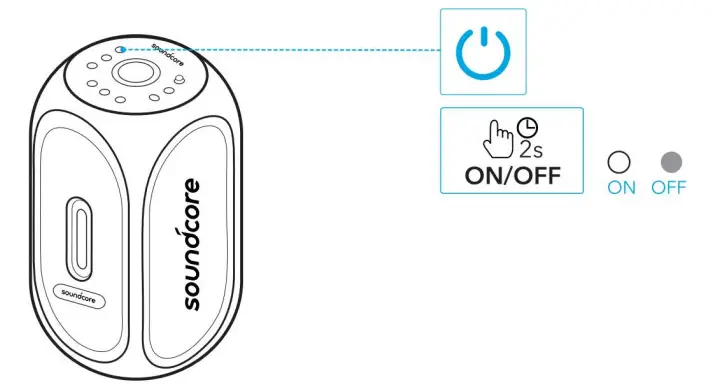

Powering On/Off

	Press and hold for 2 seconds	Power on
	Steady white
	Press and hold for 2 seconds	Power off
	Light off

• Unplug the power cable from the AC mains outlet when not in use for an extended period of time.
• This speaker will power off automatically after 30 minutes if there is no audio input.

Using Your Speaker

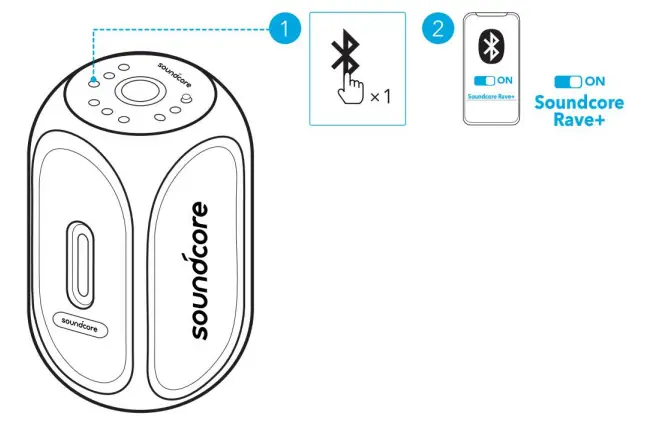

3.1 Bluetooth Pairing
With this speaker, you can enjoy music through your Bluetooth-enabled devices.

	Press	Enter Bluetooth pairing mode
	Flashing blue	Bluetooth pairing
	Steady blue	Bluetooth connected

• Each time you power on your Soundcore speaker, it will automatically connect to your last connected device if available within the Bluetooth range. If not, press the Bluetooth button to enter Bluetooth pairing mode.

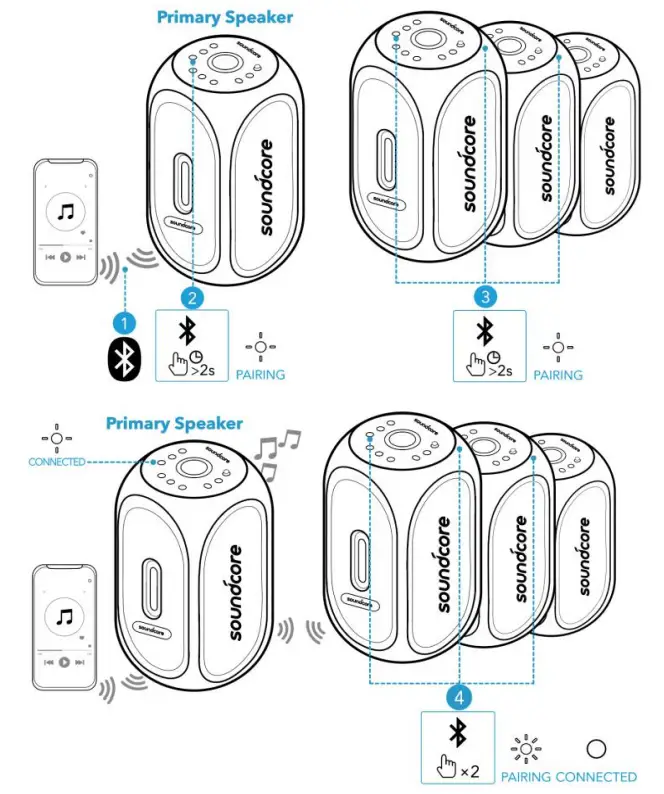

3.2 PartyCast Mode
You can wirelessly connect up to 100 Soundcore Rave+ speakers or Soundcore speakers with PartyCast functions together.

1. Press and hold the Bluetooth button for 2 seconds on the Soundcore Rave+ that’s currently connected to your device as the primary speaker.
2. Repeat Step 1 on the other Soundcore Rave+ speakers you want to connect and then press the Bluetooth button twice to make them secondary speakers in PartyCast pairing.
   → The secondary speakers will automatically connect with the primary speaker.


	Press and hold for 2 seconds	Enter PartyCast mode
	Slowly flashing white (Primary speaker)	PartyCast pairing
	Rapidly flashing white (Secondary speaker)
	Slowly flashing white (Primary speaker)	PartyCast connected
	Steady white (Secondary speakers)

When PartyCast mode is successfully entered:

• You can power off, adjust the volume, or switch light modes for all speakers by controlling the primary speaker only.
• You can power off or switch light modes for each secondary speaker individually.
• You can’t adjust the volume for each secondary speaker individually.
• Any secondary speaker can be switched to become the primary speaker by pressing the Bluetooth button twice and connecting to your smartphone. Any primary speaker can be switched to become the secondary speaker by pressing the Bluetooth button twice and searching for an available primary speaker.
• To exit the PartyCast mode, press and hold the Bluetooth button on any speaker for 2 seconds.

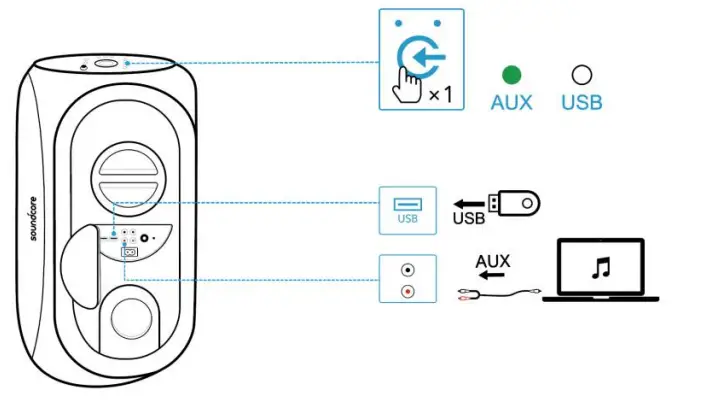

3.3 AUX/USB Mode
Plug in an audio cable or insert a USB flash drive, then press the source button to switch between AUX in mode and USB mode (support FAT32 / MP3 / WMA formats).

	Press	Switch source
	Press and hold for 2 seconds	Exit AUX/USB mode
	Steady green	AUX in mode
	Steady white	USB mode

• An audio cable or USB flash drive is not provided.
• When using AUX mode, control audio playback via the connected device.

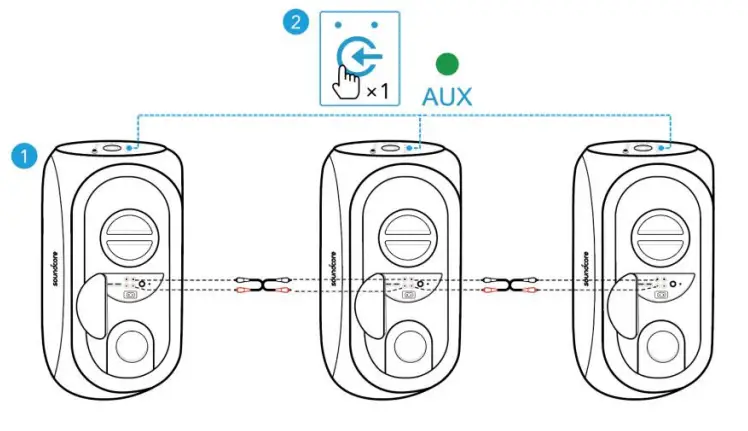

3.4 Wired Party Mode

You can connect multiple Soundcore Rave+ speakers via RCA cables to form a wired party chain.
Then press the source button to enter the wired party mode.

3.5 Button Controls

	Press	Play/Pause
	Press	Previous track
	Press	Next track
	Rotate	Adjust volume
	Press	Turn BassUp on/off

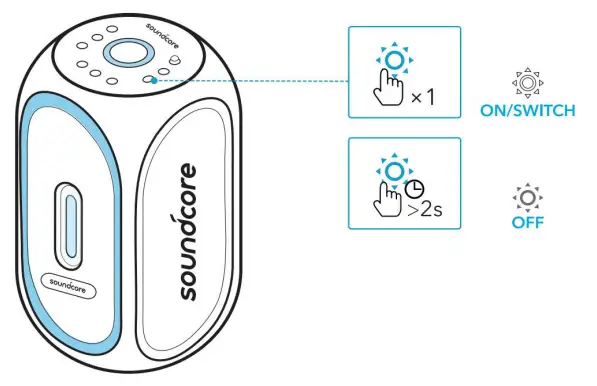

3.6 Light Effects
Your speaker is equipped with light effects for a party mood.
When powered on, the light effects are automatically turned on. Press the light effect button to switch among multiple music-sync light effects.
To turn off the light effects, press and hold the light effect button for 2 seconds.

	Press	Switch light effects / Turn light effects on
	Press and hold for 2 seconds	Turn light effects off

You can also check all available specific light effects in the Soundcore app.
3.7 Microphone Connection
For the best performance, use the microphone (not provided) when in the wired party chain mode.
Connect the microphone to the MIC port. You can adjust the microphone volume by rotating the MIC ECHO volume knob.

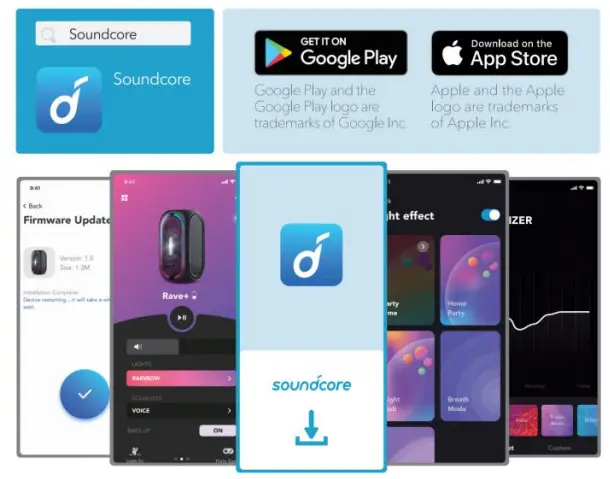

Soundcore App

Download the Soundcore app to enhance your experience.

• Set up Bluetooth connection
• Check product information
• Update firmware
• Indicate battery status
• Customize button controls
• Switch among multiple light effects
• Light DJ mode to support light and sound variation
• Enjoy party games
• Switch BassUp mode
• Switch EQ modes
• Set Auto-power off time

Specifications

Specifications are subject to change without notice.
