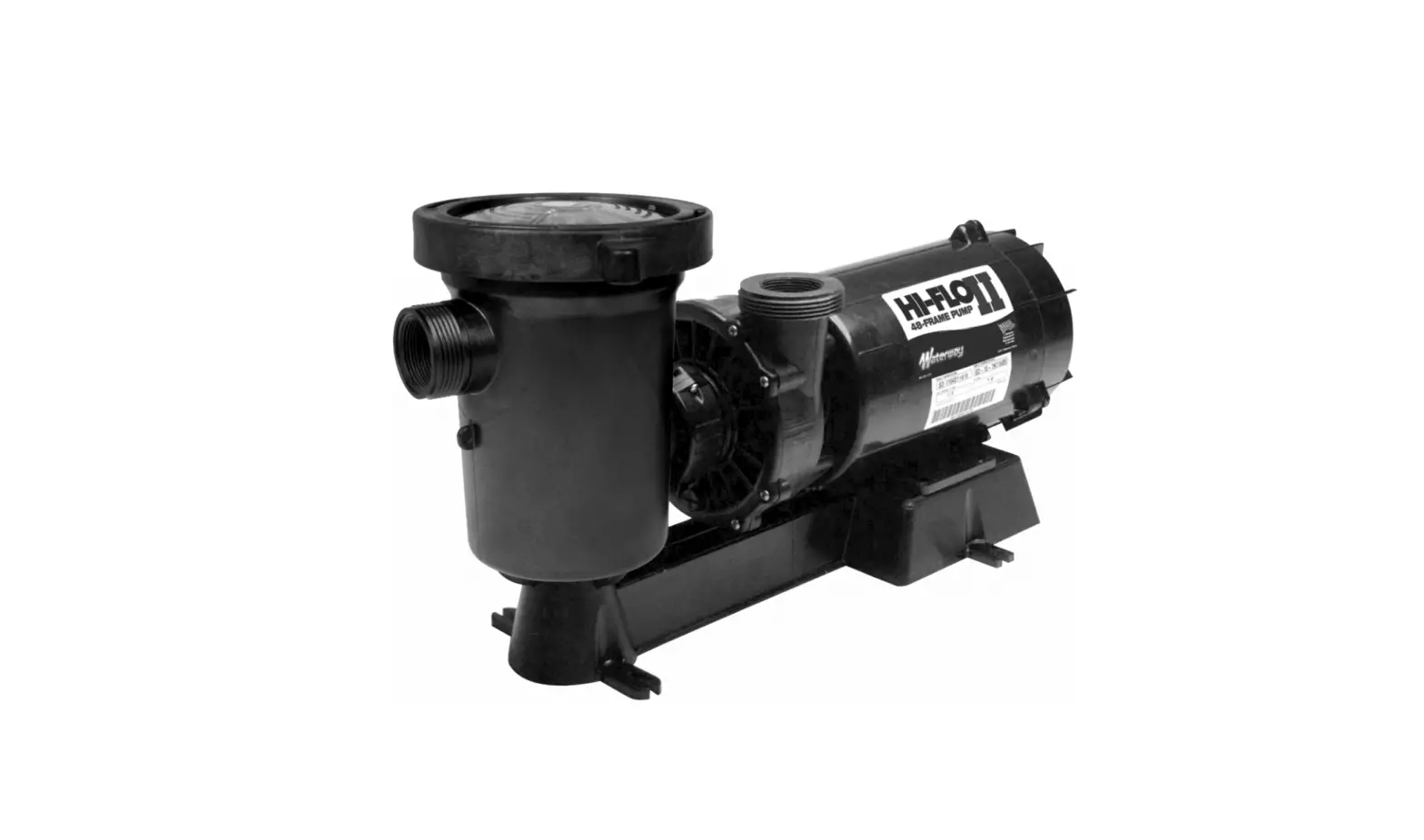

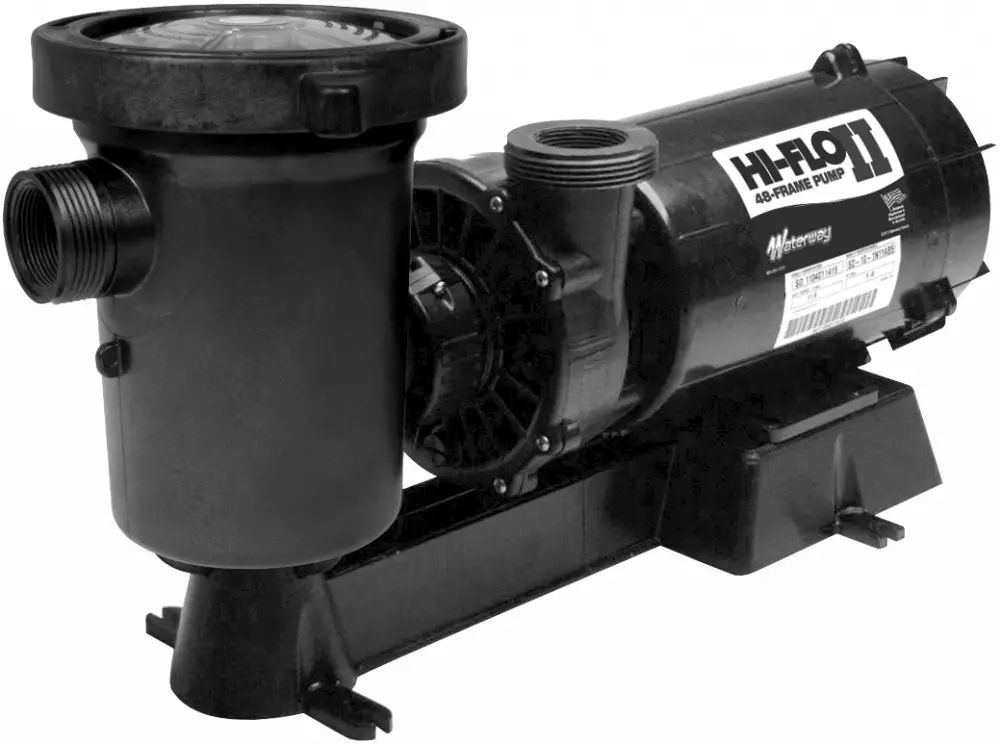

waterway CSA Hi-Flo II Side Discharge 48 Frame Above Ground Pool Pumps User Manual
FEATURES
- Intake – 1 ½” Union threads / 1 ½” FPT
- Discharge – 2″ Union threads / 1 ½” FPT
- Large 6″ pump trap with 2-piece lid
- Powerful side discharge performance – outperforms most competitors in like sizes
- Wet end rotates for easy installation with either vertical or horizontal position.
The Hi-Flo II 48-Frame Above Ground Pump is designed for superior performance. This pump features high flow rate performance for faster filtering cycles. The Hi-Flo II is ideal for new systems or as a replacement pump.

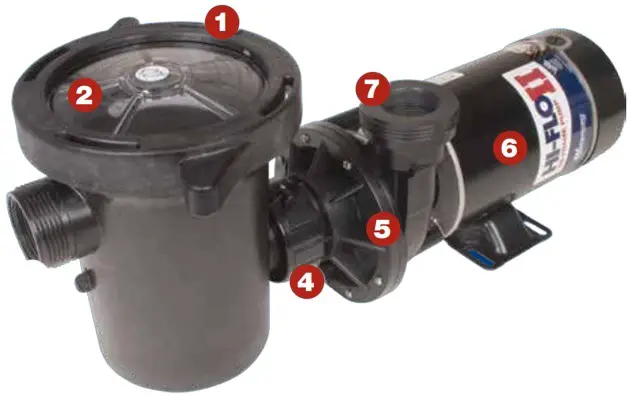

Description
- Clear lid lets you see when basket needs cleaning
- Extra large basket extends time between cleanings
- Double-threaded: inside for fittings, outside for unions
- Split-nut for easy servicing
- Impeller design provides excellent pressure performance and high volume output for optimum flow
- Heavy-duty, high performance motor with ON/OFF or dual speed control switch for maintenance-free and ease of operation
- Durable corrosion-proof housing made of fiberglass filled resin for years of dependable service and all-weather performance

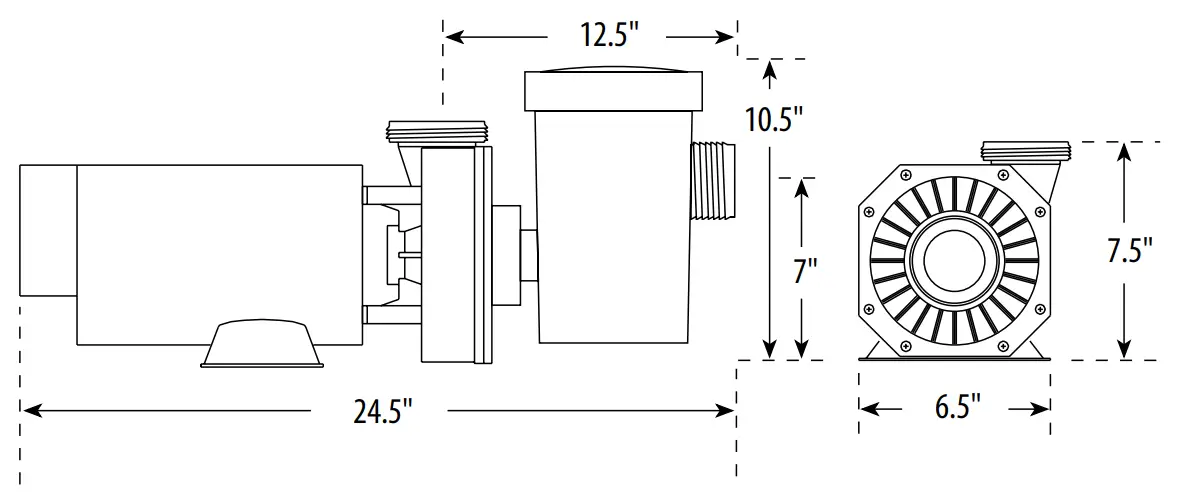

Dimensions

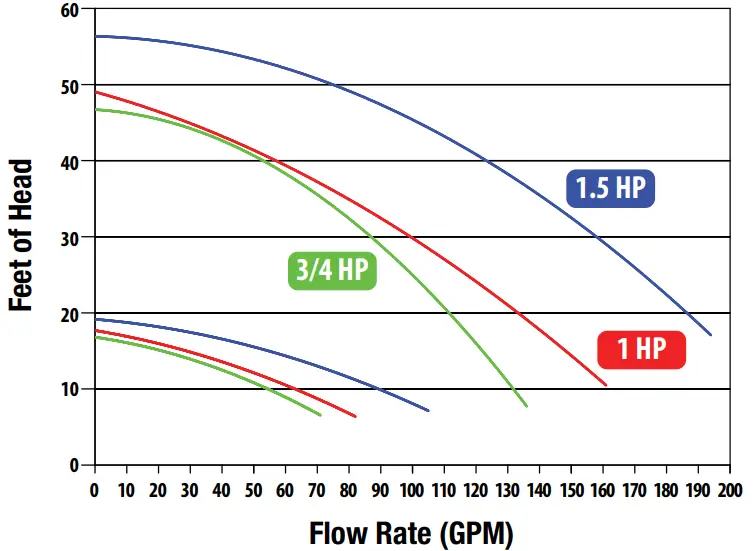

Hi-Flo II Pumps – Performance Curve
Hi-Flo II 48-Frame Pump & Trap – UL Listed
| Part No. | Description | Volts | HP |
| PH1075-3 | 1-Speed – 3 ft. Twist-Lock Cord | 115 | 3/4 |
| PH1100-3 | 1-Speed – 3 ft. Twist-Lock Cord | 115 | 1.0 |
| PH1150-3 | 1-Speed – 3 ft. Twist-Lock Cord | 115 | 1.5 |
| PH1200-3 | 1-Speed – 3 ft. Twist-Lock Cord | 115 | 2.0 |
| PH2075-3 | 2-Speed – 3 ft. Twist-Lock Cord | 115 | 3/4 |
| PH2100-3 | 2-Speed – 3 ft. Twist-Lock Cord | 115 | 1.0 |
| PH2150-3 | 2-Speed – 3 ft. Twist-Lock Cord | 115 | 1.5 |
| PH2200-3 | 2-Speed – 3 ft. Twist-Lock Cord | 115 | 2.0 |
| PH1075-6 | 1-Speed – 3 ft. NEMA Cord | 115 | 3/4 |
| PH1100-6 | 1-Speed – 3 ft. NEMA Cord | 115 | 1.0 |
| PH1150-6 | 1-Speed – 3 ft. NEMA Cord | 115 | 1.5 |
| PH1200-6 | 1-Speed – 3 ft. NEMA Cord | 115 | 2.0 |
| PH2075-6 | 2-Speed – 3 ft. NEMA Cord | 115 | 3/4 |
| PH2100-6 | 2-Speed – 3 ft. NEMA Cord | 115 | 1.0 |
| PH2150-6 | 2-Speed – 3 ft. NEMA Cord | 115 | 1.5 |
| PH2200-6 | 2-Speed – 3 ft. NEMA Cord | 115 | 2.0 |
Part numbers listed are for discharge in the vertical position (sand). For discharge in horizontal position (cartridge & D.E.), add “R” to the end of the part number.
Designed, Engineered & Manufactured in the USA.
