SUPERFLO® & WHISPERFLO® High Performance
Single-Speed Pumps
For smaller pools and pumped water features.

Department of Energy (DOE) compliance with strong performance and staying power.
Under new Department of Energy regulations, most single-speed pumps will fall out of compliance with low performance, greater wear and tear, and constant cleanliness worries. But for some small pools, pumped water features, and other situations, single-speed pumps still make sense. So Pentair has adjusted, by making our single-speed pumps the first and only to use NEMA Premium® Efficient* motors for pool applications–to save the most electricity possible and optimize hydraulic horsepower without sacrificing performance. This means you can offer your customers a single-speed solution that fits their needs and keeps them compliant.

KEY FEATURES

• Proprietary TEFC
  Motor High-quality proprietary Totally Enclosed Fan-Cooled (TEFC) motor for long, worry-free life.
• Maximum Circulation
  Enhanced design and balanced flow enable greater efficiency and reduced operating cost.
• Innovative Materials
  Improved design drives high innovation in materials, for a total package that stands up to demanding installations and conditions.
• Legacy of Performance
  These pumps are the result of our 40 years of delivering superior performance and earning the industry’s critical acclaim.

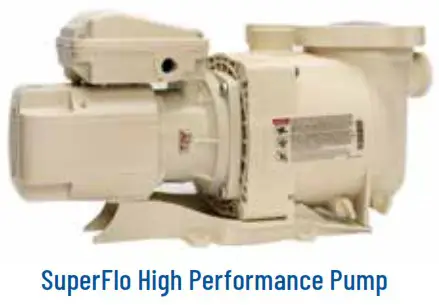

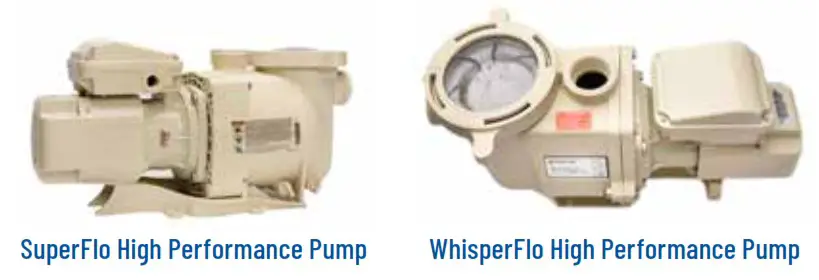

SuperFlo High-Performance Pump

• 1.5″ internal slip (2″ external slip) and quick-disconnect plumbing union for faster disassembly, making it a summer breeze to service.
• Cam and RampTM Lid permits easy inspection of the strainer basket and locks in place with a quarter turn for cleaning that is fast and easy.
• SuperFlo pumps are a high-performing drop-in replacement for the Hayward® Super Pump®.
• Meets DOE minimum efficiency requirements.

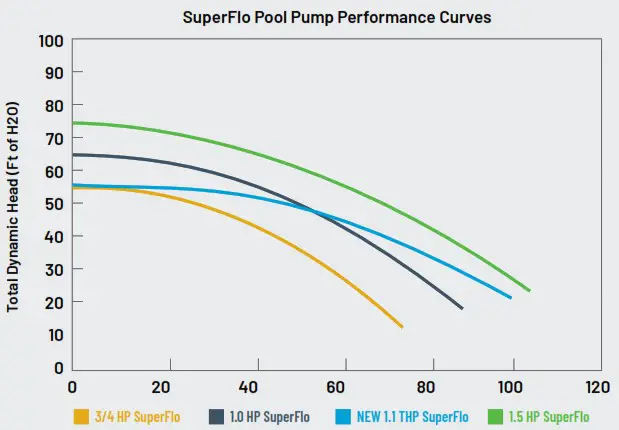

Volumetric Flow Rate (GPM)
Note: The 3/4 HP SuperFlo, 1.0 HP SuperFlo, and 1.5 HP SuperFlo pump represented here are non-compliant products included strictly for comparison. The new 1.1 THP SuperFlo (PN: 348190) is the only pump available for order.

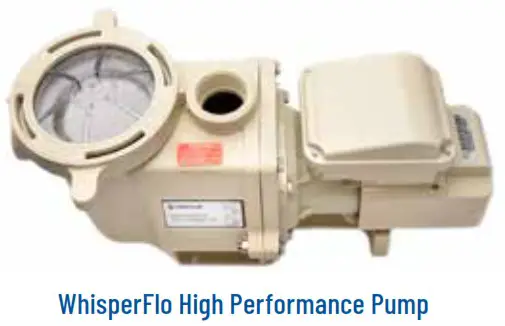

WhisperFlo High-Performance Pump

• 2″ NPT suction and discharge ports.
• Heavy-duty/durable construction is designed for long life.
• Cam and RampTM Lid permits easy inspection of the strainer basket and locks in place with a quarter turn for cleaning that is fast and easy.
• Meets DOE minimum efficiency requirements.

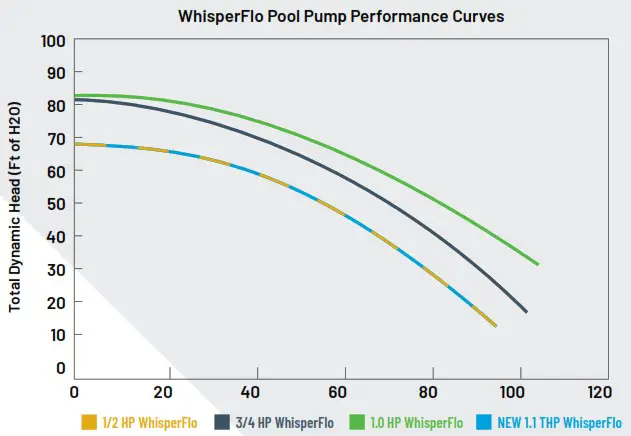

Volumetric Flow Rate (GPM)
Note: The 1/2 HP WhisperFlo, 3/4 HP WhisperFlo, and 1.0 HP WhisperFlo pumps represented here are full-rated, non-compliant products included strictly for comparison. The new 1.1 THP WhisperFlo (PN: 015583) is the only pump available for order.

Product Specifications

* WEF scores vary by product model. See pentair.com for a complete listing of pumps and their corresponding WEF values.

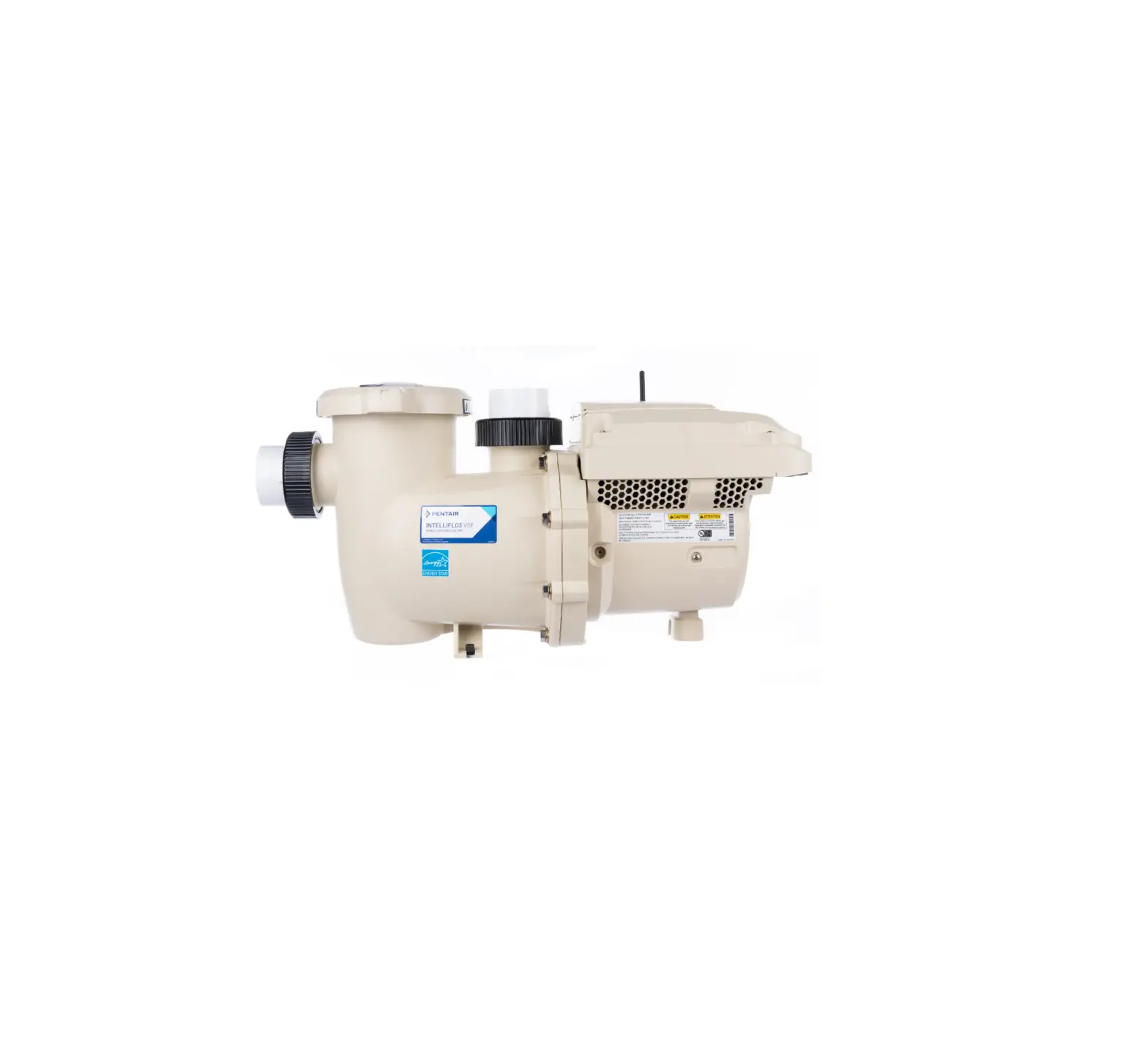

For bigger pools and pool-pad upgrades, check out our Variable Speed and Flow Pumps.
