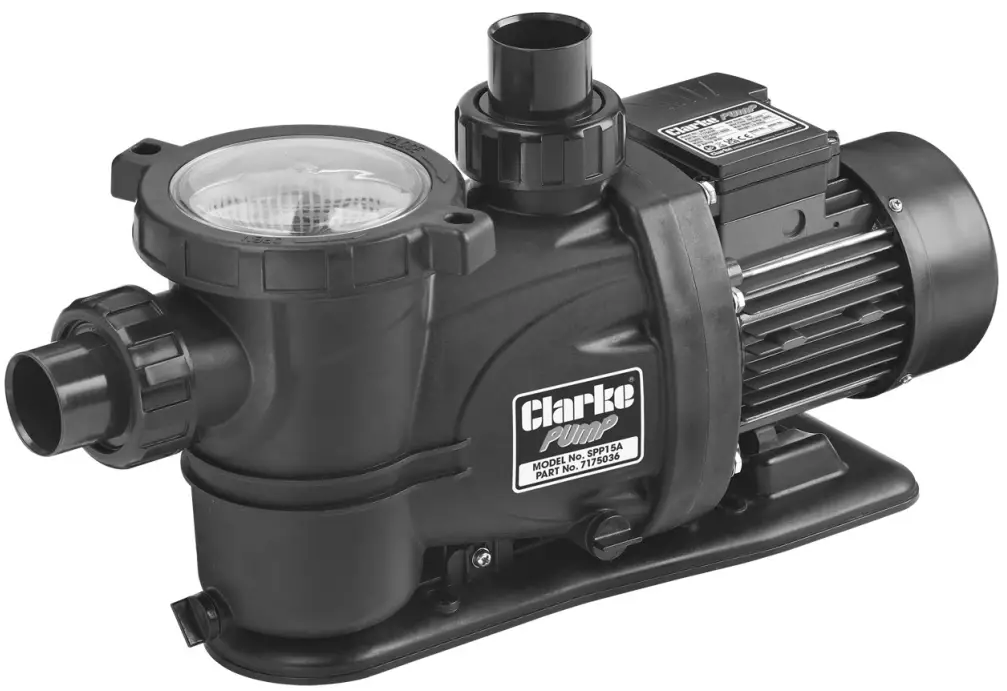

SWIMMING POOL PUMP
MODEL NO: SPP15A
PART NO: 7175036
OPERATION & MAINTENANCE
INSTRUCTIONS
INTRODUCTION
Thank you for purchasing this CLARKE Swimming Pool Pump.
Before attempting to operate the pump, it is essential that you read this manual thoroughly and carefully follow all instructions given. In doing so you will ensure the safety of yourself and that of others around you, and you can also look forward to the pump giving you long and satisfactory service.
This self-priming, the centrifugal swimming pool pump is designed for the filtration of small to medium size swimming pools and for pumping clean water only. Operating with contaminated or salt water should be avoided. When used with permanently installed pools, the pump should be fixed in a horizontal position and the use of a non-return valve will facilitate immediate priming. The pump inlet is higher than the impeller inlet so that it can start operating when only the pump body is filled with water.
Upon receipt, any damage or deficiency should be reported to your CLARKE dealer immediately
CONTENTS
1 x Swimming Pool Pump (c/w integral Pre-filter Basket)
2 x Inlet /Outlet Connectors
2 x Inlet /Outlet Connector Fixing Nuts
2 x Inlet /Outlet Connector O-Ring Seals
1 x Filter Cover Removal Wrench
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt which will be required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can be returned to us without prior permission.
This guarantee does not affect your statutory rights.
GENERAL SAFETY PRECAUTIONS
WARNING: THIS SWIMMING POOL PUMP IS NOT A SUBMERSIBLE PUMP. ON NO ACCOUNT SHOULD IT EVER BE IMMERSED IN WATER?
WARNING: ALWAYS CONNECT THE PUMP TO AN EARTHED POWER SUPPLY VIA A RCD.
- ALWAYS keep the pump room clean and well-lit. Floors should always be kept clear. Cluttered or dark areas invite accidents.
- NEVER over-reach. Keep your proper footing and balance at all times when installing or maintaining the pump.
- NEVER direct any water discharge towards electrical wiring or equipment.
- ALWAYS thoroughly familiarise yourself with this pump & its operation, and follow all instructions in this manual. Never allow persons unfamiliar with these instructions to operate the pump.
- ALWAYS ensure that the pump is properly installed to prevent it from moving during operation and that the immediate area surrounding the pump is kept clear.
- ALWAYS maintain the pump with care and keep it clean for the best / safest performance.
- NEVER use this product if any part is damaged. Has it been inspected and repaired by your local CLARKE dealer? Always turn the pump off before carrying out any maintenance.
- NEVER modify this pump in any way. Use it ONLY for the purpose for which it is designed.
- NEVER use for pumping flammable liquids or corrosive chemicals. This pump is designed to pump clean water only.
- NEVER switch the pump ON when the pool is in use. ALWAYS disconnect the pump from the electrical supply when the pool is in use.
- This pump must be connected to an earthed power supply via an RCD.
- ALWAYS have the pump serviced by your local CLARKE dealer, using only identical replacement parts. This will ensure the safety of the pump is maintained. The use of nonstandard parts could be hazardous.
- Your CLARKE water pump has been designed to give long and trouble-free service. If, however, having followed the instructions in this booklet carefully, you encounter problems, take the unit to your local CLARKE dealer.
- Please keep these instructions in a safe place for future reference.
ELECTRICAL CONNECTIONS
WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAIN SUPPLY.
Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved 13 amp BS 1363 plug or a suitably fused isolator switch.

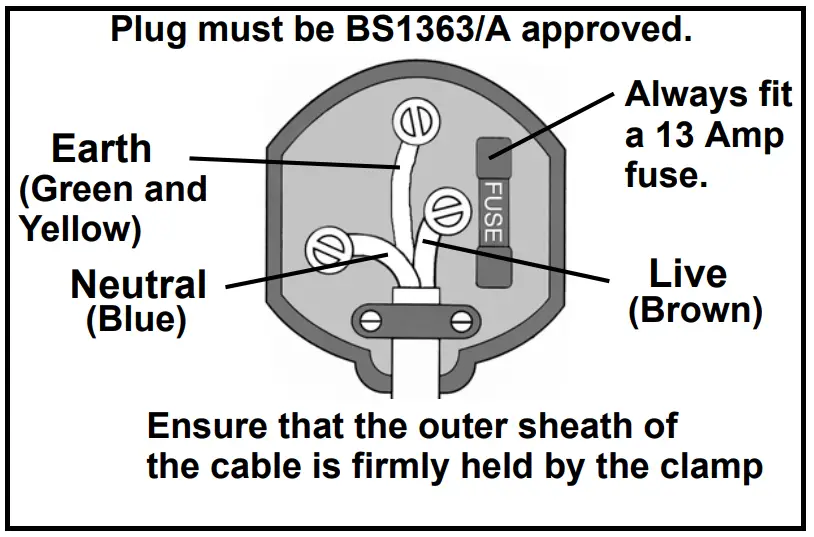

If the plug has to be changed because it is not suitable for your socket, or because of damage, it must be removed and a replacement fitted, following the wiring instructions are shown below. The old plug must be discarded safely, as insertion into a power socket could cause an electrical hazard.
WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE: BLUE = NEUTRAL BROWN = LIVE YELLOW AND GREEN = EARTH
If the colors of the wires in the power cable do not agree with the markings on the plug.
- The BLUE wire must be connected to the terminal marked N.
- The BROWN wire must be connected to the terminal marked L.
- The YELLOW AND GREEN wire must be connected to the terminal marked E or
.
.AN APPROVED RESIDUAL CURRENT DEVICE (RCD) THAT HAS A TRIPPING CURRENT OF LESS THAN 30MA MUST BE USED.
If you are not sure, consult a qualified electrician. DO NOT try to do any repairs.
INSTALLATION
Because of the variety of possible installations, no plumbing accessories are supplied with your pump, however, accessories are available from your nearest CLARKE dealer. Contact your CLARKE dealer for further information.
NOTE: It is recommended that the end-user should consult a qualified installer if there are any doubts as to the suitability of this product for a particular installation.
IMPORTANT: The pump MUST NOT be connected to the mains power supply until all hose/pipe installation is completed.
INSTALLATION OF THE PUMP

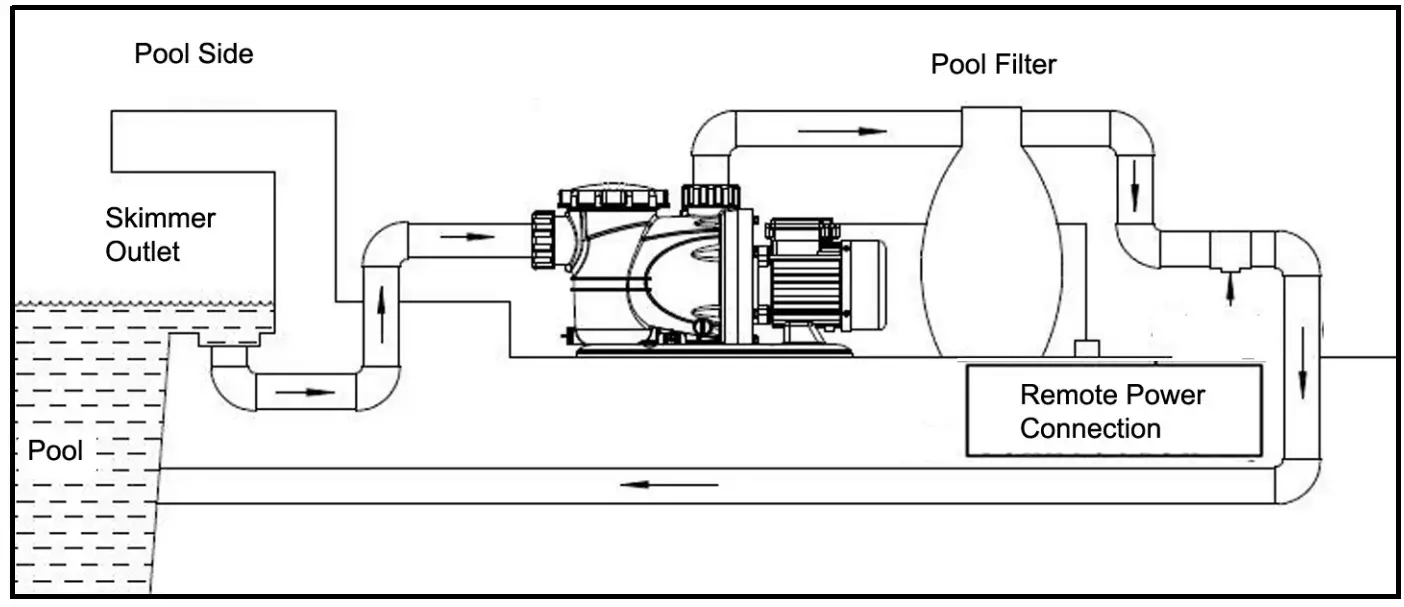

A typical installation of the pump is shown above. The pump must always be installed and operated in a horizontal position i.e. with the outlet port facing vertically upwards. The fixing holes in the base should be used to secure the pump firmly in its operating position. Mount the pump on raised blocks or a purpose-built platform to protect it from flooding.
Always ensure there is adequate air circulation around the motor and that the transparent filter cover is accessible so that the filter basket can be removed for cleaning. The pump should be installed in a dry, well-ventilated enclosure, sheltered from rain, such as a purpose-built pump room.
The pump is usually installed between the pool skimmer and the pool filter and should be positioned as near the pool water level as possible.
ELECTRICAL CONNECTION
The pump should be located at a safe distance, (usually 2 meters), away from the pool and the power supply should be at least 3.5 meters from the pool. If in doubt, please contact your electrical specialist and refer to the International Electrical Commission (IEC) standard, (Electrical Installations for Buildings-part 7), referring to ‘swimming pools and other basins’.
Avoid situations where the pump could become drenched with water as neither the motor or terminal box are designed to be waterproof. Ensure the pump & its cable do not create a safety hazard for people walking past it.
PIPE/HOSE CONNECTIONS
The pump inlet will be connected to the pool skimmer and/or pool drain connection, depending upon the installation layout, and the discharge outlet should be connected to your water filter.
The inlet and outlet adaptors supplied with the pump are designed to fit rigid pipe-work. The inner bore diameter of the adaptors is 50 mm. Therefore pipes with the same nominal diameter should be used. These should be fixed in place using a proprietary adhesive/sealant suitable for pressurized pipework applications.
These can be extended with the use of a suitable 50 mm I/D hose secured with a worm drive clip. Ensure all connections are air-tight. Tighten them enough to secure the hose during pressurized operation, but not so tight as to crack the plastic inlet/outlet connectors.
Where the pump is to be a permanent fixture, vibration and strain on adjacent parts can be reduced by the insertion of a short flexible section of hose between any rigid pipework and the immediate area of the pump.
Any air leaks in the suction line will inhibit priming and reduce the capacity of the pump. Ensure there are no kinks in any flexible hose used.
The performance of your pump will be affected by the diameter of the inlet pipe – any restriction will greatly reduce the flow. We recommend that you always use a pipe diameter at least equal to, or greater than the diameter of the pump connections i.e. 50 mm diameter.
To prevent unnecessary strain or possible distortion to the pump, ensure that adequate support is provided to the hoses and or pipes. They will be considerably heavier when filled with water.
It is suggested that suction and delivery isolation valves are fitted in order to isolate the pump. A gate valve may be installed in-line on the delivery side (outlet port) of the pump which can be adjusted as required to regulate the flow of water and can assist in priming the pump.
Protect the pump and pipework from freezing with the addition of suitable lagging. The formation of ice may cause serious damage.
OPERATION
- Open any valves in the pipeline.

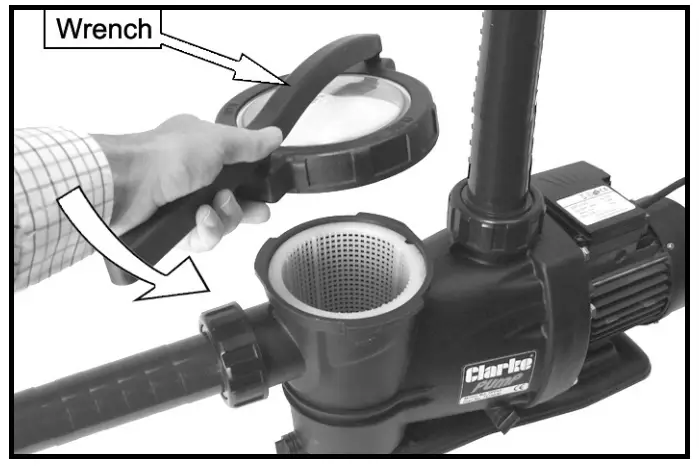

- If operating the pump for the first time, unscrew the filter cover on top of the pump using the wrench supplied and prime the pump by filling completely with water.
NOTE: The pump is only self-priming when filled with water. Refilling is only necessary if the pump has been drained, or if all the water has been lost.
- Connect to the power supply and switch it on. Water should start to flow through the system. Check for any leaks and repair as necessary.
- If the motor fails to start, or the pump does not deliver water, refer to TROUBLESHOOTING on page 10. Never operate the pump when not filled with water or if the inlet is blocked.
• The level of water in the pump can be seen through the transparent filter cover.
NOTE: Filling the suction pipe with water will speed up the priming process, and it is suggested that a non-return valve be fitted to the end of the suction pipe. - Stop the pump by switching off the power supply.
CARE DURING USE
- Do not allow the pump to run dry, otherwise, the seal between the pump and motor may be damaged. If a leak is noticed at this point, it may indicate that the seal is worn and therefore in need of replacement. Contact your CLARKE dealer or the CLARKE International Service Department for advice.
- In the event of a blockage, where debris has entered the suction chamber, the sieve and chamber can be cleaned out as described under MAINTENANCE.
- Should contaminants come into contact with the pump, flush through with cold water as soon as possible to prevent damage to the pump. DO NOT USE for pumping chemicals or other corrosive liquids (other than pool purification chemicals in their correct mix ratio).
- If the pump is being used to drain the pool, ensure there is adequate drainage and there is no risk of damage to property as a result of water being discharged. If a flexible hose must be laid across a roadway, protect it with wooden planking.
MAINTENANCE
The only maintenance required is a regular inspection to ensure that debris is not blocking the passage of water through the pump.

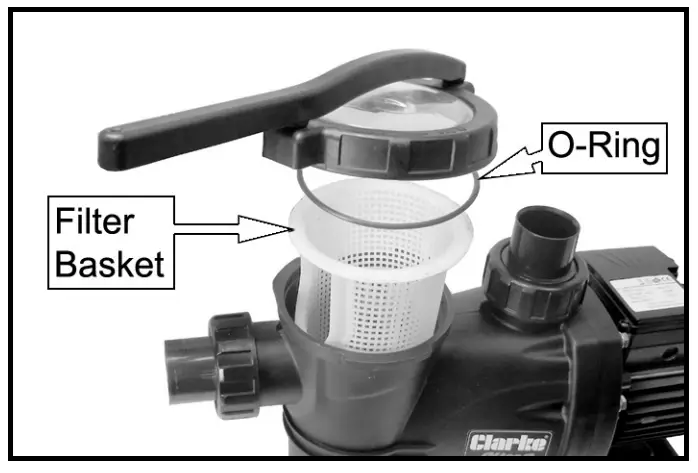

Clean the filter basket periodically after closing any inlet and delivery valves and removing the filter cover, using the wrench provided. Lift out the filter basket and clean it in water, check the cover O-ring is in good condition before reassembly.
If you suspect the pump is blocked by silt, leaf debris, etc, disconnect it from the mains supply and backflush to clear any blockage through the drain plug. You will need to disconnect the outlet hose to do this.
Always keep the pump in a clean condition, checking regularly for loose bolts or a damaged power cable, etc.
AFTER USE
After use, and if the pump will not be used over the winter period, or whenever there is a danger of freezing, always drain the pump body. If the pump has been used with contaminated or salty water, it should be thoroughly flushed with clean water following use, both inside and out. It should then be drained before replacing the drain plug, and covered over, if not already installed in a clean, dry environment sheltered from the weather. Remember to re-prime the pump when returning to service.
In the event that dismantling and overhaul of the pump is necessary, contact your CLARKE International Service Department on 020-8988-7400
ENVIRONMENTAL RECYCLING POLICY
Through the purchase of this product, the customer is taking on the obligation to deal with the WEEE in accordance with the WEEE regulations in relation to the treatment, recycling & recovery, and environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general household waste. It must be disposed of according to the laws governing Waste Electrical and Electronic Equipment (WEEE) at a recognized disposal facility.
SPECIFICATIONS
| Model Number | SPP15A |
| Pump type | Centrifugal |
| Weight | 13.93 kg |
| Dimensions (L x W x H) | 585 x 190 x 280 mm |
| Max Flow | 450 L/min |
| Max Head | 18 m |
| Operating Temperature | 35°C |
| Water Classification | Swimming Pools/Clean Water |
| Inlet & Outlet Size | 50 i/d / 56 o/d (mm) |
| Power Supply | 220-240V @ 50Hz |
| Ingress protection rating | IPX5 |
| Output Power | 1.5 HP (1150 W) |
| Sound Power Level | 79 dB LwA |
| Guaranteed Sound Power | 82 dB LwA |
Please note that the details and specifications contained herein, are correct at the time of going to print. However, CLARKE International reserve the right to change specifications at any time without prior notice.
TROUBLESHOOTING
| PROBLEM | CAUSE | SOLUTION |
| The pump does not run. | No mains supply | Check the fused power supply and replace the fuse if necessary (check fuse rating). Check the circuit breaker. |
| Impeller seized/blocked | Disconnect the pump from the main supply. Investigate cause and clear blockage. | |
| The pump fails to prime | Air leaks through suction hose joints (damaged hose, broken clamp, damaged/ill-fitting gasket) | Repair connections/replace the hose as necessary. |
| Blocked inlet hose. | Check pipeline & pool skimmer for blockage. Check any inlet valve fitted is fully open. | |
| The pump runs but gives poor output | The pump inlet filter basket is blocked. | Check and clean the filter basket. |
| Congested material inside the pump. | Clean out filter basket & backflush pump. | |
| Suction or delivery line obstructed. | Remove the obstruction and ensure there are no kinks in the delivery line. | |
| Inlet pipe leakage. | Check inlet pipe and connector for leaks. Tighten as required. | |
| Air leaks through the damaged seal. | Renew seal. | |
| Impeller damaged and making a poor seal. | Return to your CLARKE dealer for repair. | |
| The impeller / mechanical seal is badly worn. | Return to your CLARKE dealer for repair. | |
| High friction losses in the suction line. | Avoid unnecessary curves, restrictions, or valves. | |
| Pump badly sited resulting in suction lift too high. | Set the pump as close as possible to the level of the water to be pumped. |
| PROBLEM | CAUSE | SOLUTION |
| Sudden loss of flow. | Blockage of the inlet pipe. | Check pipeline and pool skimmer for blockage. |
| Undue vibration or noise. | Excessive flow of water. | Decrease flow by adjusting inlet/outlet valves in the system. |
| Resistance in inlet pipe caused by obstruction | Check pipe and clean out as necessary. | |
| Loose rotating component | Return to your CLARKE dealer for repair. | |
| Unstable installation of pump | Stop pump and re-position. | |
| Air pocket in pump or pipeline. | Release drain plug in impeller housing to release air. | |
| Damaged impeller | Return to your CLARKE dealer. |
If this does not solve your problem, please contact the CLARKE service department.

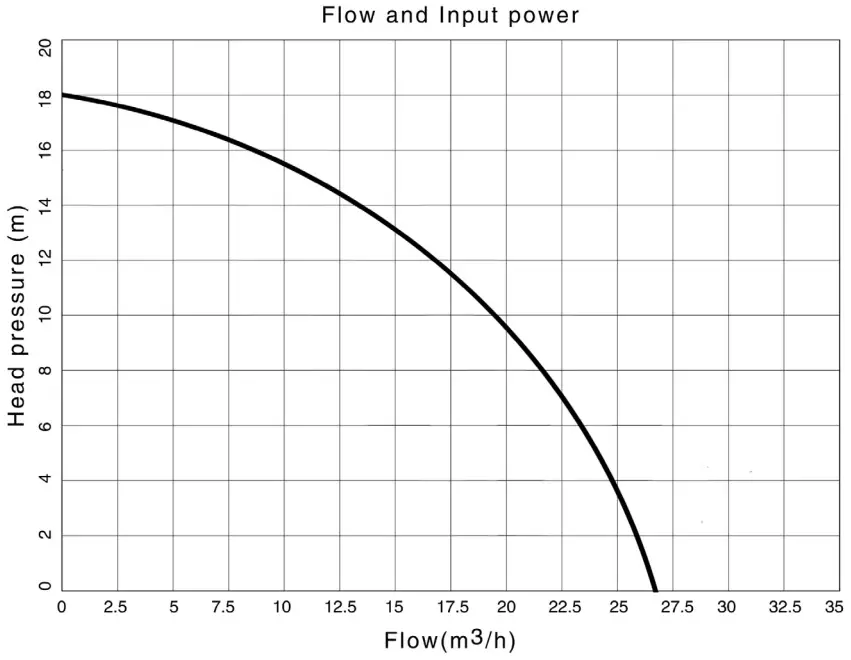

PERFORMANCE
PARTS DIAGRAM
PARTS LIST
| 1 | Top cover wrench | 32 | Capacitor |
| 2 | Top cover | 33 | 5 x 2.65 O-ring |
| 3 | Filter cover | 34 | Retardant block |
| 4 | Sieve/Basket | 35 | Clamp wire cap |
| 5 | 135 x 4.5 O-ring | 36 | M4 x 10 bolt |
| 6 | Pump body | 37 | Terminal box |
| 7 | 66 x 4.7 O-Ring | 38 | Gasket |
| 8 | Water outlet connector | 39 | Motor stator |
| 9 | Nut | 40 | Locking washer |
| 10 | Drain plug | 41 | Spring washer |
| 11 | 16 x 3.55 O-ring | 42 | M4x6 bolt |
| 12 | Flat washer | 43 | Cable clip |
| 13 | ST6.3 x19 Self-tapping screw | 44 | ST4.2×14 Self-tapping screw |
| 14 | Sealing ring | 45 | Connection knob |
| 15 | Diffuser | 46 | Spring washer |
| 16 | Impeller | 47 | M4 x6 bolt |
| 17 | Mechanical seal | 48 | Seal sheath |
| 18 | Base casting | 49 | Seal mat |
| 19 | Base seal | 50 | Cover box nut |
| 20 | Case sealing gasket | 51 | Power cable |
| 21 | Pump end cover | 52 | Circlip for shaft |
| 22 | Flat washer | 53 | Rotor |
| 23 | Spring washer | 54 | 6204 Ball bearing |
| 24 | M8x40 Hex head bolt | 55 | Wave spring |
| 25 | Waterproof ring | 56 | 47 x3.1 O-Ring |
| 26 | Pump support | 57 | M5 x1 75 Hex head bolt |
| 27 | M8 x22 socket head cap screw | 58 | End plate |
| 28 | ST4.2×16 countersunk bolt | 59 | V-sealing ring |
| 29 | Nameplate | 60 | Fan |
| 30 | Terminal cover | 61 | Flat washer |
| 31 | Sealing washer | 62 | Fan cover |
UK DECLARATION OF CONFORMITY
Hem null Street. Epping. Essex am16 4LG
DECLARATION OF CONFORMITY
This is an important document and should be retained.
Product Description: 1.5hp Swimming Pool Pump
Model number(s): SPP15A Serial / batch
Number: N/A Date of Issue: 18/03/2022 (Noise Conformity)
Notified Body: n/a
Technical Documentation Holder: A.R. Pond Clarke International 2a Shrubland Road London E10 7RB UK
Conformity Assessment Procedure: to 2000/14/EC Annex VI
Manufacturer: Clarke International
Noise Related Value: 1.6 kW
Measured Sound Power Level: 79 dB
Guaranteed Sound Power Level: 82 dB
Hemnoll Street Epping. Essex 01M16
DECLARATION OF CONFORMITY
This is an important document and should be retained.
We hereby declare that this product(s) complies with the following statuary requirement(s):
Electromagnetic Compatibility Regulations 2016
Electrical Equipment (Safety) Regulations 2016
The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012
Noise Emission in the Environment by Equipment for Use Outdoors Regulations 2001
The following standards have been applied to the product(s):
EN 55014-1:2006/A2:2011, EN 55014-2:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 60335-2-41:2003/A2:2010, EN 60335-1:2012/A2:2019, EN 62321-1:2013, EN 62321-2:2014, EN 62321-3-1:2014, EN 62233:2008.
The technical documentation required to demonstrate that the product(s) meet(s) the requirement(s) of the aforementioned legislation has been compiled and is available for inspection by the relevant enforcement authorities.
The UKCA mark was first applied in 2022
Signed:
CE DECLARATION OF CONFORMITY
Fitzwilliam Hall, Fitzwilliam Place, Dublin 2
DECLARATION OF CONFORMITY
This is an important document and should be retained.
Product Description: 1.5hp Swimming Pool Pump
Model number(s): SPP15A
Serial I batch Number: N/A
Date of Issue: 18/03/2022
(Noise Conformity) Notified Body: n/a
Technical Documentation Holder: A.R. Pond Clarke International 2a Shrubland Road London E10 7RB UK
Conformity Assessment Procedure: to 2000/14/EC Annex VI
Manufacturer: Clarke International
Noise Related Value: 1.6 kW
Measured Sound Power Level: 79 dB
Guaranteed Sound Power Level: 82 d
Fitzwilliam Hall, Fitzwilliam Place, Dublin 2
DECLARATION OF CONFORMITY
This is an important document and should be retained.
We hereby declare that this product(s) complies with the following directive(s):
2014/30/EU Electromagnetic Compatibility Directive.
2014/35/EU Low Voltage Equipment Directive.
2011/65/EU Restriction of Hazardous substances (amended by (EU)
2015/863) 2000/14/EC Noise Emissions Directive, (amended by 2005/88/EC).
The following standards have been applied to the product(s):
EN 55014-1:2006/A2:2011, EN 55014-2:2015, EN 61000-3-2:2014, EN 61000-3-3:2013,
EN 60335-2-41:2003/A2:2010, EN 60335-1:2012/A2:2019, EN 62321-1:2013, EN 62321-2:2014,
EN 62321-3-1:2014, EN 62233:2008.
The technical documentation required to demonstrate that the product(s) meet(s) the requirement(s) of the aforementioned directive(s) has been compiled and is available for inspection by the relevant enforcement authorities.
The CE mark was first applied in 2020
Signed:
A SELECTION FROM THE VAST RANGE OF
 | QUALITY PRODUCTS AIR COMPRESSORS From DIY to industrial, Plus air tools, spray guns, and accessories. GENERATORS Prime duty or emergency standby for business, home, and leisure. POWER WASHERS Hot and cold, electric and engine driven – we have what you need WELDERS Mig, Arc, Tig, and Spot. From DIY to auto/industrial. METALWORKING Drills, grinders, and saws for DIY and professional use. WOODWORKING Saws, sanders, lathes, mortisers, and dust extraction. HYDRAULICS Cranes, body repair kits, and transmission jacks for all types of workshop use. WATER PUMPS Submersible, electric, and engine-driven for Dm agriculture and industry. POWER TOOLS Angle grinders, cordless drill sets, saws, and sanders. STARTERS/CHARGERS All sizes for car and commercial use. |  |
| PARTS & SERVICE: 0208 988 7400 |
| Parts Enquiries [email protected] |
| Servicing & Technical Enquiries [email protected] |
| SALES: UK 01992 565333 or Export 00 44 (0)1992 565335INTERNATIONAL Hemnall Street, Epping, Essex CM16 4LG www.clarkeinternational.com |
