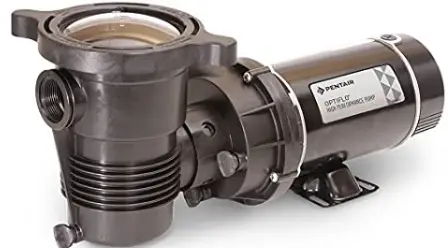

Pentair 348195 Optiflo 1thp Vertical Above Ground Pool Pump Instruction Manual

Product Usage Instructions

To use the product, follow these steps:

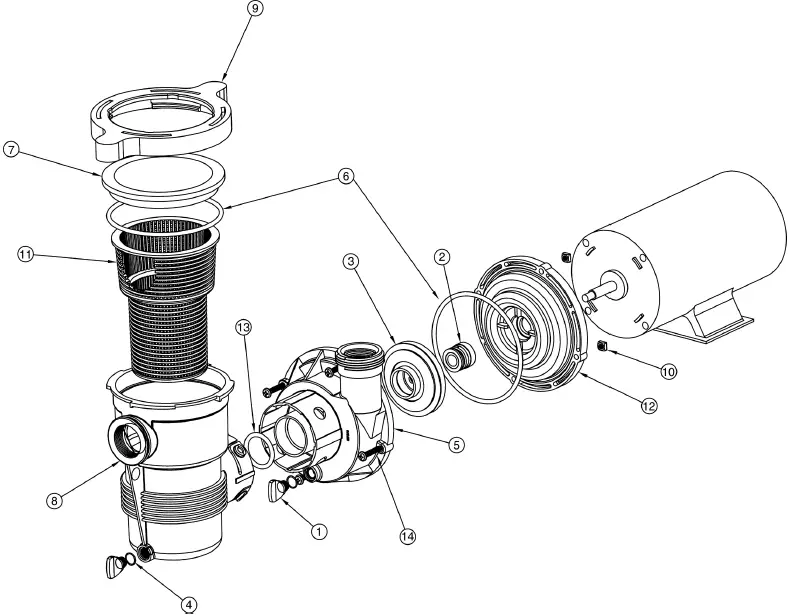

1. Ensure all the necessary parts are included in the package.
2. Identify the specific part required for your application.
3. Refer to the corresponding item number and part number for easy identification.
4. Assemble the parts according to the manufacturer’s instructions.
5. If using the drain plugs, insert them into the appropriate slots.
6. Make sure to correctly install the mechanical seal, impeller, and other components as needed.
7. Use the O-rings and lid provided for proper sealing.
8. If using the chemical resistant pot lid, ensure it is securely attached.
9. Tighten the clamp ring to secure the components in place.
10. If necessary, use the square nut and machine screw for additional fastening.
11. If applicable, connect the 3 ft. cord – standard or 3 ft. cord – TW to the appropriate power source.
