SE20-VF LED 20 W
Features
- Compliance with Lighting and LED Equipment Regulations
- High Power Factor, Low THD
- Low Standby Power Consumption
- IP20 for Indoor Installation
- MM Marking for Furniture Installation
- Suitable for LED Lighting Applications
Marks / Approvals
Specifications
| MODEL No. | Voltage | Min. Load | Max. Load | Max. Power |
| SE20-12VF | 12 V | 0.00 A | 1.670 A | 20 W |
| SE20-24VF | 24 V | 0.00 A | 0.833 A | 20 W |
| INPUT | Voltage | AC 180 V – 264 V |
| Frequency | 47 Hz – 63 Hz | |
| Current (RMS max) | 0.20 A | |
| Power Factor | 0.63 – 0.65 | |
| PROTECTION | Overload | 1.4x rated load, Auto Recovery |
| Overvoltage | 1.5x rated voltage, Auto Recovery | |
| Short Circuit | Short Circuit Power ≤ 0.5 W, Hiccup Mode, Auto Recovery | |
| Input Surge Current | < 60 A | |
| OTHERS | Cooling | Convection Cooling |
| Efficiency | ≥ 83 % typical | |
| Startup Time | 400 ms | |
| Protection Marking | IP20 (IEC 60529) | |
| Working Noise | < 35 dB, pickup at 10 cm | |
| Protection Class | Class II | |
| Case Material | Plastic cover with terminal block Input: H03VVH2-F 2×0.75mm²; Output: H03VVH2-F 2×1.00mm² | |
| Environment | Temperature | Operating: -20 °C to 45 °C / Max. Case Temperature: 75 °C Storage: -40 °C to 85 °C |
| Humidity | Operating: 10 % RH to 90 % RH Storage : 5 % RH to 95 % RH |
| Lifetime | 55 000 hrs at max. Ta, rated input voltage, output max. rated power |
| SAFETY | IEC / EN 61347-1, IEC / EN 61347-2-13, UL8750 |
| EN 55015 | |
| EMS | EN 61547 |
| Harmonic | EN 61000-3-2 Class C |

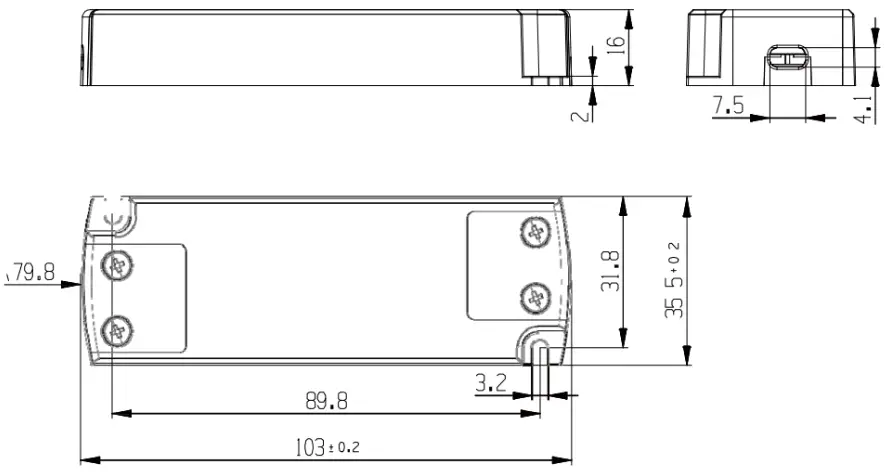

| Case Dimensions | 103 mm x 35.5 mm × 16 mm |
Specifications subject to change without notice
