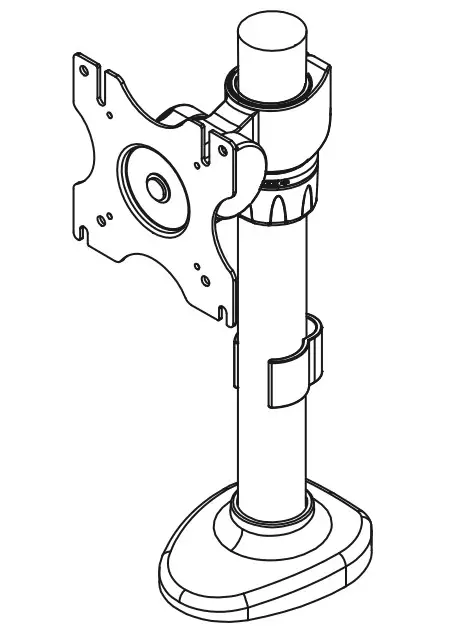

BT7371 Flat Screen Mount
Installation Guide
SPECIFICATIONS
- Recommended screen size: up to 28″
- Max load: 9kg (20Ibs)
- Fits screens with VESA® mounting patterns: 75 x 75mm and 100 x 100mm
- Supplied with a desk clamp and a grommet clamp
- Easy tilt, swivel, and height adjustment
- Simple installation with all mounting hardware included
INSTALLATION SAFETY INSTRUCTIONS
CAUTION: This mount is intended for use only with the maximum weights indicated. Use with equipment heavier than the maximum indicated may result in instability causing possible injury.
Do not attempt to install this product until all instructions and warnings have been read and properly understood.
Please keep these instructions for future reference.
Please check carefully to make sure there are no missing or defective parts – defective parts must never be used.
B-Tech AV Mounts, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire.
General
B-Tech AV Mounts recommends that a professional AV installer or other suitably qualified person install this product.
Great care must always be taken during installation as most AV equipment is of a fragile nature, possibly heavy and easily damaged if dropped.
If you do not fully understand the instructions or are not sure how to install this product safely, then please consult a professional for advice and/or to install this product for you. Failure to mount this product correctly may cause serious injury or death both during installation and at any time thereafter.
Do not mount any AV equipment that exceeds the specific weight limit of the product you are installing.
This weight limit will be clearly stated on each product and its packaging and will vary from product to product.
Product location
Please pay careful attention to where this product is located. Check the load capacity of the surface prior to installation as some surfaces are not suitable for installation. Designed for indoor use, this mount is suitable for public or home installation If located in a public or frequently populated area ensure that the product is out of the immediate reach of people. If any AV equipment is to be suspended over the likely path or location of people then great care should be taken to secure all parts of the installation from falling.
Fixing hardware
It is highly recommended that all fixing screws be used where supplied and that the purpose of all other fixing hardware is fully understood. In some cases, more AV equipment fixing hardware will be supplied to accommodate different models of equipment and setup configurations. The installer must be satisfied that any supplied fixing hardware is suitable for each specific installation. If any fixing screws or included hardware are deemed not sufficient for a safe installation then please consult a professional or your local hardware store.
Hazard limitation
When routing cables take advantage of any built-in cable management features that the product might provide and ensure that all cables are tidy and secure. Check to see that any moving aspect of the product can do so unhindered by any cabling.
Some products have moving parts and the potential to cause injury through the crushing or trapping of fingers or other body parts. Particular attention to the nature of moving parts is required especially when assembling installing and adjusting during setup. Immediately after installation double-check that the work done is safe and secure. Double-check all necessary fixings are present and are of ample tightness.
It is recommended that periodic inspections of the product and its fixing points are made as frequently as possible (no more than 6 months apart) to ensure that safety is maintained.
If in doubt consult a professional AV installer or another suitably qualified person.

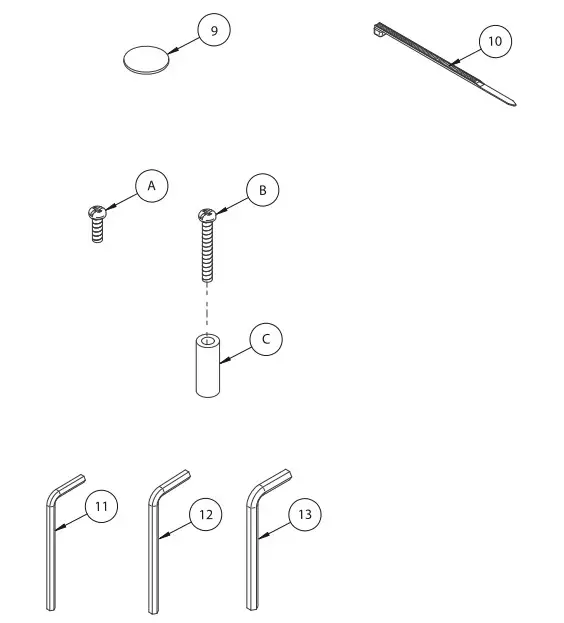

PARTS LIST
 |  |
| ITEM | PART NAME | QTY |
| 1 | POLE ASSEMBLY | 1 |
| 2 | INTERFACE PLATE | 1 |
| 3 | HEIGHT ADJUSTMENT COLLAR | 1 |
| 4 | CLAMP CONNECTION PLATE | 1 |
| 5 | DESK CLAMP | 1 |
| 6 | GROMMET CONNECTION PLATE | 1 |
| 7 | GROMMET CLAMP | 1 |
| 8 | CABLE CLIP | 1 |
| 9 | FOAM PAD | 4 |
| 10 | CABLE TIE | 5 |
| 11 | 3AF HEX KEY | 1 |
| 12 | 4AF HEX KEY | 1 |
| 13 | 5AF HEX KEY | 1 |
| INTERFACE KIT | ||
| A | M4 x 12mm SCREW | 4 |
| B | M4 x 25mm SCREW | 4 |
| C | SPACER | 4 |
Suitable for loads up to 9kg (201bs)
INSTALLATION TOOLS REQUIRED

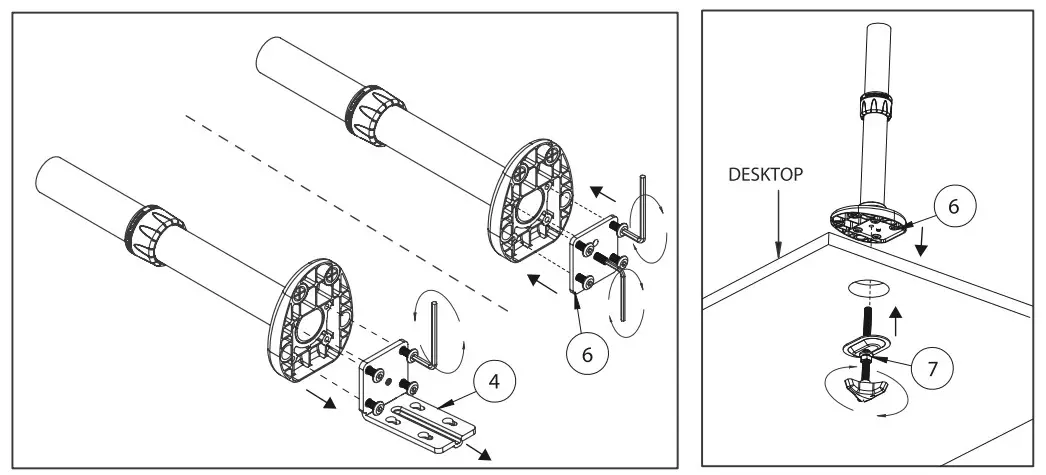

- FIX MOUNT TO DESKTOP

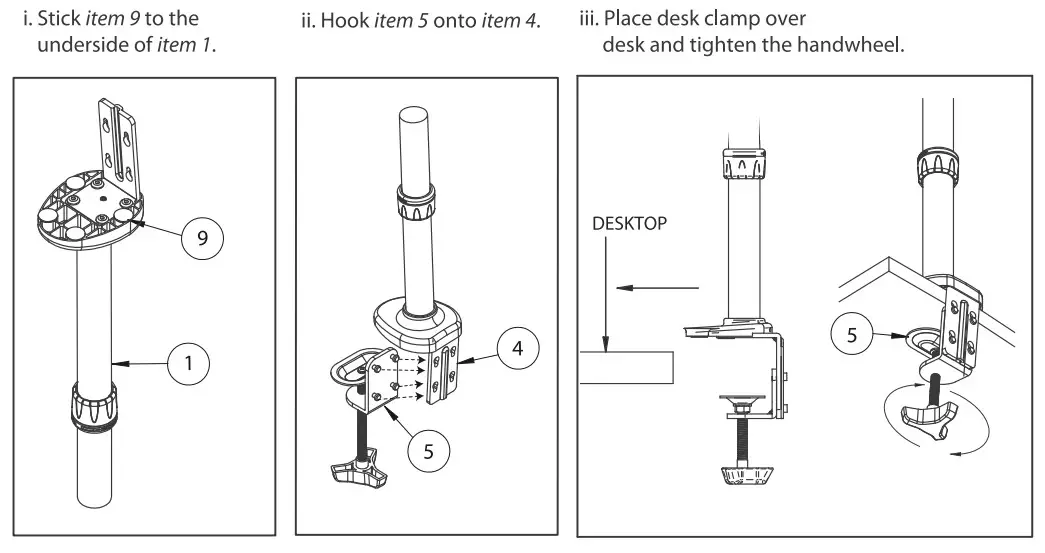

a. DESK CLAMP
b. GROMMET CLAMP
- Stick item 9 to the underside of item 1. (see Steps 1 and i.)
- Remove item 4 from the base.
- Attach item 6 to the base.
- Tighten the handwheel on item 7 connecting the clamp and pole to the desk.

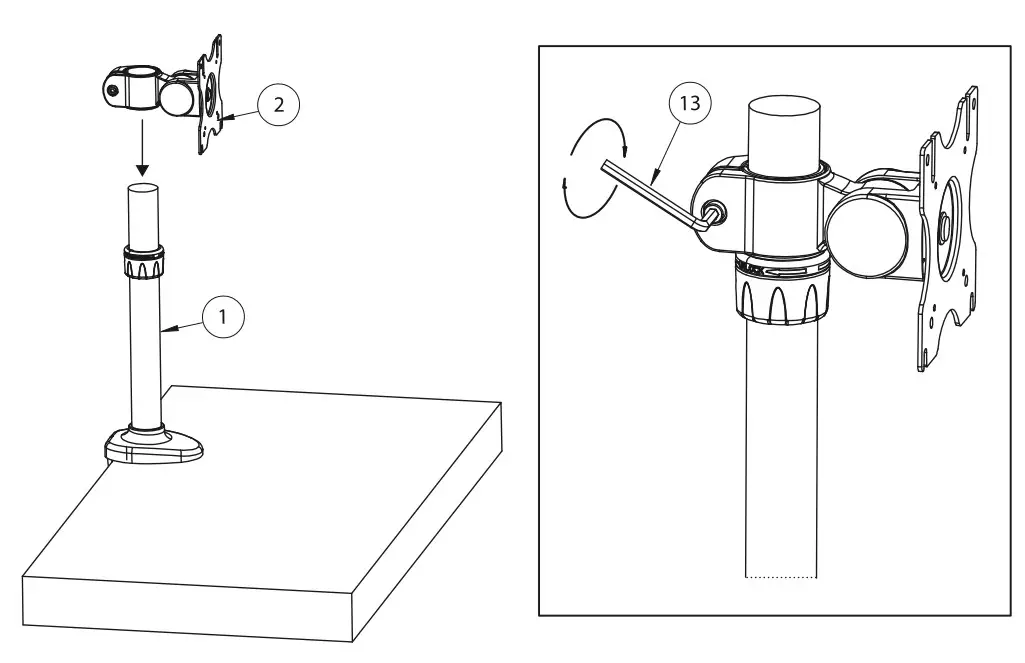

MOUNTING INTERFACE PLATE TO POLE

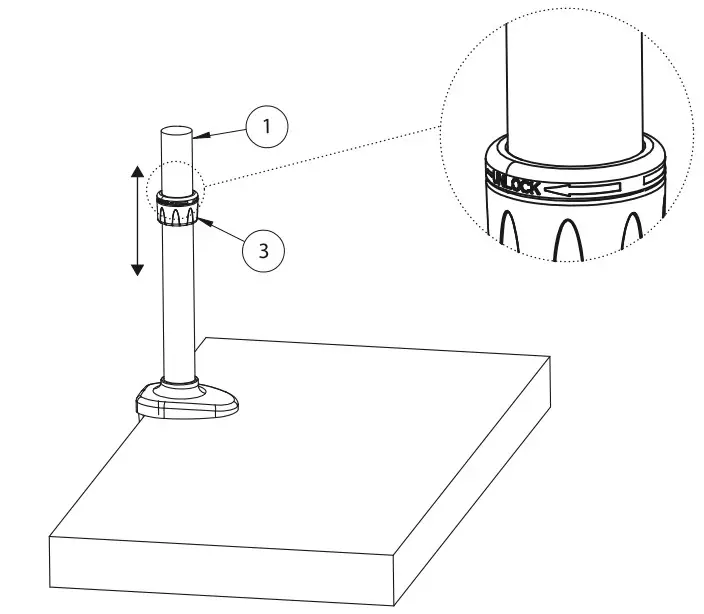

- Fix the height of interface plate item 1 by adjusting item 3.
- Slide item 2 onto item 1 and tighten the screw with item 13 (Optional).

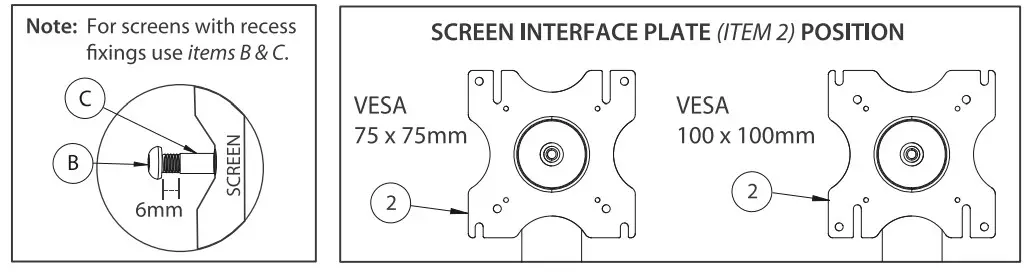

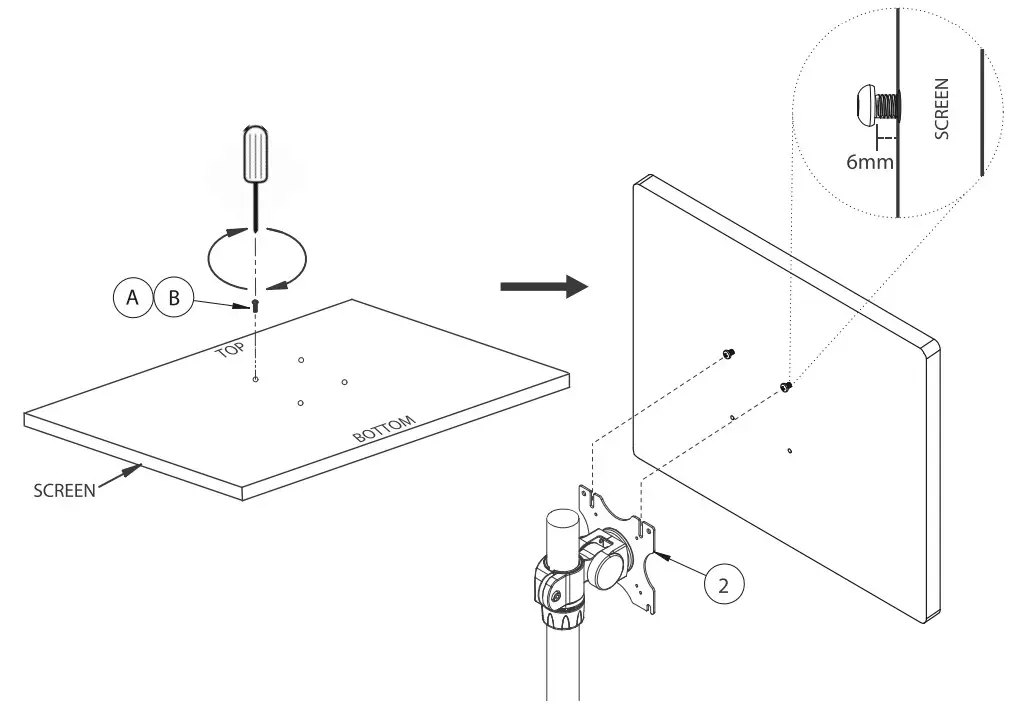

MOUNT SCREEN TO INTERFACE PLATE
- Insert halfway, 2 screws from the interface kit (items A or 8) into the top fixing holes of the screen.
- Hook the screen onto item 2, add the bottom 2 fixing screws, and then tighten all screws.

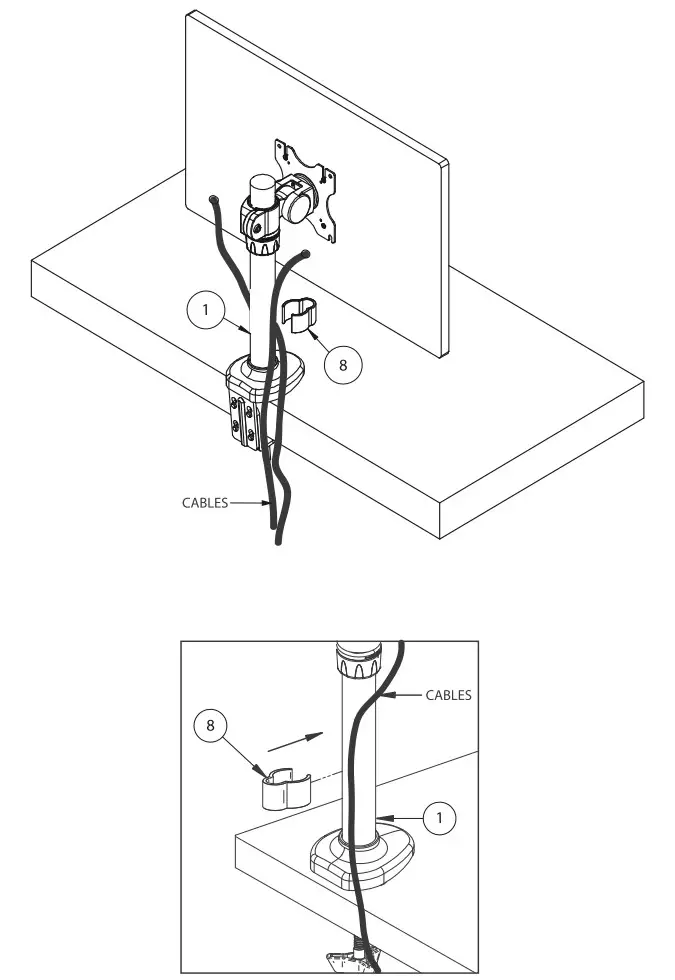

CABLE MANAGEMENT
Use item 8 to attach cables to item 1.

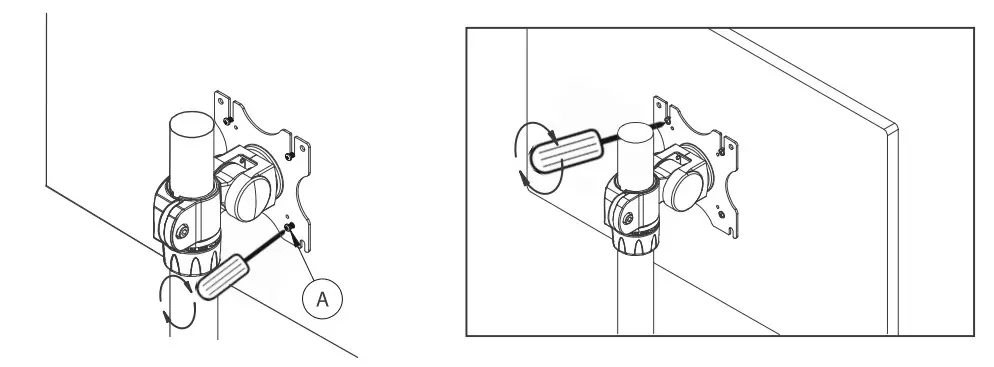

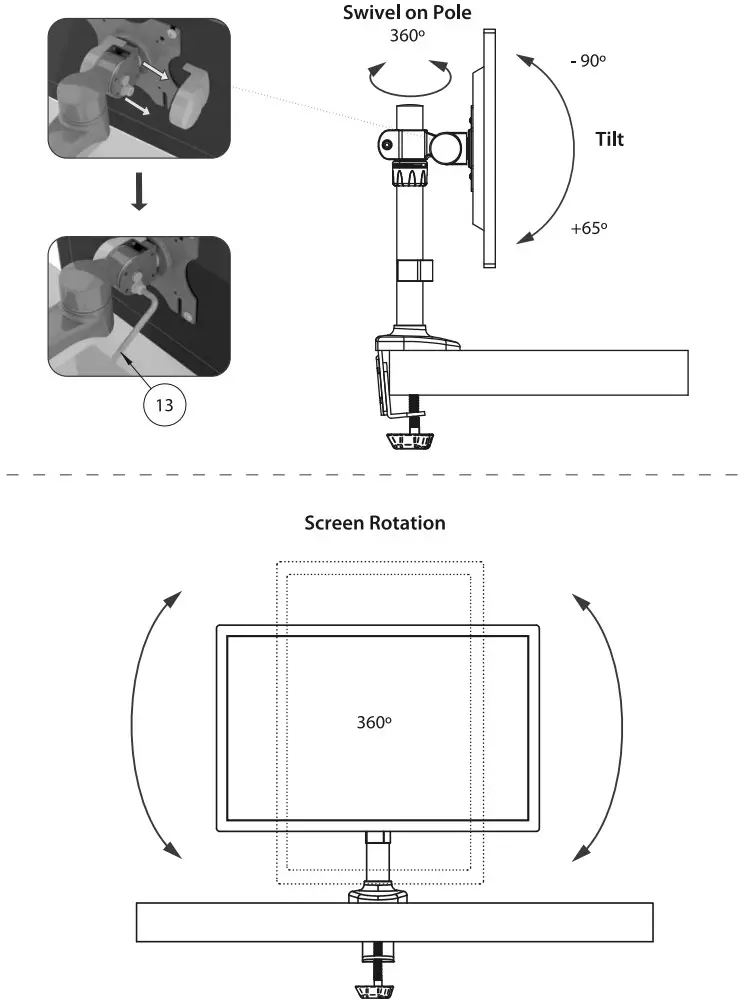

ADJUSTING THE RESISTANCE

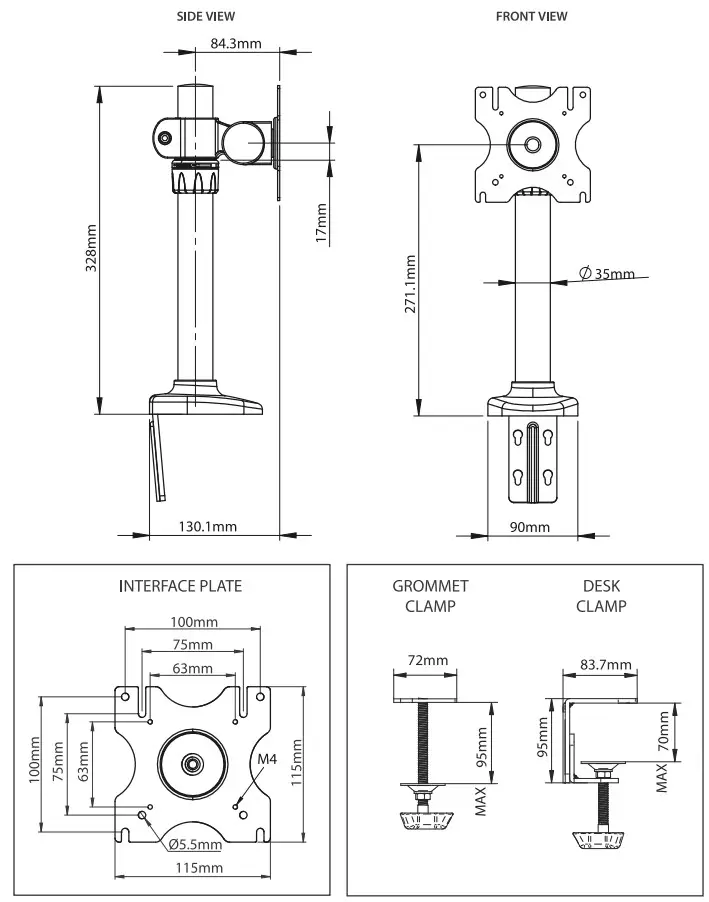

DIMENSIONS
THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO
LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.
CONTACT:
[email protected]
02020 B-Tech AV Mounts. All rights reserved.
B-Tech AV Mounts is a division of B-Tech International Design and Manufacturing Ltd.
B-Tech AV Mounts and the B-Tech logo are registered trademarks.
All other brands and product names are trademarks of their respective owners.
Photographs are for illustrative purposes only. E&OE.
AMA-BT7371-V1.1-1120-21 MADE IN THE P.R.C.
