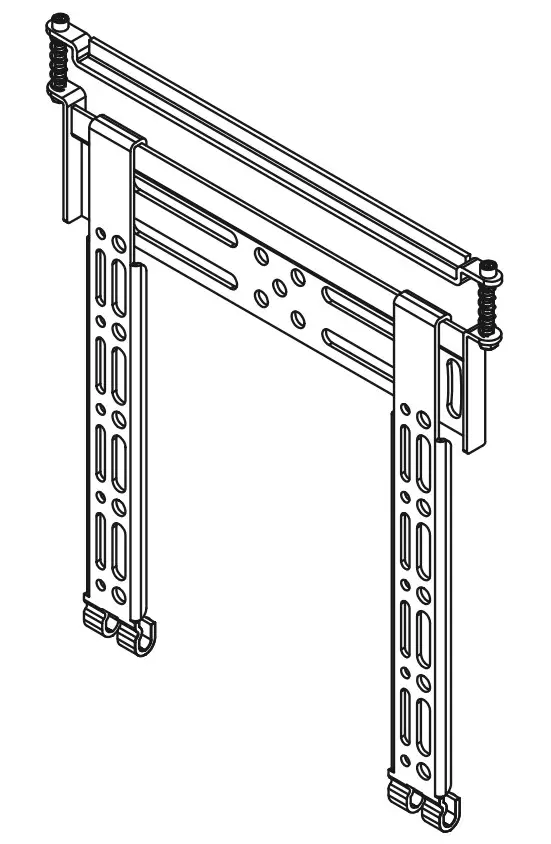

BT8200 Ultra Slim Universal Flat Screen Wall Mount
Installation Guide
SPECIFICATIONS
- Recommended for screens up to: 47″ (120cm)
- Max load: 40kg (88lbs)
- Suitable for screens with VESA® and non-VESA fixings up to 230 x 200mm
- Mounts screen 14mm from wall
- Simple ‘hook-on’ installation with all mounting hardware included
INSTALLATION SAFETY INSTRUCTIONS
CUTION: This mount is intended for use only with the maximum weights indicated. Use with equipment heavier than the maximum indicated may result in instability causing possible injury.
Do not attempt to install this product until all instructions and warnings have been read and properly understood.
Please keep these instructions for future reference.
Please check carefully to make sure there are no missing or defective parts – defective parts must never be used.
B-Tech AV Mounts, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire.
General
B-Tech AV Mounts recommends that a professional AV installer or other suitably qualified person install this product.
Great care must always be taken during installation as most AV equipment is of a fragile nature, possibly heavy and easily damaged if dropped.
If you do not fully understand the instructions or are not sure how to install this product safely, then please consult a professional for advice and/or to install this product for you. Failure to mount this product correctly may cause serious injury or death both during installation and at any time thereafter.
Do not mount any AV equipment that exceeds the specific weight limit of the product you are installing.
This weight limit will be clearly stated on each product and its packaging and will vary from product to product.
Product location
Please pay careful attention to where this product is located. Check load capacity of the wall prior to installation as some surfaces are not suitable for installation. Designed for indoor use, this mount is suitable for public or home installation If located in a public or frequently populated area ensure that the product is out of the immediate reach of people.
If any AV equipment is to be suspended over the likely path or location of people then great care should be taken to secure all parts of the installation from falling.
When drilling holes it is essential to avoid contact with electrical cables and water or gas pipes contained within.
Use of a good quality live wire detector and hidden object locator is therefore recommended.
Only drill into structures when you are sure it is safe to do so.
Fixing hardware
It is highly recommended that all fixing screws be used where supplied and that the purpose of all other fixing hardware is fully understood. In some cases more AV equipment fixing hardware will be supplied to accommodate different models of equipment and set up configurations. The installer must be satisfied that any supplied fixing hardware is suitable for each specific installation. The fixing kit supplied with the product may not be suitable for all walls.
If any fixing screws or included hardware are deemed not sufficient for a safe installation then please consult a professional or your local hardware store.
Hazard limitation
When routing cables take advantage of any built in cable management features that the product might provide and ensure that all cables are tidy and secure. Check to see that any moving aspect of the product can do so unhindered by any cabling.
Some products have moving parts and the potential to cause injury through the crushing or trapping of fingers or other body parts. Particular attention to the nature of moving parts is required especially when assembling installing and adjusting during set up. Immediately after installation double-check that the work done is safe and secure. Double-check all necessary fixings are present and are of ample tightness.
It is recommended that periodic inspections of the product and its fixing points are made as frequently as possible (no more than 6 months apart) to ensure that safety is maintained.
If in doubt consult a professional AV installer or other suitably qualified person.

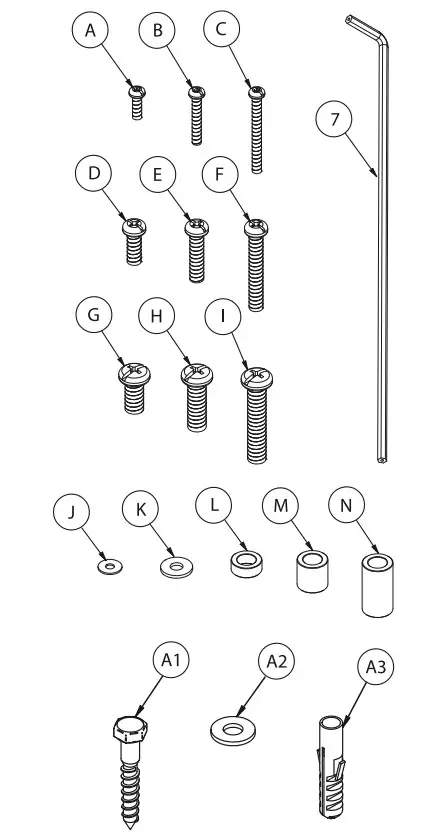

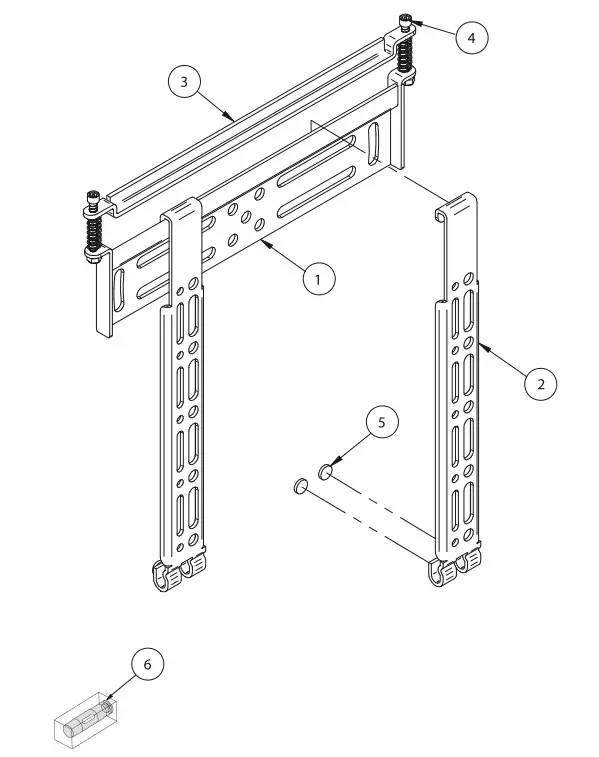

PARTS LIST
Suitable for loads up to 40kg (881bs)
| ITEM | PART NAME | QTY |
| 1 | WALL PLATE | 1 |
| 2 | INTERFACE ARM | 2 |
| 3 | LOCKING BAR | 1 |
| 4 | M5 x 40mm PIN HEX SCREW | 2 |
| 5 | FOAM PAD | 4 |
| 6 | LEVEL | 1 |
| 7 | 4AF PIN HEX KEY | 1 |
| SCREEN INTERFACE KIT | ||
| A | M4 x 12mm SCREW | 4 |
| g | M4 x 25mm SCREW | 4 |
| C | M4 x 40mm SCREW | 4 |
| D | M6 x 16mm SCREW | 4 |
| E | M6 x 25mm SCREW | 4 |
| F | M6 x 40mm SCREW | 4 |
| G | M8 x 16mm SCREW | 4 |
| H | M8 x 25mm SCREW | 4 |
| I | M8 x 40mm SCREW | 4 |
| J | M4 WASHER | 4 |
| K | M6 WASHER | 4 |
| L | 5mm SPACER | 4 |
| M | 13mm SPACER | 4 |
| N | 24mm SPACER | 4 |
| WALL FIXING KIT | ||
| Al | M8 x 50mm COACH SCREW | 4 |
| A2 | M8 METAL WASHER | 4 |
| A3 | N°.10 WALL PLUG | 4 |

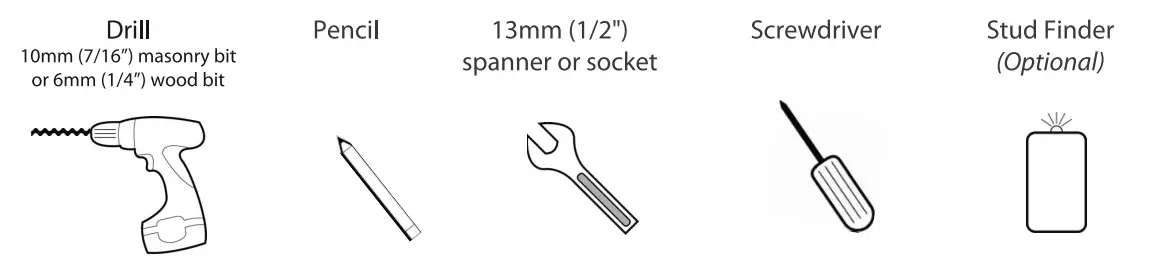

INSTALLATION TOOLS REQUIRED
INSTALLATION INSTRUCTIONS

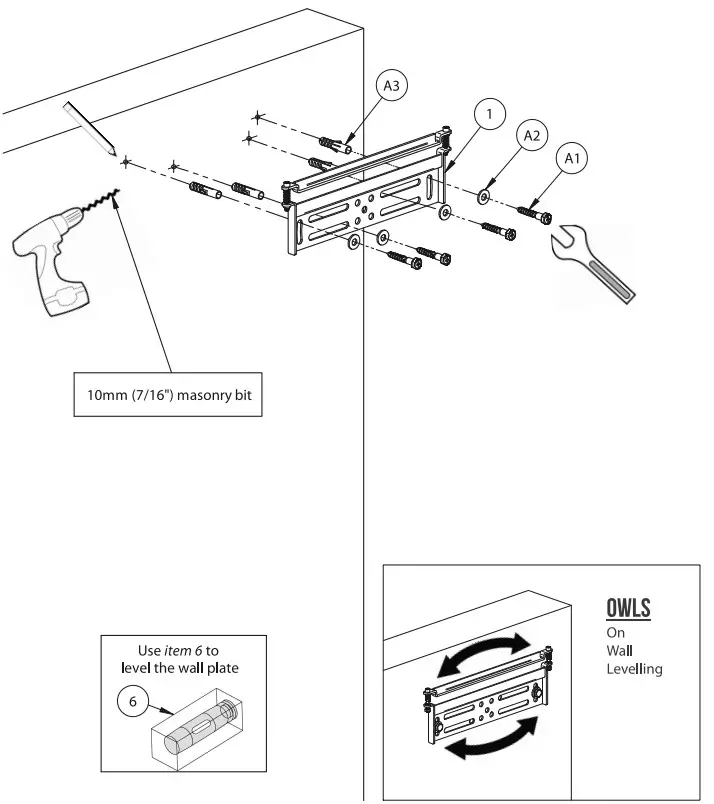

- FIX WALL PLATE
Fix item 1 to a concrete/brick wall.

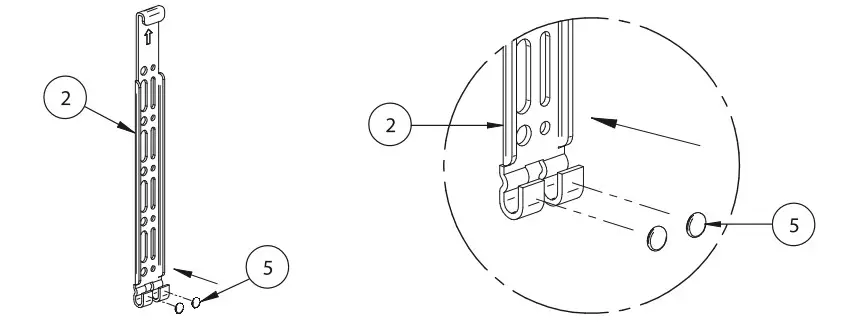

- ATTACH FOAM PADS TO INTERFACE ARMS
Stick item 5 to the back of item 2.

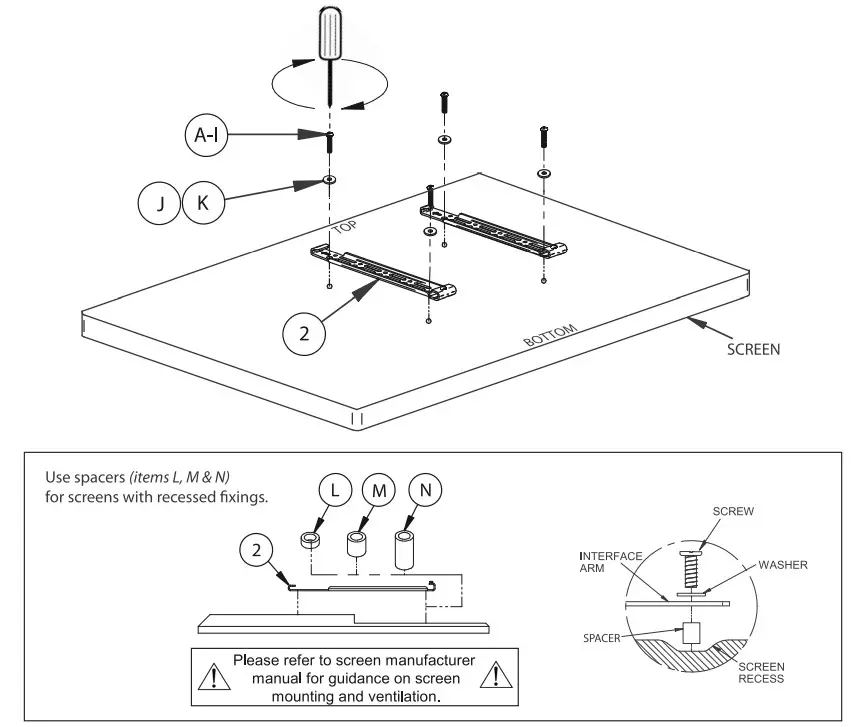

- ATTACH INTERFACE ARMS TO SCREEN
Fix item 2 to the rear of the screen.
Note: Ensure the arms are facing the correct way round and the same holes are used on both arms.

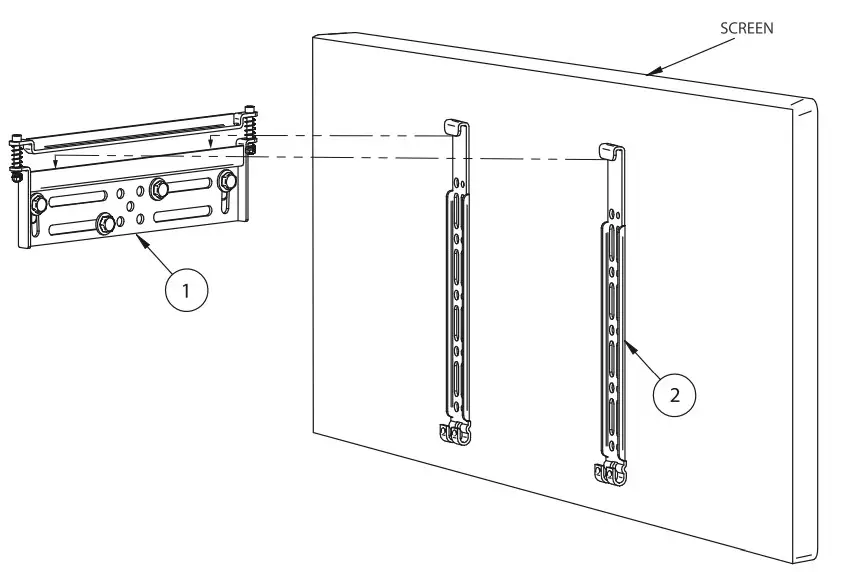

- MOUNT SCREEN ONTO WALL PLATE
Hook item 2 onto item 1.

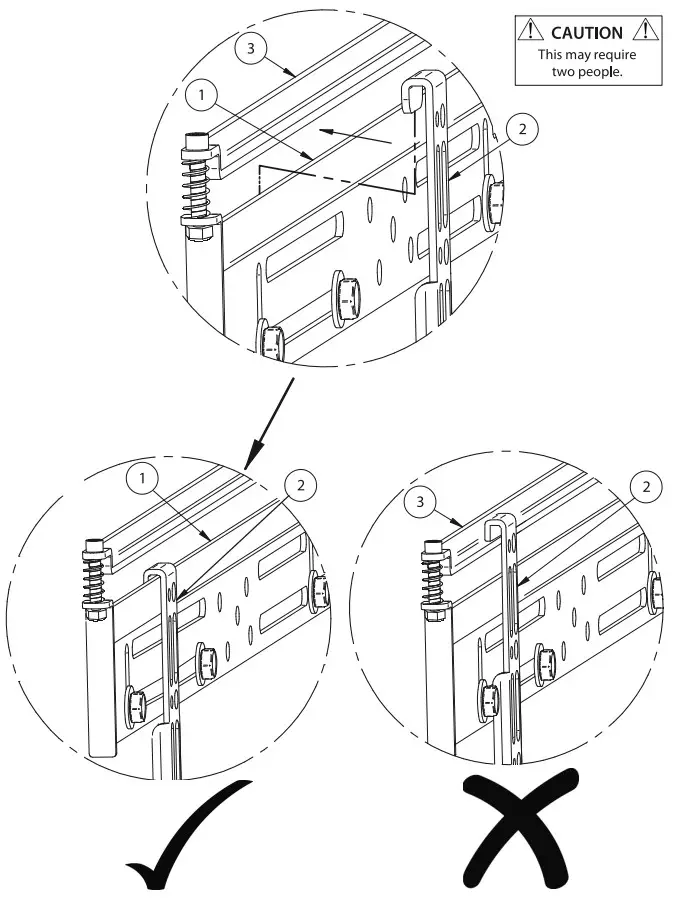

CAUTON:
Please ensure interface arms (item 2) hook onto wall plate (item 1) and not the locking bar (item 3).

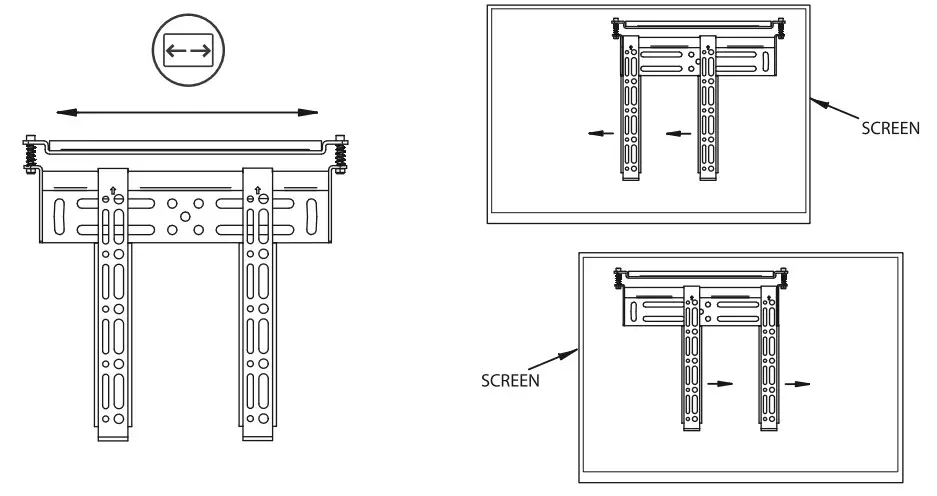

POSITION SCREEN – LATERAL ADJUSTMENT
CLOSE LOCKING BAR TO SECURE SCREEN
Position screen on item 1 and secure in place by tightening item 4 on either side of item 3.

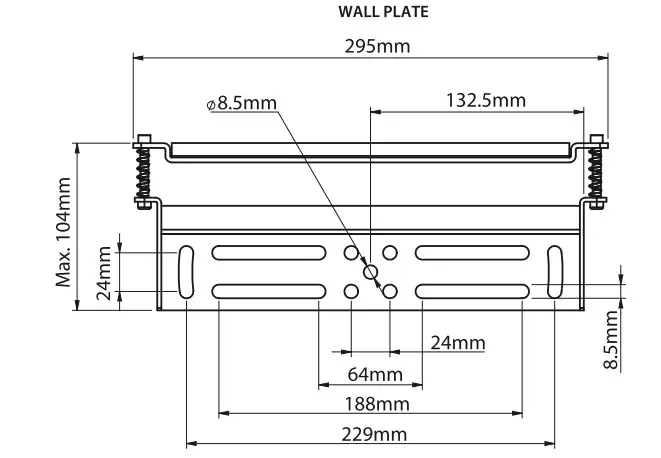

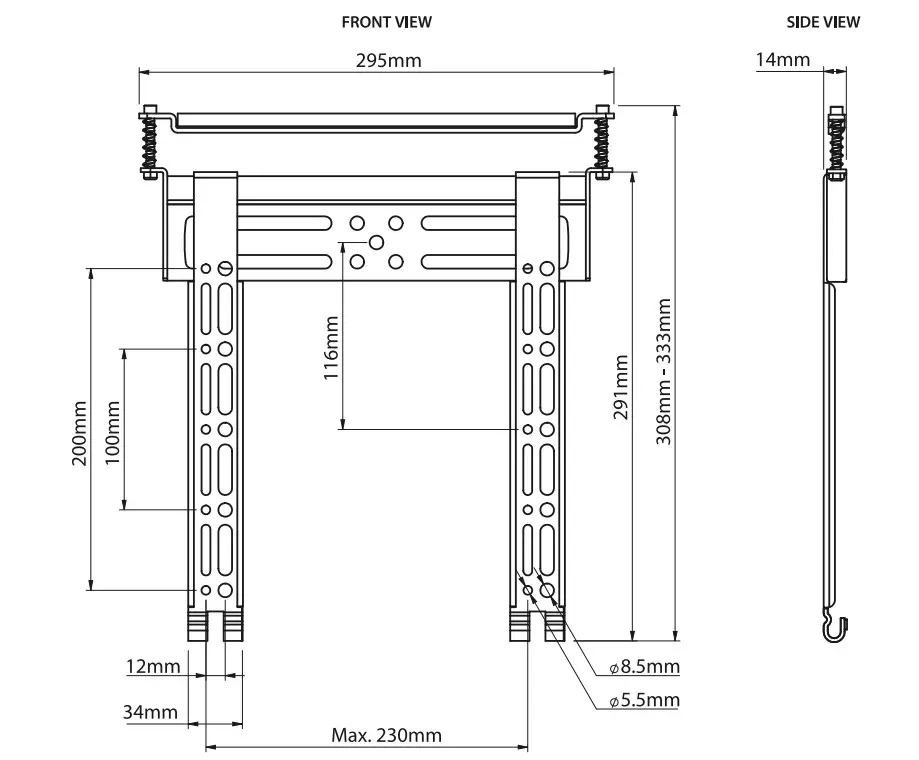

DIMENSIONS
CONTACT:
[email protected]
02020 B-Tech AV Mounts. All rights reserved.
B-Tech AV Mounts is a division of B-Tech International Design and Manufacturing Ltd.
B-Tech AV Mounts and the B-Tech logo are registered trade marks.
All other brands and product names are trademarks of their respective owners.
Photographs are for illustrative purposes only. E&OE.
AMA-BT8200-V1.3-1020-03 MADE IN THE P.R.C.
