Digitus Poe Surge Protector Rj45 Installation Guide (+ PDF)

The DIGITUS® Surge Protector is designed for industrial network applications and protects against surges of up to 10kV.
Data transmission of up to 1000Mbps in Gigabit networks and the PoE standards PoE, PoE+ and PoE++ (IEEE802.3af/at/bt) are supported. This means that not only your conventional network devices are protected against surges, you can also use the DIN rail module for a variety of PoE applications (PoE, PoE+, PoE++), for example for IP cameras or PoE switches. The installation is very uncomplicated by simply snapping it onto a 35mm DIN rail, which can also serve as grounding for the Surge Protector. Do not compromise and protect your sensitive devices from high voltages and environmental influences.

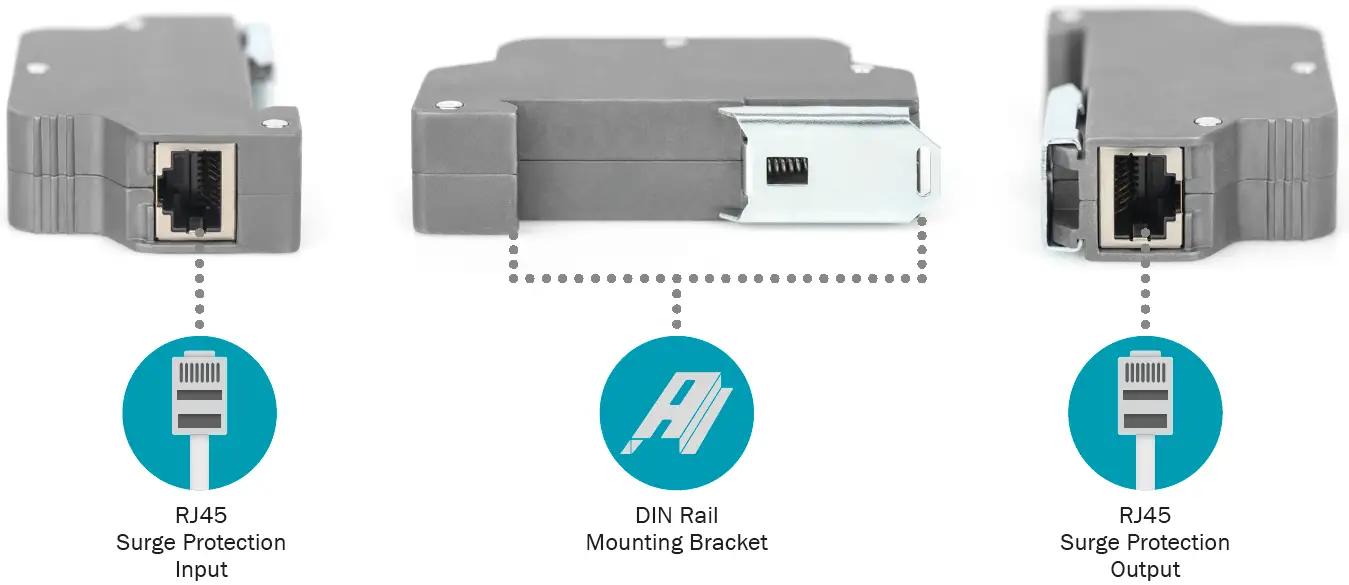

Product profile

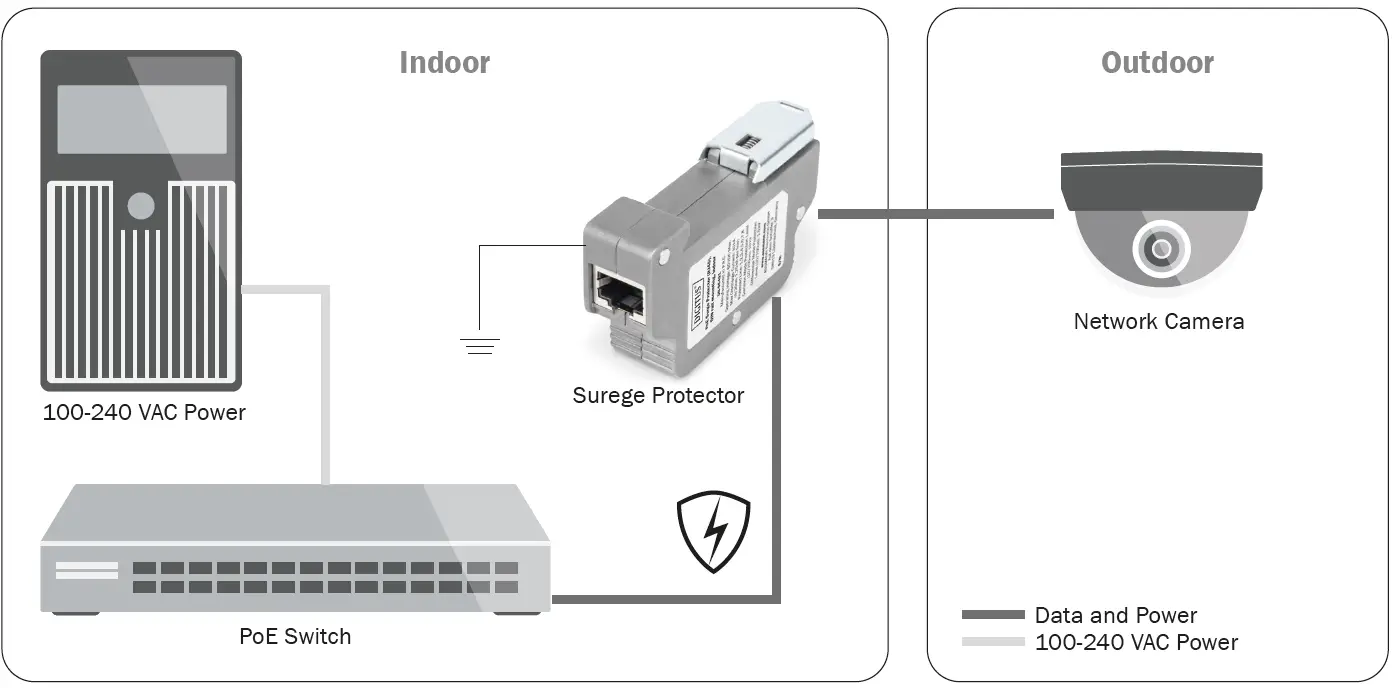

Product Working Diagram

Specification

Standard

IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-Tx Fast Ethernet
IEEE802.3ab 1000Base-T Gigabit Ethernet
Support PoE wire with IEEE802.3af/at standards
Support 110W IEEE802.3bt and PoE++ standards
RoHS Compliance
WEEE Compliance

Input/Output

Operating Voltage: 60Vdc Max
Maximum Operating DC Current:
1A for 2 pairs
2A for 4 pairs
Maximum 120W
Data Speed: 10/100/1000Mbps

Working Environment

Operating Temperature: -40°C to 85°C
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40°C to 85°C
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 2000 meters

PoE Surge Protection

Max Discharge Current: 10kA (8/20us,1.25kA per line)
Protected Line: 1,2,3,4,5,6,7,8
Common Mode Protection Level (10/700us): 10kV
Differential Mode Protection Level (10/700us): 1.5kV
Insertion Loss @10MHz/100MHz: -1db
Return Loss @10MHz/100MHz: -20db
Response Time: 5ns

Mechanical Characteristics

Case: Zinc alloy
Color: Grey
Mounting: DIN Rail mounted
IP Rated: IP40
Size: 77.2mm X 45mm X 19mm
Weight: 115g

Safety Approval

EMI

FCC CFR47 Part 15, EN55035, EN55032

EMS

IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air)
IEC61000-4-3(RS) 10V/m(80MHz~2GHz)
IEC61000-4-4(EFT) Power Port: ±2kV; Data Port:±1kV
IEC61000-4-5(Surge) Power Port:±1kV/DM, ±2kV/CM
IEC61000-4-6(CS) 10V(150kHz~80MHz)

Immunity

IEC60068-2-6 (Vibration)
IEC60068-2-27 (Impact)
IEC60068-2-32 (Free Fall)

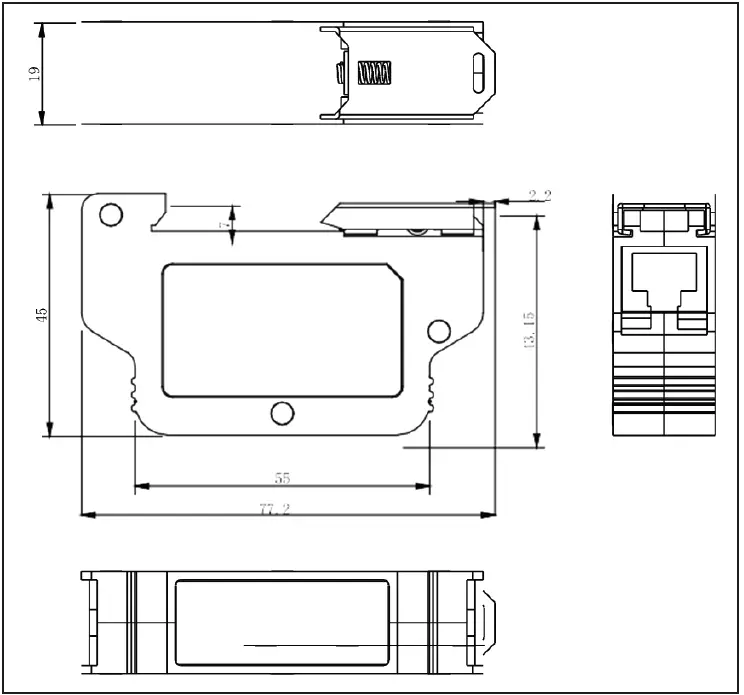

Technical Drawing

Package Content

1 x PoE Surge Protector (RJ45), DIN rail mounting, indoor
1x QIG

Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content.
If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address.
www.assmann.com
Assmann Electronic GmbH
Auf dem Schüffel 3
58513 Lüdenscheid
Germany
