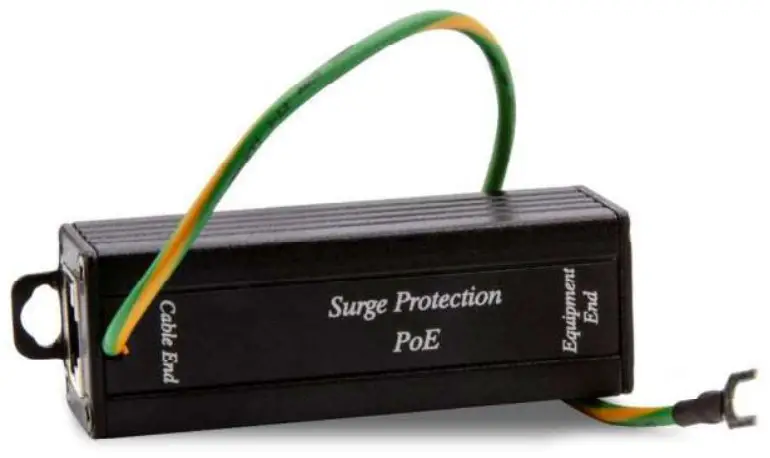

SP200
PoE Surge Protector
User Manual
Introduction
The Triplett SP200 is an in-line surge protector designed to protect a valuable PoE (Power over Ethernet) device from high voltage surges, with network bandwidth up to 100Mbps.
Features
- Supports bandwidth up to 100Mbps
- Supports IEEE 802.3af, IEEE 802.3at PoE Standard.
- Supports Mid-span and End-span.
- Response time less than 1ns.

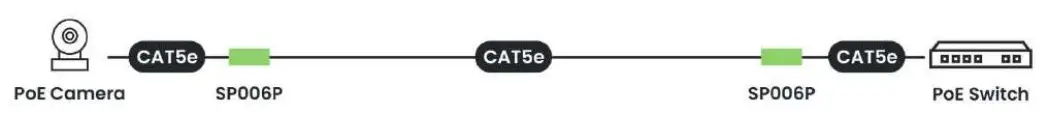

Installation View
Application
- Educational Institutions
- Server Farms
- Manufacturing Facilities
Specification
| ITEM NO. | SP200 |
| Support | |
| Compliance | IEEE 802.3af, IEEE 802.3at, IEC 61000-4-5 2™ |
| Network Bandwidth | 10/100Mbps |
| Response Time | Less than Ins |
| ESD Protection | 30KV(Air, Contact) |
| Lightning Protection | 10KV@8/20us, 10KV@10/700us |
| surge Life | 300 times (I00A per surge@ 8/20us) |
| Insertion Loss | Less than 0.2dB |
| Return Loss (750Q) | -16dB |
| Ports & Interfaces | |
| Input | 1x RJ45 |
| Output | 1x RJ45 |
| Ambient Temperature | |
| Operation | -10 to 75°C |
| Storage | -40to 90°C |
| Humidity | 95% |
| Physical Characteristics | |
| Dimensions | 88.8 x25.4 x 264mm |
| Weight | 80g |
Warranty
Triplett / Jewell Instruments extends the following warranty to the original purchaser of these goods for use. Triplett warrants to the original purchaser for use that the products sold by it will be free from defects in workmanship and material for a period of (1) one year from the date of purchase. This warranty does not apply to any of our products which have been repaired or altered by unauthorized persons in any way or purchased from unauthorized distributors so as, in our sole judgment, to injure their stability off reliabilty, or which have been subject to misuse, abuse, misapplication, negligence, accident or which have had the serial numbers aitered, defaced, or removed Accessories, including batteries are not covered by this warranty
