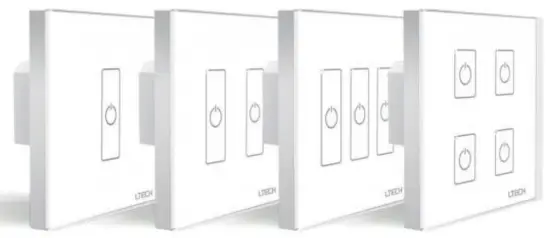

Ltech Eda1 Dali Touch Panel Instruction Manual

LTECH EDA1 Dali Touch Panel Instruction Manual

Product features

• Latest DALI standard protocol IEC62386
• Support switch and dimming function.
• DALI bus supply power.
• The DIP switch can set address.
• Support scene, group, unicast, broadcast mode.

Technical specs

DALI touch panel

• Power supply: DALI power
• Output signal: DALI
• Dimming key:
  EDA1: 1CH control
  EDA2: 2CH control
  EDA3: 3CH control
  EDA4: 4CH control
• Static current: 6mA@16V
• Standby current: 4mA@16V
• Working temperature: -30℃~55℃
• Dimensions: L86×W86×H37(mm)
• Package size: L113×W112×H50(mm)
• Weight(G.W.): 200g

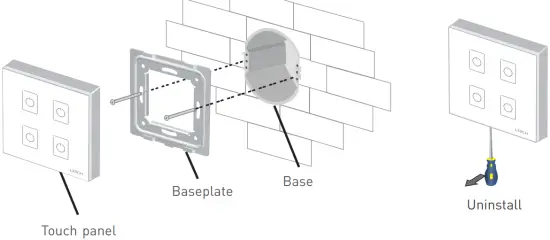

Installation Instruction

Typical base as follow:

• European

• 86 style

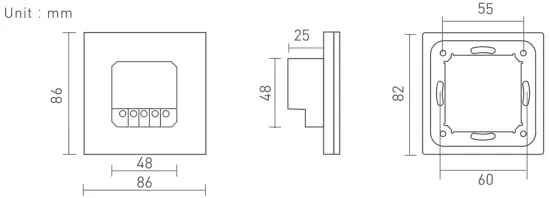

Product size

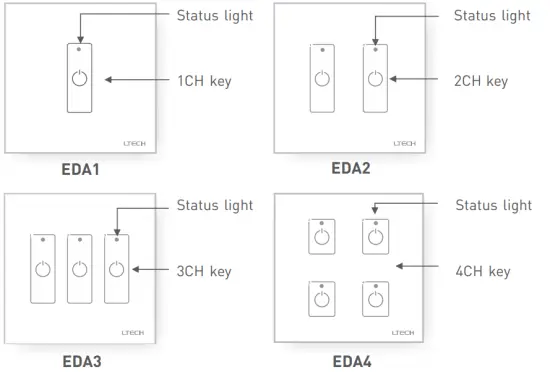

Touch panel

Short press: switch; long press: dimming (suitable for unicast, broadcast and group mode).

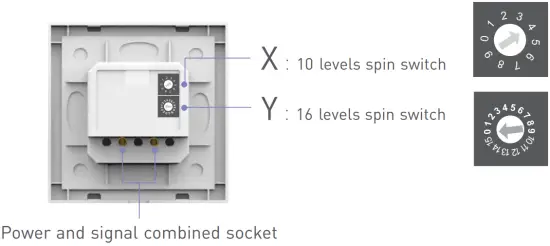

Terminals

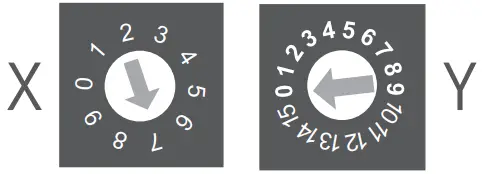

DALI address setting Wiring diagram

• X= (0-6): unicast mode;
• X= 7: group mode;
• X= 8: scene mode;
• X= 9: broadcast mode.

Via spin switch, you can set 64 unicast address (0-63), 16 group address (0-15) 16 scene addresses(0-15) and broadcast address.

• Unicast mode address:( 0-63)
  X choose 0-6
  First address value = X*10+Y
  (value beyond 63 will be considered as 63)

• Group mode address:( 0-15)
  X choose 7
  First address value = Y

• Scene mode address:( 0-15)
  X choose 8
  First address value = Y

• Broadcast mode
  X choose 9

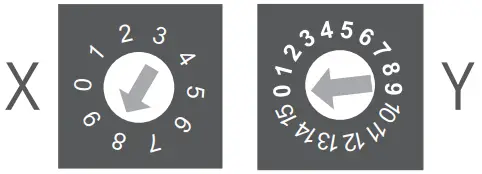

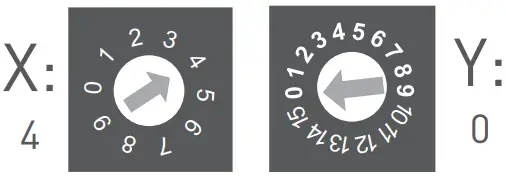

• E.g.: Set initial address to 40 in unicast mode.
  First address value = X 10+Y = 4* *10+0 = 40

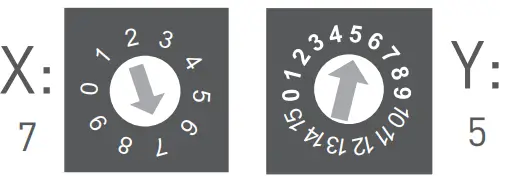

• E.g.: Set initial address to 5 in group mode.

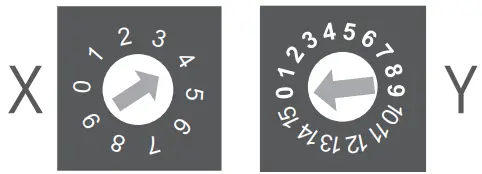

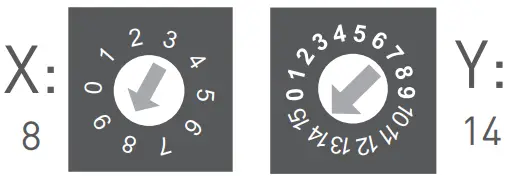

• E.g.: Set initial address to 14 in scene mode.

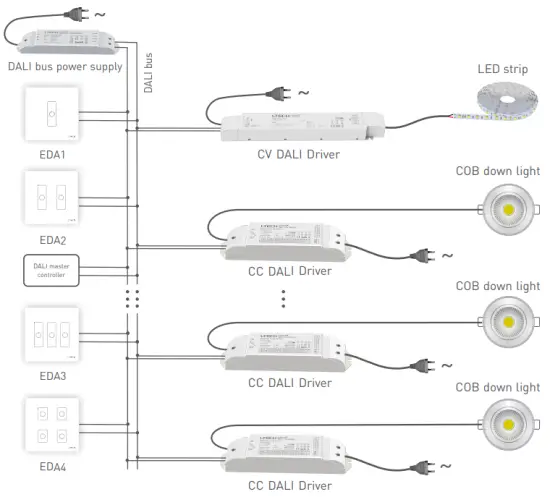

Wiring diagram
