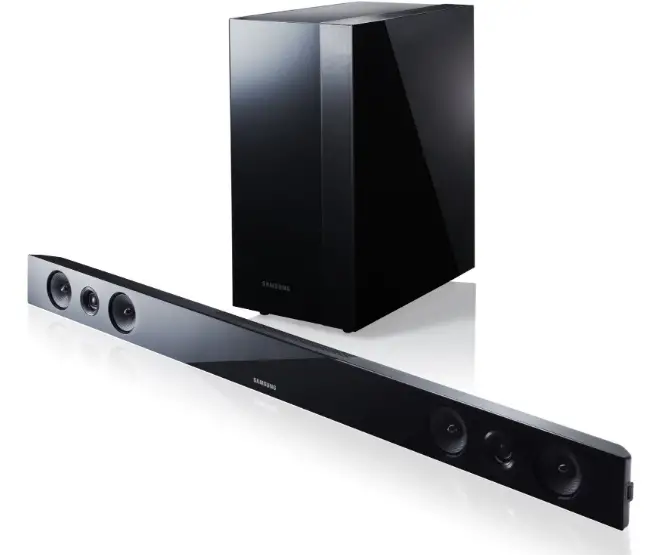

Samsung PS-WF450 Soundbar

Important Instructions

• Read these instructions.
• Keep these Instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other.
• A grounding type plug has two blades and a third grounding prong.
• The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
• Only use attachment/accessories specified by the manufacturer.
• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
• When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as when the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

PRECAUTIONS

• Ensure that the AC power supply in your house complies with the power requirements listed on the identification sticker located on the back of your product.
• Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4 inches).
• Make sure the ventilation slots are not covered.
• Do not place the unit on amplifiers or other equipment which may become hot.
• This unit is designed for continuous use.
• To fully turn off the unit, disconnect the AC plug from the wall outlet.
• Unplug the unit if you intend to leave it unused for a long period of time.
• During thunderstorms, disconnect the AC plug from the wall outlet.
• Voltage peaks due to lightning could damage the unit.
• Do not expose the unit to direct sunlight or other heat sources.
• This could lead to overheating and cause the unit to malfunction.
• Protect the product from moisture (i.e. vases) , and excess heat (e.g. a fireplace) or equipment creating strong magnetic or electric fields.
• Do not dispose of batteries in the general household trash.
• Do not dispose of batteries in a fire.
• Do not short circuit, disassemble or overheat the batteries.

Getting started

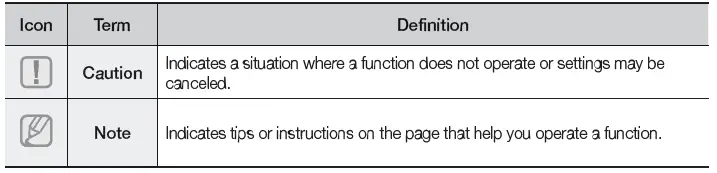

Icons used in this manual

• Safety Instructions and Troubleshooting
• Be sure to familiarize yourself with the Safety Instructions before using this product. (See page 3)
• If a problem occurs, check Troubleshooting. (See page 22)

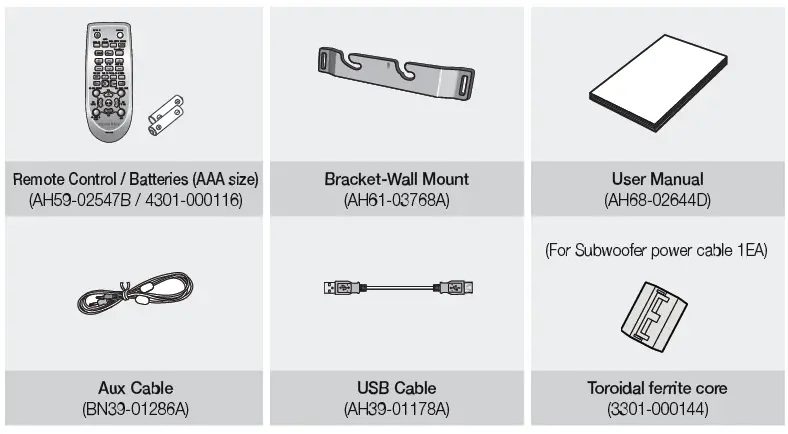

WHAT’S INCLUDED

Descriptions

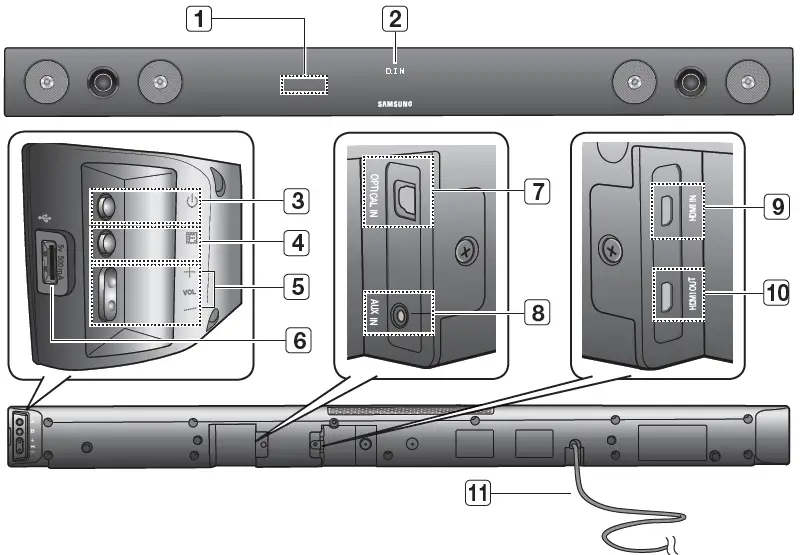

FRONT/REAR PANEL

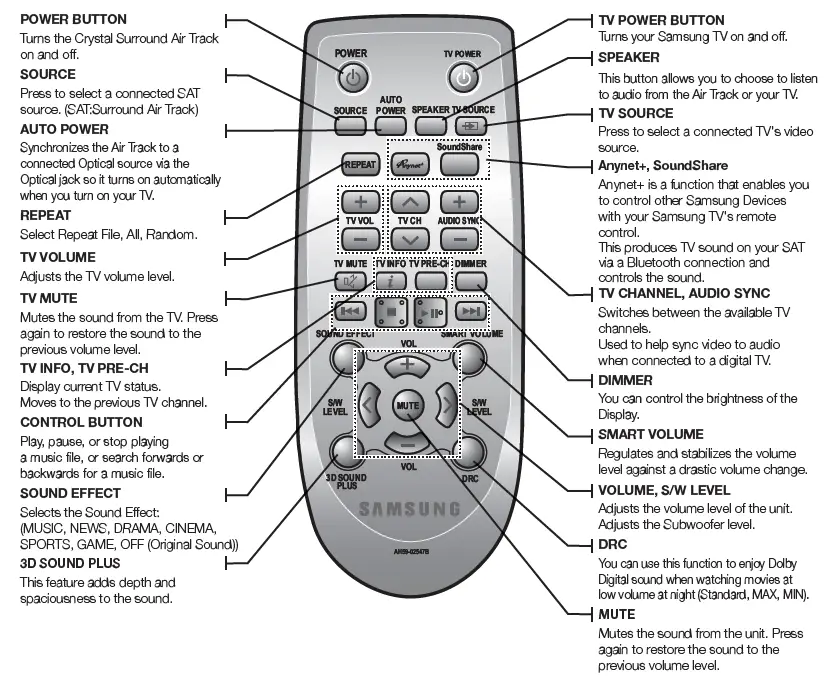

Remote control

Installing batteries in the Remote Control

Connections

Installation Precautions

• Install on a vertical wall only.
• For the installation, avoid a location with high temperature or humidity, or a wall that cannot sustain the weight of the set.
• Check the strength of the wall. If the wall is not strong enough to support the unit, reinforce the wall or install the unit on different wall that can support the unit’s weight.
• Purchase and use the fixing screws or mollys appropriate for the kind of wall you have (plaster board, iron board, wood, etc.). If possible, fix the support screws into wall studs.
• Connect cables from the unit to external devices before you install it on the wall.
• Make sure the unit is turned off and unplugged before you install it. Otherwise, it may cause an electric shock.

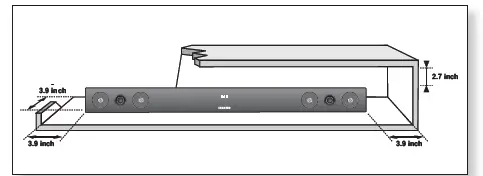

• Place the wall mount bracket on a wall surface and then secure it with two screws (not supplied).
• If you are hanging the unit below a TV, be sure to install the wall mount bracket so that the arrow ( ) is placed in the center of the TV.
• Also make sure the unit is at least two inches (5 cm) below the TV.
• Fit the unit into the corresponding slots of the wall mount bracket.
• For secure installation, make sure the mounting studs slide firmly down into the bottom of the slots.
• The installation is complete

CONNECTING THE WIRELESS SUBWOOFER

• Plug the power cords of the main unit and subwoofer into an AC wall outlet.

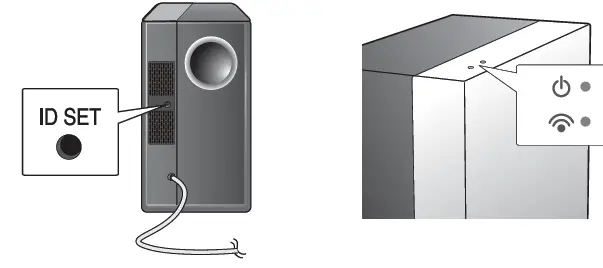

• Press the ID SET button on the back of the subwoofer with a small, pointed object for 5 seconds.
• The STANDBY indicator is turned off and the LINK indicator (Blue LED) blinks quickly
• While the main unit is powered off (STANDBY mode), press MUTE on the remote control for 5 seconds.
• The ID SET message appears on the main unit’s VFD display.
• To finalize the link, turn the main unit’s power on while the subwoofer’s Blue LED blinks.

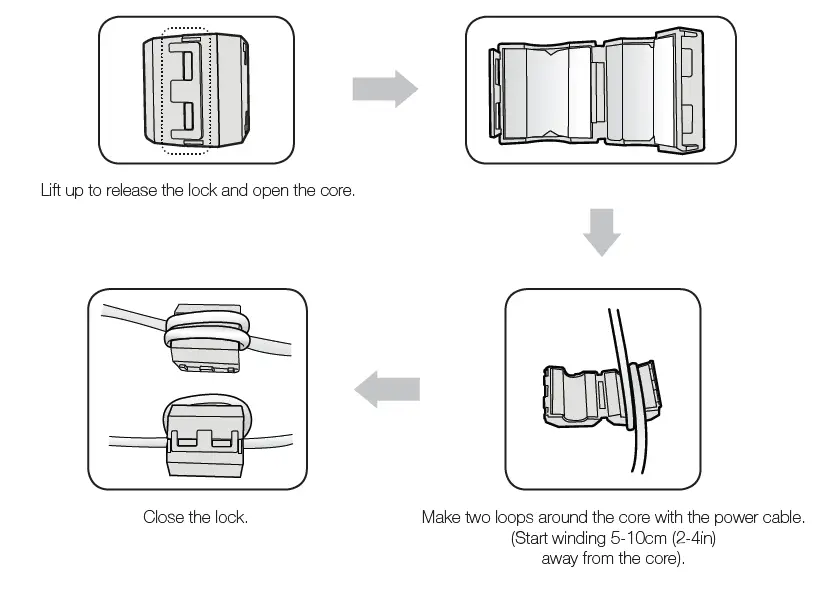

ATTACHING THE TOROIDAL FERRITE CORE TO THE POWER CORD OF THE SUBWOOFER

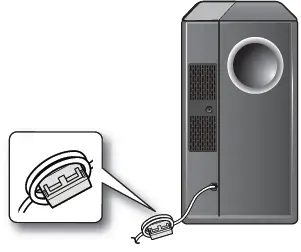

• Pull the fixing tab of the Toroidal ferrite core to open it.
• Make two loops around the core with the power cable of the subwoofer.
• Attach the Toroidal ferrite core to the Subwoofer power cord as the figure shows and press it until it clicks

LOOPING THE POWER CABLE AROUND THE TOROIDAL CORE

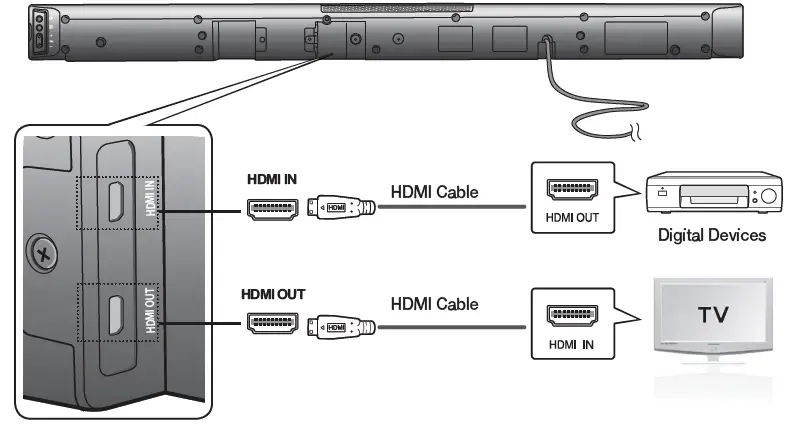

CONNECTING AN EXTERNAL DEVICE USING HDMI CABLE

HDMI is the standard digital interface for connecting to such devices as a TVs, projectors, DVD players, Blu-ray players, set top boxes, and more. HDMI removes any loss of signal from analog conversion, enabling you to enjoy video and audio sound quality as it was originally created in the digital source

HDMI IN
Connect an HDMI cable (not supplied) from the HDMI IN jack on the back of the product to the HDMI OUT jack on your digital devices.

HDMI OUT (HDMI)
Connect an HDMI cable from the HDMI OUT jack on the back of the product to the HDMI IN jack on your TV.

HDMI OUT (ARC)

• The ARC function allows digital audio to output via the HDMI OUT (ARC) port.
• It can be enabled only when the Air Track is connected to a TV that supports the ARC function.
• Anynet+ must be turned on.

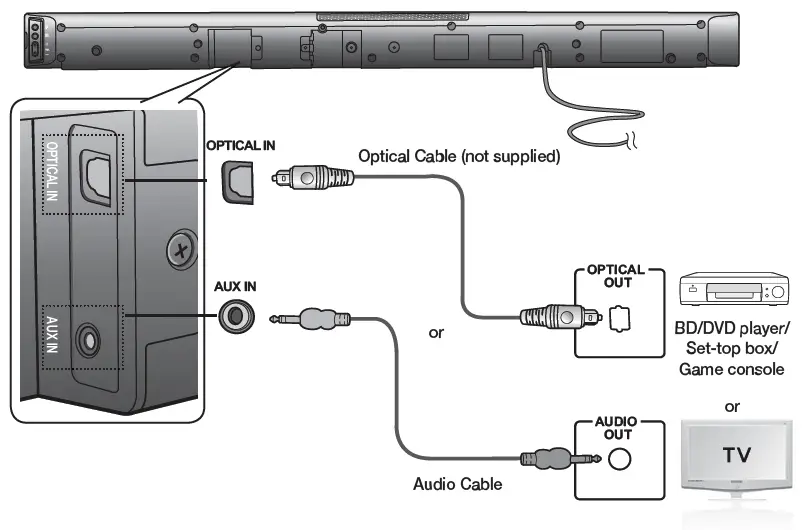

CONNECTING AN EXTERNAL DEVICE USING AUDIO (ANALOG) CABLE OR OPTICAL (DIGITAL) CABLE

OPTICAL IN
Connect the Digital Input on the main unit to the OPTICAL OUT of the TV or Source Device.

AUX IN
Connect AUX IN (Audio) on the main unit to the AUDIO OUT of the TV or Source Device. Be sure to match connector colors

functions

INPUT MODE

BLUETOOTH

You can use a Bluetooth device to enjoy music with high quality stereo sound, all without wires!

What is Bluetooth?

• Bluetooth is a technology that enables Bluetooth-compliant devices to interconnect easily with each other using a short wireless connection.
• A Bluetooth device may cause noise or malfunction, depending on usage, when:
• A part of your body is in contact with the receiving/transmitting system of the Bluetooth device or the Air Track.
• It is subject to electrical variation from obstructions caused by a wall, corner, or office partition.
• It is exposed to electrical interference from same frequency-band devices including medical equipment, microwave ovens, and wireless LANs.
• Pair the Air Track with the Bluetooth device while they are close together.
• The further the distance is between Air Track and Bluetooth device, the worse the quality is.
• If the distance exceeds the Bluetooth operational range, the connection is lost.
• In poor reception-sensitivity areas, the Bluetooth connection may not work properly.
• The Bluetooth connection only works when it is close to the set. The connection will be automatically cut off if the Bluetooth device is out of range. Even within range, the sound quality may be degraded by obstacles such as walls or doors.
• This wireless device may cause electric interference during its operation.

To connect the Air Track to a Bluetooth device

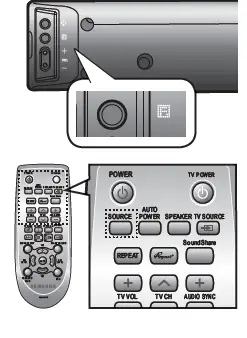

• Press the SOURCE button on the remote control of the Air Track to display the BT message.
• You will see WAIT for 4 seconds and then BT READY on the front display of the Air Track.
• Select the Bluetooth menu on the Bluetooth device you want to connect. (Refer to the Bluetooth device’s user manual.)

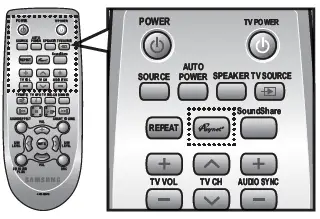

• Select the Stereo headset menu on the Bluetooth device.
• You will see a list of scanned devices.
• Select “[Samsung] AirTrack” from the list.
• When the Air Track is connected to the Bluetooth device, it will display BT CONNECTED ➡ BT on the front display.
• If the Bluetooth device has failed to pair with the Air Track, delete the previous “[Samsung] AirTrack” found by the Bluetooth device and have it search for the Air Track again.
• Play music on the connected device.
• You can listen to the music playing on the connected Bluetooth device over the Crystal Surround Air Track system.
• In BT mode, Play/Repeat/Stop/Next/Prev functions are not available.

To disconnect the Bluetooth device from the Air Track

• You can disconnect the Bluetooth device from the Air Track.
• For instructions, see the Bluetooth device’s user manual.
• The Air Track will be disconnected.
• When the Air Track is disconnected from the Bluetooth device the Air Track will display BT DISCONNECTED on the front display

To disconnect the Air Track from the Bluetooth device

• Press the button on the side panel of the Air Track to switch from BT to another mode or turn off the Air Track.
• The connected Bluetooth device will wait a certain amount of time for a response from the Air Track before terminating the connection.
• (Disconnection time may differ, depending on the Bluetooth device)
• The currently connected device will be disconnected.

SOUNDSHARE

To connect the Crystal Surround Air Track to a Bluetooth-compatible Samsung TV

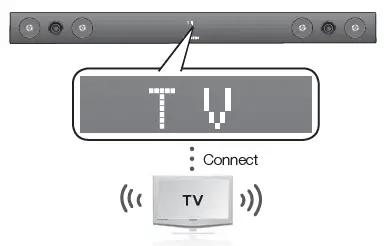

• Press the button to select the TV mode, and then connect the TV to the Crystal Surround Air Track.
• The unit will play the TV’s audio when it is connected to the TV.
• If you change to another mode, except the TV SoundShare mode, or turn off the Air Track, you will hear audio from the TV again

<To pair to your TV>
To produce TV sound on your Air Track via a Bluetooth connection, you need to pair your system to the Bluetooth-compliant TV first. Once the pairing is established, the pairing information is recorded and kept and no further Bluetooth connection message will appear. Bring the Air Track and the TV close together before pairing.

• Turn on the Samsung TV and Air Track.
  • Set Add New Device in the TV’s SoundShare Setting menu to On.
• When you change the mode of the Air Track to TV, a message asking whether to proceed with
• Bluetooth pairing is displayed. “[Samsung] AirTrack” appears on the TV screen.
• Select <Yes> on the TV screen. The pairing with the Air Track will be completed.
  • Once the pairing is established, when you change the Air Track to the TV mode from other input modes, it will automatically connect to the TV.
• Changing the Air Track from TV mode to any other mode will cancel the SoundShare connection.
• If you want to cancel the existing pairing of the SAT to a TV and pair your SAT to a different TV.
  • Press the PLAY/PAUSE button on the SAT for 5 seconds in the TV input mode to cancel the existing pairing.
  • You can now pair it to a different TV.
• In the SoundShare mode, you can control the volume and mute using either the TV remote or the SAT remote

USB

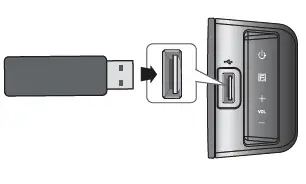

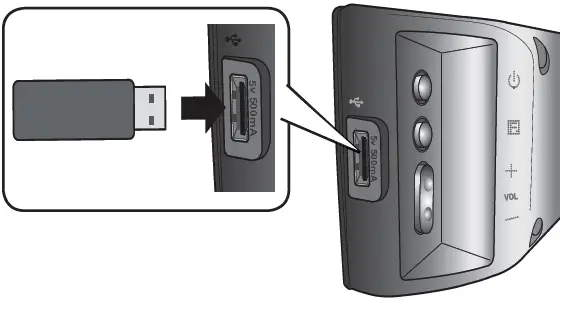

• Connect the USB device to the USB port on the side of the unit.
• Press the ( ) button on the side panel of the Air Track repeatedly until USB appears.
• USB appears on the display screen and then disappears.
• The Crystal Surround Air Track connection is complete.
• The SAT automatically turns off (Auto Power Off) if no USB device has been connected for more than 20 minutes.

Before you connect a USB device

Be aware of the following:

• If the file name of a folder on a USB device exceeds 10 characters, it is not displayed on the VFD.
• This product may not be compatible with certain types of USB storage media.
• The Air Track supports the FAT16 and FAT32 file systems.
• The NTFS file system is not supported.
• Connect USB devices directly to the USB port of the product. Otherwise, you may encounter a USB compatibility problem.
• Do not connect multiple storage devices to the product via a multi-card reader. It may not operate properly.
• Digital camera PTP protocols are not supported.
• Do not remove the USB device while it is being read.
• DRM-protected music files (MP3, WMA) from a commercial web site will not be played.
• External HDDs are not supported.
• Mobile phone devices are not supported.
• File Format Type Compatibility list

USING THE REMOTE CONTROL

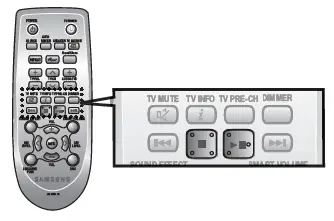

• Play/Pause/Stop
  • During playback, press the button.
  • Press the button again to stop playing the file temporarily.
  • Press the  button to play the selected file.
  • To stop playback, press the Stop () button during playback.
• Skip Forward/Back
  • During playback, press the button.
  • When there is more than one file and you press the button, the next file is selected.
  • When there is more than one file and you press the button, the previous file is selected.
• Using the REPEAT function
  • Repeat playback allows you to repeatedly play a file, repeat all, randomly play files, or turn Repeat off.
  • Press the REPEAT button.
  • REPEAT OFF : Cancels Repeat Playback.
  • REPEAT FILE : Repeat playing a track.
  • REPEAT ALL : Repeat playing all tracks.
  • REPEAT RANDOM : Plays tracks in random order. (A track that has already been played may be played again.)

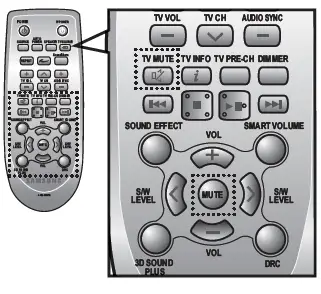

• Muting the sound
  • This is useful when answering a doorbell or telephone call.
  • To mute the sound of this unit, press the MUTE button on the remote control.
  • To mute the TV, press the TV MUTE ( ) button on the remote control.
  • Press MUTE/ TV MUTE ( ) on the remote control again (or press VOLUME +/–) to restore the sound.

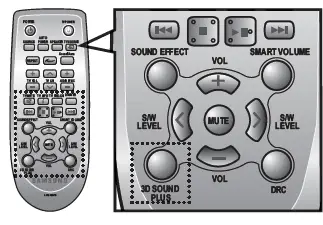

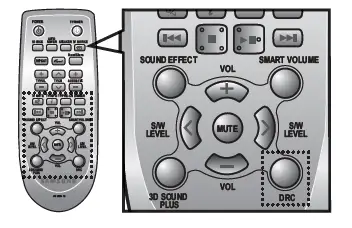

• Using the 3D SOUND PLUS function
  • The 3D Sound Plus feature adds depth and spaciousness to the sound.
  • Press 3D SOUND PLUS on the remote control.
  • Each time the button is pressed, the selection changes as follows :
  • 3D SOUND PLUS OFF ➡ 3D SOUND PLUS MUSIC ➡ 3D SOUND PLUS MOVIE
• Using the SMART VOLUME function
  • This will regulate and stabilize the volume level against a drastic volume change caused by a channel change or scene transition.
  • Press SMART VOLUME on the remote control.
  • Each time the button is pressed, the selection changes as follows :
  • SMART VOLUME ON ➡ SMART VOLUME OFF
• Using the SOUND EFFECT function
  • You can select from 7 different sound modes – MUSIC, NEWS, DRAMA,
  • CINEMA, SPORTS, GAME, and OFF (Original Sound) – depending on the type of sources you want to enjoy.
  • Press SOUND EFFECT on the remote control.
  • Select the OFF mode if you want to enjoy the original sound

• Using the S/W LEVEL function
  • You can control the base volume with the S/W Level button on the remote control.
  • Press the S/W LEVEL button on the remote control.
  • “SW 0” appears on the display.
  • Press or button on the LEVEL key if you want to increase or decrease the subwoofer volume. You can set it from SW -6 to SW +6.

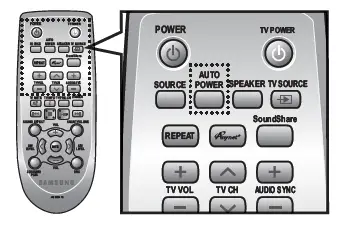

• Using the AUTO POWER LINK function
  • The Crystal Surround Air Track is automatically turned on when you turn on the TV or any device connected to the Air Track with the optical cable.
  • Press AUTO POWER on the remote control of this unit.
  • The Auto power link function turns on and off each time you press AUTO POWER.

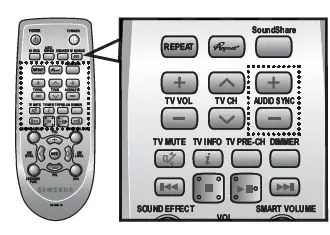

• Using the AUDIO SYNC function
  • Video may appear out of synch with the audio if the Air Track is connected to a digital TV. If this occurs, adjust the audio delay time to match the video.
  • Press AUDIO SYNC +/–. on the remote control of this unit.
  • You can use the + , – buttons to set the audio delay time between 0 ms and 300 ms.
• Using the DRC function
  • This feature balances the range between the loudest and quietest sounds.
  • You can use this function to enjoy Dolby Digital sound when watching movies at low volume at night.
  • Press DRC on the remote control of this unit.
  • Each time the button is pressed, the selection changes as follows :
  • DRC STANDARD ➡ DRC MAX ➡ DRC MIN

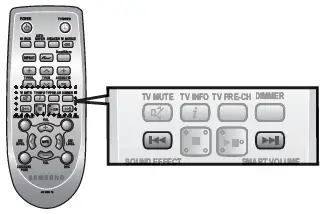

• Using the DIMMER function
  • This feature controls the brightness of the Display.
  • Press DIMMER on the remote control of this unit.
  • Each time the button is pressed, the selection changes as follows :
  • DIMMER ON ➡ DIMMER OFF

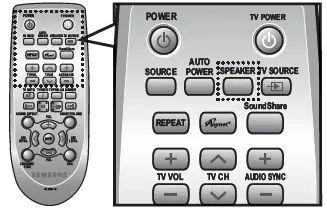

• SPEAKER button
  • If the TV and Air Track are connected via HDMI, this button lets you select between listening to audio through your TV or through the Air Track.
  • Press SPEAKER on the remote control of this unit.

• Using the Anynet+(HDMI-CEC) function
  • Anynet+ is a function that enables you to control other Samsung Devices with your Samsung TV’s remote control.
  • The Anynet+ function turns on and off each time you press Anynet+.
  • Connect the product to a Samsung TV with an the HDMI cable. (See page 12)
  • Set the Anynet+ function on your TV and the SAT to ON. (See the TV instruction manual for more information.)
• Using the TV functions (with Samsung TVs only)
  • Press TV SOURCE on the remote control to change the TV’s input source.
  • Press TV INFO on the remote control to display the TV channel information.
  • Press TV CH on the remote control to select the TV channel.
  • Press TV VOL on the remote control to increase or decrease the volume level.
  • Use TV PRE-CH button to move to the previous TV channel in TV mode.

SOFTWARE UPGRADE
Samsung may offer upgrades for the Crystal Surround Air Track’s system firmware in the future. If an upgrade is offered, you can upgrade the firmware by connecting a USB drive with the firmware upgrade stored on it to the USB port on your Air Track. Note that if there are multiple upgrade files, you must load them onto the USB drive singly and use them to upgrade the firmware one at a time. Please visit Samsung.com or contact the Samsung call center to receive more information about downloading upgrade files.

Features

SoundShare
SoundShare produces TV sound on your SAT via a Bluetooth connection and controls the sound.

HDMI
HDMI transmits video and audio signals simultaneously, and provides a clearer picture. The unit is also equipped with the ARC function which lets you listen to sound from your TV via an HDMI cable through the Crystal Surround Air Track. This function is only available if you connect the unit to an ARC compliant TV.

3D SOUND PLUS
The 3D SOUND PLUS feature adds depth and spaciousness to your listening experience.

Wireless Subwoofer
Samsung’s wireless module does away with cables running between the main unit and the subwoofer. Instead, the subwoofer connects to a compact wireless module that communicates with the main unit.

Special Sound mode
You can select from 7 different sound modes – MUSIC, NEWS, DRAMA, CINEMA, SPORTS, GAME, and OFF (Original Sound) – depending on the type of content you want to enjoy.

Multi-function Remote Control
The supplied remote control can be used to control the TV connected to this unit. (Works only for Samsung TVs) The remote control has a TV hotkey that enables you to perform various operations with the simple press of a button.

Active Speaker System
This unit features an Active Speaker System that provides high sound quality in a single slim unit. This unit does not require any satellite loudspeakers or speaker cabling, which are normally associated with conventional surround sound systems.

USB Host support
You can connect and play music files from external USB storage devices such as MP3 players, USB flash memory, etc. using the Air Track’s USB HOST function.

Bluetooth Function
You can use connect a Bluetooth device to the SAT and enjoy music with high quality stereo sound, all without wires

LICENSE

• Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
• Manufactured under license under U.S. Patent No.s: 5,956,674; 5,974,380; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS, the Symbol, & DTS and the Symbol together are registered trademarks & DTS 2.0 Channel is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.
• The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
• To send inquiries and requests regarding open sources, contact Samsung via Email ([email protected]).

WARNING

• To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
• To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.
• This product contains chemicals known to the State of California to cause cancer and reproductive toxicity.
• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the apparatus.
•  To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times.

Troubleshooting

SPECIFICATIONS

WARRANTY

This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the United States. To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service center. Transportation of the product to and from the service center is the responsibility of the purchaser. SAMSUNG will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer. SAMSUNG’s obligations with respect to software products distributed by SAMSUNG under the SAMSUNG brand name are set forth in the applicable end user license agreement. Non-SAMSUNG hardware and software products, if provided, are on an “AS IS” basis. Non-SAMSUNG manufacturers, suppliers, publishers, and service providers may provide their own warranties. This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, and except to the extent otherwise expressly provided for in this statement, noncommercial use of this product, and shall not apply to the following, including, but not limited to: damage which occurs in shipment; delivery and installation; applications and uses for which this product was not intended; altered product or serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water, lightning or other acts of nature; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied and authorized by SAMSUNG, or which damage this product or result in service problems; incorrect electrical line voltage, fluctuations and surges; customer adjustments and failure to follow operating instructions, cleaning, maintenance and environmental instructions that are covered and prescribed in the instruction book; product removal or reinstallation; reception problems and distortion related to noise, echo, interference or other signal transmission and delivery problems. SAMSUNG does not warrant uninterrupted or error-free operation of the product. THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND NO WARRANTIES WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY AFTER THE EXPRESS WARRANTY PERIODS STATED ABOVE, AND NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT SOLD BY SAMSUNG NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF SAMSUNG. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.

QUESTIONS OR COMMENTS?

FCC

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet that is on a different circuit than the radio or TV.
• Consult the dealer or an experienced radio/TV technician for help
