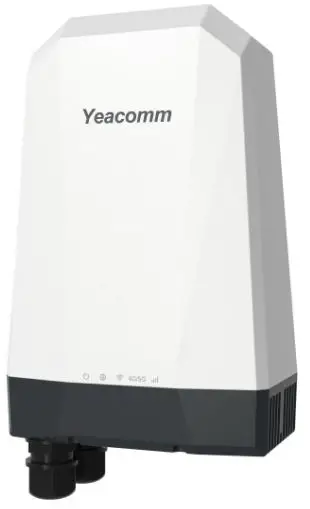

Yeacomm NR610 Outdoor 5g 4g Modem Odu Dual Sim Router
Overview
Yeacomm NR610 is a high speed Sub-6G 5G NR outdoor CPE specifically designed to meet integrated data needs for residential, business and enterprise users. In the service area of the 5G-Sub6/LTE/3G network, it enables wide service coverage and provides high data throughput and networking features to customers who needs easy broadband access.
Features
Ultra-fast 5G speed up to 4.67Gbps
It supports 5G/4G/3G full networks, covers the world’s mainstream bands and is compatible with SA and NSA modes.
IP67 rated
High waterproof and dustproof protection structure is suitable for outdoor use.
Friendly User Interface
Friendly UI design includes NAT, Bridge, Router mode, WEB, TR069 and SNMP-based device management.
High gain wide bandwidth antennas
Built-in 6 omni-directional cellular antennas (directional cellular antennas optional) ensure the best signal is received.
Built-in VPN client support
Support PPTP, L2TP, IPSEC Wireguard, and Zerotier.
Plug and Play
The device could automatically fix network problems in real-time without manually restarting or reconfiguring the network,

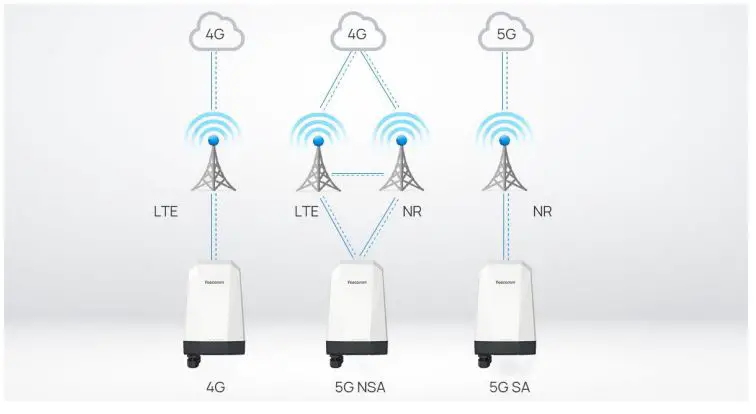

Network Modes

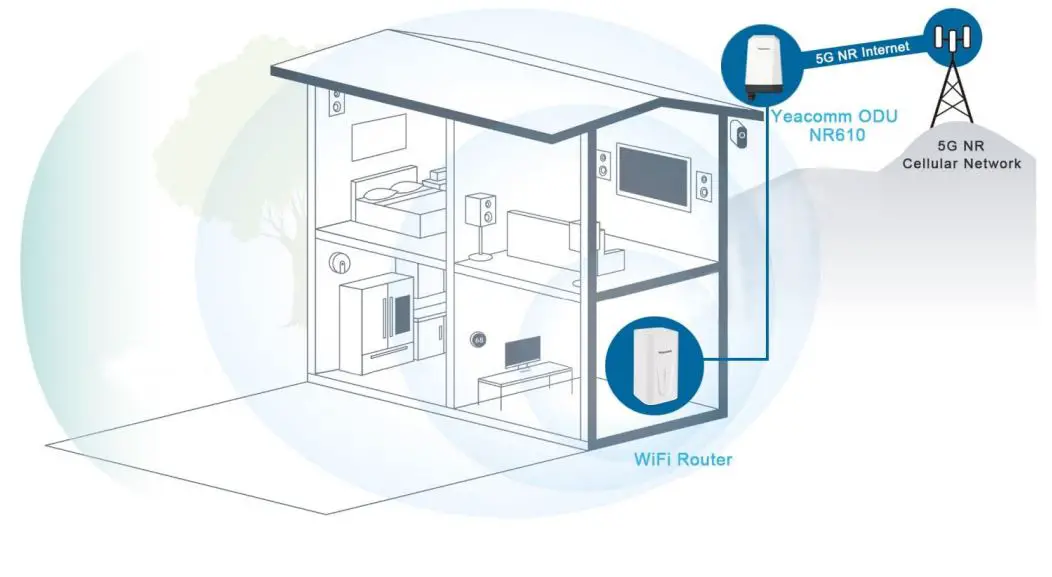

Installation
Application Scenarios
Specification
| Cellular Parameters | ||
|
Frequency Band | Standard Version: 5G NR: N1/N3/N5/N7/N8/N20/N28(a&b)/N38/N40/N41 /N77/N78/N79 LTE FDD: B1/B3/B5/B7/B8/B19/B20/28(a&b)/B32 LTE TDD: B38/B40/B41/B42/B43/B46 WCDMA:B1/B5/B8 | Optional Version : 5G NR:N2/N5/N7/N12/N14/N25/N30/N41/N48/N66/N71 /N77/N78 LTE FDD:B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B29 /B30/B66/B71 LTE TDD:B41/B46/B48 WCDMA: B2/B4/B5 |
| MIMO | 5G NR: DL 4×4 MIMO,UL 2×2 MIMO LTE: DL 4×4 MIMO | |
| Theoretical Bandwidth | 5G NR: Downlink 4.67Gbps, uplink 1.25Gbps LTE-A: Downlink 1.6Gbps, uplink 211Mbps WCDMA/HSPA+: Downlink 42Mbps, uplink 11Mbps | |
| WIFI Parameters | ||
| WIFI | IEEE802.11 a/b/g/n 2.4GHz (only for easy device configuration) | |
| Hardware | ||
| CPU | 2GHz Quad-Core CPU | |
| Flash | 1GB | 32GB |
| LPDDR4 | 1GB | 2GB |
| Software | ||
|
Network Status | Signal strength Network type(5G/4G) SIM card status Wi-Fi Status LAN Status | |
| System Status | Mobile parameters, APN/DHCP/Wi-Fi information, Memory details, Version/Device information | |
| Internet Settings | Network mode setup, Data switch, Roaming setup | |
|
APN Setup | APN name, Nat Switch on APN bear, PDP(IPV4/IPV6/IPV4V6), MTU size | |
| SIM Card | PIN Management SIM card Authentication | |
| DHCP Setup | Enable/disable DHCP server Configure DHCP IP Pool Configure DHCP Lease Time | |
| Static Route | Route Setup on WAN/LAN interface | |
| DDNS | Support | |
| Band Lock | Support | |
| PCI Lock | Support | |
| Cell Lock | Support | |
| Carrier SIM Lock | Support | |
| VPN | PPTP, L2TP, IPSEC, Wireguard, Zerotier | |
| Backup/restore | Encryption backup current settings and restore the backup settings (Export/Import Configuration) | |
| Work Mode | NAT/ Router mode | |
| Device Management | |
| Software Update | WebUI update TR069 update |
|
TR069 (Optional) | HTTP/HTTPS Supports upload / download the ACS specified file Support download CPE configuration file Support configure & queries parameters Support remote upgrade Support cycle monitor |
| SNMP (Optional) | Support |
| Diagnostics | Ping/Trace/Tcpdump, Export current diagnosis results and operation logs |
| Power Supply | |
| PoE Input | 48V/0.3A (IEEE 802.3af) |
| DC Input | 12V/1.5A |
| Interfaces | |
| PoE/LAN Port | 1 x 2.5 Gigabit RJ45 LAN Port with PoE |
| DC Power Interface | 1 x Three-core DC locomotive power socket, built-in power reverse protection |
| Indicator | Power, Internet, WIFI, 4G/5G, Signal |
| SIM/UIM Card | 2 x Nano-SIM Card slots, Compatible with eSIM card |
| USB Port | Type C 2.0 |
| Reset Button | Reset the parameters to default setting |
| Physical Characteristics | |
| Outer Shell | ABS +Aluminum |
| Waterproof Level | IP67 |
| Installation | Pole Mounting or Wall Mounting |
| Dimensions | 241x156x89 mm |
| Weight | 1800g |
| Operating Temperature | -30~+55ºC |
| Storage Temperature | -40~+85ºC |
| Humidity | 5%-95% (No-condensing) |

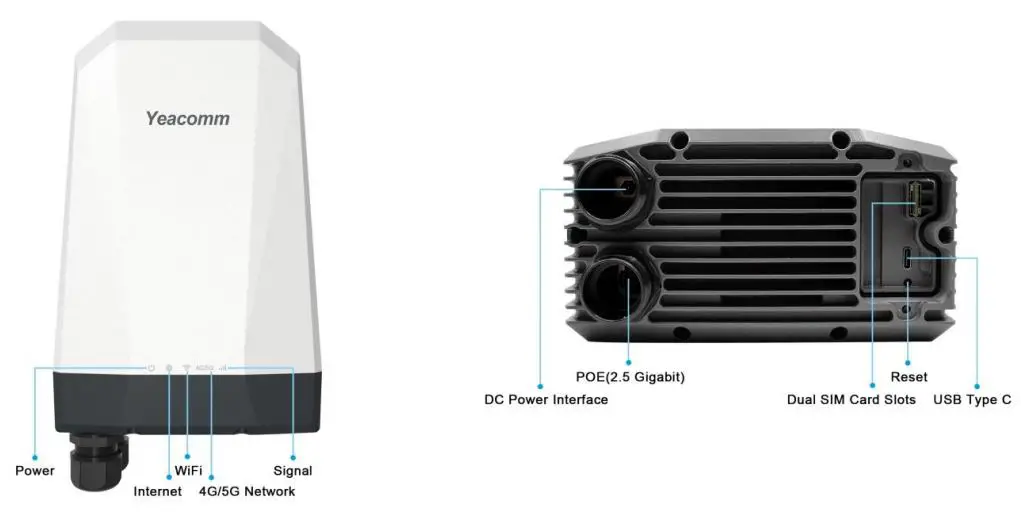

Indicators&Interfaces
Enjoy High Speed Internet Wherever You Want
