Silvergear Smart Plug With Energy Meter Instructions

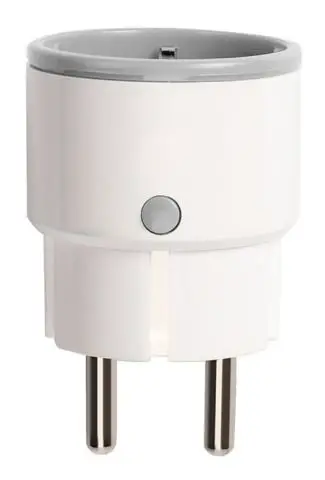

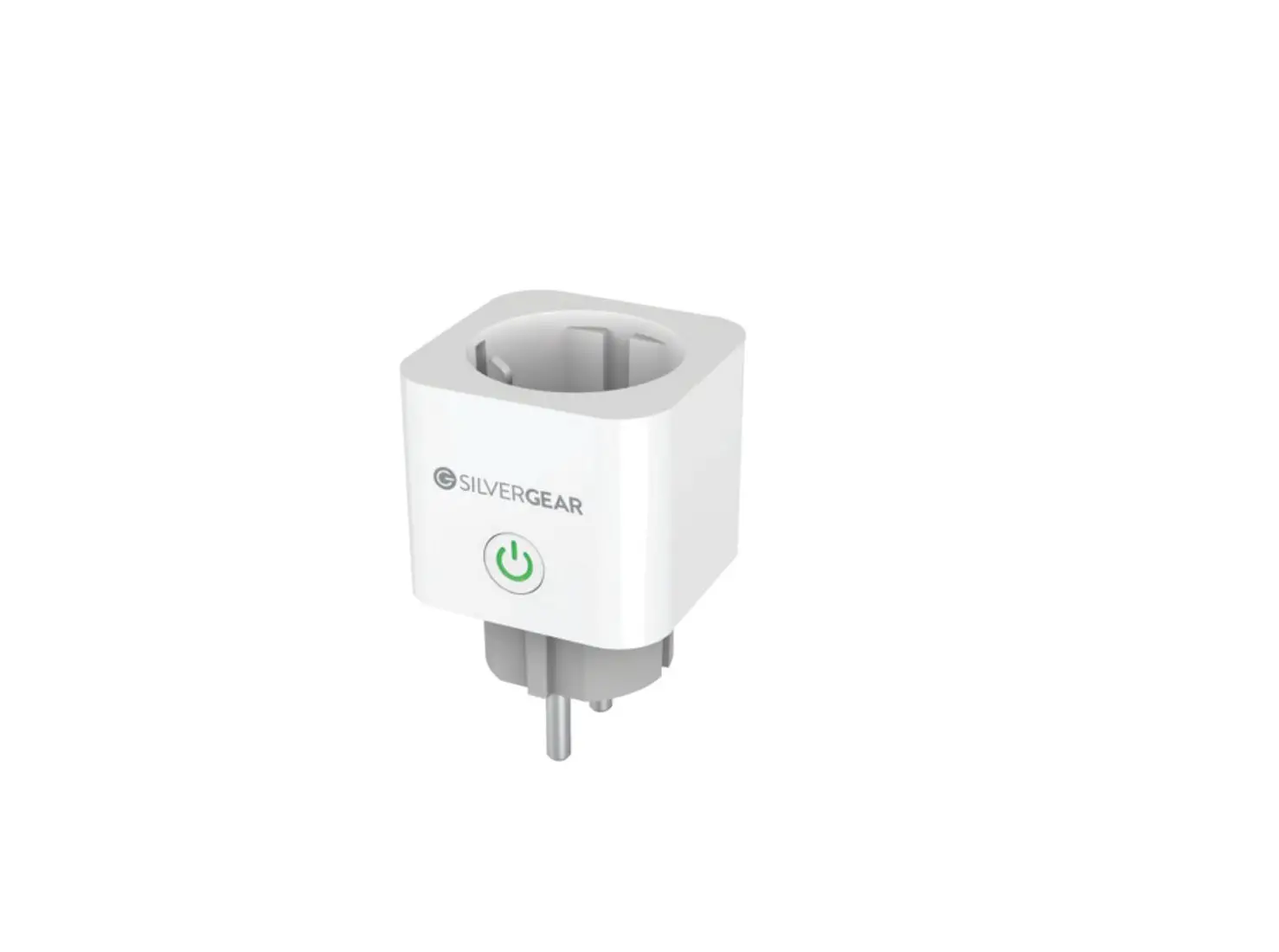

SILVERGEAR Smart Plug with Energy Meter

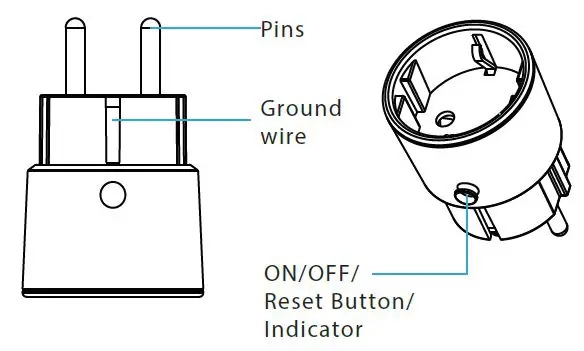

Product configuration

Specifications

• Rated Voltage： AC 85-230V, 50/60Hz
• Rated Current：16A max
• Wireless Type: 2.4GHz
• Wireless Standard: IEEE 802.11b/g/n
• Wireless Distance：45m
• Working Temperature: 0℃～40℃ (32°F～104°F) Working Humidity: 20%～85%
• Storage Temperature: 0℃～60℃ (32°F～140°F) Storage Humidity: 0% ～90%
• Size: EU/FR: 71mm x 46mm x 46mm

LED State

How to reset?

• Press the reset button for 6 seconds till the indicator flash rapidly. Then device turns to smart wifi mode.
• Press the reset button again for 6 seconds till the indicator flash slowly. The device turns to AP mode.

Get Started with Tuya Smart App

1. Download APP
   Download the “Smart life” app from APP Store or Google Play to your mobile.
2. Register and Login
   Launch the “Smart life” app. To register, enter your mobile phone number or email address,create a password,then login to the app. Log in if you have an account already.
3. Add Device


• Power on the power plug.
• Turn on the Bluetooth function of mobile phone first.
• Click “Add Device”, or Select the “+” symbol on the top right-hand corner to add device by bluetooth. Then the app will automatically identify the socket and complete the addition
• Select your product type and follow the instructions of the app.
• If the connecting fails,try using AP Mode.

Notice

Note 1: no matter which adding mode the device is , you can use Bluetooth to add
Note 2: the default adding mode of the device is smart config mode
Note 3: if the connection fails, try using AP mode. On the add device page, select AP mode in the upper right corner and follow the instructions of the application.
Note 4: all Wi Fi products can be added with any Wi Fi product options. The device only supports 2.4GHz Wi Fi signal.

What’s the App User Interface Like?

1. Settings: device details and other function settings
2. On / off button and status display
3. Countdown
4. Electric power measurement

Experience Advanced Features

You can experience the various advanced features of the product with the app, try and do it yourself.

Main function

• Working Status, on/off
• Countdown
• Timing
  Association setting
• To connect two Sensors via scene-setting.
  Device sharing
• Allow others to control the device
  Push notification
• Open/close push notification
  Remove device
• Restore default settings; Delete and add the device again to clear the record by APP.

Make Your Home Smarter
