Telldus 313510 Z-wave Smart Plug With Energy Meter User Guide

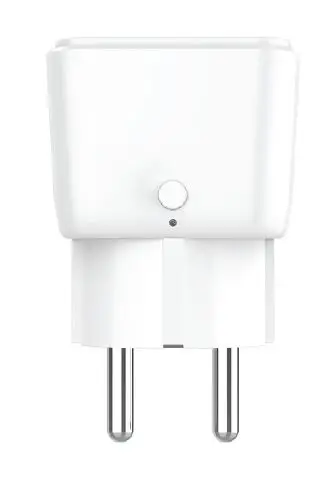

telldus 313510 Z-Wave Smart Plug With Energy Meter

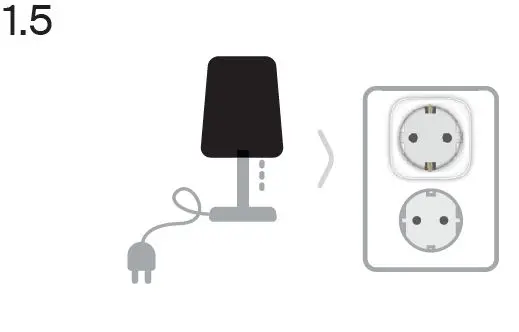

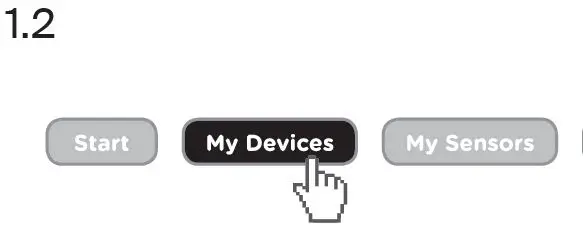

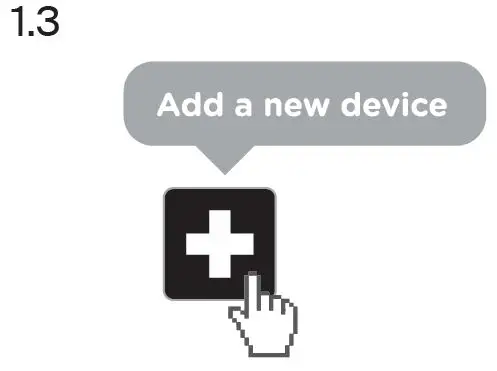

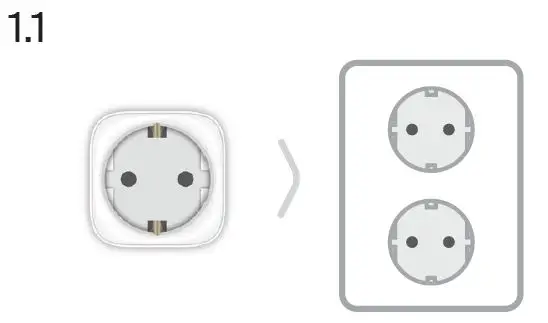

Include the device in Telldus Live

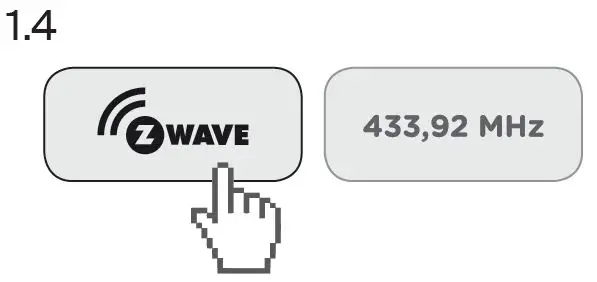

Follow the built-in wizard

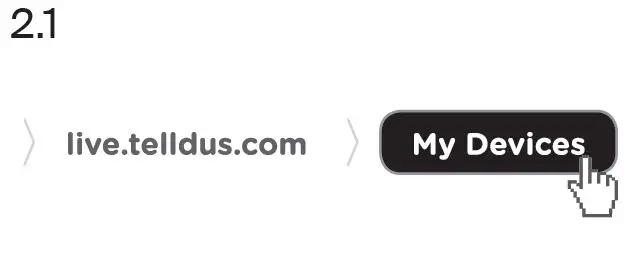

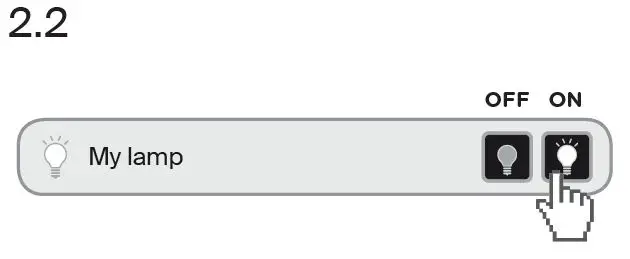

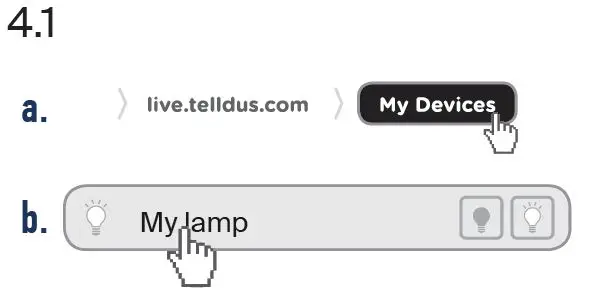

Control the device in Telldus Live

live.telldus.com

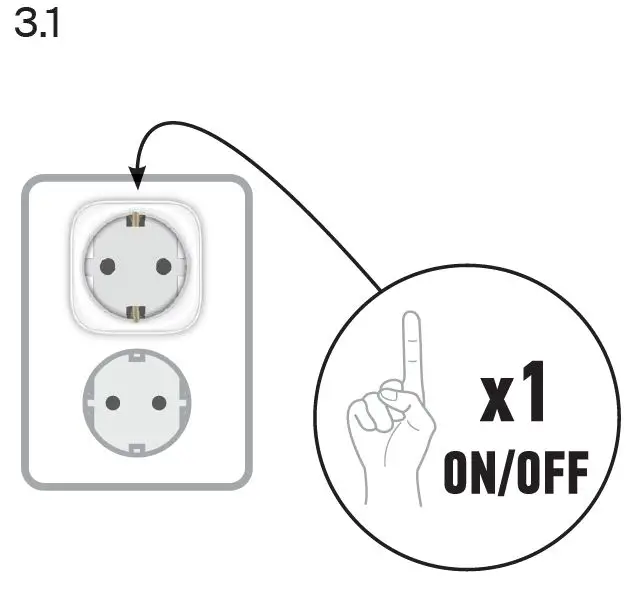

Control the device manually

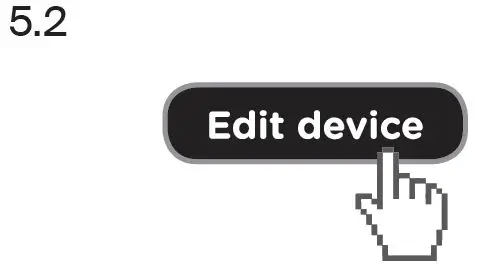

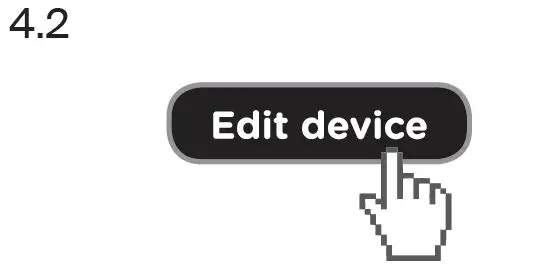

Edit the device

live.telldus.com

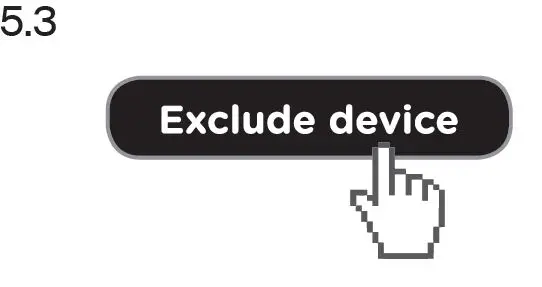

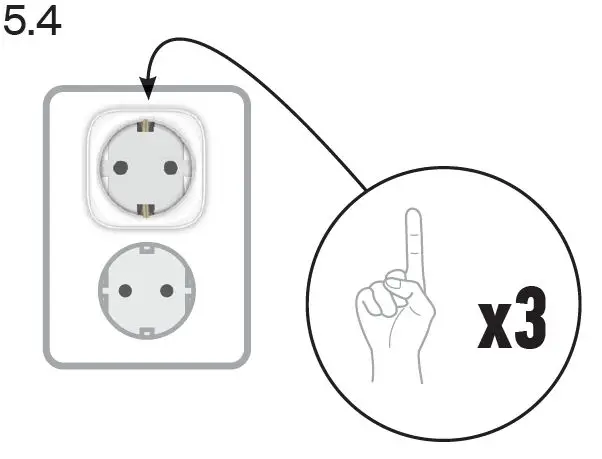

Exclude the device

Technical specifications

• Product Name Telldus Z-Wave Mini Plugin Switch
• Type Number . . . . . . . . . . . . . . . TZWP-102
• Function On/Off, Energy Meter, Surge Protection
• Voltage . . . . . . . . . . . . . . . . . .230V~ 50Hz
• Input Current . . . . . . . . . . . . . . . . . Max 8A
• Max Load. . . . . . . . . . . . . . 1800W Resistive
• Surge Protection . . . . . . . . . . . . . . . >1500V
• Energy Metering Accuracy <100W . . . . . <±2W
• Energy Metering Accuracy >100W . . . . . <±2%
• Operating Ambience. . . 0°C–25°C; 5%–75% RH
• Button Function . . Include/Exclude/Power/Reset
• IP Class . . . . . . . . . . . . . . . . . . . . . . . IP20
• Protocol. . . . . . . . . . . . . . . . . . . . . Z-Wave
• Chip Version . . . . . . . . . . . . .500 Plus Series
• Frequency . . . . . . . . . . . . . 868.42MHz (EU)
• Frequency range . . . . . . . .868.0-868.6MHz & 869.7-870.0MHz
• Transmitting Range . . . . . up to 30m (open air)
• Pollution Degree . . . . . . . . . . . . . . . . . . . 2
• Maximum RF Output Power . . . . . . . . . 1dBm
• Rated Impulse Withstand Voltage. . . . . . 2.5KV
• Duty-type . . . . . . . . . . . . S1, Continuous duty
• Number of Operating Cycles . . . . . . . . .10000
• Circuit Disconnection . . . Micro-disconnection
• Glow-wire Temperature . . . . . . . . . . . .650°C
• Non-replaceable Built-in Protection . . .Thermal Fuse 10A 84°C
• PTI . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
• Cooling Condition . Not required forced cooling
• Type of Connection and Load Single Pole Single
• Load . . . . . . . . . . (single pole disconnection)
• Test Condition. Maximum rated resistive current

Do not connect after each other. Not to be used in direct sunlight.
Download complete technical manual and find more useful information at telldus.com
