PANDUIT PN647A Mini Com UTP RJ45 Cat 6A TG Jack Module

INSTALLATION INSTRUCTIONS

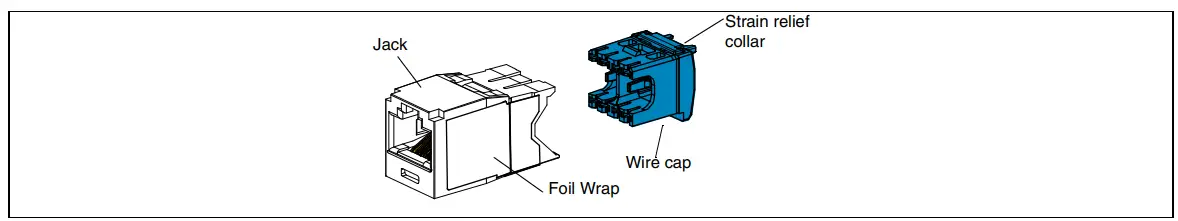

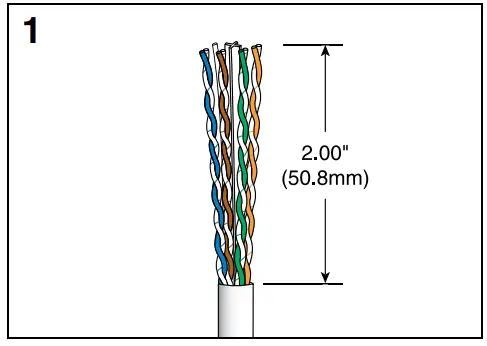

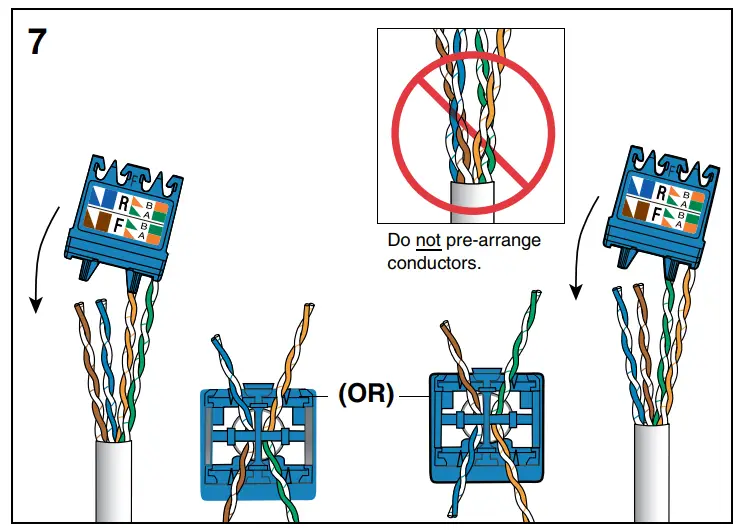

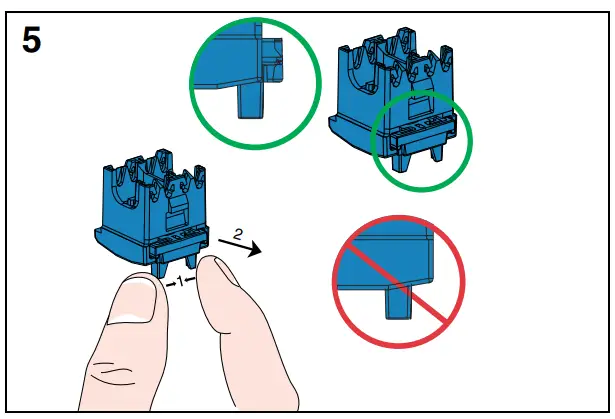

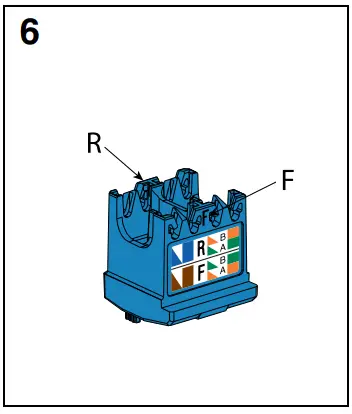

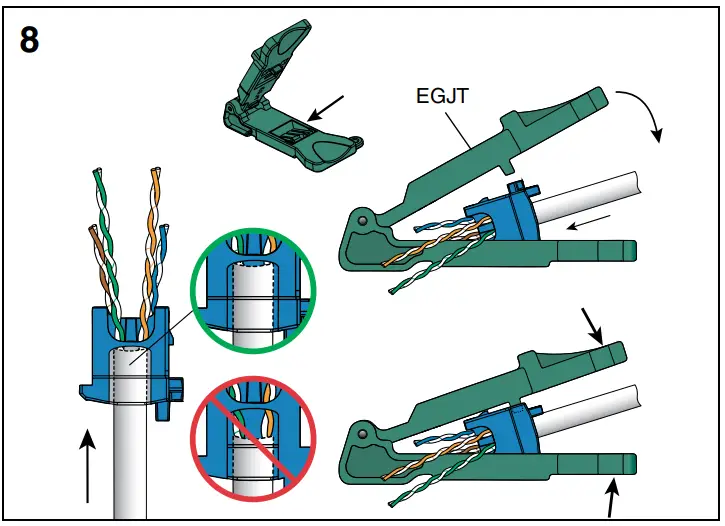

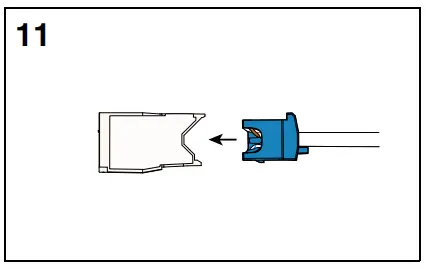

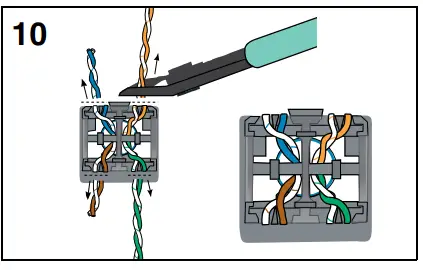

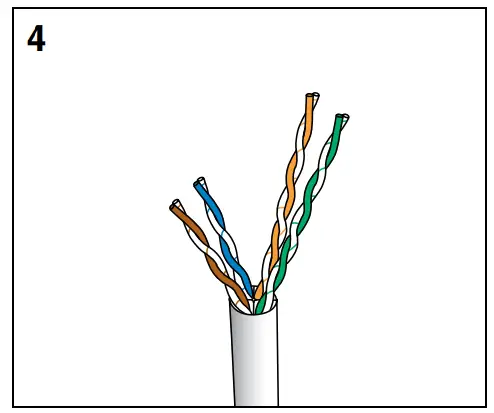

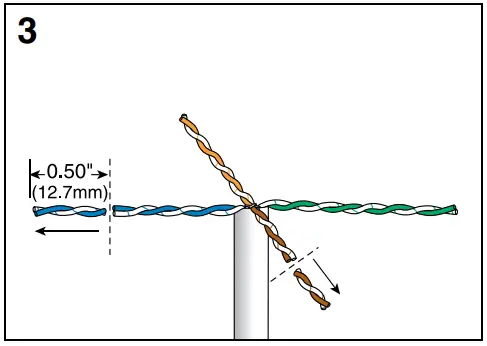

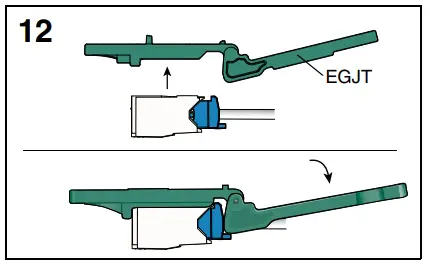

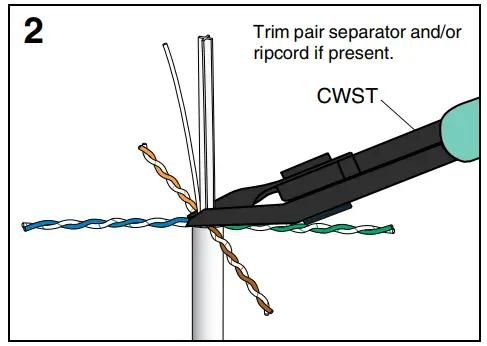

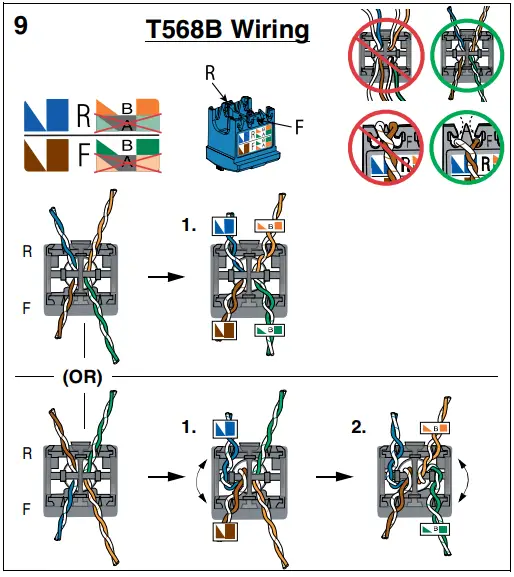

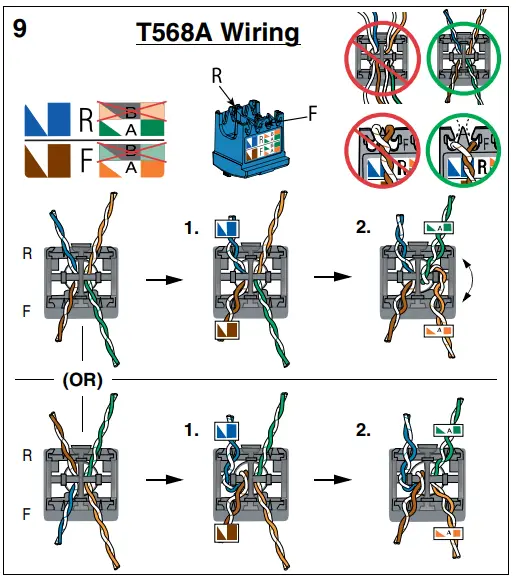

TERMINATION STEPS

Notes:

1. Corrosion Resistant jack modules may be re-terminated a maximum of 3 times at the wire cap and a maximum of 5 plug insertions.
2. For specified performance, follow ANSI/TIA-568.2-D installation guidelines.
3. Corrosion resistant jack modules can terminate 22-26 AWG solid or stranded IWC data cable with 0.062″ (1.57mm) maximum insulated conductor outside diameter.
4. For technical and performance information, consult PANDUIT technical support.

As with all Communication Components, the following statements apply:

1. Never install communications wiring during a lightning storm.
2. Never install communications wiring in wet locations unless the jack is specifically designed for use in wet locations.
3. Never touch uninsulated communications wiring or terminals unless the communication line has been disconnected at the network interface.
4. Use caution when installing or modifying communication wiring.

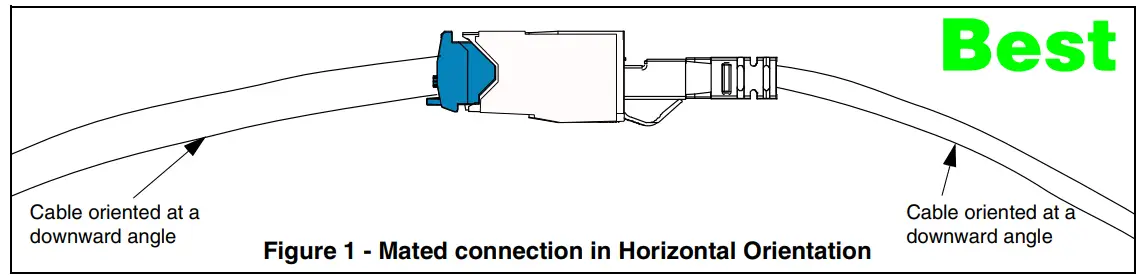

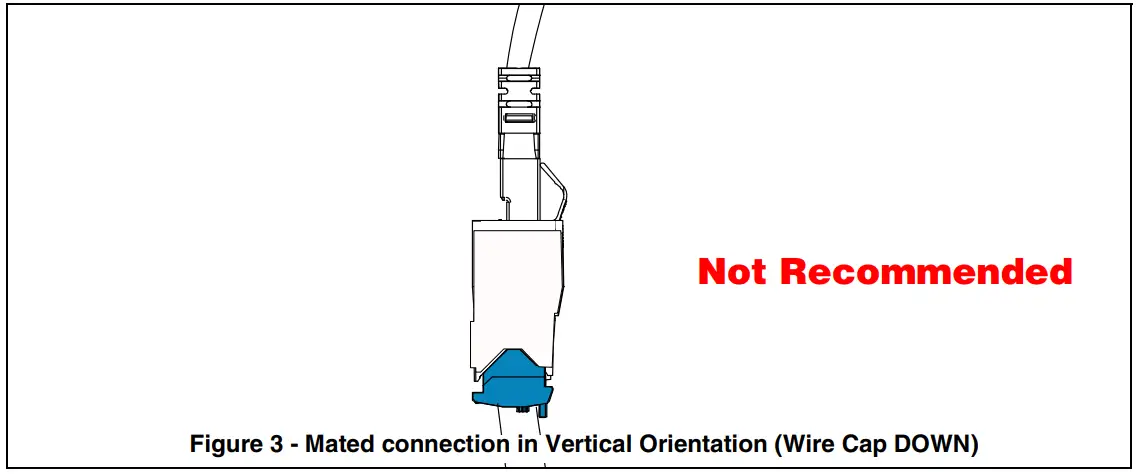

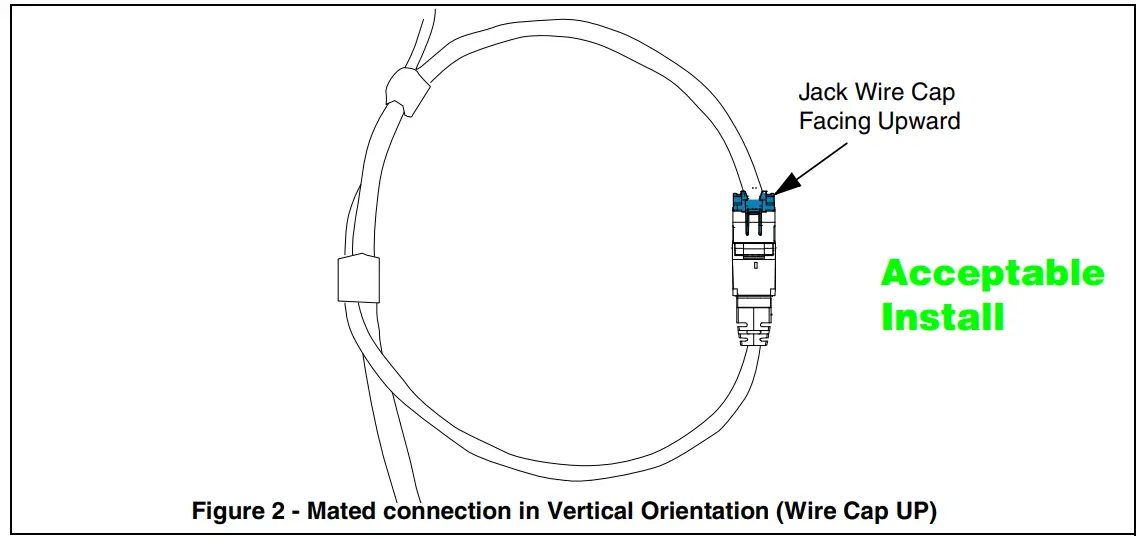

CJE6X88** INSTALLATION BEST PRACTICES

For Instructions in Local Languages
and Technical Support:
www.panduit.com/resources/install_maintain.asp
E-mail:
[email protected]
Phone:
866-405-6654
