LED Fresnel Micro
HD Akku WW
User Manual
Art. No.: led22785

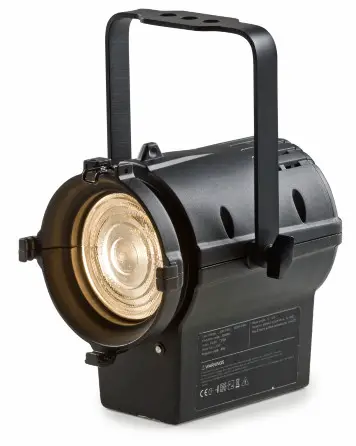

LED Fresnel Micro HD Akku WW 3200K
The enclosed General Information for Expolite Units are part of these user manual. Read them carefully before operating the device.
Delivery
– Expolite LED Fresnel Micro HD Akku
– Power connection cable
– General Information for Expolite Units
– User Manual
Expolite devices are carefully checked before shipment. If the delivery is not complete, please contact your distributor immediately.

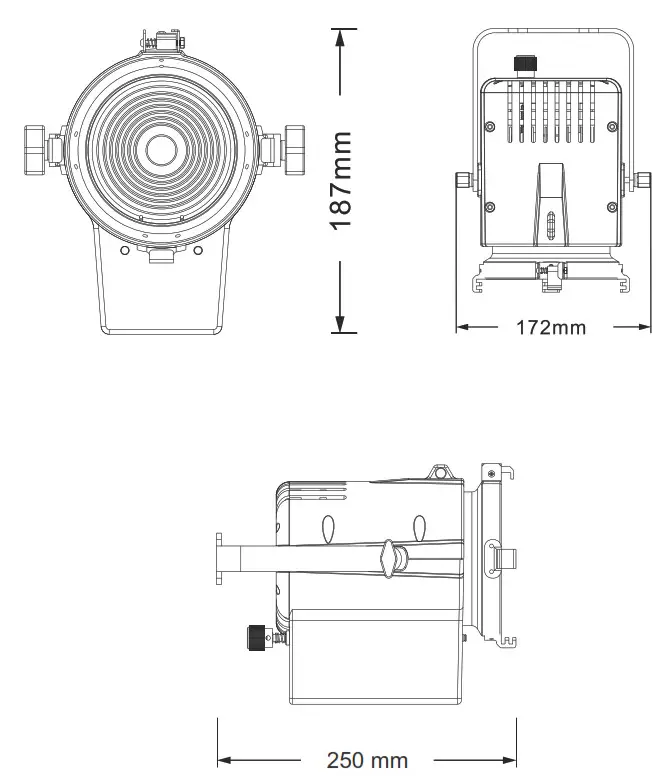

Dimensions
Product Information
| Voltage | 100V – 240V AC 50/60Hz |
| Power Consumption | 20W |
| Dimensions | 250 x 164 x 187mm |
| Weight | 2,5kg |
| Connectors | Power In |
| Ambient Temperature | -0°C – 45°C |
| Humidity | < 98% |
| Protection | IP 20 |
| Housing | Die-cast Aluminium |
| LEDs | 40W 3200K* |
| LED Current | 0,55A |
| Optics | 12° – 34° |
| Control | Stand-Alone |
| Batterie Lifespan | Approx. 6 – 20 hours |
| Charging Time | Approx. 2,5 hours |
* Tolerance in colour temperature according to LED manufacturer +/- 10%.

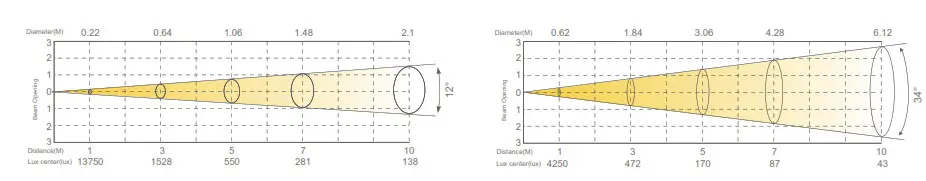

ILLUMINANCE AT DISTANCE
Installation
Mounting
Hanging
The fixture can be mounted in a hanging position using the mounting bracket. Fixture must be safe mounted in accordance with the relevant regulations and provided with a safetycord to prevent falling.
Standing
The fixture can be mounted in an upright or sitting position. An appropriate attachment (e.g. floorstand) is necessary. A safe and sufficient anti-slip ground must be ensured!
NOTE The LED module can be operated in any position.
Operation

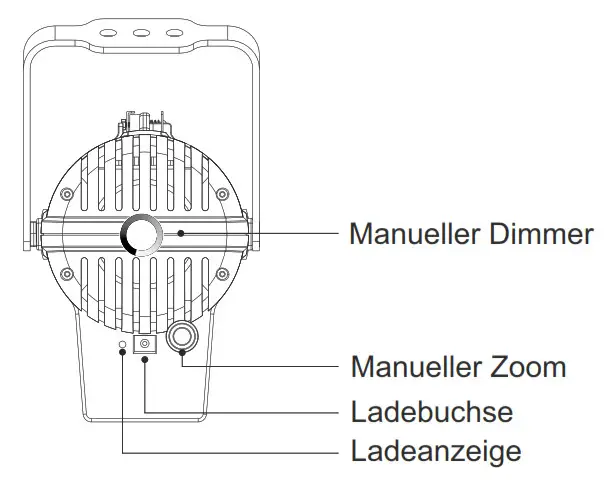

Manual Dimmer
The intensity of the fixture can be operated manually with the encoder on the back of the fixture.
Manual Zoom

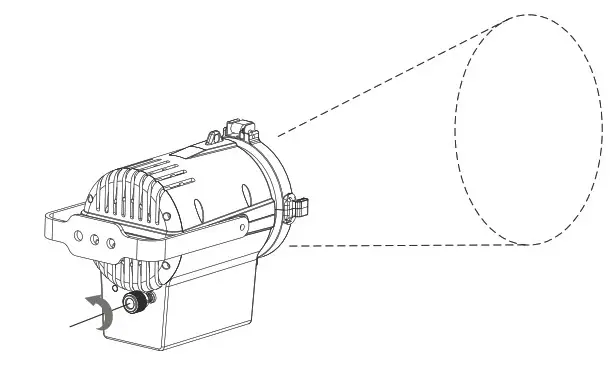

If the zoom-encoder is turned counterclockwise the beam of the fixture increases.

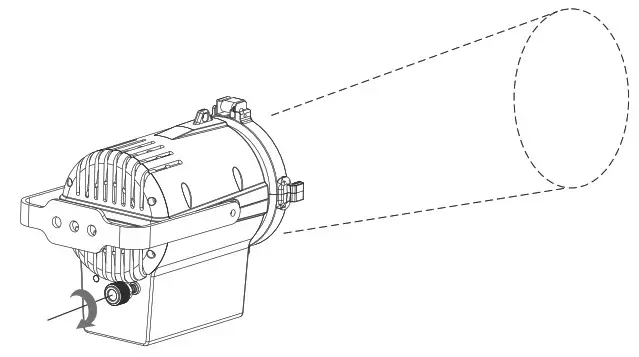

If the zoom-encoder is turned clockwise the beam of the fixture decreases.
Charger Connection Hole
The fixture can be loaded via the Charger Connection Hole with a suitable power supply (DC 52V, 1A, inside +, outside -).
Load Indicator
The Load Indicator shows the current load status of the fixture as follows:
– 100% – 70% Charge = Green
– 70% – 30% Charge = Orange
– <30% Charge = Red
© 2021 by Focon Showtechnic Vertriebsgesellschaft mbH
by
FOCON SHOWTECHNIC
Vertriebsgesellschaft mbH
Teichweg 4+6
D-49504 Lotte/Wersen
Telefon: ++49 (0) 541-77095-0
Fax: ++49 (0) 541-77095-27
[email protected]
www.focon-showtechnic.com
