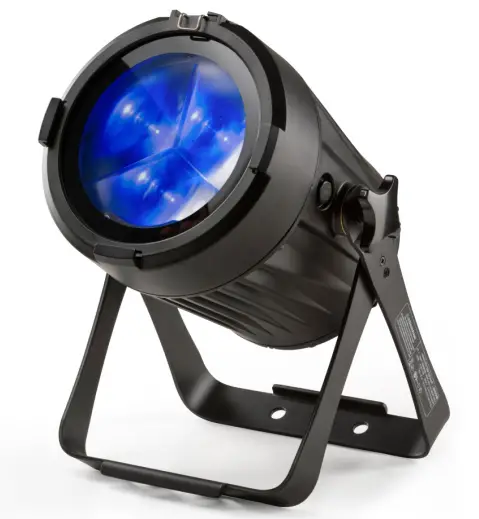

led25120 Toured MC 120 MKII LED Outdoor
User Manual
Introduction
1.1 Spezifications
Art. No.:
led25120
Voltage
100-240VAC, 50/60Hz
130 Wa
Connectors
Sermonic Power IP in/out XLR 3+5-Pol in/out
Control
DMX 512
Optic
Osram LED 3x 40W RGBW Astral Winkel 4,5°- 36° 2.700K- 8.000K
Specials
Keene Farbschaen Laurels
Environment
0°C- 45°C IP65
Delivery
Exploiter Toured MC 120 MKII Power cord General informatory Exploiter units
Optional
Safety 60cm/4mm Art. Nr.: sic62116
Power Con True1 5m extend Art. Nr.: kab44905
Power Con True1 3m extend Art. Nr.: kab44900
Doughty Twenty Clamp, black Art. Nr.: dou62200

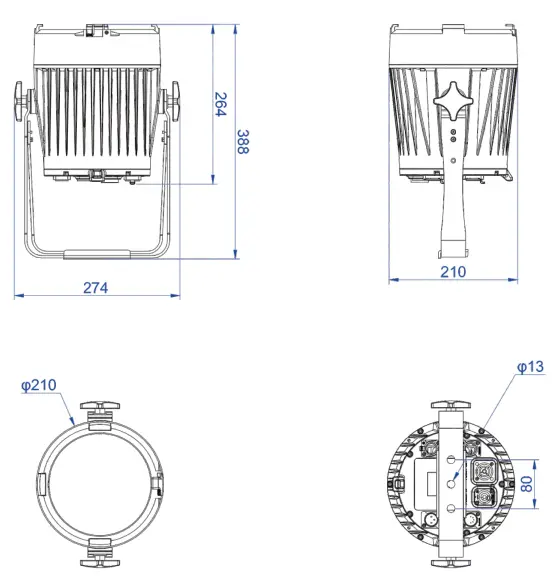

Dimensions
274x210x388mm (LxWxH) 7,3kgc
1.2 Safety information
For safety informed the document „General informer Exploiter units“.
Installation

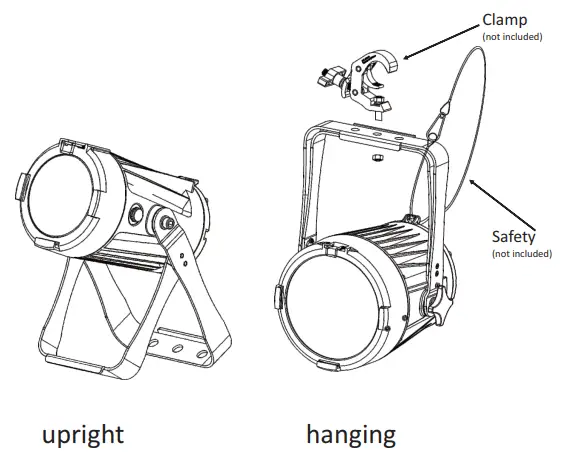

2.1 Mounting
This unit can be mounted in any position.
All common clamps can be mounted to the yoke.
This unit must be secured from falling down according to the current regulations.
2.2 Connection
At 240V mains: maximum 13 units daisy-chain
At 100V mains: maximum 6 units daisy-chain
Aention:
If the signal cable is longer than 60m, a signal booster is required.

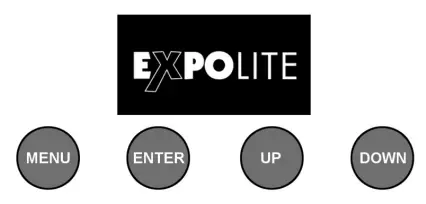

3.1 Control panel
Menu: Enter menu/ step back
Enter: Confirm
Up: up
Down: down

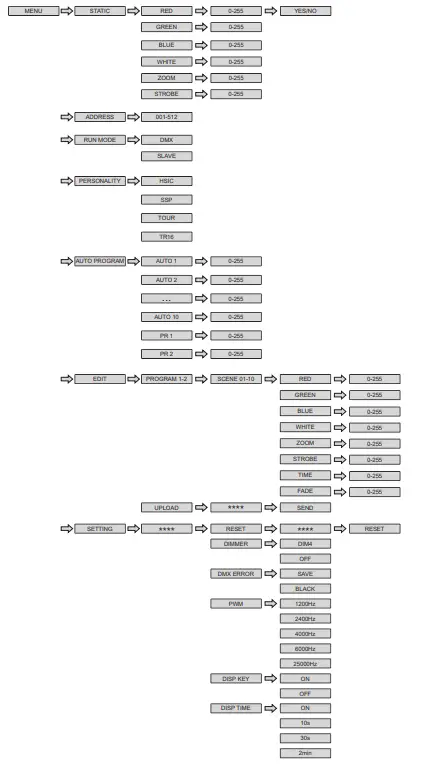

3.2 Menu
3.3 Static.
Values for manual stand alone can be set.
Go to „STATIC“ and set the values of the functions.
3.4 Address
the DMX-Address can be set here.
3.5 Run Mode
Different control protocols can be selected here.
„CUSTOM 1″ and „CUSTOM 2″ triggers the custom auto program from the „EDIT“ menu.

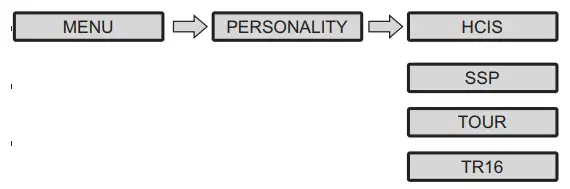

3.6 Personality
Different DMX- prowled can be selected here.

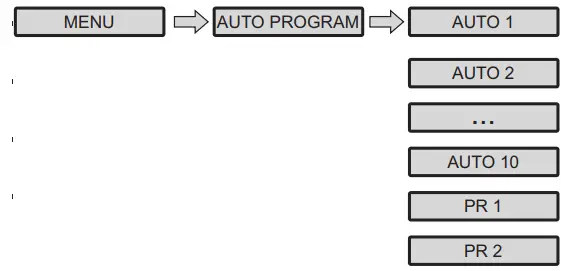

3.7 Auto Program
Pre programed auto programs and custom programs can be chosen here. „PR1″ and „PR2″ triggers the custom auto program from the „EDIT“ menu.

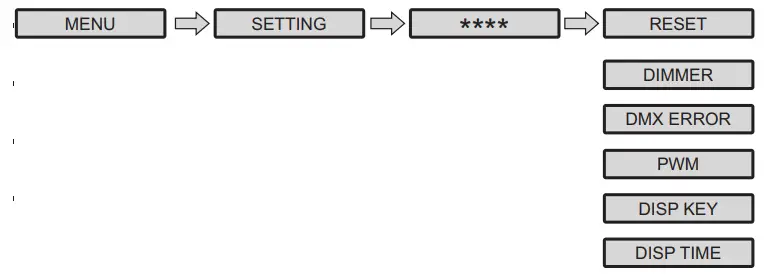

3.8 Setting
Different seen be done here. This menu is password protected. Enter the password „
“.
Reset
Factory reset will be done here. This menu is password protected. Enter the password „ “.
Dimmer
Various dimmer curves can be set from slow to fast. „Dim4″ is the slowest curve (halogen situlas test.
DMX Error
The rescan be set. Choose „SAVE“ to keep the last value or „BLACK“ for Blackout.
PWM
The reacan be set. Choose „SAVE“ to
keep the last value or „BLACK“ for Blackout.
Disp Key
The display lock can be acted or educated. Enter the password („ “) to enter the menu.
Dips Time
The display can be set as always on or off by a delay

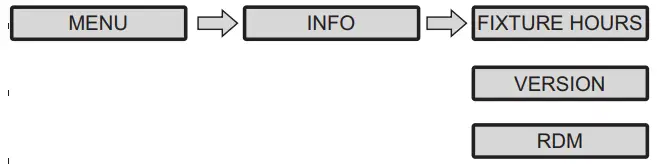

3.9 Info
This menu shows different fixture informa
3.10 CCT
Various color presets can be chosen here.

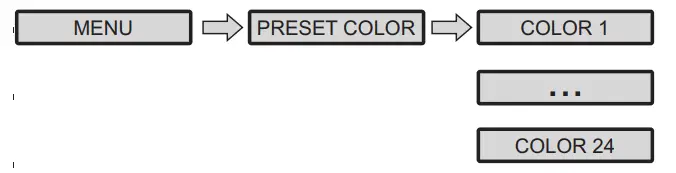

3.11 Preset Color
This menu shows different fixture information.
Kanalbelegung
4.1 HSIC
| DMX Kanal | Wert | Funk |
| 1 | 0 – 255 | INTENSITY |
| 2 | 0 – 255 | HUE |
| 3 | 0 – 255 | HUE FINE |
| 4 | 0 – 255 | SATURATION |
| 5 | 000 – 009 010 – 024 025 – 039 040 – 054 055 – 069 070 – 084 085 – 099 100 – 114 115 – 129 130 – 144 145 – 159 160 – 174 175 – 189 190 – 204 205 – 255 |
CCT NO FUNCTION 1800K 2200K 2700K 3000K 3200K 4000K 4500K 5000K 5600K 6000K 6500K 7000K 8000K 10000K |
| 6 | 000 – 009 010 – 099 100 – 109 110 – 179 180 – 189 190 – 255 |
STROBE NO FUNCTION STROBE FROM SLOW TO FAST (0-25Hz) NO FUNCTION THUNDER STROBE NO FUNCTION RANDOM STROBE |
| 7 | 000 – 255 | ZOOM |
4.1 HSIC
| DMX Kanal | Wert | Funk |
| 8 | 000 – 010 011 – 100 101 – 110 111 – 120 121 – 150 151 – 160 161 – 170 171 – 180 181 – 190 191 – 200 201 – 210 211 – 220 221 – 255 |
CONTROL NO FUNCTION RESERVED DIMMER OFF DIMMER DIM4 RESERVED 1200Hz 2400Hz 4000Hz 6000Hz 25000Hz ALL RESET ZOOM RESET RESERVED |
4.2 SSP
| DMX Kanal | Wert | Funk |
| 1 | 000 – 255 | DIMMER |
| 2 | 000 – 255 | RED |
| 3 | 000 – 255 | GREEN |
| 4 | 000 – 255 | BLUE |
| 5 | 000 – 255 | WHITE |
| 6 | 000 – 009 010 – 099 100 – 109 110 – 179 180 – 189 190 – 255 |
STROBE NO FUNCTION STROBE FROM SLOW TO FAST (0-25Hz) NO FUNCTION THUNDER STROBE NO FUNCTION RANDOM STROBE |
| 7 | 000 – 255 | ZOOM |
4.2 SSP
| DMX Kanal | Wert | Funk |
| 8 | 000 – 010 011 – 100 101 – 110 111 – 120 121 – 150 151 – 160 161 – 170 171 – 180 181 – 190 191 – 200 201 – 210 211 – 220 221 – 255 |
CONTROL NO FUNCTION RESERVED DIMMER OFF DIMMER DIM4 RESERVED 1200Hz 2400Hz 4000Hz 6000Hz 25000Hz ALL RESET ZOOM RESET RESERVED |
4.3 TOUR
| DMX Kanal | Wert | Funk |
| 1 | 000 – 255 | DIMMER |
| 2 | 000 – 255 | RED |
| 3 | 000 – 255 | GREEN |
| 4 | 000 – 255 | BLUE |
| 5 | 000 – 255 | WHITE |
| 6 | 000 – 010 011 – 255 |
PRESET COLOR NO FUNCTION PRESET COLORS |
| 7 | 000 – 009 010 – 024 025 – 039 040 – 054 055 – 069 070 – 084 085 – 099 100 – 114 115 – 129 130 – 144 145 – 159 160 – 174 175 – 189 190 – 204 205 – 255 |
CCT NO FUNCTION 1800K 2200K 2700K 3000K 3200K 4000K 4500K 5000K 5600K 6000K 6500K 7000K 8000K 10000K |
| DMX Kanal | Wert | Funk |
| 8 | 000 – 009 010 – 099 100 – 109 110 – 179 180 – 189 190 – 255 |
STROBE NO FUNCTION STROBE FROM SLOW TO FAST (0-25Hz) NO FUNCTION THUNDER STROBE NO FUNCTION RANDOM STROBE |
| 9 | 000 – 040 041 – 050 051 – 060 061 – 070 071 – 080 081 – 090 091 – 100 101 – 110 111 – 120 121 – 130 131 – 140 141 – 150 151 – 160 161 – 255 |
AUTO NO FUNCTION AUTO 1 AUTO 2 AUTO 3 AUTO 4 AUTO 5 AUTO 6 AUTO 7 AUTO 8 AUTO 9 AUTO 10 PROGRAM 1 PROGRAM 2 NO FUNCTION |
| 10 | 000 – 255 | AUTO SPEED ADJUSTMENT |
| 11 | 000 – 255 | ZOOM |
| 12 | 000 – 010 011 – 100 101 – 110 111 – 120 121 – 150 151 – 160 161 – 170 171 – 180 181 – 190 191 – 200 201 – 210 211 – 220 221 – 255 |
CONTROL NO FUNCTION RESERVED DIMMER OFF DIMMER DIM4 RESERVED 1200Hz 2400Hz 4000Hz 6000Hz 25000Hz ALL RESET ZOOM RESET RESERVED |
4.2 TR16
| DMX Kanal | Wert | Funk |
| 1 | 000 – 255 | MASTER DIMMER |
| 2 | 000 – 255 | MASTER DIMMER FINE |
| 3 | 000 – 255 | RED |
| 4 | 000 – 255 | RED FINE |
| 5 | 000 – 255 | GREEN |
| 6 | 000 – 255 | GREEN FINE |
| 7 | 000 – 255 | BLUE |
| 8 | 000 – 255 | BLUE FINE |
| 9 | 000 – 255 | WHITE |
| 10 | 000 – 255 | WHITE FINE |
| 11 | 000 – 010 011 – 255 |
PRESET COLOR NO NONCTION PRESET COLOR (Siehe Anhang I für Details) |
| 12 | 000 – 009 010 – 024 025 – 039 040 – 054 055 – 069 070 – 084 085 – 099 100 – 114 115 – 129 130 – 144 145 – 159 160 – 174 175 – 189 190 – 204 205 – 255 |
CCT NO FUNCTION 1800K 2200K 2700K 3000K 3200K 4000K 4500K 5000K 5600K 6000K 6500K 7000K 8000K 10000K |
4.2 TR16
| DMX Kanal | Wert | Funk |
| 13 | 000 – 009 010 – 099 100 – 109 110 – 179 180 – 189 190 – 255 |
STROBE NO FUNCTION STROBE FROM SLOW TO FAST (0-25Hz) NO FUNCTION THUNDER STROBE NO FUNCTION RANDOM STROBE |
| 14 | 000 – 040 041 – 050 051 – 060 061 – 070 071 – 080 081 – 090 091 – 100 101 – 110 111 – 120 121 – 130 131 – 140 141 – 150 151 – 160 161 – 255 |
AUTO NO FUNCTION AUTO 1 AUTO 2 AUTO 3 AUTO 4 AUTO 5 AUTO 6 AUTO 7 AUTO 8 AUTO 9 AUTO 10 PROGRAM 1 PROGRAM 2 NO FUNCTION |
| 15 | 000 – 255 | AUTO SPEED ADJUSTMENT |
| 16 | 000 – 255 | ZOOM |
| 17 | 000 – 010 011 – 100 101 – 110 111 – 120 121 – 150 151 – 160 161 – 170 171 – 180 181 – 190 191 – 200 201 – 210 211 – 220 221 – 255 |
CONTROL NO FUNCTION RESERVED DIMMER OFF DIMMER DIM4 RESERVED 1200Hz 2400Hz 4000Hz 6000Hz 25000Hz ALL RESET ZOOM RESET RESERVED |
Anhang
| PRESET COLOR | Value | Color Names | I x | I v | |
| 0.10 | NO FUNCTION | ||||
| 11-15 | RESERVE | Loving Amber | 0.407 | 0.321 | |
| COLOR 1 | 16-20 | R40 | Light Salmon | 0.499 | 0.321 |
| COLOR 2 | 21-25 | L24 | Scarlet | 0.561 | 0.296 |
| COLOR 3 | 26-30 | L164 | Flame Red | 0.659 | 0.302 |
| 31-35 | RESERVE | Easy White | 0.389 | 0.344 | |
| 36-40 | RESERVE | Warm Peach | 0.448 | 0.353 | |
| COLOR 4 | 41-45 | L08 | Dark Salmon | 0.498 | 0.347 |
| COLOR 5 | 46-50 | L25 | Sunset Red | 0.566 | 0.359 |
| 51-55 | RESERVE | Medium Bastard Amber | 0.37 | 0.335 | |
| COLOR 6 | 56-60 | L237 | CID(To Tungsten) | 0.43 | 0.365 |
| COLOR 7 | 61-65 | R321 | Soft Golden Amber | 0.477 | 0.406 |
| COLOR 8 | 66-70 | L652 | Urban Sodium | 0.535 | 0.399 |
| 71-75 | RESERVE | LCT Yellow(Y1) | 0.34 | 0.363 | |
| COLOR 9 | 76-80 | L765 | LEE Yellow | 0.389 | 0.412 |
| COLOR 10 | 81-85 | L513 | Ice And A Slice | 0.38 | 0.447 |
| 86-90 | RESERVE | Spring Yellow | 0.41 | 0.502 | |
| 91-95 | RESERVE | LEE Plus Green | 0.324 | 0.388 | |
| 96-100 | RESERVE | CalColor 30 Green | 0.318 | 0.44 | |
| 101-105 | RESERVE | Fern Green | 0.234 | 0.543 | |
| COLOR 11 | 106-110 | L90 | Dark Yellow Green | 0.184 | 0.641 |
| 111-115 | RESERVE | LEE Fluorescent3600K | 0.286 | 0.37 | |
| COLOR 12 | 116-120 | R92 | Tuiquoise | 0.235 | 0.36 |
| 121-125 | RESERVE | Kelly Green | 0.185 | 0.459 | |
| 126-130 | RESERVE | Forest Green | 0.162 | 0.496 | |
| 131-135 | RESERVE | Cosmetic Aqua Blue | 0.3 | 0.318 | |
| COLOR 13 | 136-140 | L728 | Steel Green | 0.256 | 0.302 |
| COLOR 14 | 141-145 | L117 | Steel Blue | 0.223 | 0.278 |
| COLOR 15 | 146-150 | L354 | Special Steel Blue | 0.173 | 0.265 |
| 151-155 | RESERVE | Paler Lavender | 0.284 | 0.284 | |
| COLOR 16 | 156-160 | L501 | New Colour Blue | 0.246 | 0.249 |
| COLOR 17 | 161-165 | L174 | Dark Steel Blue | 0.204 | 0.205 |
| 166-170 | RESERVE | Daylight Blue | 0.159 | 0.158 | |
| 171-175 | RESERVE | Pale Lavender | 0.288 | 0.254 | |
| 176-180 | RESERVE | Surprise Pink | 0.24 | 0.183 | |
| COLOR 18 | 181-185 | L142 | Pale Violet | 0.209 | 0.148 |
| 186-190 | RESERVE | Perfect Lavender | 0.177 | 0.07 | |
| 191-195 | RESERVE | Light Pink | 0.335 | 0.289 | |
| COLOR 19 | 196-200 | L794 | Pretty’n Pink | 0.335 | 0.251 |
| COLOR 20 | 201-205 | L328 | Follies Pink | 0.335 | 0.18 |
| 206-210 | RESERVE | Magical Magenta | 0.327 | 0.138 | |
| 211-215 | RESERVE | Pale Rose | 0.35 | 0.318 | |
| COLOR 21 | 216-220 | L127 | Smokey Pink | 0.397 | 0.265 |
| COLOR 22 | 221-225 | L192 | Flesh Pink | 0.41 | 0.237 |
| 226-230 | RESERVE | Special Rose Pink | 0.465 | 0.193 | |
| 231-235 | RESERVE | Moroccan Pink | 0.378 | 0.324 | |
| COLOR 23 | 236-240 | L157 | Pink | 0.457 | 0.272 |
| COLOR 24 | 241-245 | R332 | Cherry Rose | 0.489 | 0.295 |
| 246-250 | RESERVE | Cool LED Bright Pink | 0.57 | 0.263 | |
| 251-255 | NO FUNCTION | ||||
© 2021 by Ofcom Show technic Vertriebsgesellschaft mph
