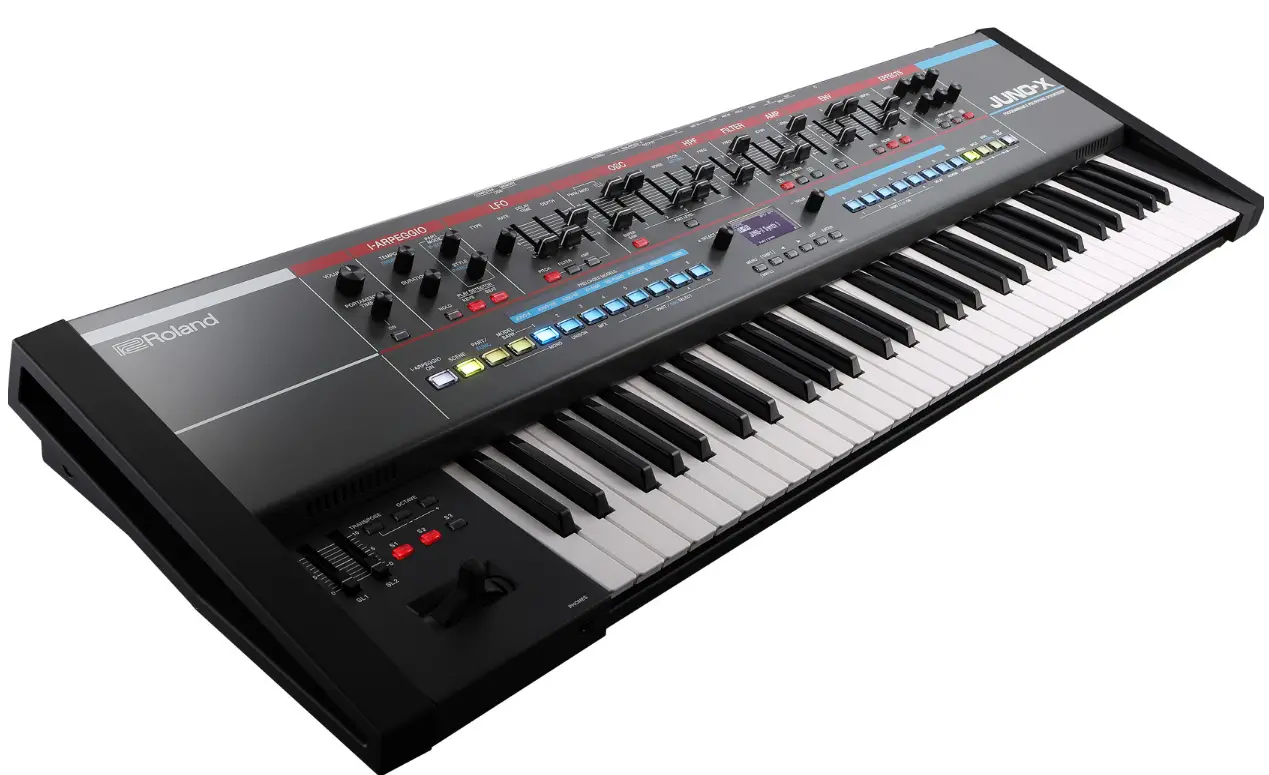

Roland JUNO-X Vocal Designer Model Expansion

This manual explains how to use Vocal Designer Model Expansion with the JUNO-X.
There are two ways to use Vocal Designer Model Expansion.
In this manual, we explain how to do this via Roland Cloud Manager.

Using Roland Cloud Manager
On your computer, use the Roland Cloud Manager to download the Vocal Designer Model Expansion files from Roland Cloud.
Use a USB flash drive to import the files into the JUNO-X.

• Click here for more information on Roland Cloud.
• Click here to download the Roland Cloud Manager and Owner’s Manual.
• You must purchase a Lifetime Key for the data if you want to use Roland Cloud Manager.
• Data that was downloaded with only a Roland Cloud membership can’t be loaded into the JUNO-X.

Using Roland Cloud Connect
Use Roland Cloud Connect (sold separately) and your smartphone to import the Vocal Designer Model Expansion files into the JUNO-X.

• Click here for more information on Roland Cloud Connect.
• If you are using Roland Cloud Connect (sold separately), you can use the Vocal Designer Model Expansion files even on a membership basis.

Updating the JUNO-X to the Latest Version
Before using the Vocal Designer Model Expansion, you must update the JUNO-X to the latest version.
Download the latest software from the website below, and follow the steps listed to update.
https://roland.cm/juno-x_dl

Downloading the Vocal Designer Model Expansion by Using Roland Cloud Manager
This explains how to use Roland Cloud Manager to download and install the Vocal Designer Model Expansion files.

Installing the Roland Cloud Manager

1. On your computer, download Roland Cloud Manager from the Roland Cloud website.
   Access the website listed below to download the appropriate installer for your computer.
   https://roland.cm/RolandCloudManager
2. Double-click the installer you downloaded to begin the installation.
   Proceed with the installation by following the directions shown onscreen.
   When you see a message saying that the installation was successful, click the [Close] or [Finish].
3. Start the Roland Cloud Manager that you installed, and register your account.
   Follow the onscreen instructions to register.

Downloading the Vocal Designer Model Expansion

1. Start Roland Cloud Manager.
2. Click “Hardware” on the Menu tab.
   A list of hardware appears.
3. Click “JUNO-X”.
   A list of contents appears.
4. Click Vocal Designer Model Expansion.
   The Vocal Designer Model Expansion download page appears.
5. Click “Get Lifetime Key” to purchase a Lifetime Key.
6. Once you’ve made your purchase, click “Library” on the Menu tab.
   A list of the contents you have purchased appears.
7. Select “Vocal Designer Model Expansion” and download.

Installing the Vocal Designer Model Expansion

Saving Files To a USB Flash Drive

When using a USB flash drive for the first time, you must format it on the JUNO-X.
“Formatting a USB Flash Drive” (Startup Guide)

1. Connect the USB flash drive to your computer.
2. Save the file (EXM006_VocDsgnr.exz) to the root directory of the USB flash drive.
3. Disconnect the USB flash drive from your computer.

Installing on the JUNO-X

1. Insert the USB flash drive you prepared in “Saving
   Files To a USB Flash Drive” into the JUNO-X.
2. Turn the power of the JUNO-X on while holding down the [ENTER] (INIT) button.

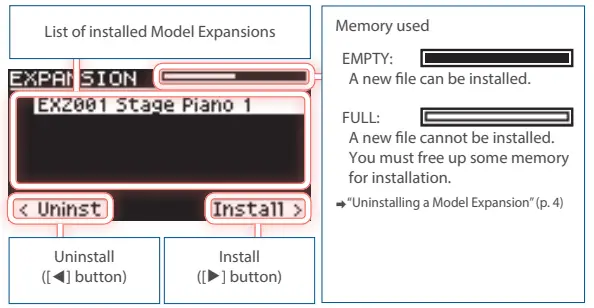

   The EXPANSION top screen appears.
3. Press the [Ë] button to go to the installation screen.
4. Use the [ÇSELECTÉ] knob to select “EXM006_
   VocDsgnr”, and press the [ENTER] (INIT) button or the [Ë] button.
   A confirmation message appears.
   If you decide to cancel, press the [EXIT] button.
   MEMO
   The user license registration screen appears if you’re installing for the first time.
   To continue installing, use the [Ë] button to select “OK”, and then press the [ENTER] (INIT) button.
5. To execute, use the [- VALUE +] knob to select “OK”, and then press the [ENTER] (INIT) button.
6. Turn the power off, then on again.
   This allows you to use the Vocal Designer Model Expansion.

Error Messages

Uninstalling a Model Expansion

If there is not enough free memory, you can uninstall Model Expansions that are already installed, and then install the Vocal Designer Model Expansion.

1. Hold down the [ENTER] (INIT) button and turn the JUNO-X on.
   The EXPANSION top screen appears.
2. Use the [ÇSELECTÉ] knob to select the file to uninstall, and then press the [Í] button to go to the uninstallation screen.
   A confirmation message appears.
   If you decide to cancel, press the [EXIT] button.
3. To execute, use the [- VALUE +] knob to select “OK”, and then press the [ENTER] (INIT) button.
   MEMO
   The uninstall process works the same even if you’ve installed the Model Expansion with Roland Cloud Connect (WC-1).

User License

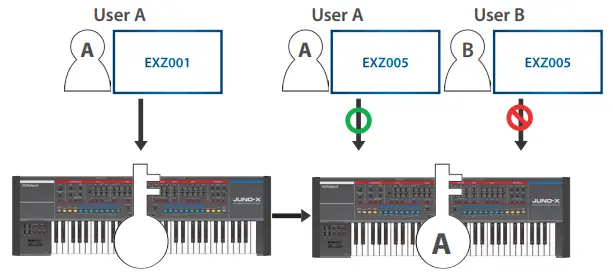

The Model Expansions are linked to the user license of the user who downloaded them.
You cannot import or install Model Expansions with different user licenses on a single JUNO-X.

When you want to import or install a Vocal Designer Model Expansion that has a different user license from the Model Expansions already registered in the JUNO-X, follow the steps to initialize the user license.

Initializing Your User License

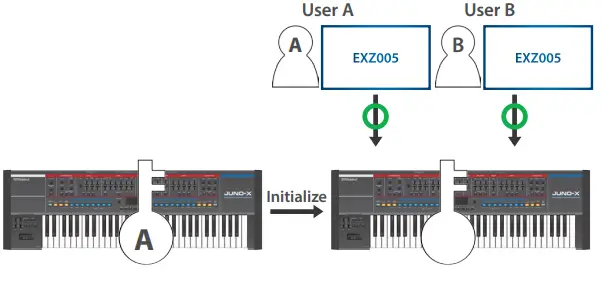

By initializing the user license, you can install a Vocal Designer Model Expansion that you’ve downloaded with a new user license.

NOTE

• This deletes all Model Expansions that are already installed.
• Never turn off the power or remove the USB flash drive while the “Executing…” message is shown.

1. Press the [MENU] (WRITE) button on the JUNO-X.
2. Use the [ÇSELECTÉ] knob to select “UTILITY”, and press the [ENTER] (INIT) button.
3. Use the [ÇSELECTÉ] knob to select “FACTORY RESET”, and then press the [ENTER] (INIT) button.

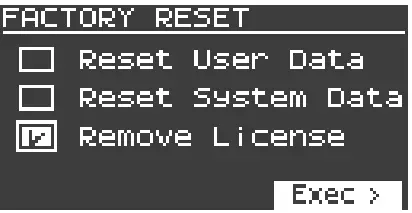

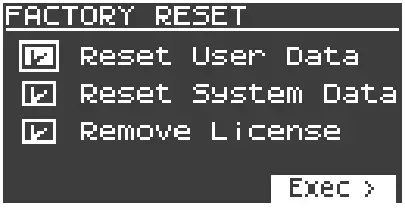

   The FACTORY RESET screen appears.
4. Select the item using the [ÇSELECTÉ] knob, and using the [ENTER] (INIT) button to select or deselect the items, select only the “Remove License” check box.

• If you have not imported or installed a Sound Pack, Wave Expansion or Model Expansion, the “Remove License” check box is not shown.
• If you select the other check boxes besides the “Remove License” check box and execute this operation, this initializes all of the corresponding data.
  • “Returning to the Factory Settings (Factory Reset)” (Startup Guide)

Press the [Ë] button.

A confirmation message appears.
If you decide to cancel, press the [EXIT] button.

6. To execute, use the [- VALUE +] knob to select “OK”, and then press the [ENTER] (INIT) button.
“Completed. Turn off power” is shown on the display.

7. Turn the JUNO-X off.
This initializes the user license.

8. Follow the steps in “Installing the Vocal Designer Model Expansion” (p. 4) to install the
Vocal Designer Model Expansion on the JUNO-X.

Error Messages

Selecting a Tone

1. Press the [MODEL BANK] button.

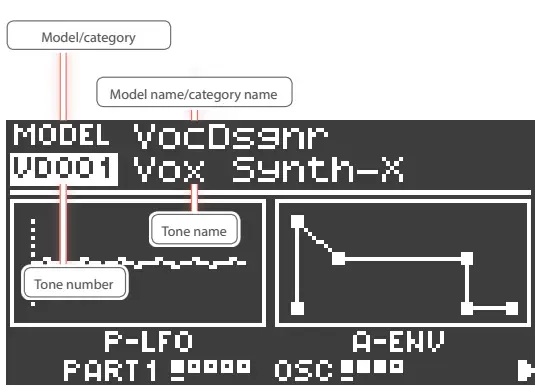

   The MODEL BANK top screen appears.
2. Use the [ÇSELECTÉ] knob to move the cursor to the model name/category name.
3. Use the [- VALUE +] knob to select “Vocal Designer”.
4. Use the [ÇSELECTÉ] knob to move the cursor to the tone number.
5. Use the [- VALUE +] knob to select the tone.
   MEMO
   Move the cursor to the model name/category name or the tone number and press the [ENTER] (INIT) button. The tone list appears.
6. Press the [ENTER] (INIT) button to select the tone.

Setting the Part
Only “PART 1” can be used to select parts for the Vocal Designer. Follow the steps below to set the current part to “PART 1”.

1. On the SCENE top screen, press the [PART/FUNC] button to enter the part select mode.
2. Press the PART / OSC SELECT [1] button to set the current part to “PART 1”.

Setting the Model Bank
Registering the Vocal Designer to a model bank

1. Hold down the [MODEL BANK] button and press a model bank button ([1]–[16]).
2. Use the [ÇSELECTÉ] knob to move the cursor to “Attr”.
3. Use the [- VALUE +] knob to select “MODEL”.
4. Use the [ÇSELECTÉ] knob to select where to register the Vocal Designer.
5. Use the [- VALUE +] knob to select “Vocal Designer”.
6. If you want to save the setting, execute the System Write operation.
   1. Hold down the [SHIFT] button and press the [MENU] (WRITE) button.
      The WRITE MENU screen appears.
   2. Use the [ÇSELECTÉ] knob to select “SYSTEM”, and then press the [ENTER] (INIT) button.
   3. To execute, press the [ENTER] (INIT) button.

Selecting a Vocal Designer tone using the model bank

1. Press the [MODEL BANK] button.
   The MODEL BANK top screen appears.
   Use the [1]–[16] buttons to switch to tone select mode.
2. Select the model bank where you registered the Vocal Designer by pressing one of the [1]–[16] buttons.
   The tones for the Vocal Designer are shown.
   You can use the [- VALUE +] knob to select a tone on this screen as well.
3. Press the [ENTER] (INIT) button.
   A list of tones is shown.
4. Use the [- VALUE +] knob to select the tone.
   You can use the [ÇSELECTÉ] knob to select the tone quickly.
5. Press the [ENTER] button.
   The tone is now selected.

Adjusting the Mic Input Level

On the MODEL BANK top screen, press the [Ë] button once to switch to the VD SETTINGS screen.
Follow the steps below to adjust the mic input level.

1. Connect a microphone to the rear panel MIC IN jack.
   NOTE
   The JUNO-X supports dynamic microphones and electret condenser microphone (mono). It does not support condenser microphones.
2. Set the rear panel MIC IN [GAIN] knob to approximately the center position. 1. Press the [MODEL BANK] button.

Press the [Ë] button.

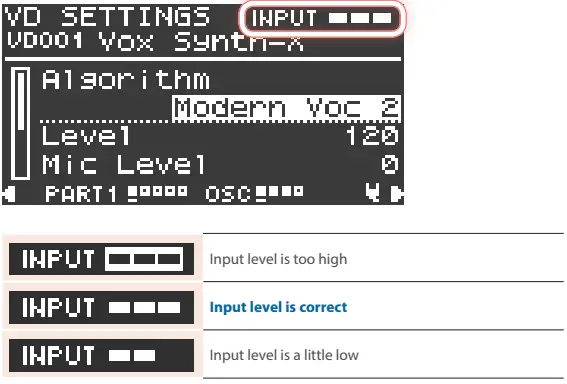

The VD SETTINGS screen appears.

On the VD SETTINGS screen, make fine adjustments to the MIC GAIN.
Sing into the mic at your usual volume. The input level is shown at the top right-hand part of the VD SETTINGS screen.
Adjust the MIC IN [GAIN] knob so that the input level indicator is at the appropriate level.

* For model expansions other than the Vocal Designer/VOCODER, the mic sound is output from the JUNO-X.
If you aren’t using the mic with model expansions other than the Vocal Designer/VOCODER, set “Mic Thru” to “OFF” in the MENU Ó SYSTEM screen.
* You can use a controller to switch between the Vocal Designer/VOCODER sound and the unaltered sound from the mic. See the “VOC/MIC” item of “List of functions that can be assigned to the controllers” in the “JUNO-X Parameter Guide” (PDF) for details.

Tone Settings for the Vocal Designer

This shows you how to make the tone settings for the Vocal Designer.

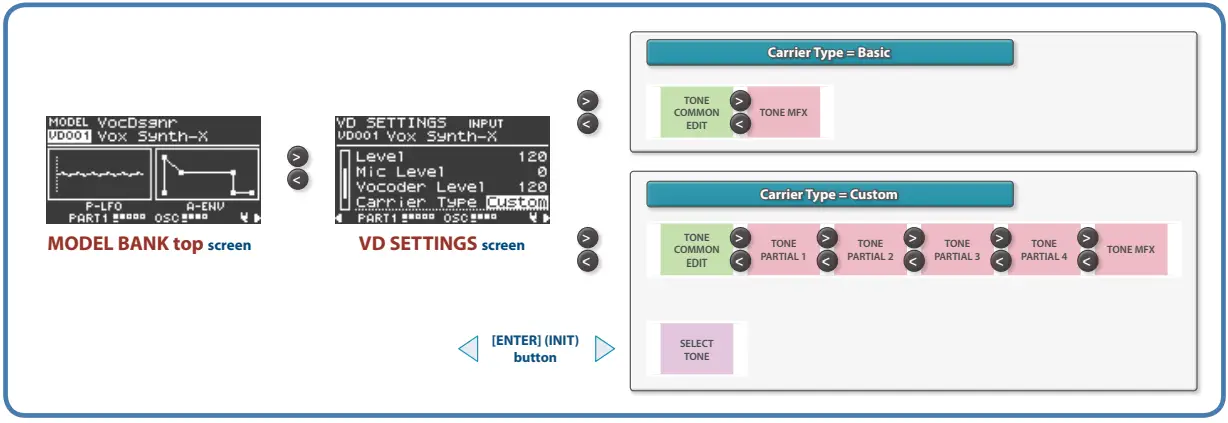

The screens that appear in Vocal Designer differ depending on the “Carrier Type” selected, as shown below.

Select the Custom tone (carrier tone)

When you set the Carrier Type to “Custom”, “[ENTER] to Select” is displayed.
Move the cursor to “[ENTER] to Select” and press the [ENTER] (INIT) button to switch to the SELECT TONE screen.
To select a carrier tone, select the model that includes the desired tone, select the tone and then press the [ENTER] (INIT) button to confirm.

• With the Custom type, you can select the PR-A, PR-B, PR-C, PR-D, PR-X, COMMON, and Installed EXZ tones, as well as the Z-Core tones saved in USER.
• All the parameters of the copy source tone (carrier tone) except the MFX are copied to the custom tone (no link is created to the copy source tone).

Carrier Thru function (checking the carrier tone)
When using the “Carrier Type: Custom” setting, you can play the keyboard while holding down the [SHIFT] button on a specified screen to hear just the carrier tone (this is called “carrier thru”).

• Press the [Í] [Ë] buttons while holding down the [SHIFT] button to keep the unit in the “carrier thru” state.
  If you decide to cancel, press the [EXIT] button.
• You can use the Carrier Thru function on the following screens. ¹ VD SETTINGS screen
• SELECT TONE screen
• TONE COMMON EDIT screen
• TONE EDIT PARTIAL screen
• TONE MFX screen

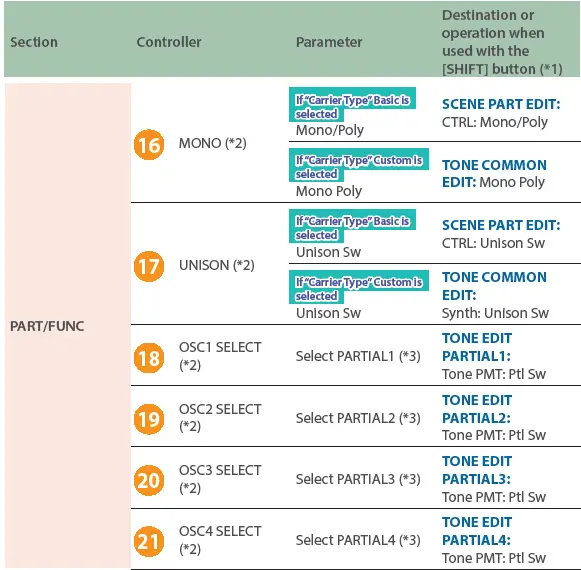

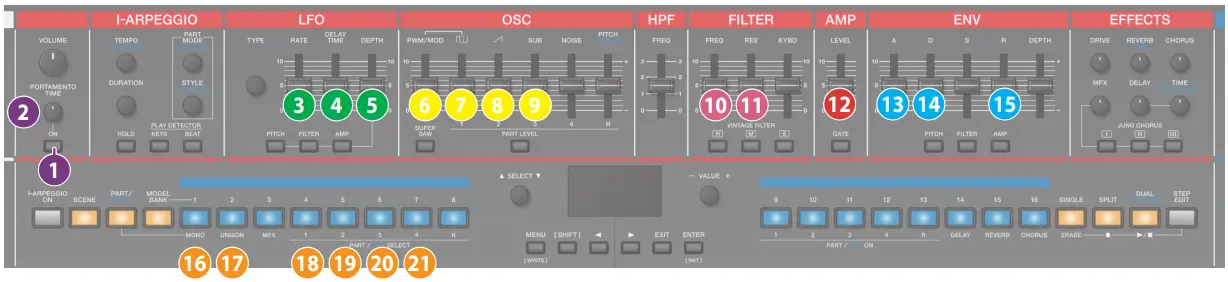

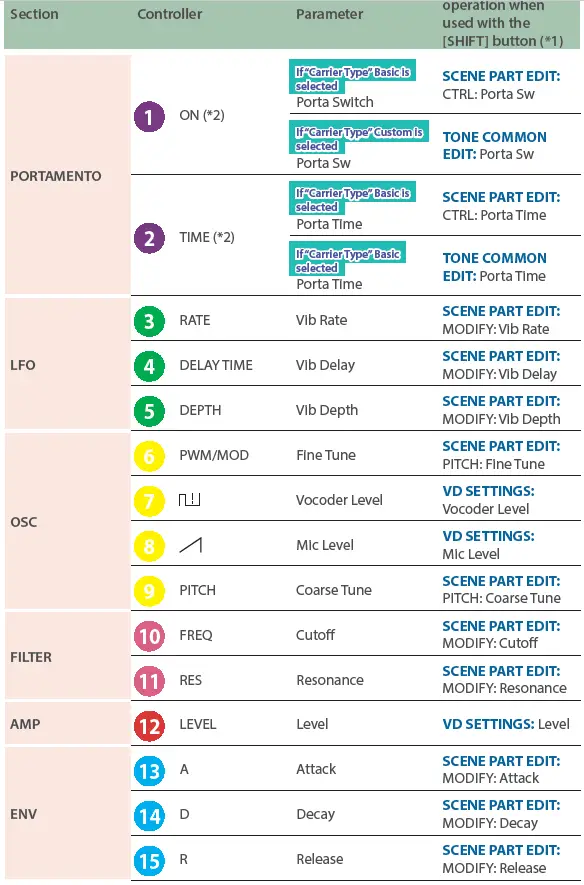

Controls on the JUNO-X and Their Associated Parameters

1. The screen does not change when you press the [SHIFT] button while the SELECT TONE screen is displayed.
2. Cannot be operated on the SELECT TONE screen.
3. This is only enabled when “Custom” is selected for Carrier Type.(*4) Only ENV2 can be used with the Vocal Designer.
   * For other parameters, see the “JUNO-X Parameter Guide” (PDF).

TONE COMMON Parameters

TONE COMMON

Vocal Designer

These are the tone parameters that are shown when Carrier Type is set to “Basic”.
For the parameters shown when this is set to “Custom”, refer to the tone parameters (RD-PIANO, XV-5080, PR-A, PR-B, PD-C, PR-D, COMMON, PR-X) in the “JUNO-X Parameter Guide” (PDF).

Sound List

Tone

Vocal Designer

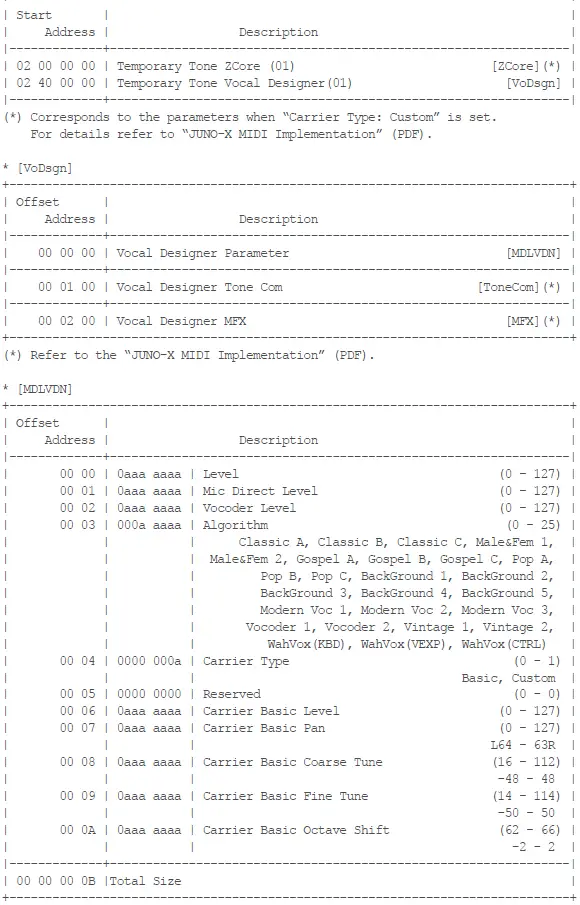

MIDI Parameter Address Map
