LEISURE 410 USER MANUAL
Please read the manual thoroughly before using it and keep it for future reference
PACKING LIST
NOTICE

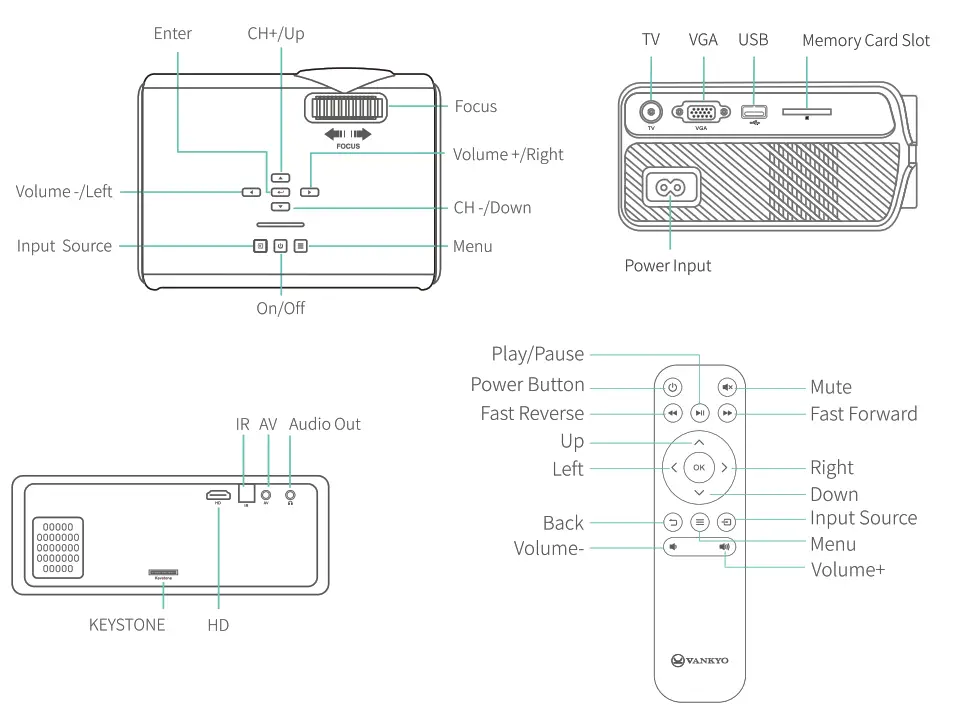

FUNCTION OVERVIEW

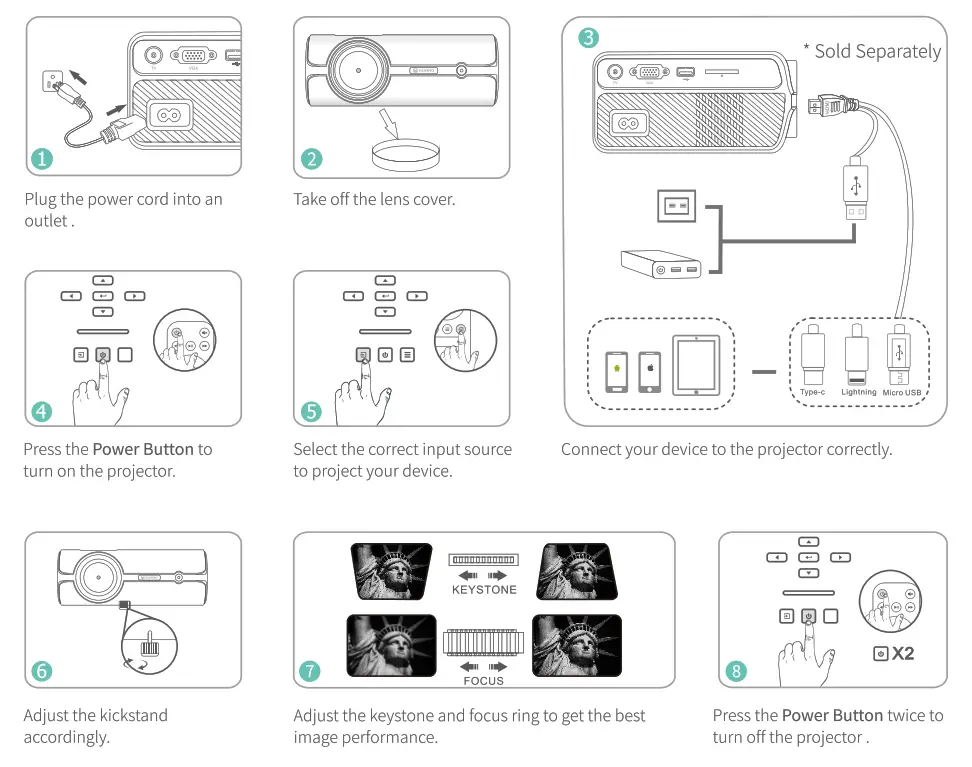

QUICKSTART

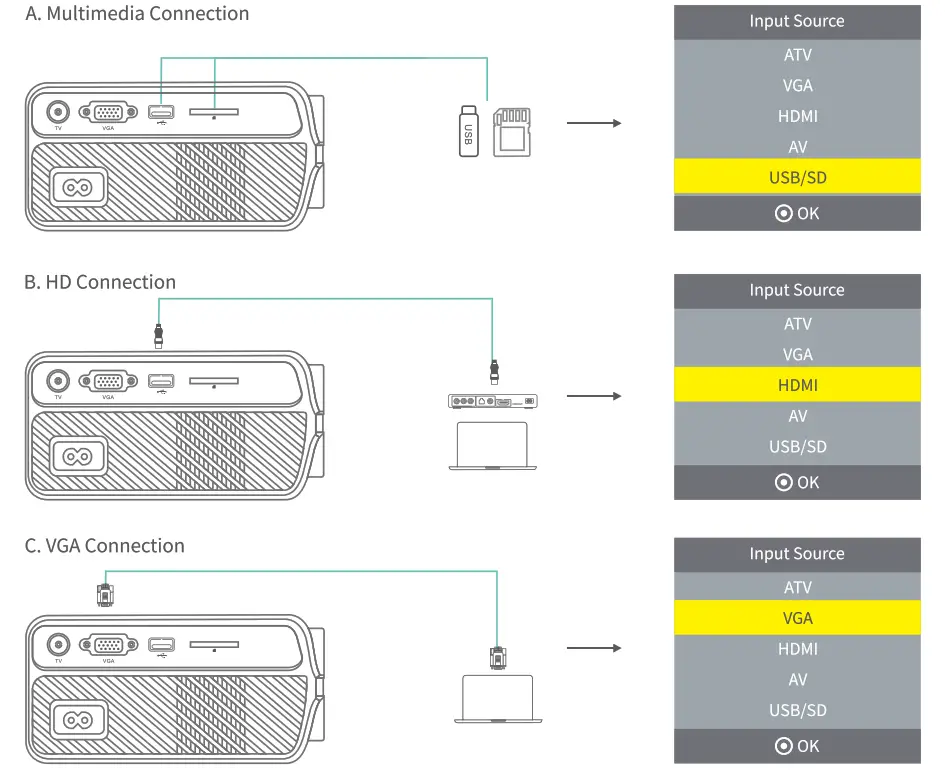

INPUT SOURCE
Press
on the projector or remote to enter the interface of Input Source.

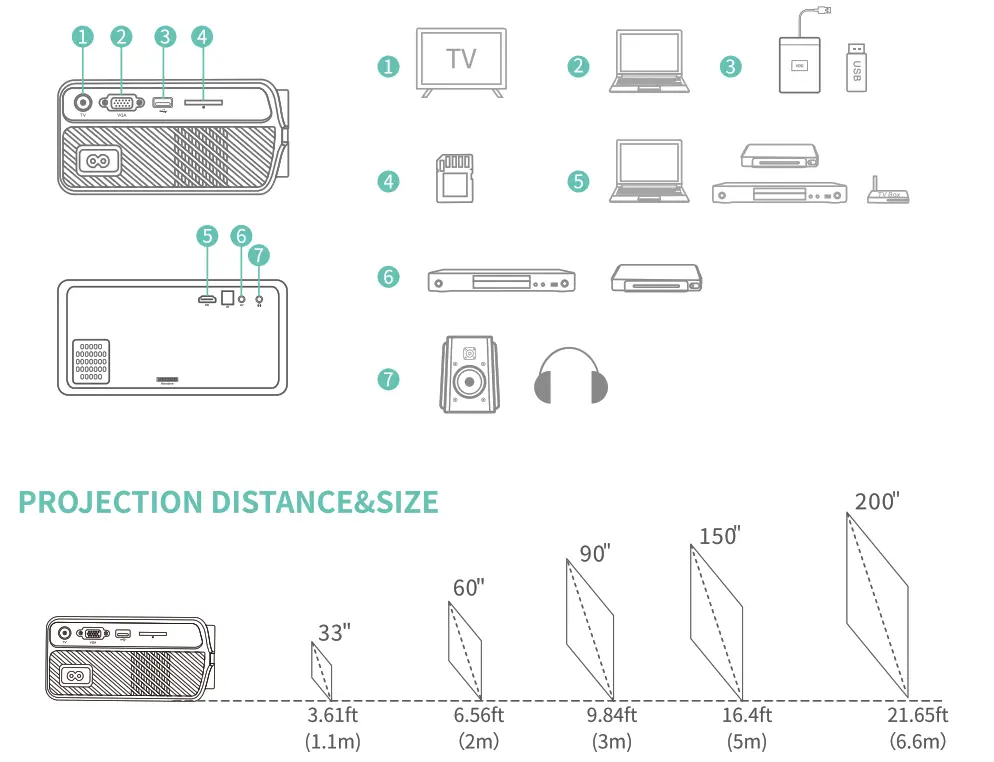

PROJECTOR CONNECTION
The recommended projection screen is around 90 inches with a distance of around 9.84ft. Ambient darkness will improve the clarity of the projected images.
SPECIFICATION
| Display Technology | LCD | Light Source | LED |
| Resolution | Native 1280 x 720 | Input Signal | 420P, 720P, 1080P |
| Installation Type | Front/Rear/Ceiling | Aspect Ratio | 4:3/16:9/Auto |
| Focus | Manual | Keystone | ±15° |
| Speaker | 2W/4ohm | Power Supply | AC 100-240V, 50/60Hz |
| Unit Dimension | 575 x 320 x 450mm (22.6 x 12.6 x 17.7 inch) | Unit Net Weight | 1.2kg(2.61b) |
| Photo Format Supported | BMP/JPG/PNG | Audio Format Supported | MP3/WMA /M4A/AAC/WAV |
| Video Format Supported | MPG/MPE/VOB/TS/RM/RMVB/ AVI/MP4/DIV/MOV/MKV/ASF/FLV/ WMV/3GP/3G2 | Ports | AV x 1/VGA x 1/USB x 1/HD x 1/ AN x 1/Audio Out x 1/ Memory Card Slot x 1 |
| Mounting Screw | 1/4″ | Number of Screw | Not included |
TROUBLESHOOTING GUIDE
1. Blurry Image
Adjust focus ring/keystone.
The projector and screen/wall must be an effective distance.
2. Remote Unresponsive
* Make sure remote points at IR receiver directly.
* Do not cover IR receiver.
* Try a new pair of batteries.
3. Mobile Connection i0S:
Genuine lightning to HDMI cable Android:
Micro USB to HDMI adapter/Type C to HDMI cable
4. Upside Down Images
Enter “Menu”on projector remote to flip the projection image.
CAUTION
The symbol indicates AC voltage
RECYCLING
This product bears the selective sorting symbol for waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.
