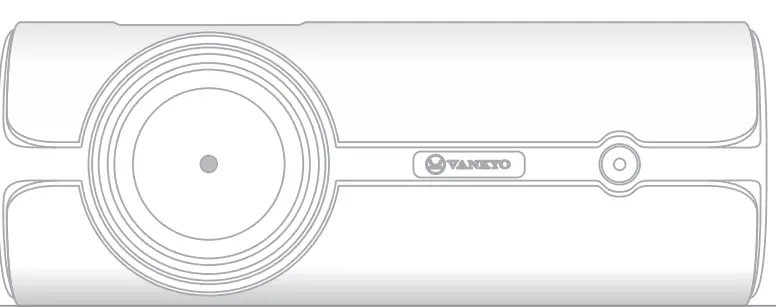

VANKYO 410 Leisure Projector

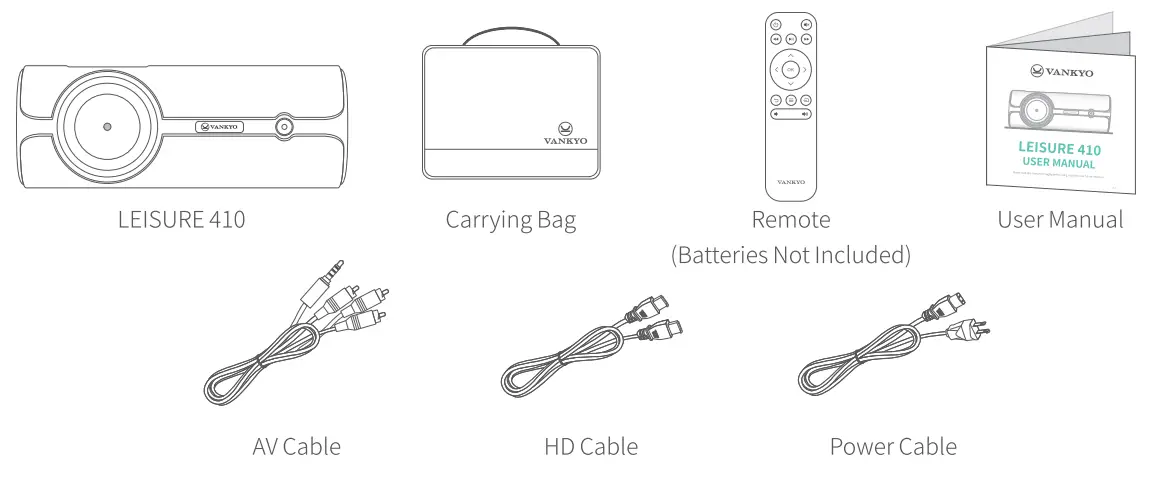

PACKING LIST

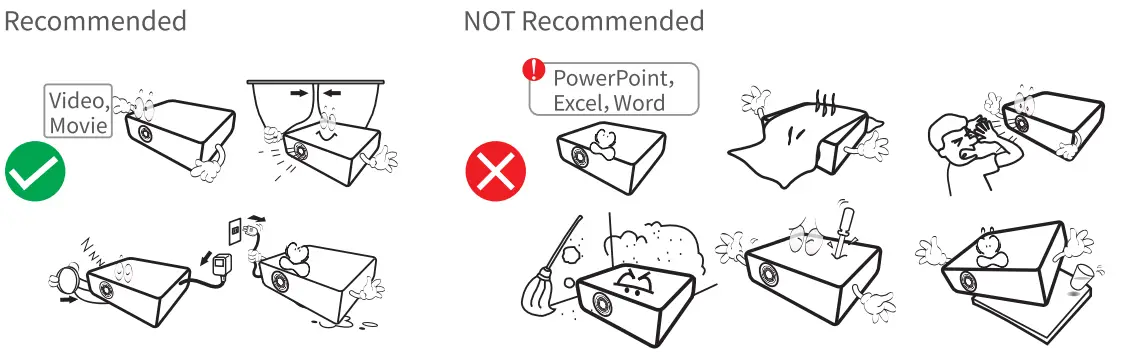

NOTICE

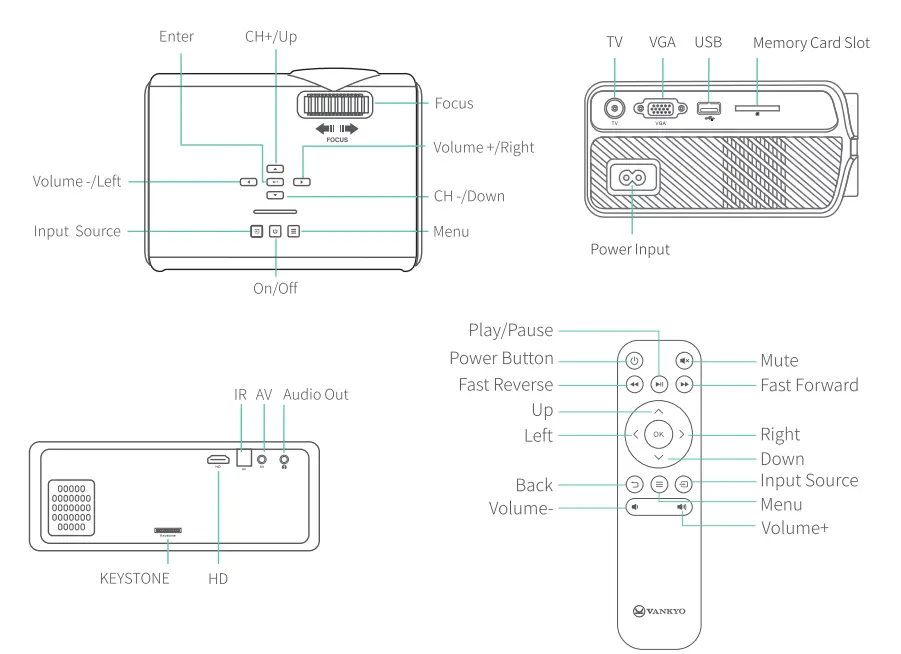

FUNCTION OVERVIEW
QUICK START
- Plug the power cord into an outlet .
- Take off the lens cover.
- Connect your device to the projector correctly.

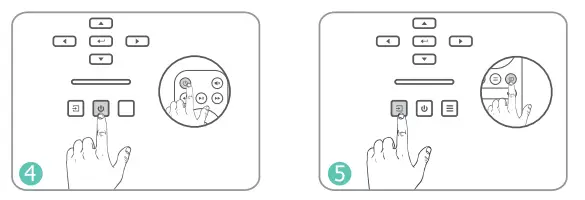

- Press the Power Button to turn on the projector.
- Select the correct input source to project your device .

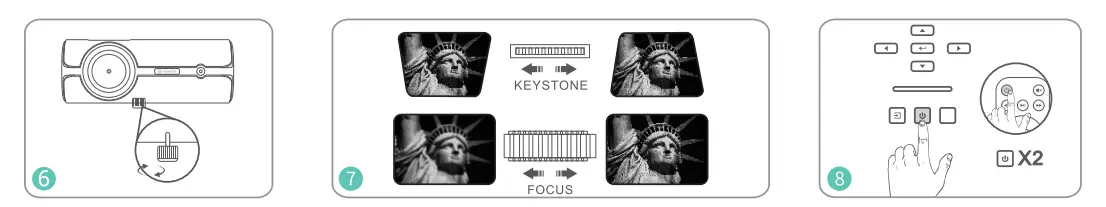

- Adjust the kickstand accordingly.
- Adjust the keystone and focus ring to get the best image performance.
- Press the Power Button twice to turn off the projector.
INPUT SOURCE

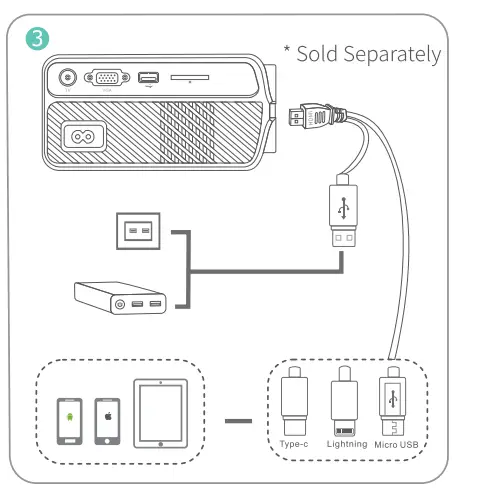

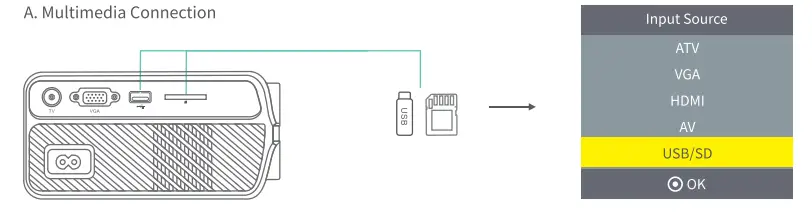

- A. Multimedia Connection

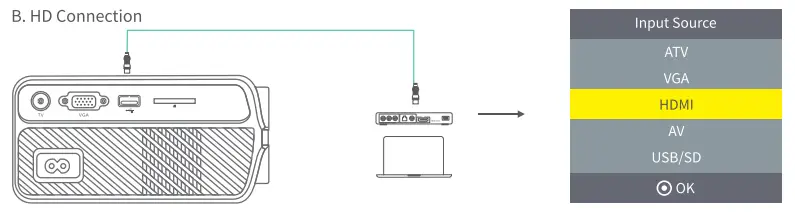

- B. HD Connection

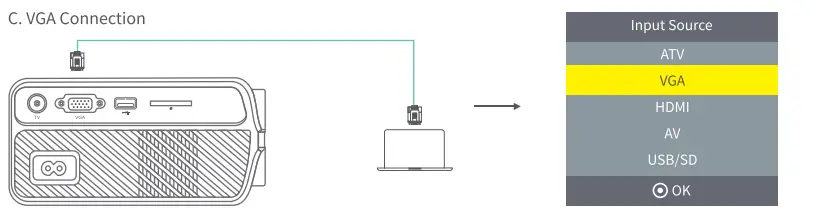

- C. VGA Connection

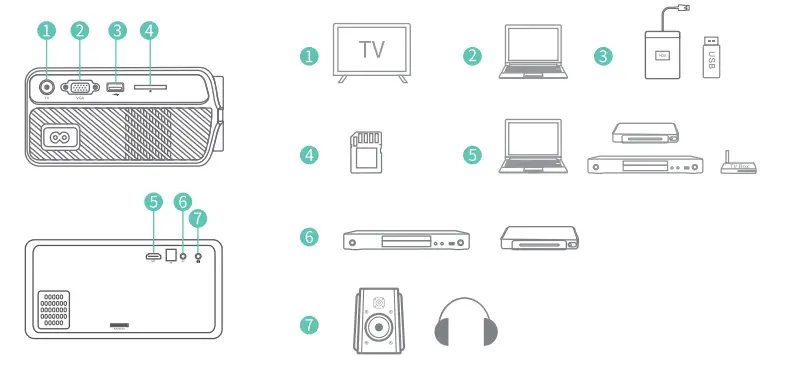

PROJECTOR CONNECTION

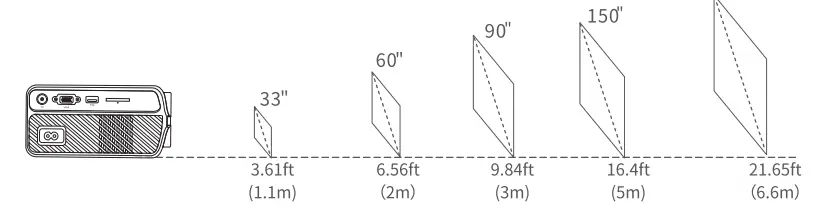

PROJECTION DISTANCE&SIZE
SPECIFICATION
| Display Technology | LCD | Light Source | LED |
| Resolution | Native 1280x 720 | Input Signal | 420P, 720P, 1080P |
| Installation Type | Front/Rear/Ceiling | Aspect Ratio | 4:3/16:9/Auto |
| Focus | Manual | Keystone | ±15° |
| Speaker | 2W/4ohm | Power Supply | AC 100-240V, 50/60Hz |
TROUBLESHOOTING GUIDE
- Blurry Image
- Adjust focus ring/keystone.
- Projector and screen/wall must be in effective distance.
- Remote Unresponsive
- Make sure remote points at IR receiver directly.
- Do not cover IR receiver.
- Try a new pair of batteries.
- . Mobile Connection
- iOS: Genuine lightning to HDMI cable
- Android: Micro USB to HDMI adapter/Type C to HDMI cable
- Upside Down Images
Enter “Menu”on projector remote to flip the projection image. v The symbol indicates AC voltage
RECYCLING
This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.
This product can be used across EU member states.
