USER MANUAL
V 1.02
Please read this manual thoroughly before using and keep it for future reference.

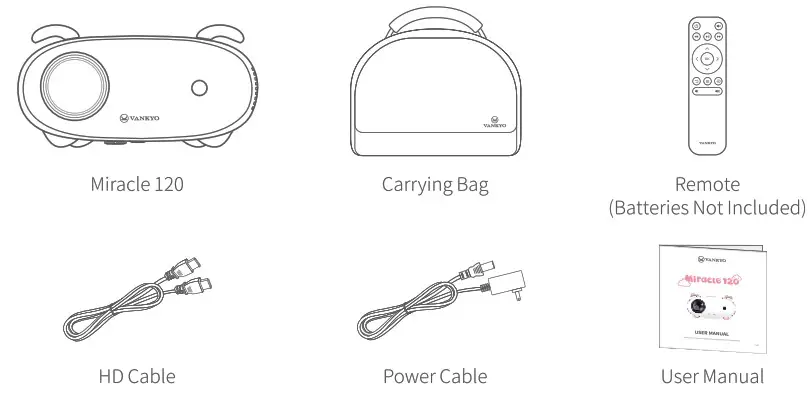

PACKING LIST
NOTICE

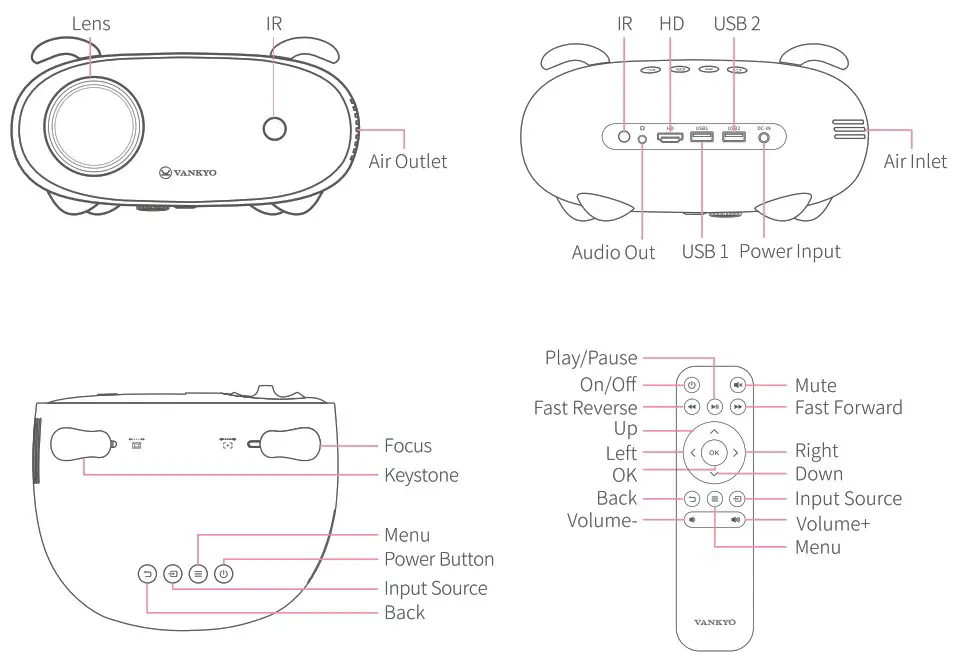

FUNCTION OVERVIEW

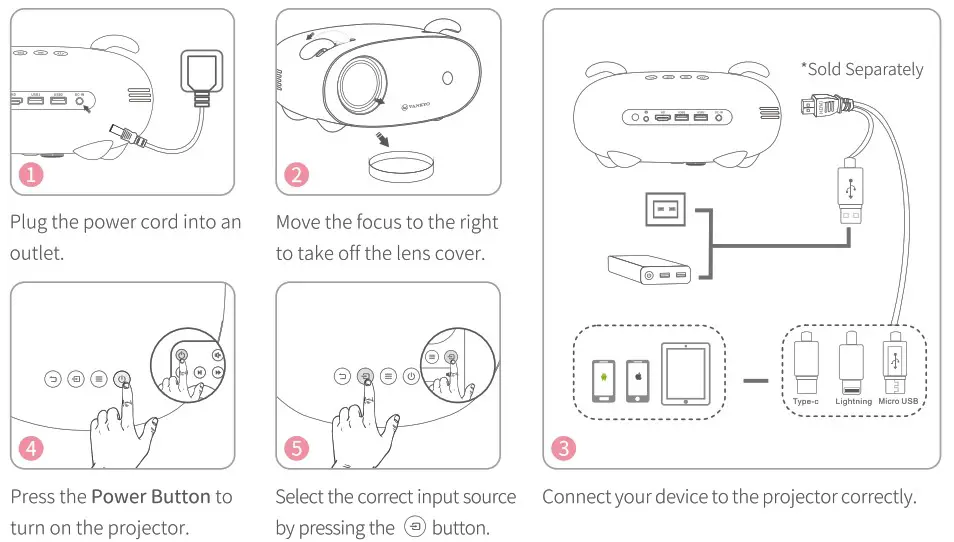

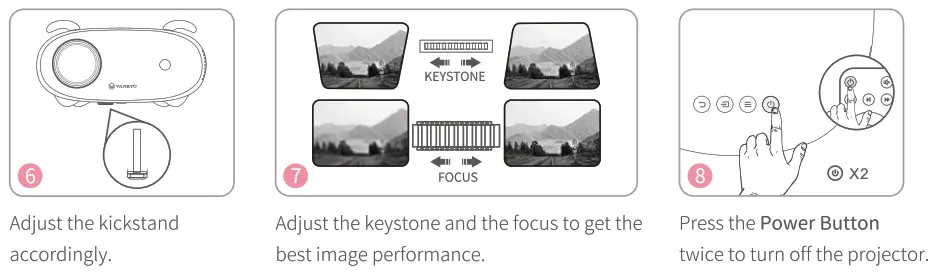

QUICK START
INPUT SOURCE
Press
on the projector or remote to enter the interface of Input Source.

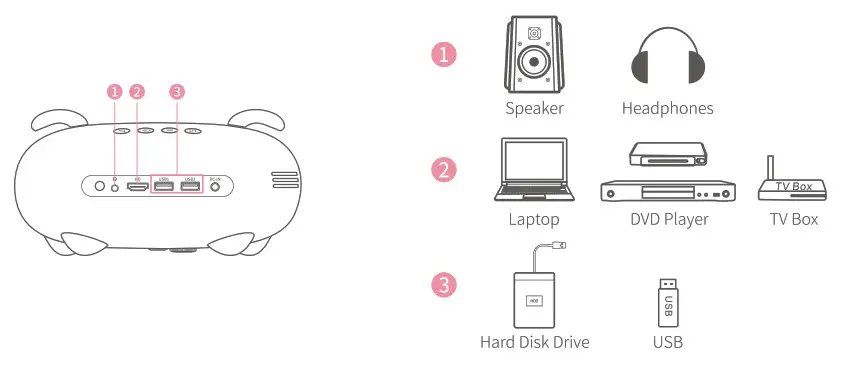

PROJECTOR CONNECTION

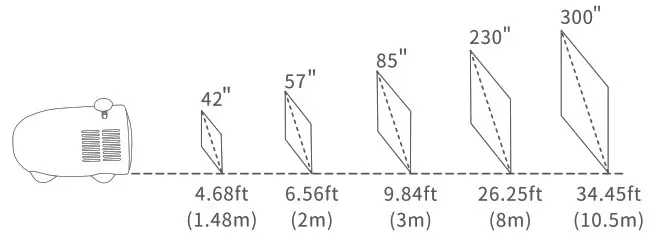

PROJECTION DISTANCE & SIZE
*The recommended projection distance varies with different projection contents. Please adjust the distance between the wall/screen and the projector properly as needed.
*Ambient darkness will improve the clarity of the projected images.
SPECIFICATION
| Display Technology | LCD | Light Source | LED |
| Resolution | Native 800 x 480 | Input Signal | 480P/576i/576P/720i/720P/1080i /1080P |
| Installation Type | Front/Rear/Ceiling | Aspect Ratio | 4:3/16:9/Auto |
| Focus | Manual | Keystone | ±15° |
| Speaker | 3W/4ohm | Power Supply | DC 20V |
| Unit Dimension | 8.11X 6.50 X 4.13 in (206 x 165 x 105mm) | Unit Net Weight | 1.98Ib (0.897kg) |
| Photo Format Supported | BMP/JPG/PGN | Audio Format Supported | MP3/WMA/OGG/AAC/FLAC/WAV |
| Video Format Supported | 3GP(H.263,MPEG4)/AVI(XVID,DIVX, H.264)/MKV(XVID,H.264,DIVX)/FLV (FLV)/MOV(H.234)/MP4(PEG4,AVC) /MPG(MPEGWV0B(MPEG2)/MPG (MPG-PS)/RMVB(RV40)/RM | Ports | HD In x 1/Audio Out x 1/USB Port x 2 |
| Mounting Screw | 1/4″ | Number of Screw | 1 |
TROUBLESHOOTING GUIDE
- What should I do if I get blurry images?
* Adjust focus ring/keystone.
* Projector and screen/wall must be in effective distance. - What should I do if the remote is unresponsive?
* Make sure remote points at IR receiver directly.
* Do not cover IR receiver.
* Try a new pair of AAA batteries. - How do I flip the upside-down images?
*Go to Menu > PICTURE > Projection Direction to flip the projection image. - How do I restore the projector to factory default?
*Go to Menu > OPTION > Restore Factory Default to restore factory settings as needed. - How do I set the language?
*Go to Menu > OPTION > OSD Language to select the language.
CAUTION
The symbol indicates DC voltage
RECYCLING
This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.
This product can be used across EU member states.
VANKYO SUPPORT
North America [email protected]
United Kingdom [email protected]
 |  |  |
