- Unplug Machine and remove both tanks

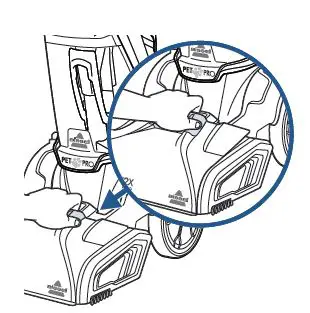

- Remove the nozzle and brush chamber cover
- Press the recline pedal and lay machine on its back
- Use a flathead screwdriver and press it into the slot at the back and then front of the belt access door. Lift to remove the belt access door
- Turn the machine on its side and use a Philips screwdriver to remove the screw underneath the wheel
- Slide the wheel down to remove
- Lay the machine down on its back
- Use a Philips-head screwdriver to remove the screw on the brush roll end cap
- Gently remove the gear belt. If the Gear belt is broken, it will need to be replaced
- If you are replacing your brush rolls but your gear belt is not broken, gently remove the Gear belt
- There are washers at the end of the brush rolls, be careful these do not fall off or get lost
- If you are replacing your brush rolls remove them from the metal posts

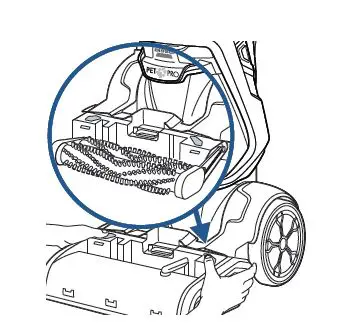

- Put the new brush rolls on the machine making sure the metal post goes completely through the end of the rush roll
- The brush roll bristles should be aligned in a “V” pattern as pictured above
- Align the brush rolls with the belt at the other end
- To make sure they are aligned correctly, hold the end of one brush roll and twist, the other brush roll should rotate with it
- Check to make sure the washers are in place and reassemble the belt and end cap, securing with the screws that were removed
- If the flat belt is broken remove and replace the belt
- To replace the belt put the machine on its side
- Feed the new flat belt through the opening so that it wraps around the red pulley
- Keeping the band wrapped around the red pulley, put the machine on its back
- Use your thumb to stretch the flat belt back to wrap around the metal axle
- Reassemble the wheel and Belt access door
- Snap the belt access door back down into place
- If you still have questions visit a BISSELL Authorized Service Center or Contact Us
