WP210
Universal wall panel – Microphone & line input – 80 x 80 mm
Owner’s Manual
Highlights:
- Compatible with EU (80×80 mm) installation materials
- Elegant design to blend in with any environment
- Signal transmission over twisted pair (CAT5E) or better cabling
- Signal transmission insensitive for interferrence and noise
Product information:
The WP210 is a remote wall mixer that can be used in combination with various AUDAC hardware (ARES5A, MTX series, AMP523 and more). It converts the signal coming from a stereo line-level audio source (such as a tuner, mobile devices, … ) or balanced microphone to the level corresponding to the differential signal input making it possible to transfer highquality audio over long distances between the wall panel and the loudspeaker, by just using inexpensive twisted-pair CAT5e or better cabling.
On the front side of the wall panel, there is a 3.5 mm jack stereo line input connection available together with a balanced XLR microphone input, both provided with their own knob which allows the signals to be mixed together.

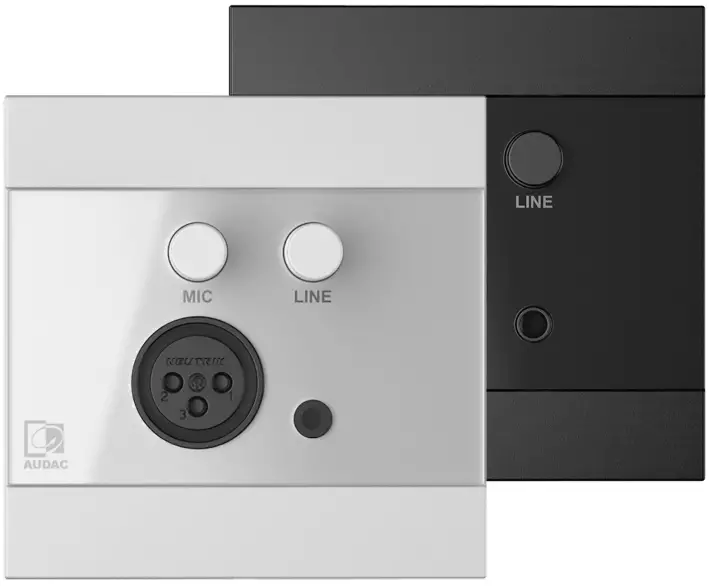

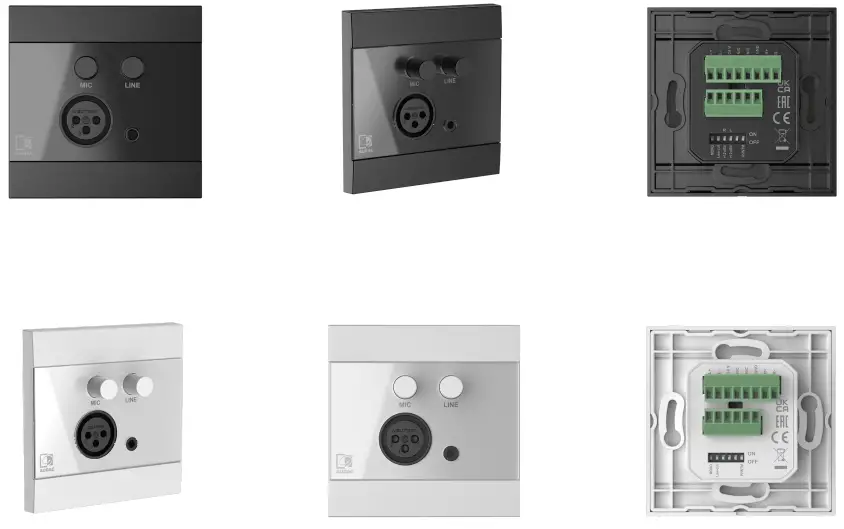

The WP210 is available in 2 colours (White – RAL9003 & Black – RAL9005) and is compatible with most standard EU (80×80 mm) style in-wall boxes for solid and hollow walls. With the Elegant ABS front panel with glass, it will blend into any environment
System specifications:
| Outputs | Level | +12 dB | |
| 0 dB | |||
| Inputs | Wall Panel | Type | 3.5 mm jack stereo line input connection |
| XLR microphone input connection | |||
| Mic & Line inputs on rear for permanent connections | |||
| Connection | 3.5 mm jack input (Stereo line input) | ||
| Female XLR input connector (Microphone input) | |||
| 6-pin terminal block (3.81 mm pitch) input connection on rear (duplicated line & mic inputs) | |||
| 8-pin terminal block (3.81 mm pitch) output connection | |||
| Control | Individual input level control for Mic & Line | ||
| Phantom power (DIP switch on rear) | |||
| Low-cut (Mic) enable / disable (DIP switch on rear) | |||
| Mono / Stereo (DIP switch on rear) |
Product Features:
| Dimensions | 80 x 80 mm (W x H) (Remote wall panel) | ||
| Colours | Black (RAL9005) (WP210/B) | ||
| White (RAL9003) (WP210/W) | |||
| Front finish | Elegant ABS front panel with glass | ||
| Accessories | Optional | Flush mount Installation boxes | Flush mount box for 45 x 45 mm wall panel Solid wall -WB45S/FS |
| Flush mount box for 45 x 45 mm wall panel Hollow wall -WB45S/FG |
Standards & regulations:
| CE | LVD | Compliant to EN 62368 |
| EMC | Compliant to EN 55032, EN55024, EN 61000-3-2/3 | |
| CB | Compliant to IEC 62368 | |
| FCC | Part 15C | |
| cTUVus | Compliant to IEC 62368+UL62368 | |
| RoHS | Compliant | |
| Reach compliant | Compliant |
Variants:
- WP210/B – Black version
- WP210/W – White version

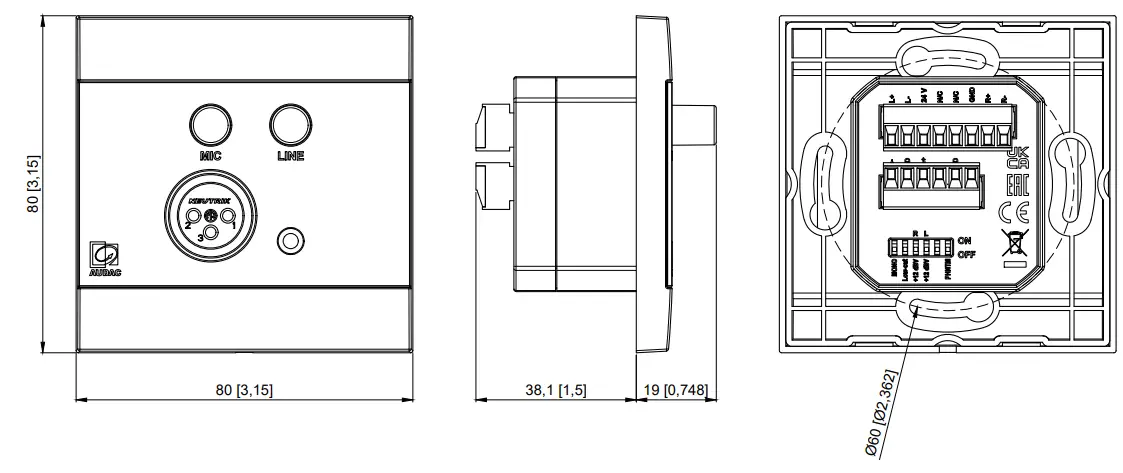

Technical drawings:
| WP210 | Product description REMOTE WALL PANEL INPUT – MIC + LINE 80×80 MM | ||
| MM [INCH] | Weight TBA TBA | Outer dimensions (w x h x d) 80 x 80 x 57,1 mm 3,15 x 3,15 x 2,248 “ | Unit height N/A | |
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
AUDAC – WP210 – 18/03/2022 13:03 UTC
