Zumimall Bell-j7 Smart Video Doorbell User Guide

Bell-J7 Smart Video Doorbell
User Guide

Brand Story
Founded in 2008, Zumimall focuses on the design and research of intelligent security technology. Zumimall insists on taking consumer needs as its core and strives to create smart home products that lead a global home fashion trend for consumers. Zumimall believes that craftsmanship creates top quality and technology changes life. With high-quality products and first-class service, Zumimall won the love and trust of millions of customers as soon as it went public. Over the years, Zumimall has served 45 continents of America, covering 80% of the population. Zumimall is the provider of a smart lifestyle and a guardian of the wonderful moments of your life.

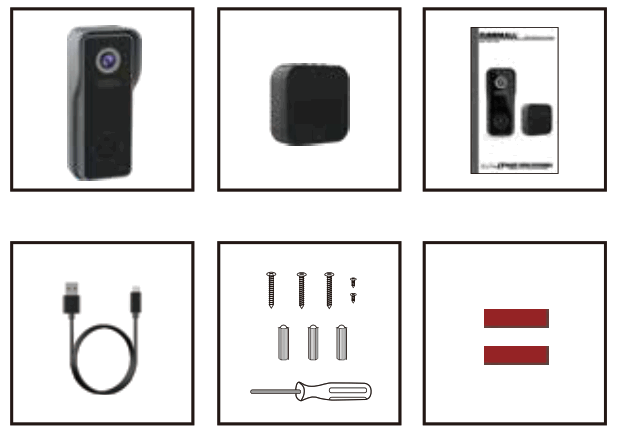

What’s in the Box

Doorbell * 1
DingDong *1
Quick User Guide *1
USB Cable *1
Screws Set/Screwdriver *1
3M Tape *2
NOTE: Micro SD card and power adapter are not included.

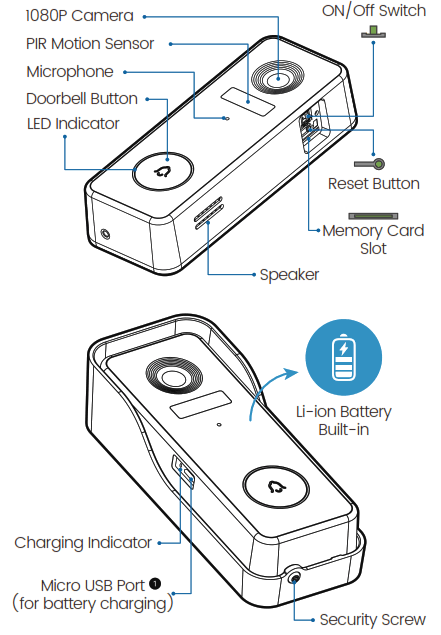

Meet the Doorbell

1. The doorbell comes with a 4,500mAh rechargeable Li-ion battery.

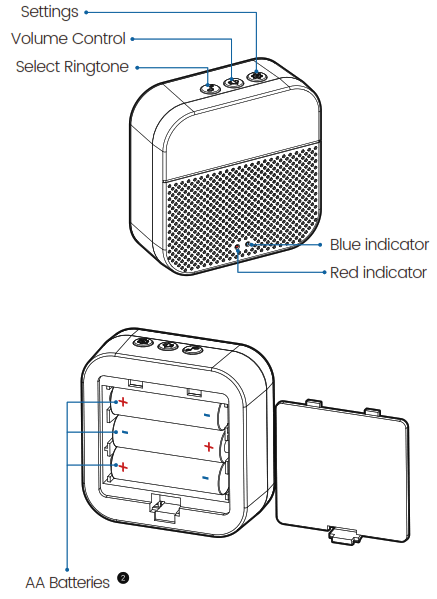

Meet the Chime

2. Please mind the battery polarities while installing the batteries.

Download and Install App

Download ZUMIMALL App from Google Play™ or App Store™. Or scan the QR codes below, with your smartphone.
NOTE: Google Play™ is a trademark of Google Inc. App Store™ is a service mark of Apple Inc.

https://apps.apple.com/app/zumimall/id1515849509

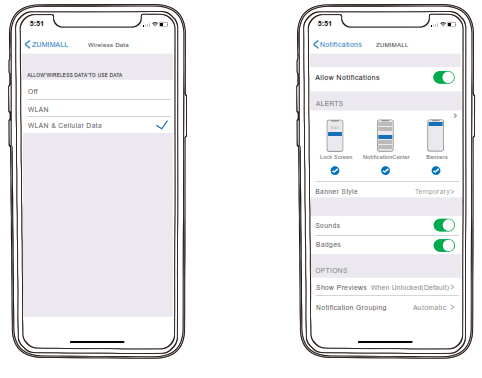

NOTE: Please turn on both of the following permissions.

1. Allow ZUMIMALL App to access mobile cellular data and wireless LAN, otherwise, it will fail to connect to the camera.
2. Allow ZUMIMALL App to receive pushed messages, otherwise, the phone will not receive alarms when motion is detected.

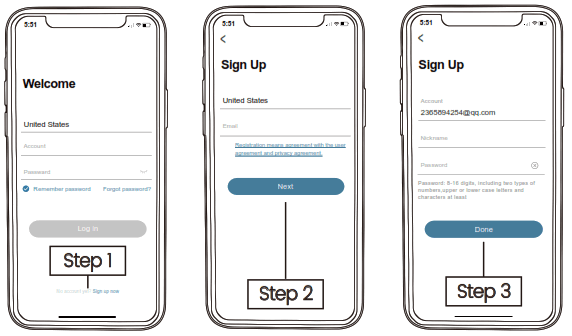

Account Registration

New user needs to sign up ZUMIMALL App with an email address. Click ‘Sign up’ to create a New Account and follow the steps to complete registration.

Add Camera to App

6.1 Preparations for connection

1. Insert a Micro SD Card into the camera to save video clips or you can start the 7-day free cloud service.
   Without Micro SD Card or cloud service, no video will be saved.
2. The camera only works with 2.4GHz Wi-Fi, not support 5GHz.
3.  When connecting to the network, please take the camera close to the router (Recommended within 10-15ft).

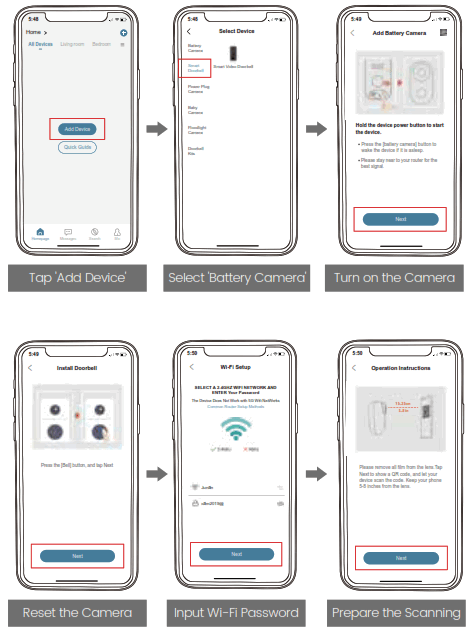

6.2 Connect Camera to App

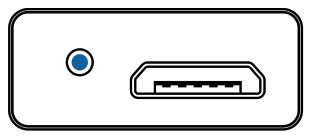

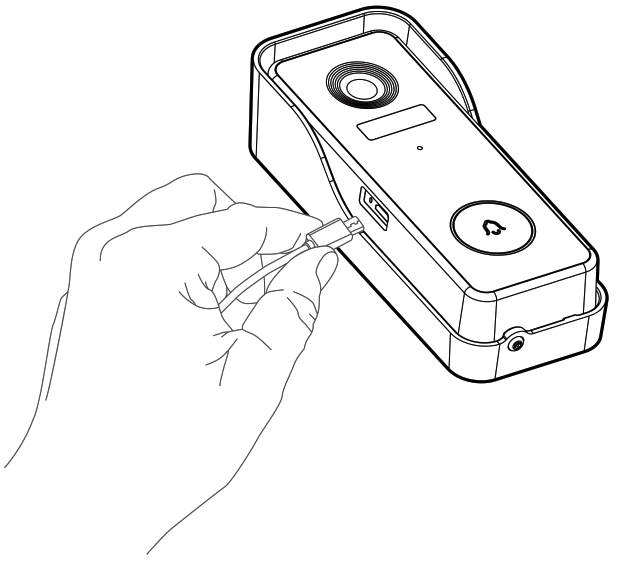

Charge your doorbell

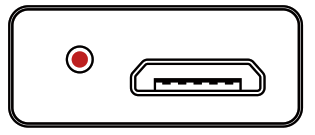

Prior to the doorbell installation, please charge up your doorbell for about 8-10 hours till the charging LED turns BLUE from RED.

LED STATUS		INDICATION
	Solid red	Battery charging
	Solid blue	Fully charged

The compatible charger (not provided):
USB compatible mobile phone charger (DC 5V 1A~2A).

Set up Doorbell

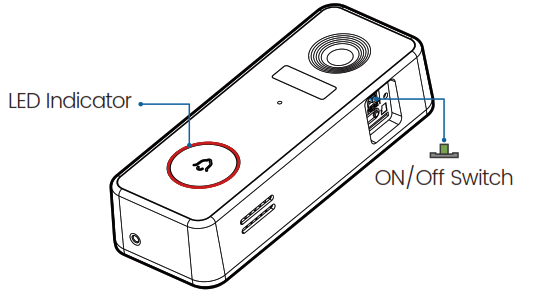

1. Switch on power for your doorbell, and you will see the LED indicator flashes red (once per second).

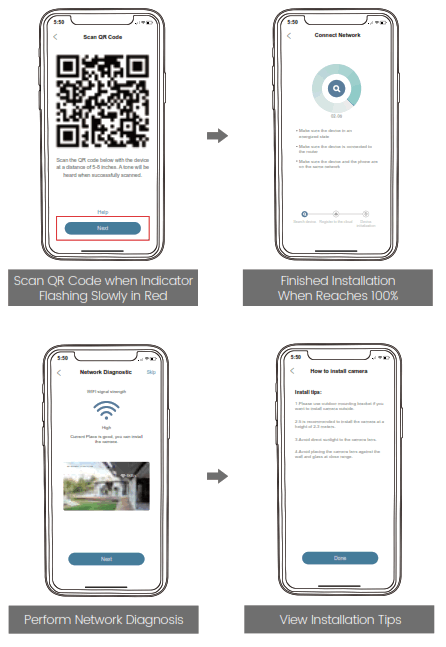

   Start setting up your doorbell following the in-app instructions.
2. Tips
   • Please operate the setup near your Wi-Fi router.
   • Make sure your phone is connecting to a 2.4GHz Wi-Fi.
   • Make sure the doorbell is turned on, and its indicator
   LED is flashing red. If not, press and hold RESET for 5 seconds.
   • Ensure the Wi-Fi signal is good, and the Wi-Fi password is correct.

LED STATUS		INDICATION
	Solid red	The device is abnormal.
	Flash red (once/sec)	Ready for Wi-Fi configuration.
	Flash red (twice/sec)	Connecting to Wi-Fi
	Solid blue	Device is online
	Flash blue (once/sec)	LiVe-viewing doorbell cam
	Flash blue (twice/sec)	Firmware upgrading

Pair With Your Indoor Chime

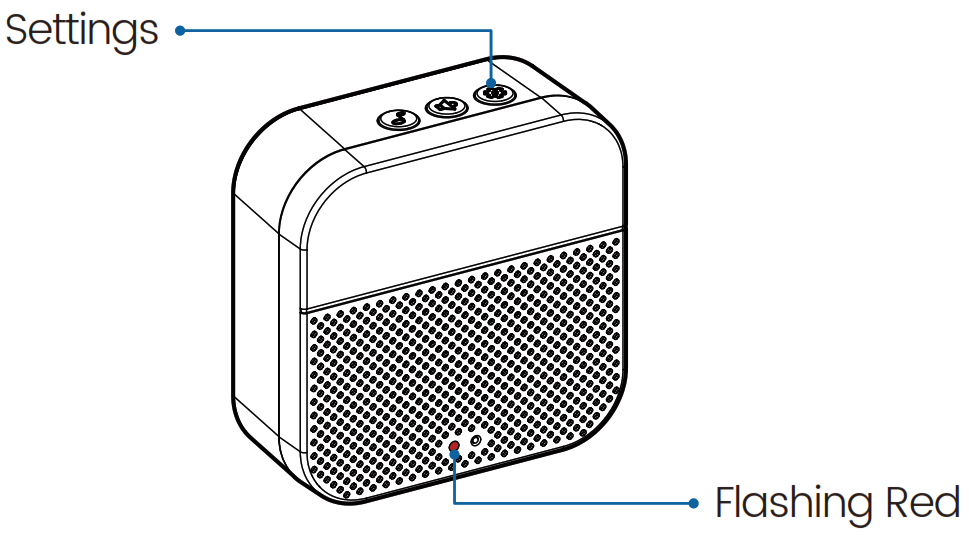

1. Click the SETTING button on the chime, and the chime will be in pairing mode for 20 seconds, with its red LED flashing.

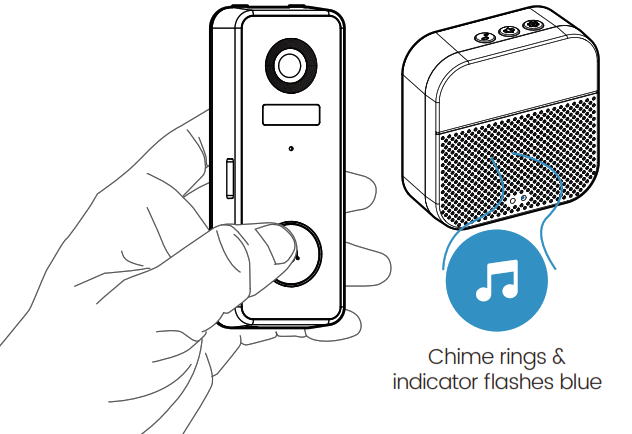

2. Press the doorbell button to send a pairing signal, and your chime will sound to react, together with its blue LED flashing. Chime pairing succeeds.

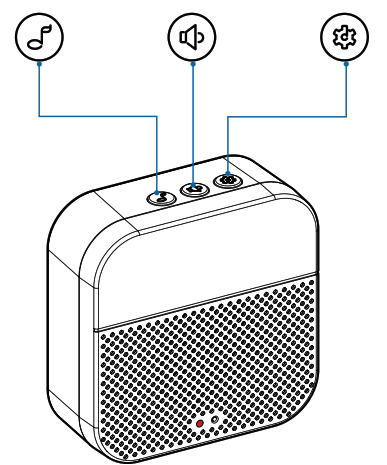

3. Chime settings.

Ringtone selection.
Click to change the ringtone (4 ringtones available).
Volume control button.
Click to control volume:
level 1: 110 dB; level 2: 100 dB
level 3: 90 dB; level 4: 80 dB
Settings.
Click to enter/quit pairing mode;
Press & hold for 5 seconds to restore the factory defaults.

Install Your doorbell

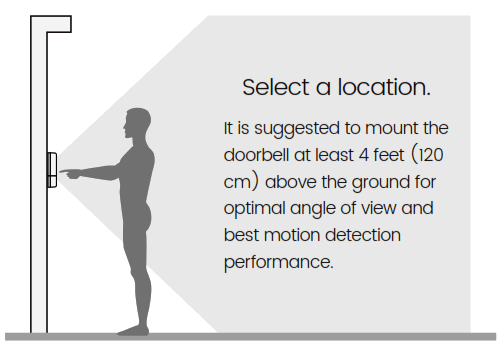

1. Select the location for your doorbell.

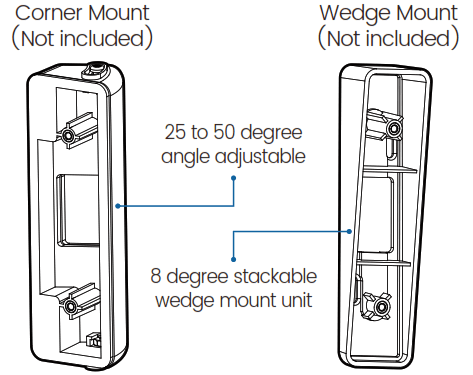

2. (OPTIONAL) Install at an angle.
   You can purchase the following angled brackets so as to point your doorbell to a specific view angle.

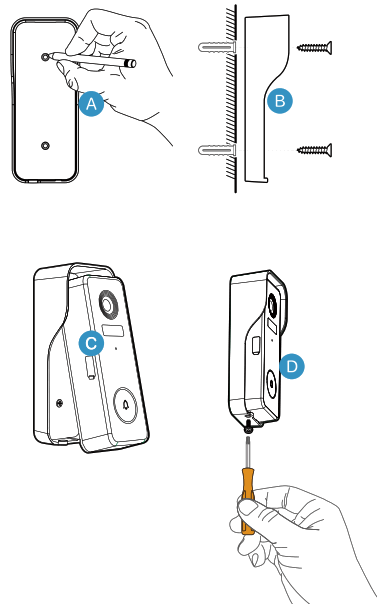

3. Standard installation.

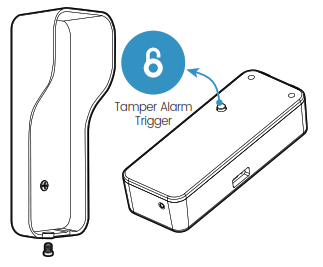

Tamper Alarm

Anti-theft Tamper Alarm.
You can also enable the anti-theft alarm in doorbell settings.

Tamper Alarm On
With a tamper alarm on, your doorbell detects disassembly by the trigger on its back, and then a 30-second siren alarm will be triggered. Meantime, video recording gets started, and alarm notification will be pushed to the owner’s APP account.
Tamper Alarm Off
You can disable the tamper alarm in doorbell settings, and detach the doorbell without any alarm for battery recharge or regular maintenance.

Product Specifications

Video Doorbell Model No.:Bell J7

Wireless Chime Model No.: Chime06
