BOCCI 84.3 Stem Random Hanging Floor Lamp Instruction Manual
DESCRIPTION
The stem floor system comes in unlacquered brass or black powder coated stem with a 350mm (13.8”) diameter base.
A white glass bubble is captured inside a fine copper mesh basket and then plunged into hot clear glass. Air is blown into the matrix to gently push the white glass through the mesh, creating a delicate pillowed form that is suspended inside the thick outer layer of clear glass. Sometimes the copper mesh basket folds and crinkles, adding specifi city to each piece.
NOTES
- Purchase replacement lamps online at www.bocci.com/shop/bulbs
- The brass used in our Stem Series is untreated and, as such, will develop a natural patina over time. To avoid any marking or tarnish on the brass during handling and installation, please use the gloves provided in your shipment.
- To maintain your fi xture, please regularly dust with a lint-free cloth. If further cleaning is required, dampen a lint-free cloth with water only and wipe gently to remove dust or debris.
Assembly Instructions

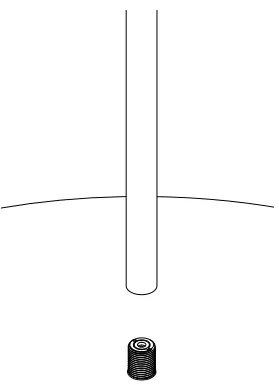

- Hold the stem tube from the bottom and slowly thread the stem onto the base. Stop if any force is felt and ensure the stem tube is at 90° from the base.
Note: Bocci recommends wearing thin gloves during installation to protect the stem finish and the glass surface.
- Thread the cover cap on one end of the stem.

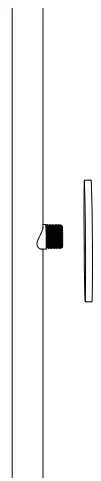

- Thread the pendant mounting plate onto the stem.

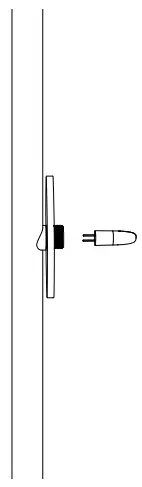

- Carefully insert provided lamp into socket.
- Plug in the cord to the plug head.
Plug in floor light. Turn the dial to check power to lamp is working correctly.

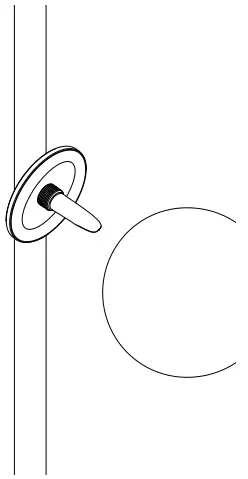

- Gently thread pendant onto the stem.
Be sure to carefully place the pendant so as not to damage the lamp during installation.
Clean fingerprints from fixture surfaces.
For additional assistance, please contact Bocci:
Vancouver
[email protected]
www.bocci.com
Berlin
[email protected]
http://www.bocci.com/
US Patent Pending
EU Patent # 003611144-0001
to 0004
Made in Vancouver, Canada

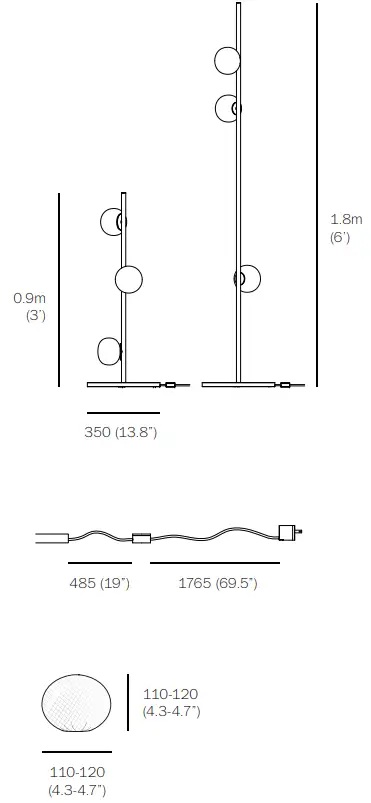

Dimension
Specification
PENDANTS: three
BASE: 350mm (13.8”) round base
LAMPING: 1.5w LED
STEM LENGTH 0.9m (3’) or 1.8m (6’) long stem
MATERIALS: blown glass, black fl exible cord, brass dial control, unlacquered brass or black powder coated base
WEIGHT: approximately 12.5kg (27.6lb) / 13.4kg (29.5lb)
CABLE LENGTH 2290mm (90”) fl exible cable
POWER SUPPLIES: integral
