Bocci 84.6 Stem Floor Lamp Instruction Manual

Bocci 84.6 Stem Floor Lamp Instruction Manual

BOCCI logo

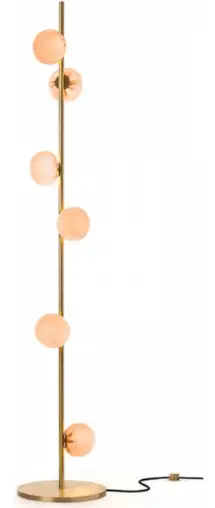

BOCCI 84.6 Stem Floor Lamp

BOCCI 84.6 Stem Floor Lamp

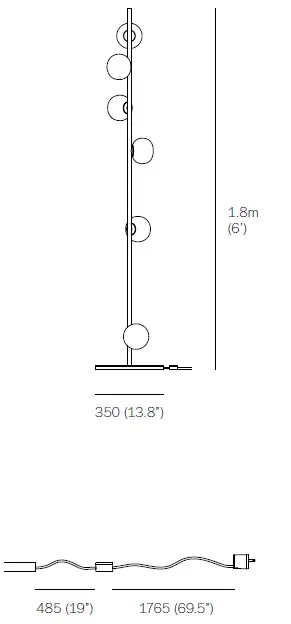

SPECIFICATION

  • PENDANTS: six
  • BASE: 350mm (13.8”) round base
  • LAMPING: 1.5w LED
  • STEM LENGTH 1.8m (6’) long stem
  • MATERIALS: blown glass, black flexible cord, brass dial control, unlacquered brass or black powder coated base
  • WEIGHT: approximately 19.6kg (43lb)
  • CABLE LENGTH 2290mm (90”) flexible cable
  • POWER SUPPLIES: Integral

DESCRIPTION

The stem floor system comes in unlacquered brass or black powder coated stem with a 350mm (13.8”) diameter base.
A white glass bubble is captured inside a fine copper mesh basket and then plunged into hot clear glass. Air is blown into the matrix to gently push the white glass through the mesh, creating a delicate pillowed form that is suspended inside the thick outer layer of clear glass. Sometimes the copper mesh basket folds and crinkles, adding specificity to each piece.

BOCCI 84.6 Stem Floor Lamp-1BOCCI 84.6 Stem Floor Lamp-2
approx 19.6kg (43lb)

NOTES

  • Purchase replacement lamps online at www.bocci.com/shop/bulbs
  • The brass used in our Stem Series is untreated and, as such, will develop a natural patina over time. To avoid any marking or tarnish on the brass during handling and installation, please use the gloves provided in your shipment.
  • To maintain your fixture, please regularly dust with a lint-free cloth. If further cleaning is required, dampen a lint-free cloth with water only and wipe gently to remove dust or debris.

INSTALLATION

  1. Hold the stem tube from the bottom and slowly thread the stem onto the base.
    Stop if any force is felt and ensure the stem tube is at 90° from the base.BOCCI 84.6 Stem Floor Lamp-3
    Note: Bocci recommends wearing thin gloves during installation to protect the stem finish and the glass surface
  2. Thread the cover cap on one end of the stem.BOCCI 84.6 Stem Floor Lamp-4

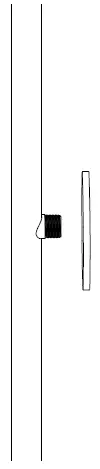

  3. Thread the pendant mounting plate onto the stem.BOCCI 84.6 Stem Floor Lamp-5
  4. Carefully insert provided lamp into socket.BOCCI 84.6 Stem Floor Lamp-6

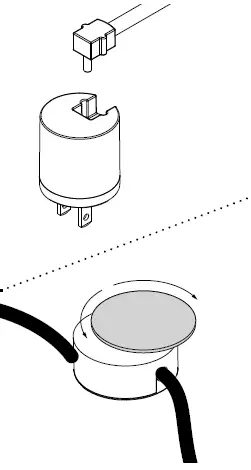

  5. Plug in the cord to the plug head.
    Plug in fl oor light. Turn the dial to check power to lamp is working correctly.BOCCI 84.6 Stem Floor Lamp-7

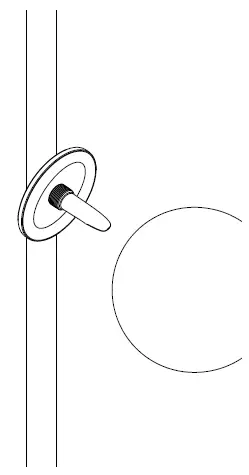

  6. Gently thread pendant onto the stem.
    Be sure to carefully place the pendant so as not to damage the lamp during installation..
    Clean fi ngerprints from fi xture surfaces.BOCCI 84.6 Stem Floor Lamp-8

For additional assistance,please contact Bocci:

[email protected]
www.bocci.com

[email protected]
www.bocci.com

US Patent Pending
EU Patent # 003611144-0001 to 0004
Made in Vancouver, Canada
© 2021, Bocci Design and Manufacturing Inc. All rights reserved. Any inquiries should be directed to: [email protected]
