Instruction Manual
STEM – CEILING MOUNTED

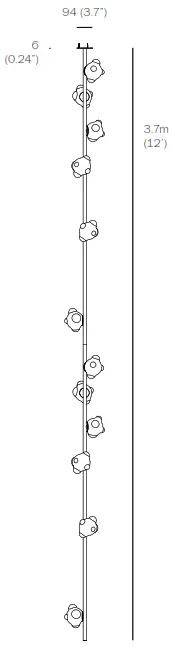

PRODUCT SPECIFICATION
approx 20.5kg (45lb)
| PENDANTS: MOUNTING: LAMPING: STEM LENGTH ADDITIONAL EXTENDERS MATERIALS: WEIGHT: POWER SUPPLIES: | twelve 94mm (3.7”) x 6mm (0.24”) 1.5w LED 3.7m (12’) long stem 153mm (6”) / 305mm (12”) / 914mm (36”) / 1524mm (60”) blown glass, electrical components, unlacquered brass or black powder coated brass stem, black or white canopy approximately 20.5kg (45lb) remote mounted |
DESCRIPTION
The stem ceiling-mounted system comes in unlacquered brass or black powder-coated stem with a 94mm (3.7”) diameter mounting plate rated for ceiling use.

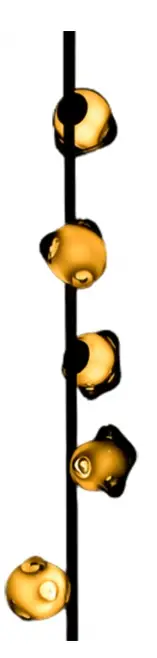

57 is an exploration of a technique used for producing closed-cell foam. The process involves trapping voids of air of different sizes and confi gurations within a glass matrix, yielding a shape loosely referencing a rain cloud. These pockets of air remain invisible when the piece is off, but come alive to reveal an interior universe when the piece is illuminated. By virtue of the fabrication process, each piece is completely unique.
NOTES
- Purchase replacement lamps online at www.bocci.com/shop/bulbs
- The brass used in our Stem Series is untreated and, as such, will develop a natural patina over time. To avoid any marking or tarnish on the brass during handling and installation, please use the gloves provided in your shipment.
- To maintain your fi xture, please regularly dust with a lint-free cloth. If further cleaning is required, dampen a lint-free cloth with water only and wipe gently to remove dust or debris.
 | ||

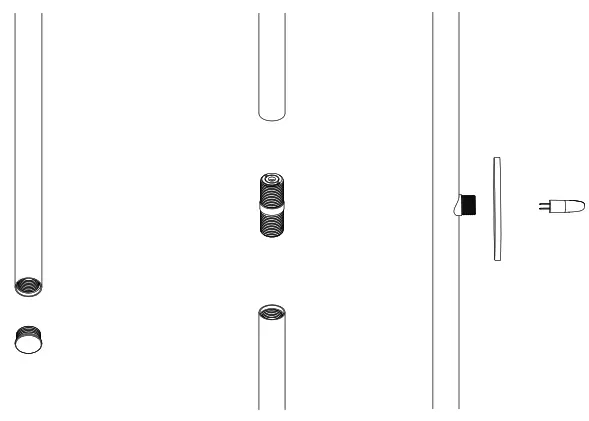

| 1 Thread the cover cap on one end of the stem. Note: Bocci recommends wearing thin gloves during installation to protect the stem fi nish and the glass surface. | 2 Connect the stem pieces by threading the stem connector to the stems. Note: This step is only necessary for overall stem lengths longer than 1.8m (6’). | 3 Thread the pendant mounting plate onto the stem. Carefully insert the provided lamp into the socket. |
 | ||

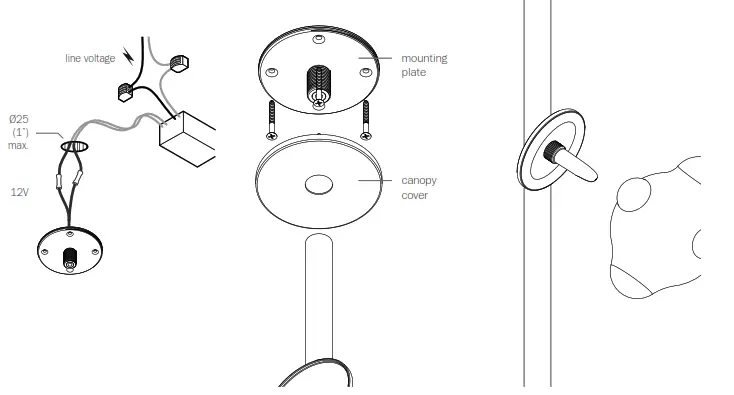

| 4 Connect the power supply to line voltage. i. Connect input low voltage wire to 12V DC output wires. ii. Connect the black wire to line wire and the white wire to the neutral wire. iii. Ensure that line voltage is not active during this part of the installation! Note: Mount power supplies remotely in a close, accessible and hidden location for ease of long-term maintenance. Installation to be done by certifi ed personnel to ensure compliance with the code. | 5 The client is responsible to ensure fasteners are attached to a robust structural substrate. Affi x mounting plate to surface with fasteners provided. Thread canopy covers onto the mounting plate. Thread on the stem to the canopy. Turn power to fi texture on. | 6 Gently thread the pendant onto the stem. Be sure to carefully place the pendant so as not to damage the lamp during installation.. Clean fi fingerprints from fi xture surfaces. For additional assistance, please contact Bocci: [email protected] Vancouver www.bocci.com [email protected] Berlin www.bocci.com US Patent # D796732 EU Design Patent # 0022685810001 to 0006 Made in Vancouver, Canada |
US Patent # D796732
EU Design Patent # 002268581-0001 to 0006
Made in Vancouver, Canada
Vancouver
[email protected]
www.bocci.com
Berlin
[email protected]
www.bocci.com
© 2021, Bocci Design and Manufacturing Inc. All rights reserved. Any inquiries should be directed to:
