Aoc Ag276qzd Oled Monitor User Guide (+ PDF)

AOC AG276QZD OLED Monitor User Guide

Contents hide

*Different according to countries/regions
Display design may differ from that illustrated

Panel	Model Name	AG276QZD
	Driving System	TFT Color LCD
	Viewable Image Size	67.3cm diagonal(26.5’’ Wide Screen)
	Pixel Pitch	0.2292mm(H) x 0.2292mm(V)
Others	Horizontal Scan Range	30k-230kHz(HDMI)30k-255kHz(DP)
	Horizontal ScanSize(Maximum)	586.75mm
	Vertical Scan Range	48~144Hz (HDMI)48~240Hz (DP)
	Vertical ScanSize(Maximum)	330.05mm
	Max Resolution	2560×1440@144Hz(HDMI)2560×1440@240Hz(DP)
	Plug & Play	VESA DDC2B/CI
	Power Source	20V 6.0A
	Powr Consumption	Typical (default brightness andcontrast)		51W
		Max. (brightness =100,contrast =100)		≤ 129W
		Standby mode		≤ 0.5W
	Dimensions(with stand)	604.4×(396.6~526.6)×233.9mm(WxHxD)
	Net Weight	6.41kg

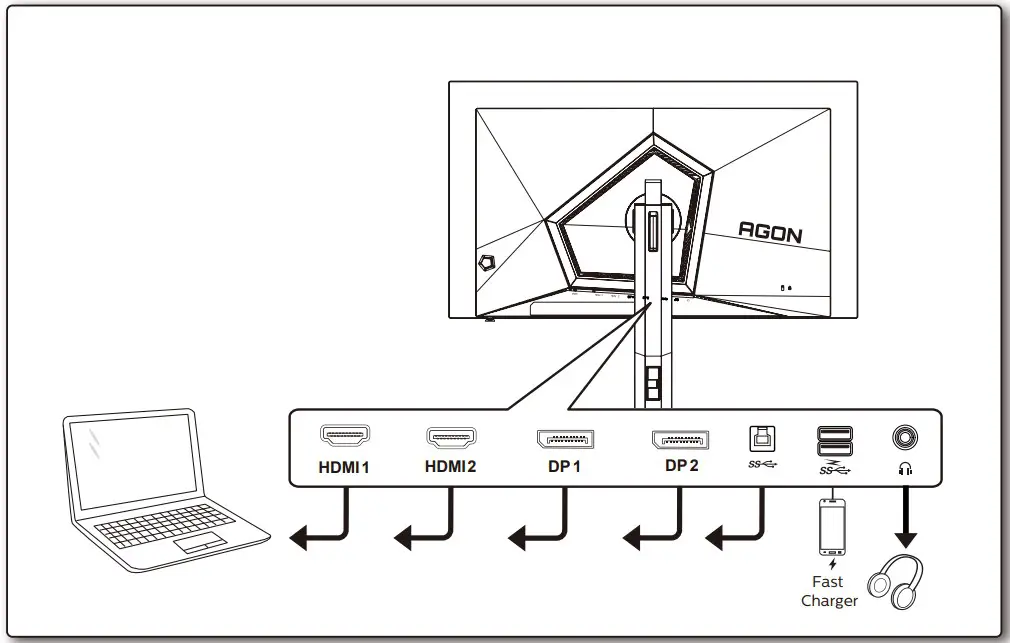

Physical Characteristics	Connector Type	HDMIx2/DPx2/USBx2/USB Upstream/Earphone
	Signal Cable Type	Detachable
Environmental	Temperature	Operating	0°C~40°C
		Non-Operating	-25°C~55°C
	Humidity	Operating	10%~85% (non-condensing)
		Non-Operating	5%~93% (non-condensing)
	Altitude	Operating	0~5000m (0~16404ft )
		Non-Operating	0~12192m (0~40000ft )
