AOC LCD Monitor User Manual

AOC LCD Monitor User Manual

Models: G2490VX/G2490VXA

Safety

National Conventions

The following subsections describe notational conventions used in this document.

Notes, Cautions, and Warnings

Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows:

NOTE: A NOTE indicates important information that helps you make better use of your computer system.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

WARNING: A WARNING indicates the potential for bodily harm and tells you how to avoid the problem. Some warnings may appear in alternate formats and may be unaccompanied by an icon. In such cases, the specific presentation of the warning is mandated by regulatory authority

Power

The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company.

The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug, have an electrician install the correct outlet, or use an adapter to ground the appliance safely. Do not defeat the safety purpose of the grounded plug.

Unplug the unit during a lightning storm or when it will not be used for long periods of time. This will protect the monitor from damage due to power surges.

Do not overload power strips and extension cords. Overloading can result in fire or electric shock.

To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate configured receptacles marked between 100-240V AC, Min. 5A.

The wall socket shall be installed near the equipment and shall be easily accessible.

Installation

Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. Follow the manufacturer’s instructions when installing the product and use mounting accessories recommended by the manufacturer. A product and cart combination should be moved with care.

Never push any object into the slot on the monitor cabinet. It could damage circuit parts causing a fire or electric shock. Never spill liquids on the monitor.

Do not place the front of the product on the floor.

If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacturer and follow the kit instructions.

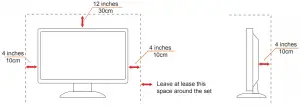

Leave some space around the monitor as shown below. Otherwise, air circulation may be inadequate hence overheating may cause a fire or damage to the monitor.

See below the recommended ventilation areas around the monitor when the monitor is installed on the wall or on the stand:

Installed with stand

Cleaning

Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet.

When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough as it will scratch the screen surface.

Please disconnect the power cord before cleaning the product.

Other

If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center.

Make sure that the ventilating openings are not blocked by a table or curtain.

Do not engage the LCD monitor in severe vibration or high impact conditions during operation.

Do not knock or drop the monitor during operation or transportation

Setup

Contents in Box


CD Manual	Warranty Card
Stand	Base

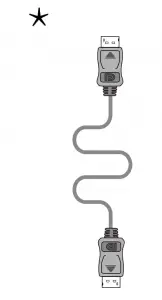

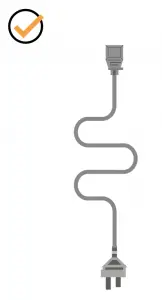

Power Cable	DP Cable
HDMI Cable

* Not all signal cables will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation

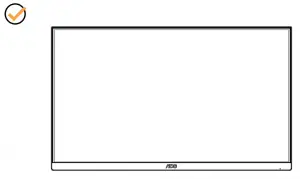

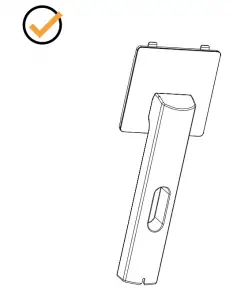

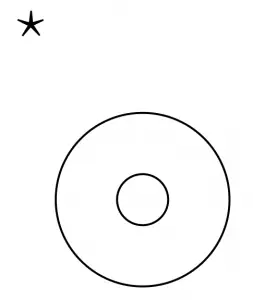

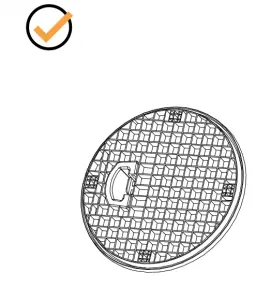

Setup Stand & Base

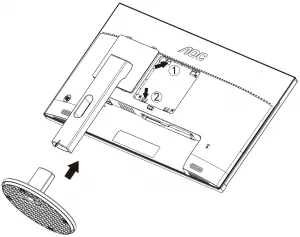

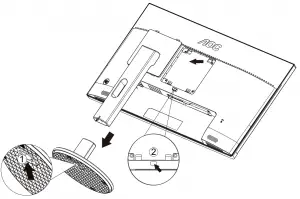

Please setup or remove the base following the steps as below.

Setup:

Remove:

Adjusting Viewing Angle

For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor’s angle to your own preference.
Hold the stand so you will not topple the monitor when you change the monitor’s angle.

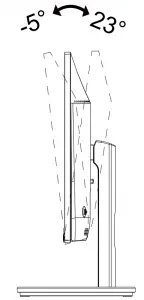

You are able to adjust the monitor as below:

NOTE:
Do not touch the LCD screen when you change the angle. It may cause damage or break the LCD screen.

Connecting the Monitor

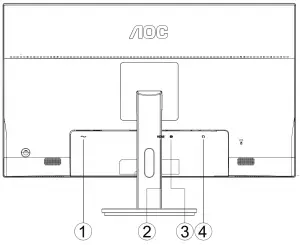

Cable Connections In Back of Monitor and Computer:

Power
HDMI
DP
Earphone

Connect to PC

Connect the power cord to the back of the display firmly.
Turn off your computer and unplug its power cable.
Connect the display signal cable to the video connector on the back of your computer.
Plug the power cord of your computer and your display into a nearby outlet.
Turn on your computer and display.

If your monitor displays an image, installation is complete. If it does not display an image, please refer Troubleshooting.
To protect equipment, always turn off the PC and LCD monitor before connecting

Wall Mounting

Preparing to Install An Optional Wall Mounting Arm.

This monitor can be attached to a wall mounting arm you purchase separately. Disconnect power before this procedure.
Follow these steps:

Remove the base.
Follow the manufacturer’s instructions to assemble the wall mounting arm.
Place the wall mounting arm onto the back of the monitor. Line up the holes of the arm with the holes in the back of the monitor.
Reconnect the cables. Refer to the user’s manual that came with the optional wall mounting arm for instructions on attaching it to the wall.

Noted: VESA mounting screw holes are not available for all models, please check with the dealer or official department of AOC

Adaptive-Sync function

Adaptive-Sync function is working with DP/HDMI
Compatible Graphics Card: Recommend list is as the below, also could be checked by visiting www.AMD.com

Radeon™ RX Vega series
Radeon™ RX 500 series
Radeon™ RX 400 series
Radeon™ R9/R7 300 series （R9 370/X, R7 370/X, R7 265 except）
Radeon™ Pro Duo (2016)
Radeon™ R9 Nano series
Radeon™ R9 Fury series
Radeon™ R9/R7 200 series (R9 270/X, R9 280/X except)

Adjusting

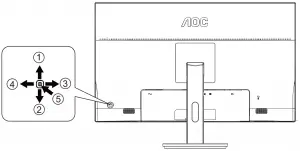

Hotkeys

1	Source/Exit
2	Dial Point
3	Game Mode
4	Image Ratio
5	Power/Menu/Enter

Power/Menu/Enter
Press the Power button to turn on the monitor.
When there is no OSD, Press to display the OSD or confirm the selection.

Dial Point
When there is no OSD, press Dial Point button to show / hide Dial Point.

Image ratio
When there is no OSD, Press > hotkey to active image ratio , Press < or > to adjust 4:3 or wide.

Game Mode
When there is no OSD, press ”Left” key to open game mode function, then press ”Left” or “Right” key to select game mode (FPS, RTS, Racing, Gamer 1, Gamer 2 or Gamer 3) basing on the different game types.

Source/Exit
When the OSD is closed, press Source/Exit button will be Source hot key function.

OSD Setting

Basic and simple instruction on the control keys.

Press the MENU-button to activate the OSD window.
Press Left or Right to navigate through the functions. Once the desired function is highlighted, press the MENU button to activate it, press Left or Right to navigate through the sub-menu functions. Once the desired function is highlighted, press MENU-button to activate it.
Press Left or Right to change the settings of the selected function. Press AUTO–button to exit. If you want to adjust any other function, repeat steps 2-3.
OSD Lock Function: To lock the OSD, press and hold the MENU-button while the monitor is off and then press power button to turn the monitor on. To un-lock the OSD – press and hold the MENU-button while the monitor is off and then press power button to turn the monitor on.

Notes:

If the product has only one signal input, the item of “Input Select” is disable to adjust.
DCR, Color Boost and Picture Boost, for these states that only one state can exist

Luminance

Contrast	0-100	Contrast from Digital-register.
Brightness	0-100	Backlight Adjustment
Eco mode	Standard	Standard Mode
	Text	Text Mode
	Internet	Internet Mode
	Game	Game Mode
	Movie	Movie Mode
	Sports	Sports Mode
	Reading	Reading Mode
Gamma	Gamma1	Adjust to Gamma 1
	Gamma2	Adjust to Gamma 2
	Gamma3	Adjust to Gamma 3
DCR	Off	Disable dynamic contrast ratio
DCR	On	Enable dynamic contrast ratio
HDR Mode	OFF	Adjust HDR Mode.
	HDR Picture
	HDR Movie
	HDR Game

Note:

When “HDR Mode” is set to “non-off”, the items “Contrast”, “Brightness”, “Gamma” cannot be adjusted.

Color Setup

Color Temp.	Warm		Recall Warm Color Temperature from EEPROM.
	Normal		Recall Normal Color Temperature from EEPROM.
	Cool		Recall Cool Color Temperature from EEPROM.
	sRGB		Recall SRGB Color Temperature from EEPROM.
	User		Restore Color Temperature from EEPROM.
DCB Mode	Full Enhance	On or Off	Disable or Enable Full Enhance Mode
	Nature Skin	On or Off	Disable or Enable Nature Skin Mode
	Green Field	On or Off	Disable or Enable Green Field Mode
	Sky-blue	On or Off	Disable or Enable Sky-blue Mode
	AutoDetect	On or Off	Disable or Enable AutoDetect Mode
	Off	On or Off	Disable or Enable Off Mode
DCB Demo		On or Off	Disable or Enable Demo
Red		0-100	Red gain from Digital-register.
Green		0-100	Green gain from Digital-register.
Blue		0-100	Blue gain from Digital-register.

Note:
When “HDR Mode” under “Luminance” is set to “non-off”, all items under “Color Setup” cannot be adjusted.

Picture Boost

Bright Frame	on or off	Disable or Enable Bright Frame
Frame Size	14-100	Adjust Frame Size
Brightness	0-100	Adjust Frame Brightness
Contrast	0-100	Adjust Frame Contrast
H. position	0-100	Adjust Frame horizontal Position
V. position	0-100	Adjust Frame vertical Position

Note:
Adjust the brightness, contrast, and position of the Bright Frame for better viewing experience.
When “HDR Mode” under “Luminance” is set to “non-off”, all items under “Picture Boost” cannot be adjusted.

OSD Setup

Language		Select the OSD language
Timeout	5-120	Adjust the OSD Timeout
DP Capability	1.1/1.2	Please be noted that only DP1.2 support Adaptive-Sync
H. Position	0-100	Adjust the horizontal position of OSD
V. Position	0-100	Adjust the vertical position of OSD
Volume	0-100	Volume Adjustment.
Transparence	0-100	Adjust the transparence of OSD
Break Reminder	on or off	Break reminder if the user continuously work for more than 1hrs

Note:
If the DP video content supports DP1.2, please select DP1.2 for DP Capability; otherwise, please select DP1.1

Game Setting

Game Mode	FPS	For playing FPS (first Person Shooters) games. Improves dark theme black level details.
	RTS	For playing RTS (Real Time Strategy). Improves the image quality.
	Racing	For playing Racing games, Provides fastest response time and high color saturation.
	Gamer 1	User’s preference settings saved as Gamer 1.
	Gamer 2	User’s preference settings saved as Gamer 2.
	Gamer 3	User’s preference settings saved as Gamer 3.
	OFF	No optimization by Smart image game
Shadow Control	0-100	Shadow Control Default is 50, then end-user can adjust from 50 to 100 or 0 to increase contrast for clear picture. If picture is too dark to be saw the detail clearly, adjusting from 50 to100 for clear picture. If picture is too white to be saw the detail clearly, adjusting from 50 to0 for clear picture
Overdrive	Weak	Adjust the response time.
	Medium
	Strong
	Boost
	Off
Game Color	0-20	Game Color will provide 0-20 level for adjusting saturation to get better picture.
LowBlue Mode	Reading / Office / Internet / Multimedia / Off	Decrease blue light wave by controlling color temperature.
MBR	0 ~ 20	Adjust the Motion Blur Reduction.
Adaptive-Sync	On/Off	Adjust the Adaptive-Sync
Frame Counter	Off / Right-up / Right-Down / Left- Down / Left-Up	Display V frequency on the corner selected

Note:
When “HDR Mode” under “Luminance” is set to “non-off”, the items “Game Mode”, “Shadow Control”, “Game Color”, “Low Blue Mode” cannot be adjusted.

Extra

Input Select		Select Input Signal Source
Off timer	0-24hrs	Select DC off time
Image Ratio	Wide	Select image ratio for display.
Image Ratio	4:3	Select image ratio for display.
DDC/CI	yes or no	Turn ON/OFF DDC/CI Support
Reset	yes or no	Reset the menu to default. (ENERGY STAR^® available for selective models.)

Exit

Exit

Exit the main OSD

LED Indicator

Status	LED Color
Full Power Mode	White
Active-off Mode	Orange

Troubleshoot

Problem & Question	Possible Solutions
Power LED Is Not ON	Make sure the power button is ON and the Power Cord is properly connected to a grounded power outlet and to the monitor.
No images on the screen	Is the power cord connected properly? Check the power cord connection and power supply. Is the cable connected correctly? (Connected using the VGA cable) Check the VGA cable connection. (Connected using the HDMI cable) Check the HDMI cable connection. (Connected using the DP cable) Check the DP cable connection. * VGA/HDMI/DP input is not available on every model. If the power is on, reboot the computer to see the initial screen (the login screen), which can be seen. If the initial screen (the login screen) appears, boot the computer in the applicable mode (the safe mode for Windows 7/8/10) and then change the frequency of the video card. (Refer to the Setting the Optimal Resolution) If the initial screen (the login screen) does not appear, contact the Service Center or your dealer. Can you see “Input Not Supported” on the screen? You can see this message when the signal from the video card exceeds the maximum resolution and frequency that the monitor can handle properly. Adjust the maximum resolution and frequency that the monitor can handle properly. Make sure the AOC Monitor Drivers are installed.
Picture Is Fuzzy & Has Ghosting Shadowing Problem	Adjust the Contrast and Brightness Controls. Press to auto adjust. Make sure you are not using an extension cable or switch box. We recommend plugging the monitor directly to the video card output connector on the back.
Picture Bounces, Flickers Or Wave Pattern Appears In The Picture	Move electrical devices that may cause electrical interference as far away from the monitor as possible. Use the maximum refresh rate your monitor is capable of at the resolution you are using.
Monitor Is Stuck In Active Off- Mode”	The Computer Power Switch should be in the ON position. The Computer Video Card should be snugly fitted in its slot. Make sure the monitor’s video cable is properly connected to the computer. Inspect the monitor’s video cable and make sure no pin is bent. Make sure your computer is operational by hitting the CAPS LOCK key on the keyboard while observing the CAPS LOCK LED. The LED should either turn ON or OFF after hitting the CAPS LOCK key.
Missing one of the primary colors (RED, GREEN, or BLUE)	Inspect the monitor’s video cable and make sure that no pin is damaged. Make sure the monitor’s video cable is properly connected to the computer.
Screen image is not centered or sized properly	Adjust H-Position and V-Position or press hot-key (AUTO).
Picture has color defects (white does not look white)	Adjust RGB color or select desired color temperature.
Horizontal or vertical disturbances on the screen	Use Windows 7/8/10 shut-down mode to adjust CLOCK and FOCUS. Press to auto-adjust.
Regulation & Service	Please refer to Regulation & Service Information which is in the CD manual or www.aoc.com (to find the model you purchase in your country and to find Regulation & Service Information in Support page.)

Specification

General Specification

Panel	Model name	G2490VX/G2490VXA
	Driving system	TFT Color LCD
	Viewable Image Size	60.5 cm diagonal
	Pixel pitch	0.2745mm(H) x 0.2745mm(V)
	Video	HDMI interface & DP Interface
	Separate Sync	H/V TTL
	Display Color	16.7M Colors
Others	Horizontal scan range	30k-160kHz
	Horizontal scan Size(Maximum)	527.04 mm
	Vertical scan range	48-144Hz
	Vertical Scan Size(Maximum)	296.46 mm
	Optimal preset resolution	1920×1080@60Hz
	Max resolution	1920×1080@144Hz
	Plug & Play	VESA DDC2B/CI
	Input Connector	HDMI/DP
	Input Video Signal	Analog: 0.7Vp-p(standard), 75 OHM, TMDS
	Output Connector	Earphone out
	Power Source	100-240V~, 50/60Hz,1.5A
	Power Consumption	Typical (Default brightness and contrast)		22W
		Max. (brightness = 100, contrast =100)		≤ 35W(G2490VX) 42W(G2490VXA)
		Power saving		≤ 0.5W
Physical Characteristics	Connector Type	HDMI/DP/Earphone out
	Signal Cable Type	Detachable
Environmental	Temperature	Operating	0°~ 40°
		Non-Operating	-25°~ 55°
	Humidity	Operating	10% ~ 85% (non-condensing)
		Non-Operating	5% ~ 93% (non-condensing)
	Altitude	Operating	0~ 5000 m (0~ 16404ft )
		Non-Operating	0~ 12192m (0~ 40000ft )

Preset Display Modes

STANDARD	RESOLUTION	HORIZONTAL FREQUENCY(kHz)	VERTICAL FREQUENCY(Hz)
VGA	640×480@60Hz	31.469	59.94
VGA	640×480@67Hz	35	66.667
VGA	640×480@72Hz	37.861	72.809
VGA	640×480@75Hz	37.5	75
VGA	640×480@100Hz	51.08	99.769
VGA	640×480@120Hz	61.91	119.518
DOS MODE	720×400@70Hz	31.469	70.087
DOS MODE	720×480@60Hz	29.855	59.710
SD	720×576@50Hz	31.25	50
SVGA	800×600@56Hz	35.156	56.25
SVGA	800×600@60Hz	37.879	60.317
SVGA	800×600@72Hz	48.077	72.188
SVGA	800×600@75Hz	46.875	75
SVGA	800×600@100Hz	63.684	99.662
SVGA	800×600@120Hz	76.302	119.97
SVGA	832×624@75Hz	49.725	74.551
XGA	1024×768@60Hz	48.363	60.004
XGA	1024×768@70Hz	56.476	70.069
XGA	1024×768@75Hz	60.023	75.029
XGA	1024×768@100Hz	81.577	99.972
XGA	1024×768@120Hz	97.551	119.989
SXGA	1280×1024@60Hz	63.981	60.02
SXGA	1280×1024@75Hz	79.975	75.025
HD	1280×720@50HZ	37.071	49.827
HD	1280×720@60HZ	45	60
Full HD	1920×1080@60Hz	67.5	60
Full HD	1920×1080@100Hz	113.21	99.93
Full HD	1920×1080@120Hz	137.26	119.982
Full HD	1920×1080@144Hz	158.1	144

Pin Assignments

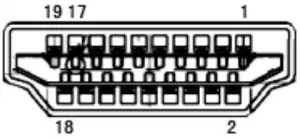

19-Pin Color Display Signal Cable

Pin No.	Signal Name
1.	TMDS Data 2+
2.	TMDS Data 2 Shield
3.	TMDS Data 2-
4.	TMDS Data 1+
5.	TMDS Data 1Shield
6.	TMDS Data 1-
7.	TMDS Data 0+
8.	TMDS Data 0 Shield
9.	TMDS Data 0-
10.	TMDS Clock +
11.	TMDS Clock Shield
12.	TMDS Clock-
13.	CEC
14.	Reserved (N.C. on device)
15.	SCL
16.	SDA
17.	DDC/CEC Ground
18.	+5V Power
19.	Hot Plug Detect

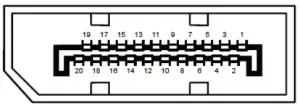

20-Pin Color Display Signal Cable

Pin No.	Signal Name
1	ML_Lane 3 (n)
2	GND
3	ML_Lane 3 (p)
4	ML_Lane 2 (n)
5	GND
6	ML_Lane 2 (p)
7	ML_Lane 1 (n)
8	GND
9	ML_Lane 1 (p)
10	ML_Lane 0 (n)
11	GND
12	ML_Lane 0 (p)
13	CONFIG1
14	CONFIG2
15	AUX_CH(p)
16	GND
17	AUX_CH(n)
18	Hot Plug Detect
19	Return DP_PWR
20	DP_PWR

Plug and Play

Plug & Play DDC2B Feature

This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.

The DDC2B is a bi-directional data channel based on the I2C protocol. The host can request EDID information over the DDC2B channel.

www.aoc.com
©2020 AOC. All Rights Reserved

FAQS

does amazon deliver it or does usps ?

Ups delivered mine. Was supposed to take 2 days took 4 instead.

What are the best settings for someone who gets motion sickness from FPS games?

Move monitor closer or farther away. Mine is 24″ away and I do fine. But a buddy gets sickness when we do CQC in small rooms.

can this be good for the ps5? because in the description it says 2560×1140 and down it says 2560x1080p

yes

What size wall mount?

19 inch

Why does max screen resolution say 1080? Is this 1440 or 1080?

It’s 2k. 2560 x 1080 is the resolution.

How long is the DP cable included?

Why is there space between the display and the bezels of the monitor? In 1440p there’s about half an inch of black space on the sides and top.

The AOC monitor native resolution is 1080X1920 so setting it to a higher resolution may cause black bars to appear on the sides or bottom and top.

The monitor have speakers integrated ?

No, there are no speakers on this monitor.

Is this monitor IPS?

you would have to check the AOC manufactures web site for that type of information.

Can this work with for the new xbox series S ?

yes

How do you tune the screen on PlayStation?

Need to use the side buttons

Please clarify: is CQ27G2 monitor 144 hz or 75 hz? Main descr. says 144 but Show More says 75.

it is 144hz.

does this monitor have a crosshair overlay option ?

Yes you can google “Aoc crosshair overlay” to see what it looks like.

Does this monitor support wireless display?

It doesn’t, you’ll need a Chromecast or similar, this is not a smart TV.

Compatible with xbox series x?

Yes it’s compatible with the mega mini fridge.

What is the actual weight of this item with its sealed box?

17.30 pounds

Can it do 144hz at 1440p?

Yes

What type of speakers do these take? Audio jack ,usb ,or hdmi?

Hdmi and usb. No audio jacks.

Please, what is the height at max?

20” 1/4

Can anyone confirm this monitor can display 144op and 120hz at the same time on xbox series x/one x? with freesync enabled or no?

Yes

Does this monitor support tilt?

Yes

is this monitor 27 inch curved energy saving ?

When in use, this model uses 28 watts. On standby only 0.5 watts. While it doesn’t sip on power, considering it’s 27” and can run 4K at 144 hz, that’s not bad!
If you have a slightly older system like mine (about 6 years with a 2 y/o gpu, there’s a smidge of flickering when my hd (platter 2Tb) is accessed. Be sure to use the cables included. If you need longer cables, be SURE that they are the newest version of hdmi or display port (preferably) or you’re likely to experience intermittent blackouts or monitor crashes that don’t crash you system. You’re essentially under driving the monitor (long story short)

why is this so expensive?

It’s out of stock everywhere. If you choose to buy from a third party seller (like me), you should buy one marked as ‘Fulfilled by Amazon’ so you get quick delivery and Amazon’s AtoZ guarantee.
