DOWNLOAD AND INSTALL G-MENU FROM THE AOC WEBSITE AOC.COM.

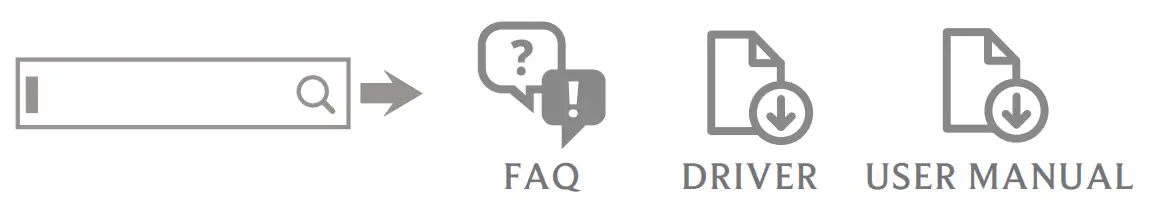

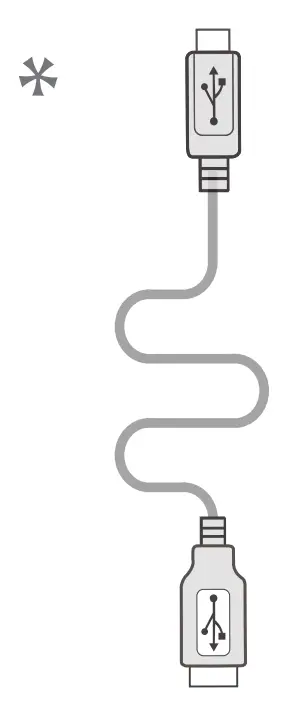

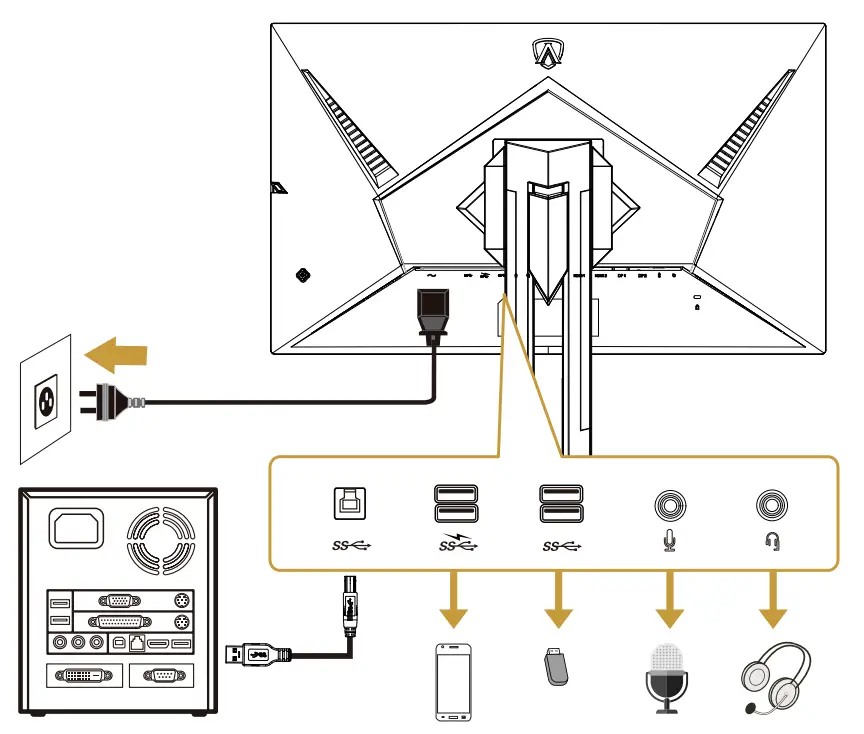

Connect the USB cable from the USB type B port on the Monitor to a USB type A port on the PC. Access to aoc.com, download and install G-Menu software.
For European countries please click here to download G-Menu:
https://eu.aoc.com/en/gaming/products/monitors/ag275qxl/downloads.

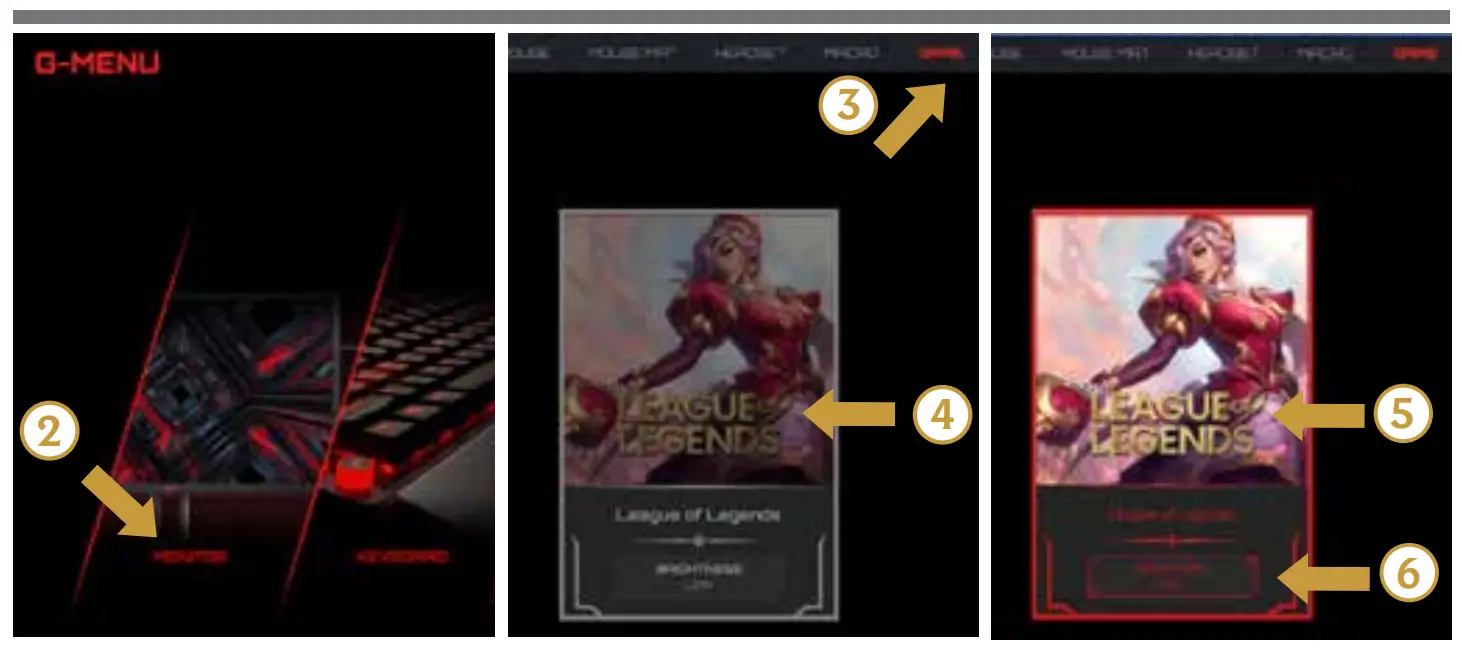

In G-Menu, click the MONITOR button to connect.
Click the GAME menu.
Click on the League of Legends image button to turn League of Legends Light FX Sync ON. (Shown OFF).
League of Legends Light FX Sync is ON (shown active).
Adjust brightness, if needed.
You may start to play League of Legends with League of Legends Light FX Sync.

Panel	Model name	AG275QXL
	Driving system	TFT Color LCD
	Viewable image size	68.5cm diagonal(27’’ Wide Screen)
	Pixel pitch	0.2331mm(H) x 0.2331mm(V)
Others	Horizontal scan range	30k-230kHz(HDMI) 30k-255kHz(DP)
	Horizontal scan size(Maximum)	596.736mm
	Vertical scan range	48-144Hz(HDMI) 48-170Hz(DP)
	Vertical scan size(Maximum)	335.664mm
	Max resolution	2560×1440@144Hz(HDMI) 2560×1440@170Hz(DP)
	Plug & Play	VESA DDC2B/CI
	Power source	100-240V~, 50/60Hz, 1.5A
	Power consumption	Typical (default brightness and contrast)		39W
		Max. (brightness =100, contrast =100)		≤ 135W
		Standby mode		≤ 0.5W

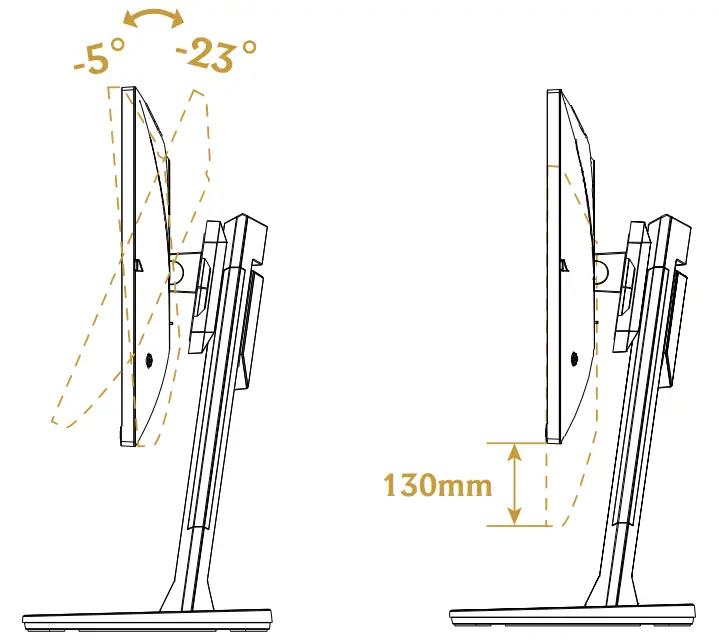

	Dimensions(with stand)	613.4x(423.6~553.6)x249mm(WxHxD)
	Net weight	7.84kg

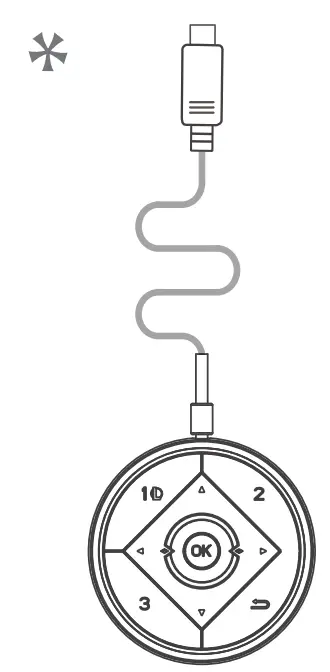

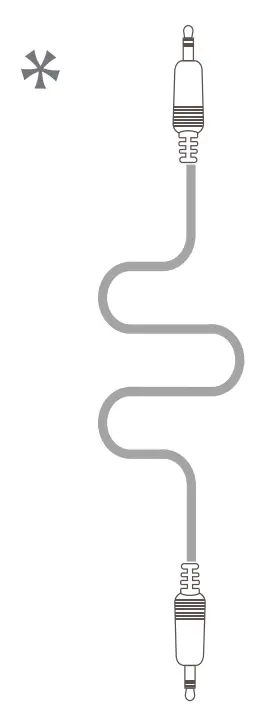

Physical Characteristics	Connector type	HDMIx2/DPx2/USBx4/Quick Switch Keypad/ Earphone/Microphone in & out
	Signal cable type	Detachable
Environmental	Temperature	Operating	0°~ 40°
		Non-Operating	-25°~55°
	Humidity	Operating	10%~85% (non-condensing)
		Non-Operating	5%~93% (non-condensing)
	Altitude	Operating	0~5000m (0~16404ft )
		Non-Operating	0~12192m (0~40000ft )
