Gaming Monitor
Quick Start
AG405UXC

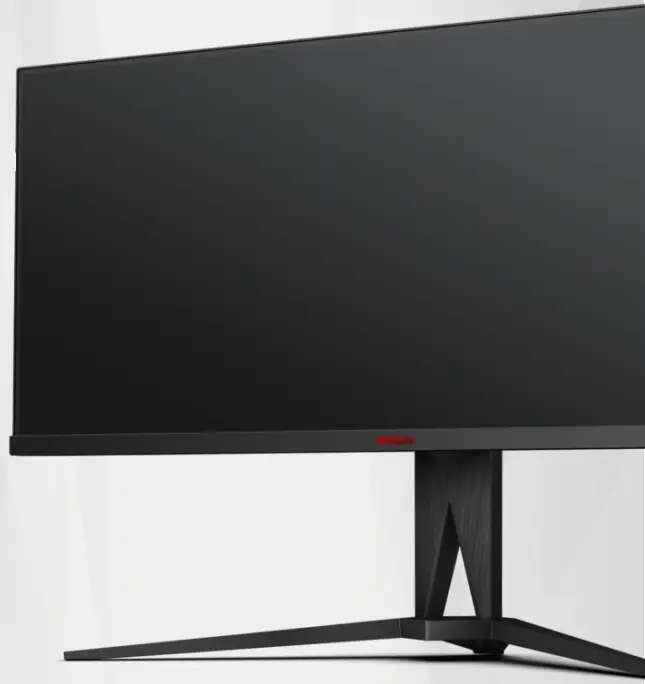

AG405UXC Gaming Monitor
*Different according to countries/regions
Display design may differ from that illustrated
General Specification
| Panel | Model name | AG405UXC | ||
| Driving system | TFT Color LCD | |||
| Viewable image size | 100.4cm diagonal(39.5″ Wide Screen) | |||
| Pixel pitch | 0.26925mm(H) x 0.26925mm(V) | |||
| Others | Horizontal scan range | 30k-160kHz(HDMI) 30k-220kHz(DP/USB C) | ||
| Horizontal scan size(Maximum) | 926.22mm | |||
| Vertical scan range | 48-120Hz(HDMI) 48-144Hz(DP/USB C) | |||
| Vertical scan size(Maximum) | 387.72mm | |||
| Max resolution | 3440×1440@100Hz (HDMI) 3440×1440@144Hz (DP/USB C) | |||
| Plug & Play | VESA DDC2B/CI | |||
| Power source | 100-240V- 50/60Hz 3A | |||
| Power consumption | Typical (default brightness and contrast) | 45W | ||
| Max. (brightness =100, contrast =100) | ≤ 225W | |||
| Standby mode | ≤ 0.5W | |||
| Dimensions(with stand) | 944.1x(477.7-627.7)x312.4mm(WxHxD) | |||
| Net weight | 11.88kg | |||
| Physical characteristics | Connector type | HDMIx2, DP,USB C, USBx4, USB Up, Earphone, Quick switch port | ||
| Signal cable type | Detachable | |||
| Environmental | Temperature | Operating | 0°C- 40°C | |
| Non-operating | 25°C- 55°C | |||
| Humidity | Operating | 10% – 85% (non-condensing) | ||
| Non-operating | 5% – 93% (non-condensing) | |||
| Altitude | Operating | 0∼ 5000 m (0 ∼ 16404ft ) | ||
| Non-operating | 0∼ 12192m (0∼ 40000ft ) | |||
Find your product and get support
US/Canada
https://us.aoc.com/en-US/downloads
https://us.aoc.com/en-US/downloads
Printed in China
https://eprel.ec.europa.eu/qr/1514705
Q41G78S361579A
www.aoc.com
©2022 AOC.All Rights Reserved
