Quick Start
Q24G2A/BK
www.aoc.com
© 2023 AOC.All Rights Reserved

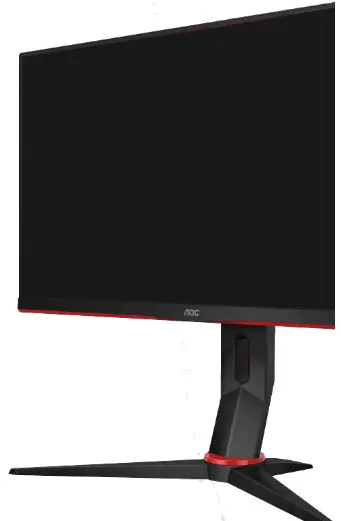

Q24G2A/BK Gaming Monitor
*Different according to countries/regions Display design may differ from that illustrated
General Specification
| Panel | Model name | 024G2A/BK | ||
| Driving system | TFT Color LCD | |||
| Viewable Image Size | 60.4cm diagonal(23.8- Wide Screen) | |||
| Pixel pitch | 0.2055mm(H) x 0.2055mm(V) | |||
| Others | Horizontal scan range | 30k-230kHz(HDMI) 30k-250kHz(DP) | ||
| Horizontal scan Size(Maximum) | 526.08mm | |||
| Vertical scan range | 48-144Hz(HDMI) 48-165Hz(DP) | |||
| Vertical Scan Size(Maximum) | 295.92mm | |||
| Max resolution | 2560x144112144Hz(HDMI) 2560x144136165Hz(DP) | |||
| Plug & Play | VESA DDC2B/CI | |||
| Power Source | 100-240V-. 50/60Hz. 1.5A | |||
| Power Consumption | Typical(default brightness and contrast) | 34W | ||
| Max. (brightness = 100. contrast =100) | ≤ 54W | |||
| Standby mode | ≤ 0.3W | |||
| Dimensions(with stand) | 539.1X(374.6-504.6)X227.4mm(WxHxD) | |||
| Net Weight | 4.78kg | |||
| Connector Type | HDMI/DP/Earphone | |||
| Physical Characteristics | Signal Cable Type | Detachable | ||
| Temperature | Operating | O’C-40°C | ||
| Environmental | Non-Operating | -25°C-55°C | ||
| Humidity | Operating | 10%-85% (non-condensing) | ||
| Non-Operating | 5%-93% (non-condensing) | |||
| Altitude | Operating | 0-5000m (0-16404ft ) | ||
| Non-Operating | 0-12192m (0-40000ft ) | |||
Find your product and get support
US/Canada
https://us.aoc.com/en-US/downloads
