User manual

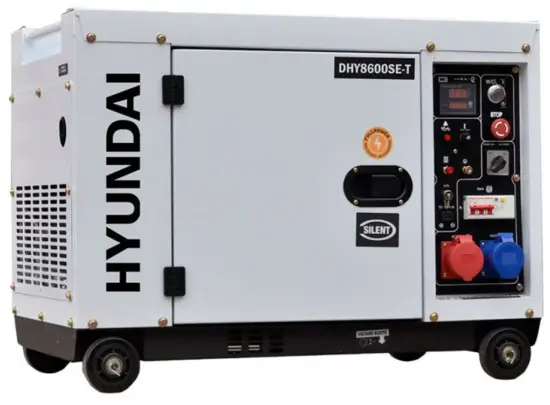

DHY8600SE
SAFETY
 | Perform a visual inspection of the external and internal components. |
 | The temperature range for the use of this equipment is between + S•C and + 40°C |
 | All items must be cleaned regularly. |
 | The air filter must be cleaned regularly. |
 | SAFETY / SIKKERHET The exhaust gases contain carbon monoxide. This gas is colorless and colorless and is very dangerous. NEVER USE THE EQUIPMENT IN A LOCATION CLOSED OR WITH POOR VENTILATION. |
 | The repair of the generator must be carried out by qualified and authorized personnel for this purpose |
 | Store the generator in an area with good ventilation |
 | SAFETY / SIKKERHET The guarantee is automatically canceled if you do not follow the described start and stop the process. |
 | Failure to follow the described process may damage the equipment. For this purpose |
 | Check the screws and nuts that due to the vibration of the equipment could loosen. |
 | SAFETY / SIKKERHET Good quality oil and fuel are imperatives for using the equipment. |
 | Long-term storage should be done in a dry place. Frost can damage the equipment. Thoroughly dry equipment before storage and store in a dry, not cold place. |
 | Make sure all filters are cleaned regularly. |
SAFETY /SIKKERHET
The exhaust temperature is high during use of the equipment and remains warm even after the generator is turned off. Be careful not to touch the hot exhaust and wait for the equipment to cool down before moving it.
Do not smoke and avoid flames and sparks when using the generator or when filling the tank. Do not store the generator near flammable material to avoid explosion hazards.
Never place the generator in an inclined or vertical position, to avoid fuel loss and equipment damage.
ALWAYS control the oil and fuel level, as well as its maintenance before each use

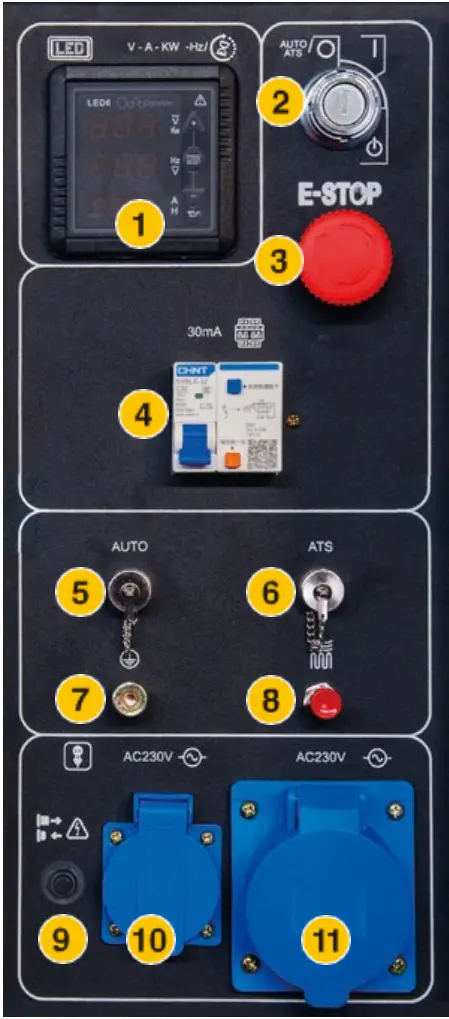

CONTROLS PANELS
| 1 | LED6 display |
| 2 | Start key |
| 3 | Emergency stop |
| 4 | Breaker |
| 5 | AUTO socket |
| 6 | ATS socket |
| 7 | Earth terminal |
| 8 | Pre-heater button |
| 9 | Overload protector |
| 10 | 230V 16A Socket 230V 16A |
| 11 | 230V 32A Socket 230V 32A |
Starting-up the machine
Check the oil level whenever the appliance is to be put into operation. Add engine oil if necessary.
To ensure quality, every piece of equipment is subject to a test operation and filled with motor oil. Oil is drained before transport; however, there can be some motor oil remains on the dipstick. Please check carefully the oil level and add motor oil again

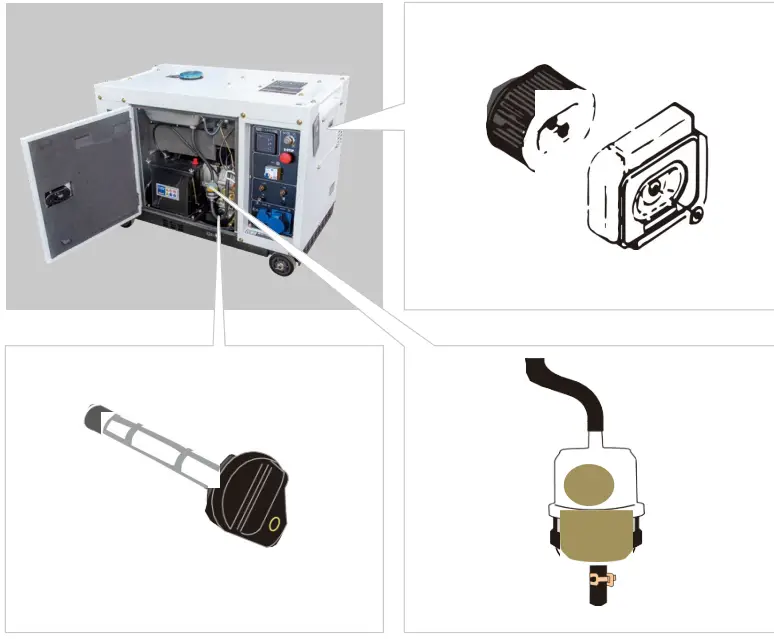

Filter position

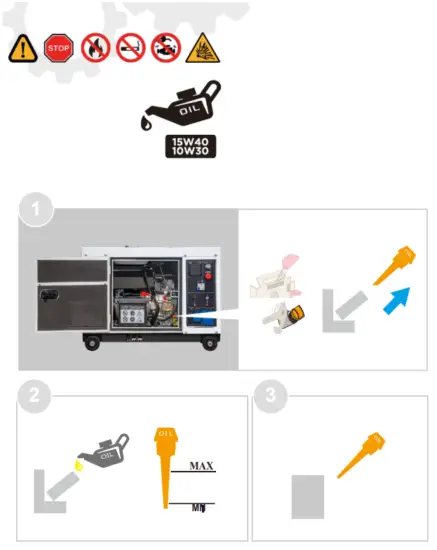

Oil filling
Connect battery cable

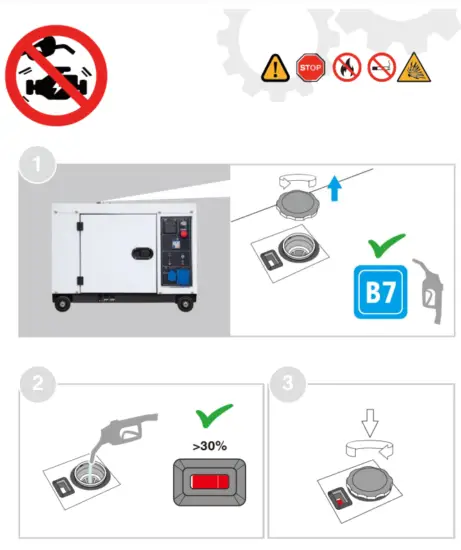

Fuel tank filling

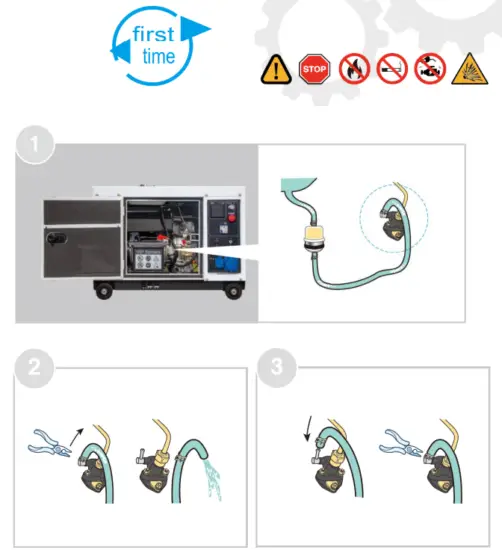

Exhaust the air from the fuel pipe

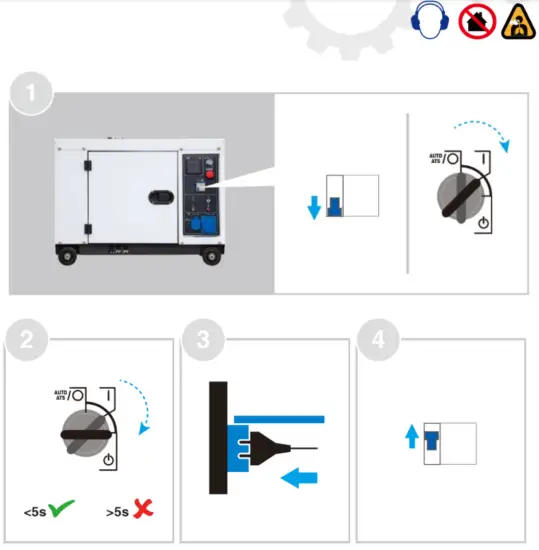

OPERATl ON – START

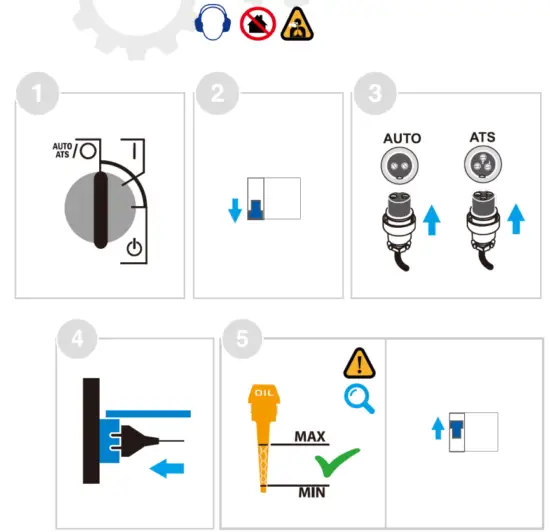

OPERATION – AUTOSTART

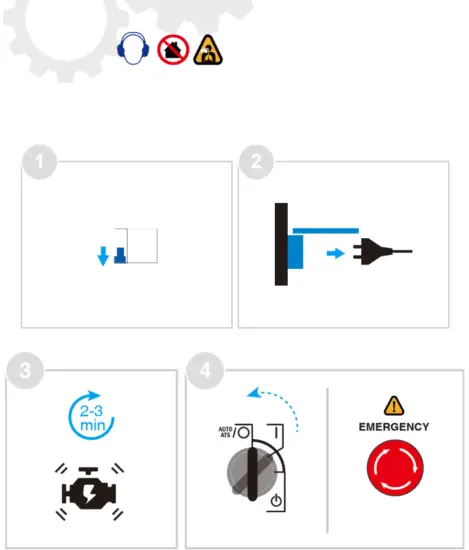

Operation – STOP

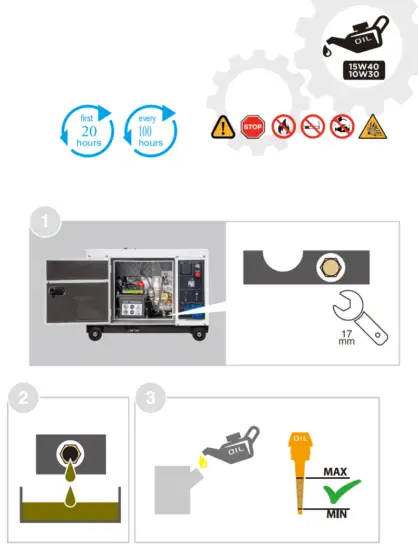

Oil change

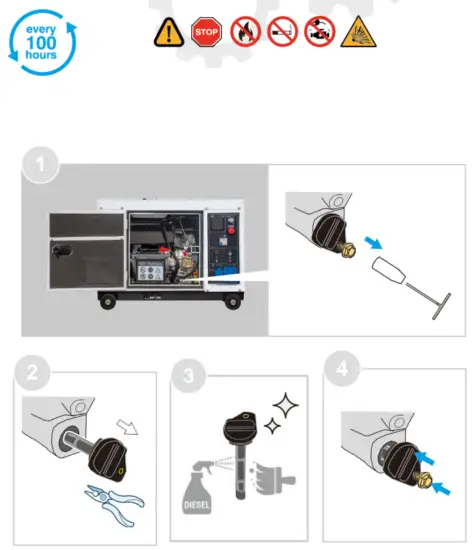

Oil filter clean

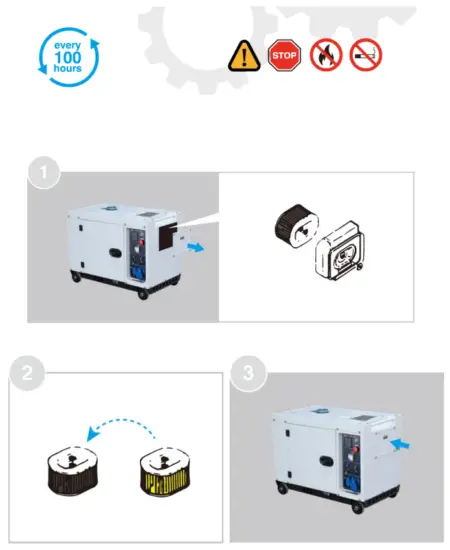

Air filter

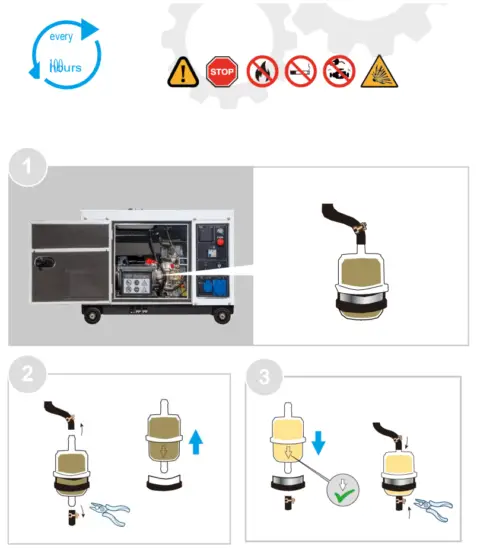

Fuel filter
| Model | DI-IY86005E | DHY86005E-T | |
| Frequency | Hz | 50 | 50 |
| Rated Power | 6.0 kw | 5.4 kw/ 7.5 kva | |
| Max. Power | 6.3 kw | 5.7 kw/ 7.9 kid | |
| Voltage | V | 230 | 230 / 400 |
| Current | A | 27. | 25.2 / 11.4 |
| Plugs | 16A & 32A | 16A & 32A | |
| Display | LED6 | LED6 | |
| Fuel tank capacity | L | 13 | 13 |
| Running time a 75% load | H | 7 | 7 |
| Sound level a 7m | dBA | 72 | 72 |
| DC output | V/A | 12 / 8.3 | 12 / 8.3 |
| Battery | V/Ah | 12 / 36 | 12 / 36 |
| ENGINE | D500E | D500E | |
| Engine type | Diesel | Diesel | |
| Power | hp | 12 | 12 |
| Start | Electric | Electric | |
| Displacement | CC | 498 | 498 |
| Oil Capacity | L | 2. | 2. |
| ALTERNATOR | AL6 | AL6-T | |
| Power | Kw | 6 | 6 |
| Power Factor | 1 | 1 / 0.8 | |
| Voltage Regulation | Brush / AVR | Brush / AVR | |
| DIMENSIONS & WEIGHT | |||
| Net Weight | Kg | 154 | 162 |
| Gross Weight | Kg | 162 | 170 |
| machine size | mm | 920 x 520x 720 | 920 x 520x 720 |
| Dimensions Package | mm | 960 x 560x 760 | 960 x 560x 760 |
Feilsøking, motoren starter ikke
 Causes |  |
| Fuel shortage | Fill with fuel |
| Air in the circuit | Purge the air in the circuit |
| The start lever is not in the run position | Pul the lever in the run position |
 Check the oil level | Fill oil to the upper mark |
 injector dirt | Clean the injector |
 Battery without charge | Charge the battery |
 The injector does not supply fuel | Repair or replace the injector |
The generator does not give current
| Causes | Solutions |
| The differential is in the off position | Put the differential in the ON |
 Bad contact at the plug | Adjust the plug |
| AVR Damaged voltage regulator (AVR) | Replace Voltage Regulator (AVR) |
Lav spinning
| Causes | Solutions |
 Bad contact at the plug | Adjust the plug |
| AVR Damaged voltage regulator (AVR) | Replace Voltage Regulator (AVR) |
Manufacturer
KAT POWER INTERNATIONAL, S.L.
Hereby certifies thai the following
Generator
DHY8600SE
Is in compliance with the specifications of the machine directive and subsequent modifications
2006/42/EC (MD) DirectivaDirective
2014/30/EU (EMC) Directive
2000/14/EC (amended 2005/88/EC)
96 Lwa dBA 2016/1628 Directiva
Emisiones EUROS e9*2016/1628*2016/1628EC1/D*1210*00 engines 418 and 496cc
Conforms with the following standards
EN ISO 8528-13:2016
EN ISO 60204-1:2006/AC:2010
AN ISO 5395-2: 2013
EN 55012:2007+A1:2009 and EN 61000-6-1 :2007 (EMC)
EAN ISO 3744:2010, ISO8528-10:1998 (sound level)
Kat Power International, S.L.
Avda. Algoma, BA
17771 Sta. Llogaia Alguema, Spain
Licensed by HYUNDAI Corporation, Korea
