L2+ Industrial Ring Managed Gigabit POE++ Switch 6-Port PoE++ Gigabit including 2*2.5G SFP

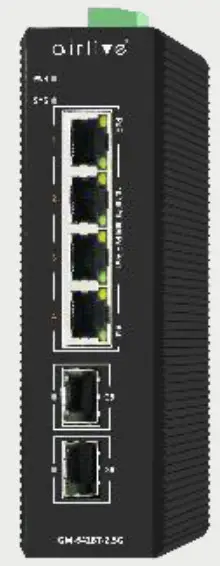

IGM-642BT-2.5G

Overview

Reliable Industrial-grade Managed POE Switch for extreme environment With VLAN and QoS

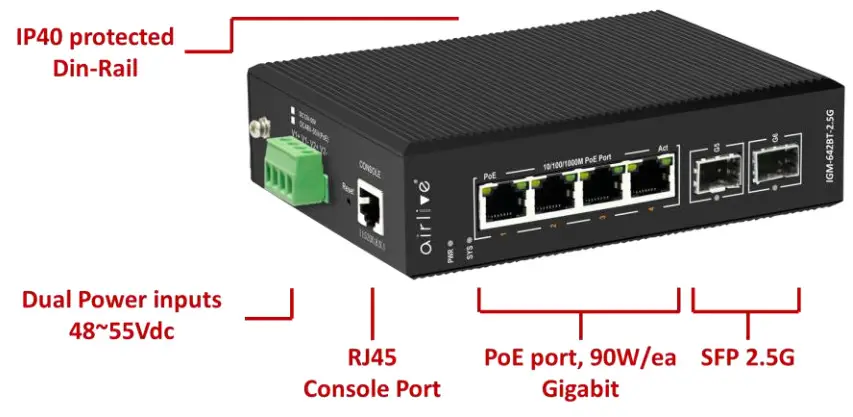

AirLive IGM-642BT-2.5G is a managed L2 + 6-port Gigabit PoE++ switch, including 4 PoE ports and 2x 2.5 Gbit/s SFP ports. Each PoE port supports 802.3bt/at/af up to 90W, Automatic Adjustment, -40°C to 85°C wide temperature range, IP40 metal shell extreme conditions through 4-pin terminal block (DC48 ~ 55V). Industrial 6-port L2 + Gigabit Switch provides comprehensive SNMP management functions, supports VLAN, port aggregation, QoS port mirroring, bandwidth control and token ring ERPS.

Features

• All 6-port, each port delivers Gigabit high-speed
• Extend the network further with 2x 2.5G SFP slots that accept fiber transceivers and go beyond the limits of Ethernet
• High PoE power, supports 802.3bt/at/af PoE++ up to 90W per port to ensure full power for connected device
• Automatically detect and offer power for connected PD
•  Support L2 SNMP and WEB Smart management function, including DHCP Snooping, VLAN, IGMP, QoS, Spanning Tree, MAC Binding and Bandwidth Control
•  Support PoE management
•  Support PoE watchdog to automatically detect and restart crashed PD
•  Clear Statues display including traffic, CPU, Memory, POE consumption, per-port status
•  Web-UI for easy management; CLI and Command Script for advanced setting; SNMP for popular network tools management.

Efficient PoE Watchdog technology and PoE Management
The Switch IGM-642BT-2.5G supports high Power and each port at 90W auto adaptively. With the PoE management function you can control PoE port setting, Timer setting and Timer reboot setting, and PoE watchdog. All the PoE management functions ensure full power for the connected PD and great reliability for the whole system. PoE 90W supports devices that need more power, this can be for example a POS system, Digital Signage, or LED lighting.

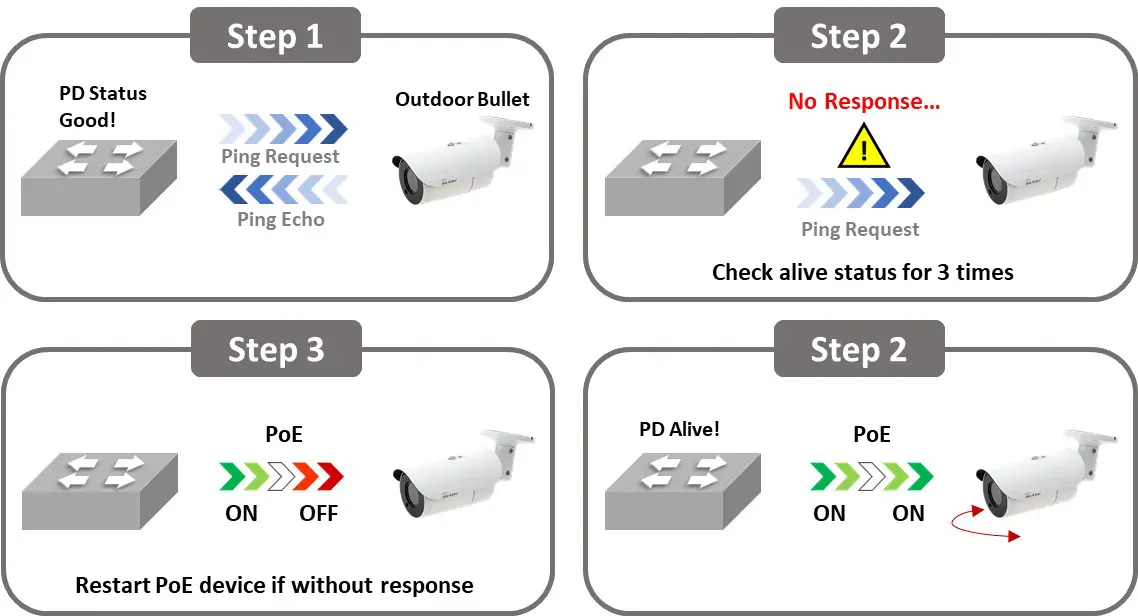

After PoE Watchdog function enabled, the IGM-642BT-2.5G switch works as a virtual security guard. When the POE port is continuously powered but there is no traffic, the POE watchdog will be triggered. After 2 minutes of detection, the power supply will be stopped and then powered on.
The PoE watchdog is particularly useful for cameras. For example, when the switch is turned on, it will recognize the front camera 24 hours a day, 7 days a week. If there is no data traffic from the camera, the camera is considered to be frozen, and the PoE watchdog is used to restart the front camera to solve the problem.

Wide temperature coverage from -40°C ~ 85°C
The IGM-642BT-2.5G switch can operate from -40°C ~ 85°C. And each POE port has 6KV surge protection. It is the ideal solution for applications that work under a hash environment and require stable network and PoE power, such as parking lot or IP surveillance. The IGM-642BT-2.5G has a rugged high strength compact size metal case that is rated at IP40 and has a DIN35 Rail connection making it ideal for network use in a heavy industries or factories. It can be placed in almost any harsh environment.

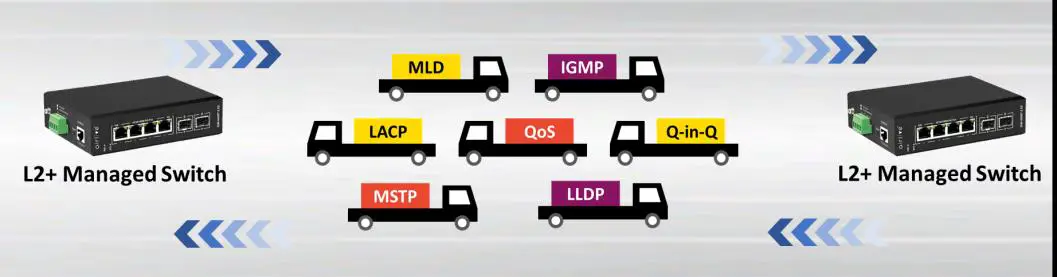

Intelligence – Layer 2+ Manage Advanced Feature
The IGM-642BT-2.5G can be used for advanced switch management functions such as dynamic port link aggregation, Q-on-Q VLAN, rapid spanning tree protocol, QoS from layer 2 to layer 4, bandwidth control and IGMP inspection can be programmed. The switch offers VLANs with 802.1Q tags, and the permitted VLAN groups are up to a maximum of 255. By supporting port aggregation, the IGM-642BT-2.5G PoE enables the operation of a high-speed trunk that combines several ports. A maximum of 2 trunk groups with 2 ports trunk group and also supports failover.

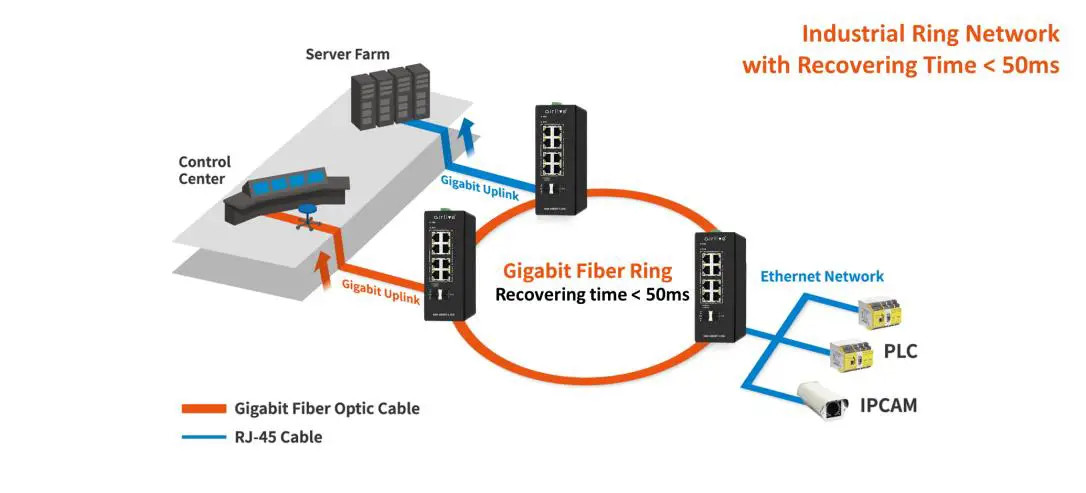

ERPS Ethernet Ring Protection
ERPS is supported by the IGM-642BT-2.5G Switch. ERPS supports multi-ring and multidomain structures (master and subrings) and optimizes the inspection mechanism in terms of two-way faults. In addition, it supports main device backup, load sharing, and other work methods in <50ms switching. This means that when multiple switches have been placed in a Ring and the network work is interrupted, it will recover within 50ms or less. Meaning the critical network like in harsh environments or automated production lines and surveillance will be online again with minimum loss of time. The ring network is also protected again loops.

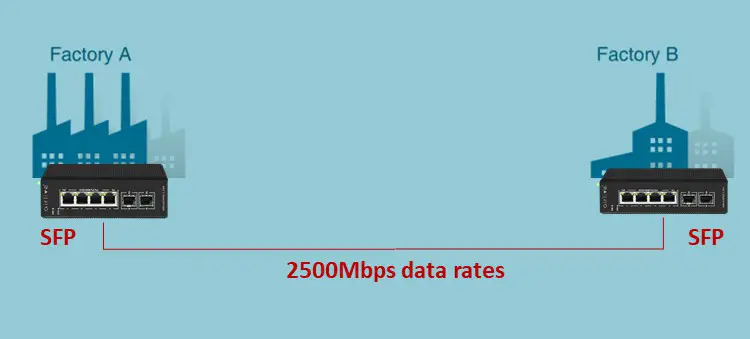

Fiber backbone for Long Distance
Extend the network further with SPF slots. Use the IGM-642BT-2.5G as a backbone of your network, can reach 20KM in speed 2500Mbps data transmission.

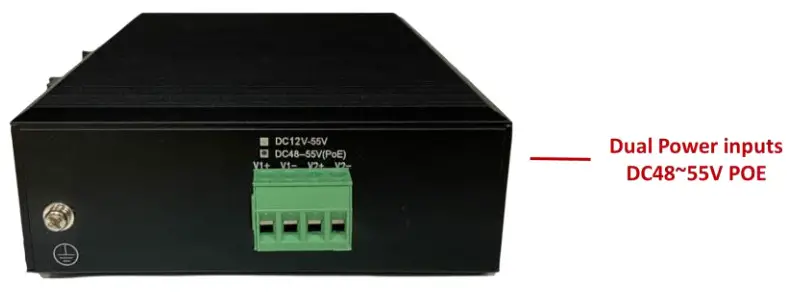

Dual Power Inputs
The IGM-642BT-2.5G supports 2 DC power inputs for power redundancy. That greatly improves the reliability and uptime of a sensor network in a harsh environment. When one of the DC power inputs fails, the second input will continue to power on the switch. The Switch supports an input of DC 48V ~ 55V. Users can define policy for video conferring/voice data in high priority, to ensure your video meeting will not lag coursing by any networking jam.

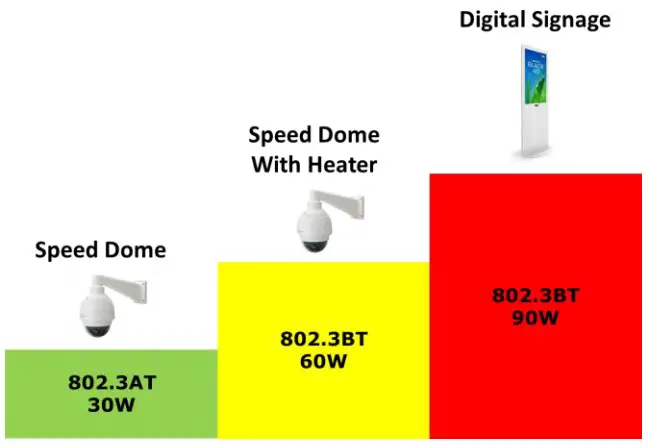

802.3BT 90W High Power output
AirLive IGM-642BT-2.5G Industrial switch supports the high-power output PoE++ at 90W per port. This higher output allows it to power more devices than just an IP camera or Access point. The 90W PoE can be used to power on high-power needed PoE Systems, Digital Signage or even PoE LED lighting, and much more. Giving you much more flexibility on the usage, as you are no longer restricted to only 30W.

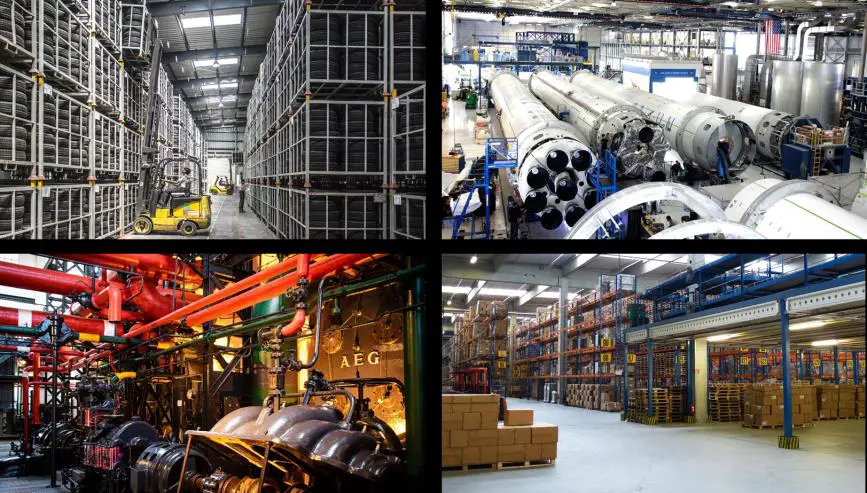

Industrial Application Harsh Environment
AirLive IGM-642BT-2.5G Industrial switch meets the high standard demands of providing reliable networking connectivity, able to withstand the harsh industrial environment, and cost-effectively.

Specification

Model
Hardware
· Device Interface:
4 x 90W PoE 10/100/1000 RJ45
2 x ports Gigabit SFP 2.5G (compatible with 1.25G/155M) 6-port totally
1 x RJ45 console port

•  Standard
  IEEE802.3u 100Base-TX / 100Base-FX
  IEEE802.3ab Gigabit 1000Base-T
  IEEE802.3z Gigabit SX/LX (optical fiber)
  IEEE802.3x Flow Control and Back Pressure
  IEEE802.1d Spanning Tree (STP)
  IEEE802.1w Rapid Spanning Tree (RSTP)
  IEEE802.1s Multiple Spanning Tree (MSTP)
  IEEE802.1p Class of Service (QoS / CoS) traffic
  Prioritization (Multicast filtering function)
  IEEE802.1Q VLAN Bridge Operation
  IEEE802.1x Client/Server Access control and Authentication
  IEEE802.3at/af PoE
  IEEE802.3az Energy Efficient Ethernet
  IEEE802.1ab LLDP/ Device Link Layer Discovery Protocol
•  LED Indicators: PWR (power supply), SYS(System), 1-4 PoE, 1-4 Link & ACT , 5-6 Link & Act
• Lighting Surge Protection: 6KV (general mode), 2KV (differential mode), ESD15KV
•  Mechanical IP40 rugged high-strength metal case, DIN35 Rail Mounting

Power and PoE

•  Protocol: IEEE802.3bt (90W), IEEE802.3at (30W), IEEE802.3af (15.4W)
• PoE Port: 4
• PoE Power Output / PoE Port: max. 90 watts

Switch Architecture | Performance

•  Fiber Medium
  Multi-mode Fiber: 850nm, 1310nm Transmission Distance: 550m/2Km Single-mode Fiber: 1310nm, 1550nm Transmission Distance 20/40/60/80/100/120Km

AirLive IGM-642BT-2.5G

• Switching architecture: Store and Forward
  Switch Capacity: Back-plan up to 18Gbps
  Switch packets Capacity; 13.39Mbps
  MAC Address: 8K
  Jumbo Frames: 9.6Kbytes
  Packet Buffer: 4Mb
  Flash Memory: 16MB
  DDR SDRAM: 128MB

L2 management Function

Port Management
Enable / Disable Port  Speed, Duplex, MTU setting Flow-Control Port Information Check

•  Port Mirroring Support both side-way port
•  Port Speed Limit Port-based input/output bandwidth management
•  Port Isolation Support the downlink port isolation, and able to communicate with the uplink port
•  Storm Suppression Support unknown unicast, multicast, unknown multicast Broadcast type storm suppression based on bandwidth regulation and storm filtering
•  Link Aggregation Support static manual aggregation Support LACP dynamic aggregation
•  VLAN Support 4K VLAN Access, Trunk, Hybrid Support Port-based Support Generic GVRP dynamic VLAN registration
• MAC Support static, dynamic, addition, deletion MAC address learning limit Dynamic aging time setting
•  Spanning Tree Support STP 802.1d Spanning Tree protocol Support RSTP 802.1w Spanning Tree protocol Support MSTP 802.1w Spanning Tree protocol Support BPDU protection
• Multicast: Support Static addition, deletion Support IGMP-Snooping Support MLD-Snooping Support v1/2/3 dynamic multicast monitor
•  DDM: Support SFP DDM

* Specification will be changed without prior notice

Specification

Model
L2 Management Extension Function

•  ACL Based on source MAC, destination MAC, Protocol type, source IP, destination IP, L4 port Support time-range time management
• QoS Based on 802.1p (CoS) classification Based on DSCP Classification Classification based on source IP, destination IP and port number Support SP, WRR, DRR scheduling strategy Support flow rate limit CAR · LLDP Discovery Support LLDP discovery protocol
• User Setting: ADD/Delete users
• Log: User login, operation, status, events
•  Anti-attack (Security): DOS defense (port-based) Support CPU protection and limits the rate of sending CPU packets ARP binding (IP, MAC, PORT binding)
• Certification | Authentication Support 802.1x port authentication Support AAA authentication Support TACAS+ authentication
•  Network diagnosis Support Ping, Telnet, Trace
•  System Management Device reset, configuration save/restore, upgrade management, time setting, etc.
  L3 ( Layer 3 Switching ) and Router Function
• Interface Configuration
  Support virtual VLAN interface
•  ARP Support check ARP
• Router Function Static Router

AirLive IGM-642BT-2.5G

System Management

•  CLI: Support serial port command line management
• TELNET: Support serial command line management
•  SSH: Support SSHv1/2 remote management
•  SNMP: Support v1/2/3, support trap
•  WEB: Support two layers setting
•  PoE: Support PoE Power
•  Other Functions Support DHCP Snooping Dying Gasp
  Power Supply
•  Input Voltage: DC48~55V
•  Input Type: 4 Pin Terminal (block V1+V1- V2+ V1Supports Dual Power Input)
  Environment
•  Operating temperature: -4085
• Storage temperature: -4085
•  Humidity: 5%~95 % ( No condensation) Standard package of switch
•  Product size: 14.5 x 12.5 x 4 cm(L*W*H)
• Package size: 25 x 21 x 6.5 cm(L*W*H)
• Product Weight: N.W: 0.6KGs ; G.W: 0.8KGs
•  Package content: 1 x Switch, 1 x Serial Cable

Standard carton package

• Standard packing(L×W×H); 60.8×50×43.5cm
•  Standard packing quantity;36 (PCS) / ctn
  Ordering Information
• Model: IGM-642BT-2.5G
• Name: L2+ Industrial Ring Managed Gigabit POE++ Switch 6-Port Gigabit including 2*2.5G SFP

* Specification will be changed without prior notice
