Industrial Ring Managed Gigabit PoE++ Switch
10-Port PoE++ Gigabit including 2×1.25G SFP Ports
IGM-1082BT-1.25G

Overview

Reliable Industrial-grade Managed POE Switch for extreme environment With VLAN and QoS

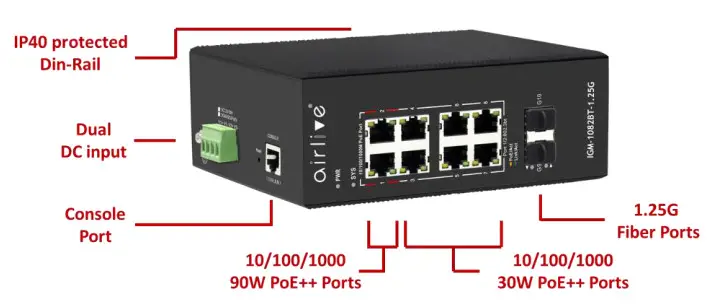

The AirLive IGM-1082BT-1.25G is a L2+ managed 8-port Gigabit PoE++ switch including 2 PoE++ ports, 6 PoE+ ports. Port 1~2 are 10/100/1000BASE-T 802.3bt (90W) compliant and port 3~8 are 10/100/1000BASE-T 802.3at/af (30W) compliant automatically adaptive, and 2 fiber optic ports 100/1000/1250Mbps. Made for extreme environments with its wide temperature range from -40°C to 85°C and rugged IP40 metal housing; Dual power inputs using a 4pin terminal block (DC48~55V).

The 10-port Industrial Gigabit management switch offers comprehensive SNMP management functions including IGMP, VLAN, Port aggregation, QoS port mirroring, bandwidth control. Ring Network Protocol ERPS is supported. ERPS supports multi-ring and multi-domain structures. It supports main device backups, load sharing and other work methods in 50ms switching, making for one of the lowest fault recovery time and makes sure that your critical industrial network keeps working.

Features

• All 10-port, each port delivers Gigabit high speed
• Extend network further with 2x 1.25G SFP slots that accept fiber transceivers and go beyond the limits of Ethernet
• Supports PoE++ up to 90W (Port 1~2 90W per port), (Port 3~8 30W per port)
• Automatically detect and offer power for connected PD
• Support L2+ SNMP and WEB Smart management function, including DHCP Snooping, VLAN, IGMP, QoS, Spanning Tree, MAC Binding and Bandwidth Control
• Support PoE management · Support PoE watchdog to automatically detect and restart crashed PD
• Clear Statues display including traffic, CPU, Memory, POE consumption, per-port status
• Web-UI for easy management; CLI and Command Script for advance setting; SNMP used for popular network tools management.

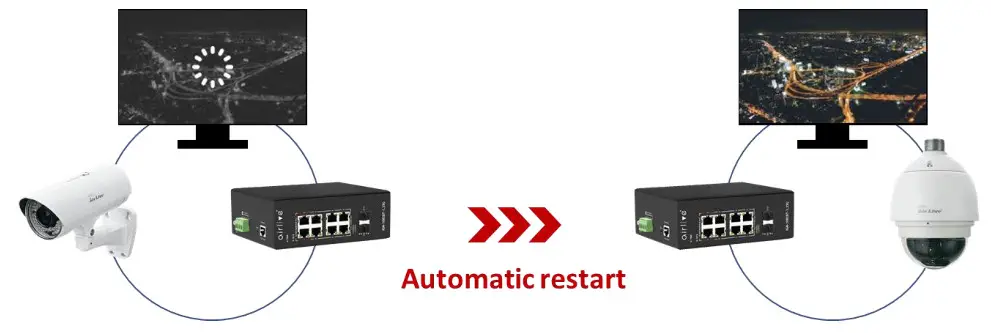

Efficient PoE Watch Guard PoE Watch dog technology and PoE Management
The Switch IGM-1082BT-1.25G supports high power on port 1~2 at 90W and 30W on ports 3 ~8 auto adaptively. With PoE management function to control PoE port setting, Timer setting and Timer reboot setting, and PoE watchdog. All the PoE management functions ensure full power for the connected PD and great reliability for the whole system. PoE 90W supports devices which need more power, this can be for example a POS system, Digital Signage, or LED lighting.

After PoE Watchdog function enabled, the IGM-1082BT-1.25G switch works as a virtual security guard. When the POE port is continuously powered but there is no traffic, the POE watchdog will be triggered. After 2 minutes of detection, the power supply will be stopped and then powered on. PoE Watchdog is especially helpful for camera. For example, when turning on the function, the switch will detect the front-end camera for 24/7. If there is no traffic output from the camera, it is judged that the camera is frozen, and the front-end camera will be restarted through PoE power failure to solve the problem.

Built for Harsh Environment
The IGM-1082BT-1.25G switch can operate from -40°C ~ 85°C. And each POE port has 6KV surge protection. It is the ideal solution for applications which work under harsh environment and require stable network and PoE power such as parking lot or IP surveillance. The IGM-1082BT-1.25G has a rugged high strength metal case which is rated at IP40 and has a DIN35 Rail connection making it suitable for network use in a heavy industry or factories. AirLive Industrial switches can be placed in almost any harsh environment.

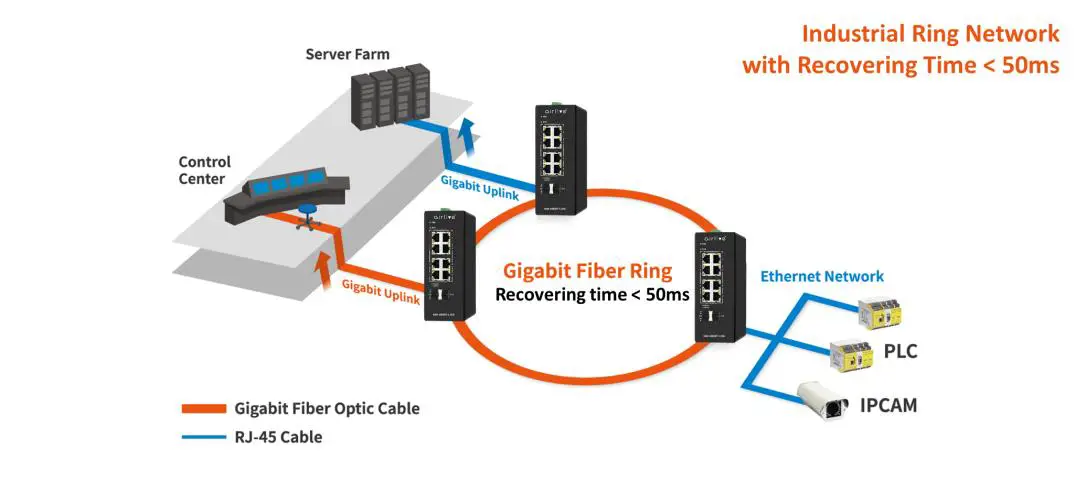

ERPS Ethernet Ring Protection
ERPS is supported by the IGM-1082BT-1.25G Switch. ERPS supports multi-ring and multi-domain structures (master and sub rings) and optimizes the inspection mechanism in terms of two-way faults. In addition, it supports main device backups, load sharing and other work methods in <50ms switching.
This means that when multiple switches have been placed in a Ring and the network work is interrupted, it will recover within 50ms or less. Meaning the critical network like in harsh environments or automated production lines and surveillance will be online again with minimum loss of time. The ring network is also protected again loops.

VLAN, Dying Gasp, QoS, and more
The IGM-1082BT-1.25G is a management switch that is packed with features, use the many VLAN functions to separated the traffic on your network, use Dying Gasp to get an alert when a remote-connected device (CPE) is failing. Or use the QoS functions to stream your network in a smooth and noncongested network these and many more functions can be found in the AirLive industrial Switch.

Fiber for Long Distance up to 120Km
Extend the network further with the 1.25G SFP slots. The SFP ports also supports DDM which offers more information about the fiber connection and makes it easier to find any faults or bad connections.

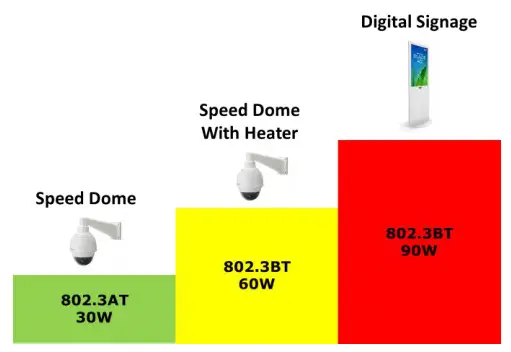

802.3BT High Power PoE
Airlive Power over Ethernet (PoE) products are suitable for commercial and industrial applications which provide highly reliable power and data transmission in compliance with the 802.3bt standard, industrial design, long-distance PoE technology, and The unique intelligent PoE watchdog control function can meet all the requirements of IP surveillance, IP communications, POS systems, PoE lighting and other applications.

AirLive IGM-1082BT-1.25G Industrial switch supports the high-power output PoE++ at 90W for ports 1 and 2. This higher output allows it to power more device then just an IP camera or Access point. The 90W PoE can be used to power on high-power needed PoE Systems, Digital Signage or even PoE LED lighting and much more. Giving you much more flexibility on the usage, as you are no longer restricted to only 30W.

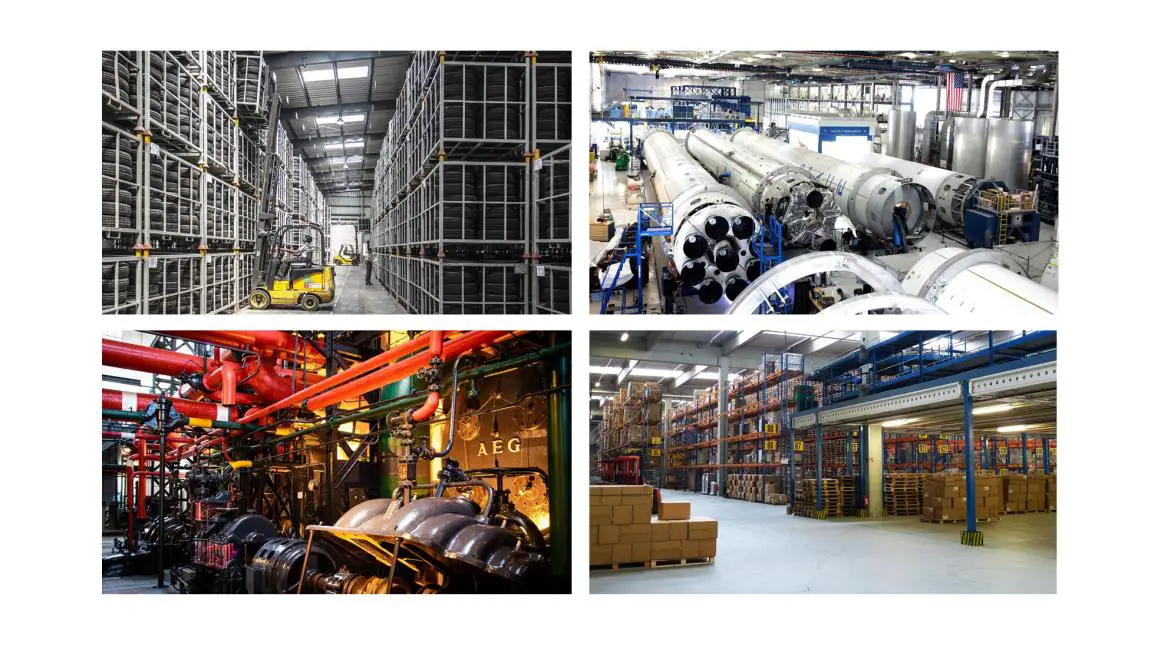

Industrial Application Harsh Environment
AirLive IGM-1082BT-1.25G Industrial switch meets the high standard demands of providing reliable networking connectivity, able to withstand harsh industrial environment, and cost-effectively.

Specification

* Specification will be changed without prior notice www.airlive.com
AirLive Technology Corporation 4F., NO. 132, LN. 235, BAOQIAO RD., XINDIAN DIST., NEW TAIPEI CITY 231407, TAIWAN
