LNP-2004G-SFP Series
20- Port Industrial PoE+ Unmanaged Gigabit Ethernet Switch,
w/16*10/100/1000Tx (30W/Port) + 4*100/1000 SFP Slots
Quick Installation Guide
Version 1.1
(July 2020)
antaira LMX 1202M SFP series 12 Port Industrial Managed Ethernet Switch

Package Check List

The package contains the following items:

  1. 1 – Quick installation guide
  2. 1 – LNP-2004G-SFP(-T)
  3. 1 – Wall mounting bracket set with screws
  4. 1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm
  5. 1 – RJ45 dust cover set

Front Panel Layout

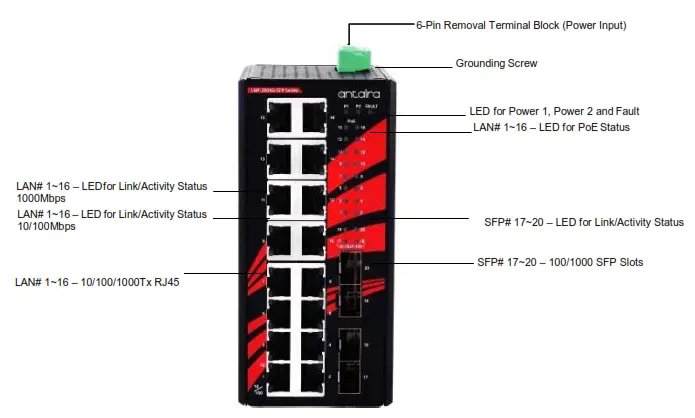

antaira LNP 2004G SFP Series 20- Port Industrial PoE pLUS Unmanaged Gigabit Ethernet Switch

Top Panel View

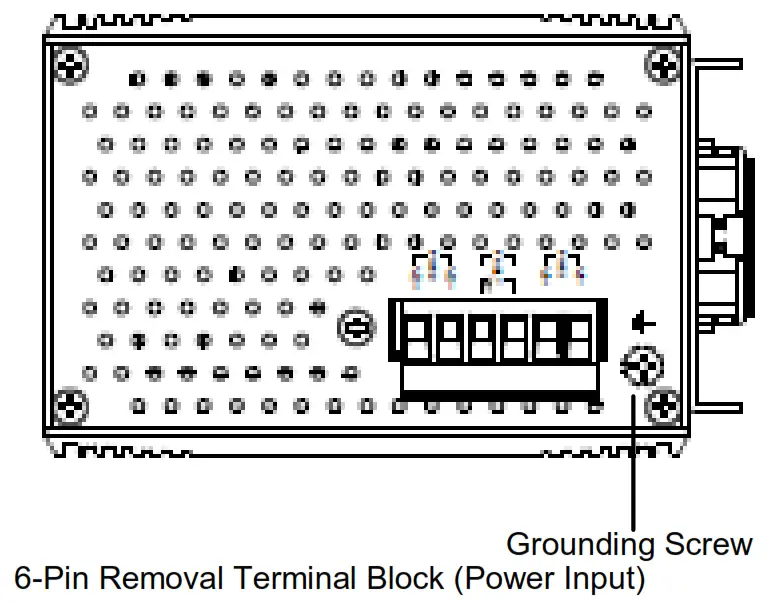

LNP-2004G-SFP series’ top panel is equipped with one 6-pin removal terminal block connector for dual DC power inputs (48~55VDC).antaira LNP 2004G SFP Series 20- Port Industrial PoE pLUS Unmanaged Gigabit Ethernet Switch - Fig

Product Overview

System Interface/Performance

  • All RJ45 ports support the auto MDI function
  • Embedded 16*10/100/1000Tx (PSE: 30W/Port) and 4*100/1000 SFP slots
  • Store-and-Forward switching architecture
  • 8K MAC Address Table
  • Supports 9,216bytes Jumbo Frame
  • 512Kbytes memory buffer

Power Input & Connection

  •  DC 48 to 55V redundant power, with a 6-pin removal terminal block
  • It is recommended to use a UL-listed industrial power supply
    Operating Temperature
  • Standard operating temperature model: -10°C to 65°C
  • Extended operating temperature model: -40°C to 75°C
    Case/Installation
  • IP30 protection
  • DIN-Rail and wall mount design

LED Indicators

LEDColorDescription
Power 1GreenOnPower input 1 is active
OffPower input 1 is inactive
Power 2GreenOnPower input 2 is active
OffPower input 2 is inactive
FaultRedOnPower input 1 or 2 is inactive
OffBoth power inputs 1 and 2 are active
PoE Indicator (Port 1-16)GreenOnThe pod is supplying power to the powered-device
OffNo powered device attached or power-supplying fads

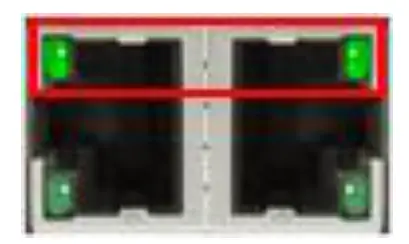

LAN Port (Port 1-161antaira LNP 2004G SFP Series 20- Port Industrial PoE pLUS Unmanaged Gigabit Ethernet Switch - Fig 1GreenOnConnected to network. 1000Mbps
FlashingNetworking is active
Off Not connected to the network

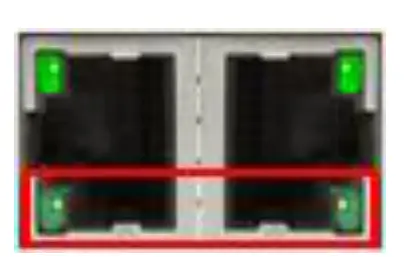

antaira LNP 2004G SFP Series 20- Port Industrial PoE pLUS Unmanaged Gigabit Ethernet Switch - Fig 2GreenOnConnected to network. 10/100Mbps
FlashingNetworking is active
OffNot connected to the network
SFP Port LINK/ACT
(Port 17-20)
GreenOnConnected to network. 1000Mbps
FlashingNetworking is active
OffNot connected to the network
AmberOnConnected to network. 100Mbps
FlashingNetworking is active
OffNot connected to a network

Quick Installation

Ethernet Ports
RJ45 Ports (Auto MDI)
All RJ45 ports are auto-sensing for 10Base-T, 100Base-TX, or 1000Base-T device connections. Please follow the wiring pin assignment table for Ethernet port installation.

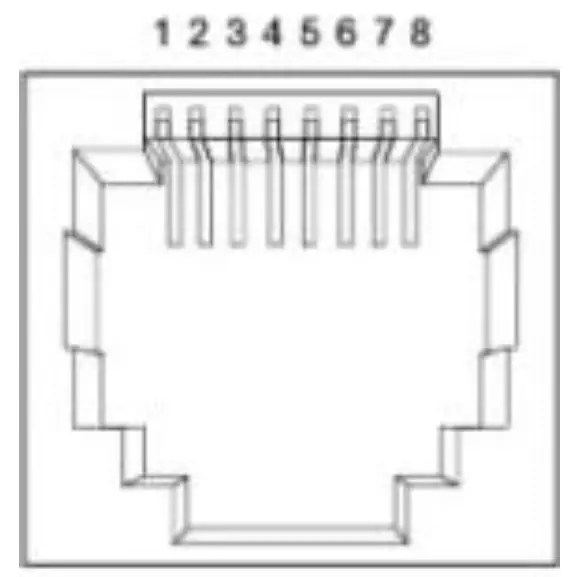

RJ45 Ethernet Port Pin Outs
Pins7568A Color75688 Color10Base•T, 100Base-TX
1000
Base-T(X)
Pin 1white/green stripewhite/orange stripeRx+TPO+
Pin 2green solidorange solidRx-TP0-
Pin 3white/orange stripewhite/green stripeTx+TP1+
Pin 4blue solidblue solidunusedTP2+
Pin 5white/blue stripewhite/blue stripeunusedTP2-
Pin 6orange solidgreen solidTx-TP1-
Pin 7white/brown stripewhite/brown stripeunusedTP3+
Pin 8brown solidbrown solidunusedTP3-

antaira LNP 2004G SFP Series 20- Port Industrial PoE pLUS Unmanaged Gigabit Ethernet Switch - Fig 3

Power Input Wiring
Please follow the steps below to insert the power wire:

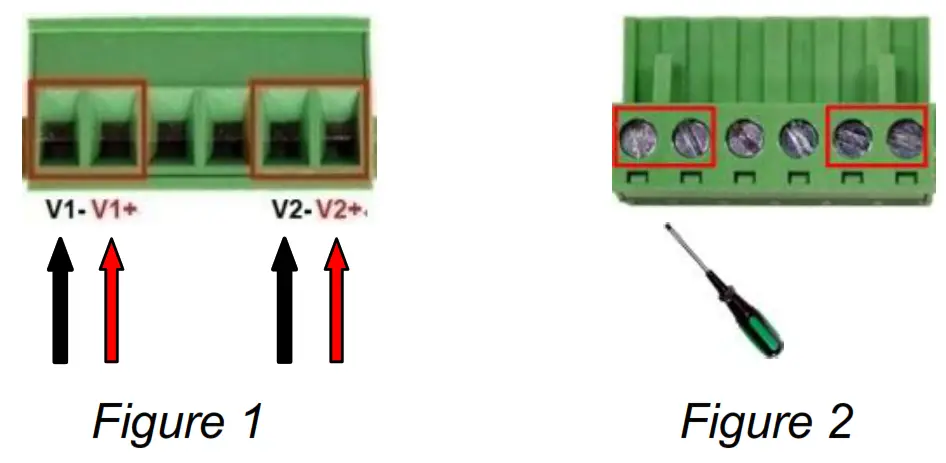

  1.  Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts on the terminal block connector as shown below in Figure 1.
  2. Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in Figure 2.
    antaira LNP 2004G SFP Series 20- Port Industrial PoE pLUS Unmanaged Gigabit Ethernet Switch - Fig 4

Industrial Switch Mounting

DIN-Rail Mounting
The DIN-Rail bracket is pre-installed on the industrial Ethernet switch from the factory. Please refer to Figure 3 for a DIN-Rail bracket installation reference.
Follow the steps below for installing the industrial switch on the DINRail track:

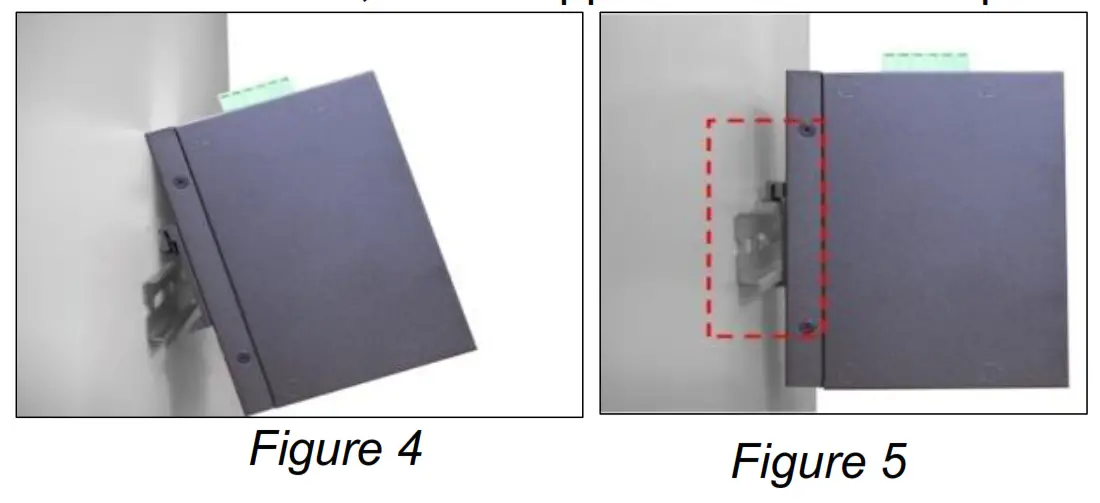

  1. Insert the top of the DIN-Rail on to the track as shown in Figure 4.
  2. Lightly pull down the bracket onto the rail as shown in Figure 5.
  3. Check if the bracket is mounted tightly on the rail. Figure 3
    antaira LNP 2004G SFP Series 20- Port Industrial PoE pLUS Unmanaged Gigabit Ethernet Switch - Fig5
  4. To remove the industrial Ethernet switch from the rail, do the opposite from the steps above.antaira LNP 2004G SFP Series 20- Port Industrial PoE pLUS Unmanaged Gigabit Ethernet Switch - Fig6

Wall Mounting

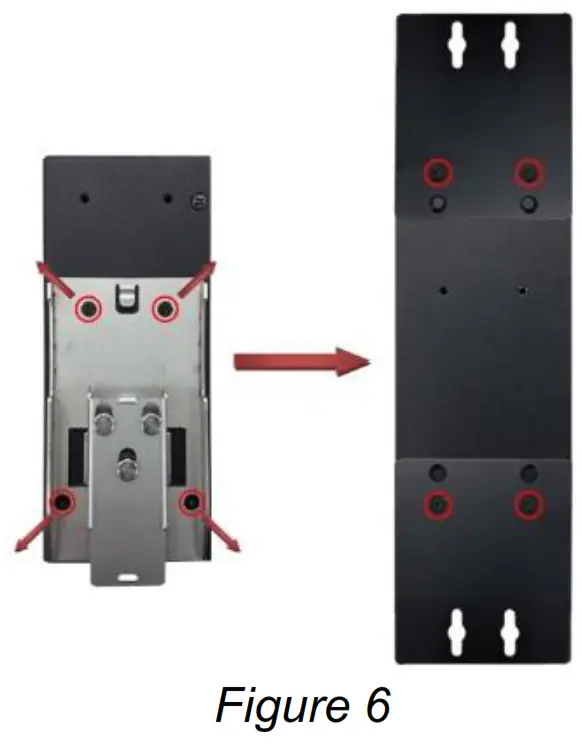

Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 6.

  1. Remove the DIN-Rail bracket from the industrial Ethernet switch by loosening the screws.
  2. Place the wall mounting brackets on the top and bottom of the industrial Ethernet switch.
  3. Use the screws to screw the wall mounting bracket onto the industrial Ethernet switch.
  4. Use the hook holes at the corners of the wall mounting bracket to hang the industrial Ethernet switch on the wall.
  5. To remove the wall mount bracket, do the opposite from the steps above.
    antaira LNP 2004G SFP Series 20- Port Industrial PoE pLUS Unmanaged Gigabit Ethernet Switch - Fig7

Field Maintenance and Service

  • If the device requires servicing of any kind, the user is required to disconnect and remove it from its mounting. The initial installation should be done in a way that makes  this as convenient as possible.
  • Voltage/power lines should be properly insulated as well as other cables. Be careful when handling them so as to not trip over them.
  • Do not under any circumstance insert foreign objects of any kind into the heat dissipation holes located in the different faces of the device. This may not only harm the internal layout but might cause harm to the user as well.
  • Do not under any circumstance open the device for any reason. Please contact your dealer for any repair needed or follow the instructions within the manual.

Warranty Policy

Warranty Conditions
Products supplied by Antaira Technologies are covered in warranty for sub-standard performance or defective workmanship. The warranty is not, however, extended to
goods damaged in the following circumstances:
(a) Excessive forces or impacts
(b) War or an Act of God: wind storm, fire, flood, electric shock, earthquake
(c) Use of unqualified power supply, connectors, or unauthorized parts/kits
(d) Replacement with unauthorized parts
RMA and Shipping Costs Reimbursement
Customers shall always obtain an authorized “RMA” number from Antaira before shipping the goods for repair or replacement.

  • Within the warranty period (based on the invoice date), all parts and labor are free of charge to the customers.
  • Customers are responsible for the cost of parts and labor if the products are out of warranty.
  • For RMA service, customers are responsible for the shipping expense for shipping the RMA unit(s) to Antaira.
    Antaira is responsible for the shipping expense via ground service for the return repair/replacement unit(s) back to customers.

Limited Liability
Antaira would not be held responsible for any consequential losses from using Antaira’s product.
Warranty Period
5-Year Warranty
Antaira’s Customer Service and Support

Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com
