Intellinet Network Solutions 561907 24 Port Gigabit Ethernet Poe Plus Switch With 2 Sfp Ports Instructions

24-Port Gigabit Ethernet
PoE+ Switch with 2 SFP Ports
Instructions
Model 561907 (IPS-24G02-370WB)Important: Read before use.

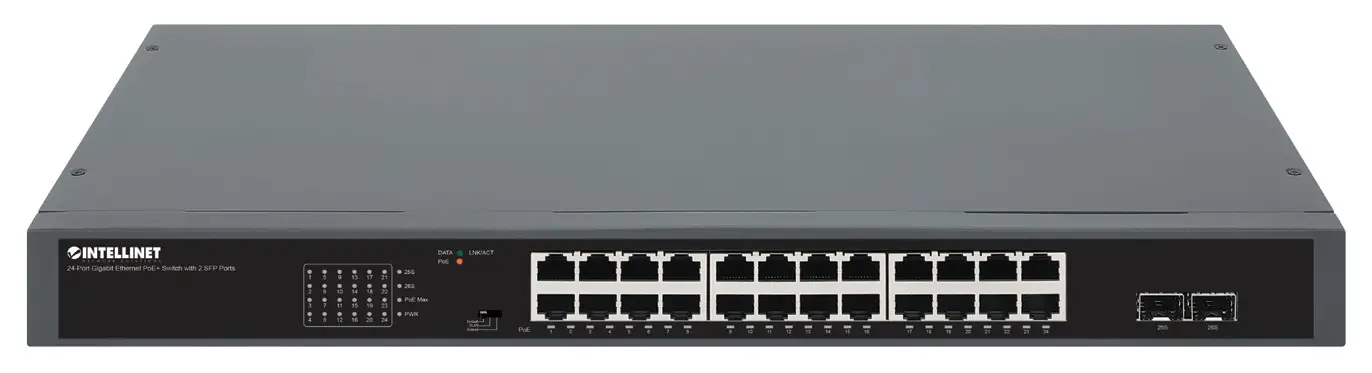

561907 24 Port Gigabit Ethernet PoE Plus Switch with 2 SFP Ports

For additional benefits:
Scan to register your product warranty or go to: register.intellinet-network.com/r/561907

The Intellinet Network Solutions 24-Port Gigabit Ethernet PoE+ Switch with 2 SFP Ports offers an array of time-saving, cost-effective features while providing superior network throughput. No configuration is required and installation is plug and play. With a backplane speed of 52 Gbps, plenty of performance is available for your computers, servers and other networking devices. Each of the ports automatically senses the link speed of the connected network device and adjusts to 10, 100 or 1000 Mbps for compatibility and maximum performance. This PoE switch is designed to provide compatible devices with enough power when needed. It offers up to 30 watts of power per port until its power budget of 370 watts is reached.

Green Ethernet Technology
This Intellinet Network Solutions switch detects link status to all connected devices and reduces the power usage of ports not in use. In addition, the switch can adjust the level of power output based on the length of the network cable connected to a particular port. This feature allows for the enjoyment of maximum network performance, and when things slow down, it automatically scales back power usage to conserve energy and save money.
For specifications, visit intellinetnetwork.com. Register your product at register.intellinet-network.com/r/561907 or scan the QR code on the cover.

Front Panel

Cat5e/6/6a/8.x UTP/STP cables provide optimal performance; if a status LED doesn’t indicate a link or activity, check the corresponding device for proper setup and operation.

Slide Switch

• Default: default mode; allows normal communication between ports 1 ­ 26.
• VLAN: isolates ports 1 ­ 24 from each other while allowing them to connect to ports 25 and 26.
• Extend: set PoE ports to full 10 Mbps and extend Ethernet up to 250 meters (820 ft.).

Rear Panel

Power
Use the included power cord to connect the device (on the rear panel) to an AC outlet. The device supports AC 100 ­ 240 V, 50/60 Hz.

Chassis Ground Column
Located on the side of the power supply connector, a grounding terminal connector is used to provide proper grounding for your Intellinet Network Solutions switch. If you use the chassis grounding screw, it should be wired to an object that provides earth ground. In rackmount installations, grounding is typically provided by the metal frame of the mounting rack.

Placement

Desktop Installation
Prior to use, it is recommended that the switch be placed/positioned on a level surface that can support the weight of the switch (and possibly other objects) with at least 25 mm (approx. 1″) of clearance for ventilation; away from sources of electrical noise (radios, transmitters, broadband amplifiers); and within 100 m (approx. 328′) of network devices it’s to be connected to.

Rackmount Installation
The switch can be mounted in an EIA standard-sized, 19-inch rack. Attach the mounting brackets on the switch’s side panels (one on each side) and secure them with the screws provided.

Use the screws provided with the equipment rack to mount the Intellinet Network Solutions switch to the rack.

WASTE ELECTRICAL & ELECTRONIC EQUIPMENT

DISPOSAL OF ELECTRIC AND ELECTRONIC EQUIPMENT
(Applicable In The European Union And Other European Countries With Separate Collection Systems)
This symbol on the product or its packaging means that this product must not be treated as unsorted household waste. In accordance with EU Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), this electrical product must be disposed of in accordance with the user’s local regulations for electrical or electronic waste. Please dispose of this product by returning it to your local point of sale or recycling pickup point in your municipality.

WARRANTY AT: intellinet-network.com

REGULATORY STATEMENTS

FCC Class A
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instruction manual may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense. Any changes or modifications made to this equipment without the approval of the manufacturer could result in the product not meeting the Class A limits, in which case the FCC could void the user’s authority to operate the equipment.

CE/UKCA
This device complies with the requirements of CE 2014/30/EU (UKCA Electromagnetic Compatibility Regulations 2016) and / or 2014/35/EU (UKCA Electrical Equipment [Safety] Regulations 2016). The Declaration of Conformity for is available at:
support.intellinet-network.com/barcode/561907

intellinet-network.com

All trademarks and trade names are the property of their respective owners. © IC Intracom. All rights reserved.
Intellinet Network Solutions is a trademark of IC Intracom, registered in the U.S. and other countries.
Printed on recycled paper.
INT_561907_QIG_0622_REV_5.11
