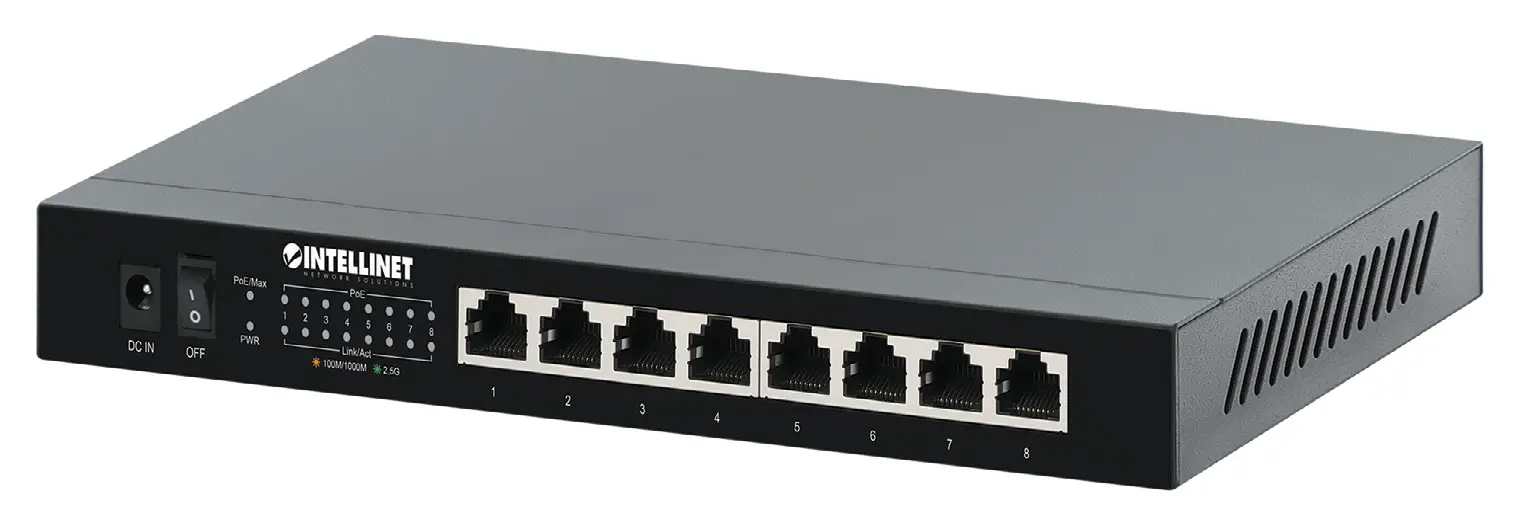

561938 8-Port 2.5G Ethernet PoE+ Switch
Instruction Manual

Scan to register your product warranty

register.intellinet-network.com/r/561938

Instructions

The Intelligent Network Solutions 8-Port 2.5G Ethernet PoE+ Switch offers an array of time-saving, cost-effective features while providing superior network throughput. No  configuration is required and installation is plug and play. Thanks to its desktop design, superior performance and value, the switch is the perfect choice for your small office  home or home network. With a backplane speed of 40 Gbps, plenty of performance is available for your computers, servers and other networking devices. Each of the ports  automatically senses the link speed of the connected network device and adjusts to 10, 100, 1000 and 2500 Mbps for compatibility and maximum performance. Designed to  give ample power to compatible devices that need them, this PoE+ switch offers up to 30 watts of power per port until its power budget of 100 watts is reached.

Features

• Provides up to eight PoE network devices with power and data (ports 1 – 8)
• Ultra-fast 2.5GBASE-T RJ45 Ethernet ports, IEEE 802.3bz compliant
• PoE power budget of 100 watts
• Power output up to 30 watts on each PoE-capable port
  For specifications, visit intellinetnetwork.com. Register your product at register.intellinet-network.com/r/561938 or scan the QR code on the cover.

Placement

Desktop Installation
Prior to use, it is recommended that the switch be placed/positioned:

• on a level surface that can support the weight of the switch (and possibly other objects);
• with at least 25 mm (approx. 1”) of clearance for ventilation;
• away from sources of electrical noise: radios, transmitters, broadband amplifiers;
• within 100 m (approx. 328’) of network devices it’s to be connected to.

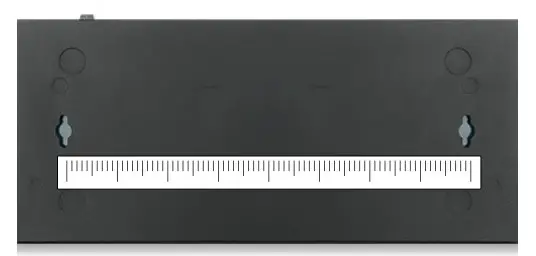

Wall Mounting
First, install screws (not included) into the wall at appropriate distances.

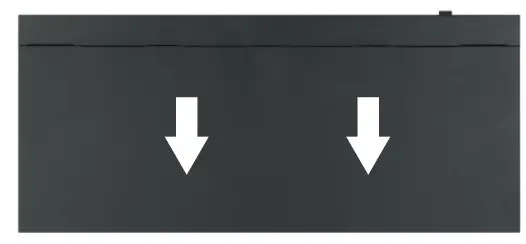

Then, hang the unit on the screws and slide it into place so it is secure.

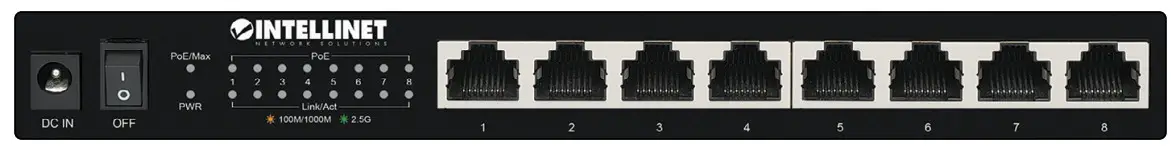

Front Panel

Cat5e/6/6a/8.x UTP/STP cables provide optimal performance. If a status LED doesn’t indicate a link or activity, check the corresponding device for proper setup and  operation.

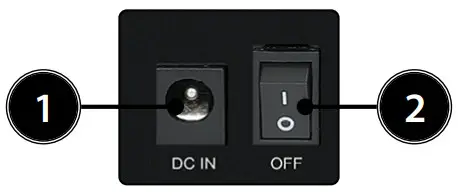

Power

1. Use the included power cord to connect the device to an AC outlet. The device supports AC 100 – 240 V, 50/60 Hz.
2. Press | to turn the switch on; press O to turn it off .

REGULATORY STATEMENTS
FCC Class A
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the Federal Communications Commission (FCC)  Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment  generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instruction manual may cause harmful interference to  radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.  Any changes or modifications made to this equipment without the approval of the manufacturer could result in the product not meeting the Class A limits, in which case the  FCC could void the user’s authority to operate the equipment.

This device complies with the requirements of CE 2014/30/EU (UKCA Electromagnetic
Compatibility Regulations 2016) and / or 2014/35/EU (UKCA Electrical Equipment [Safety] Regulations 2016). The Declaration of Conformity for is available at:

intellinet-network.com
All trademarks and trade names are the property of their respective owners. © IC Intracom. All rights reserved.
Intellinet Network Solutions is a trademark of IC Intracom, registered in the U.S. and other countries.
