TFLEX COMBI
1-2-3
INSTALLATION INSTRUCTIONS
TFLEX COMBI LED Solution For Tunnel Lighting

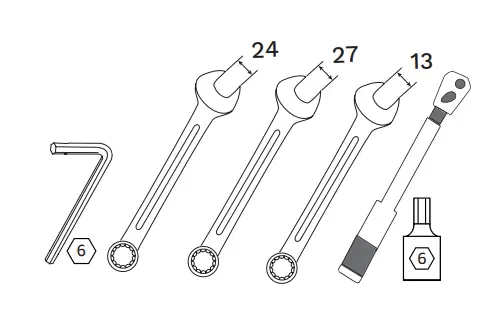

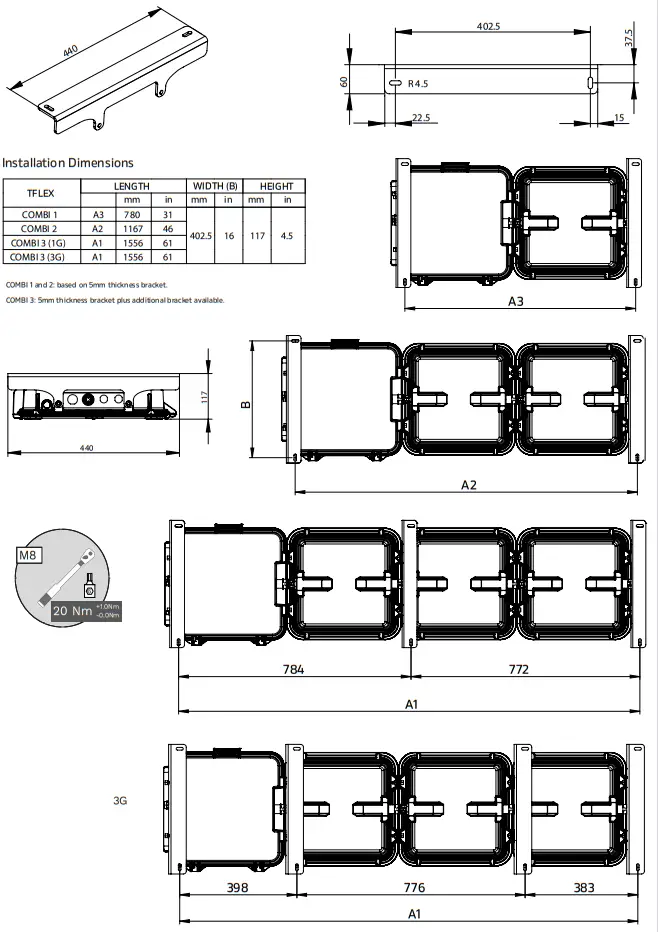

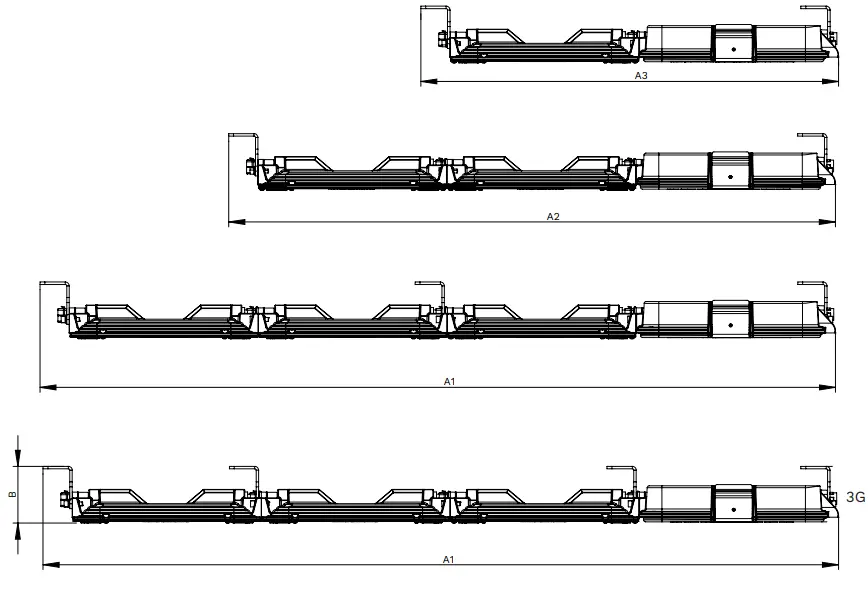

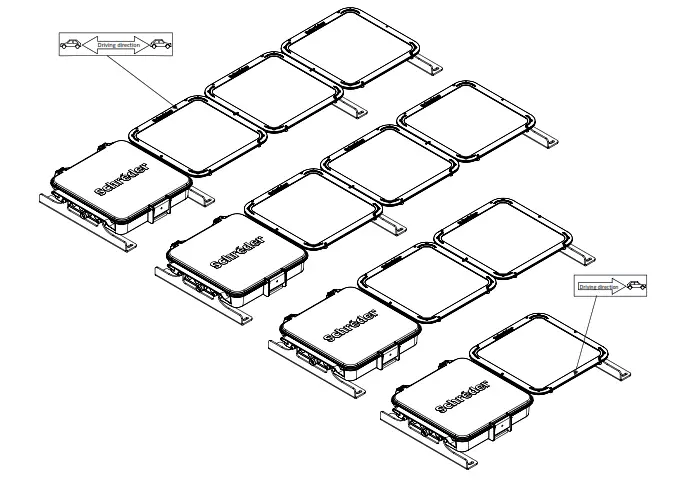

Product dimensions
| TFLEX | LENGTH | WIDTH | HEIGHT (B) | WEIGHT | |||||
| mm | in | mm | in | mm | in | kg | lb | ||
| COMBI 1 | A3 | 860 | 34 | 440 | 17. | 117 | 5. | 16 | 32. |
| COMBI 2 | A2 | 1247 | 49 | 23 | 51. | ||||
| COMBI 3 | Al | 1635 | 64 | 32 | 71. | ||||
| COMBI 3 (3G) | Al | 1635 | 64 | 34 | 75. | ||||
COMBI 1 and 2: based on 5mm thickness bracket.
COMBI 3: 5mm thickness bracket plus additional bracket available.
FIXED BRACKETS Ansi3G

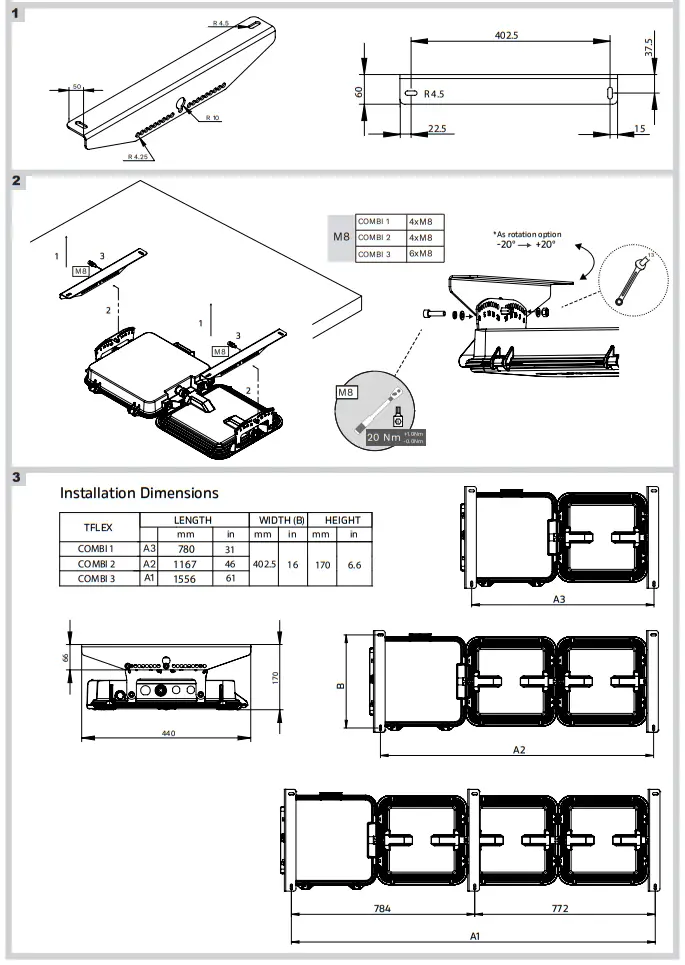

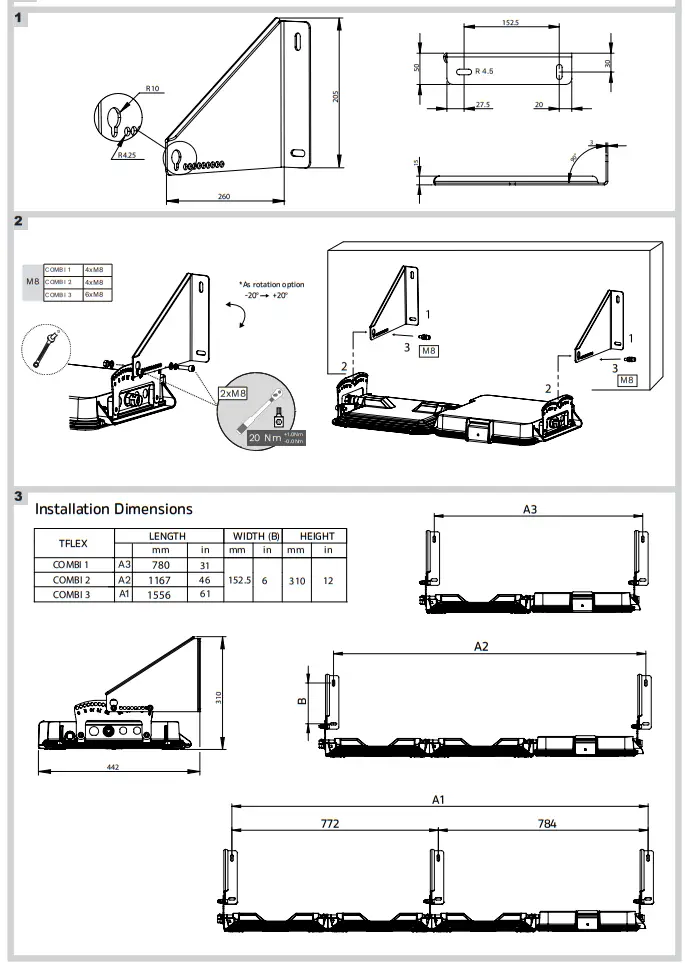

SUSPENDED SWIVELING FIXATION, PULL OUT

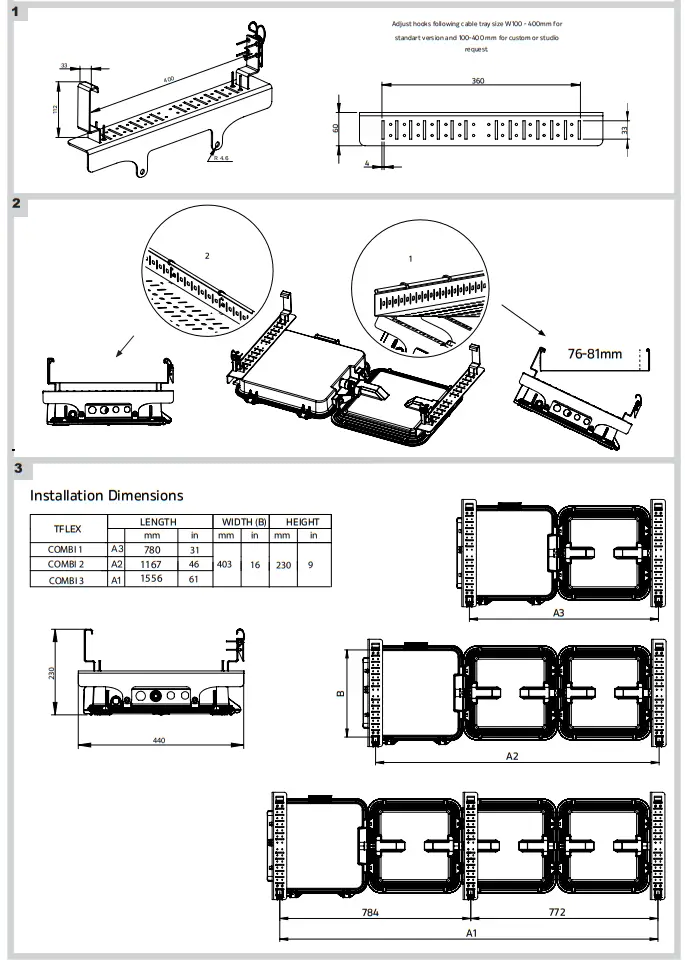

SUSPENDED SWIVELING FIXATION, ADJUSTABLE

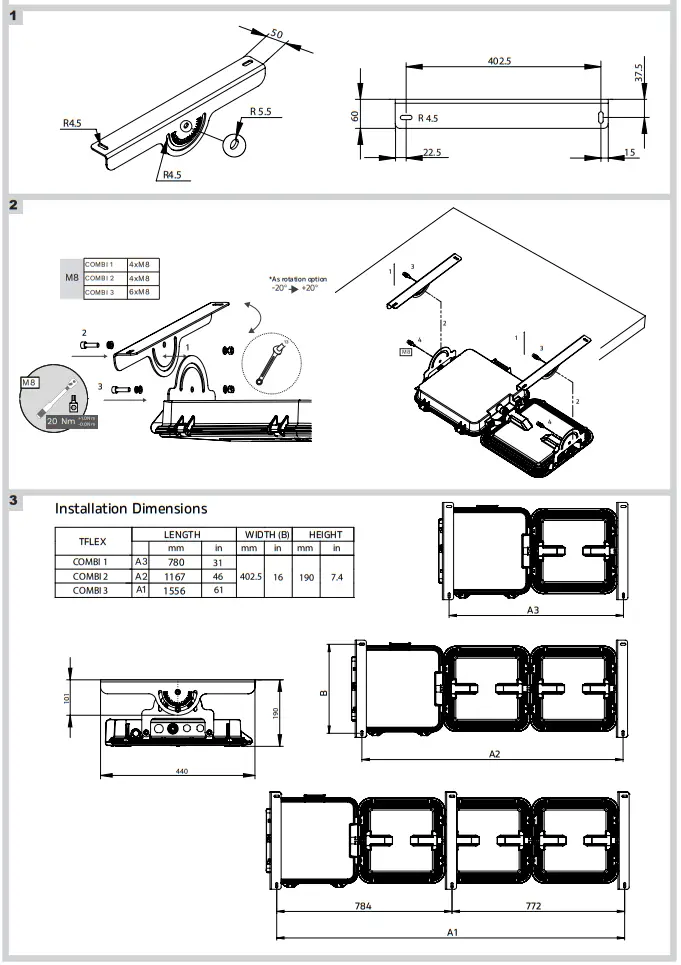

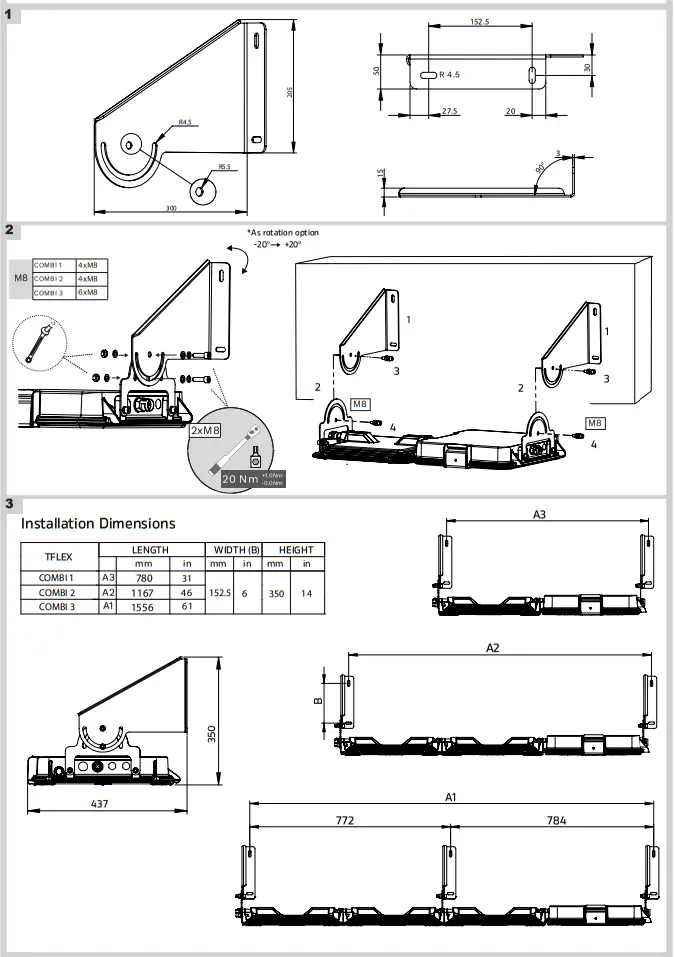

WALL SWIVELING FIXATION, PULL OUT
WALL SWIVELING FIXATION, ADJUSTABLE
HOOK FIXATION

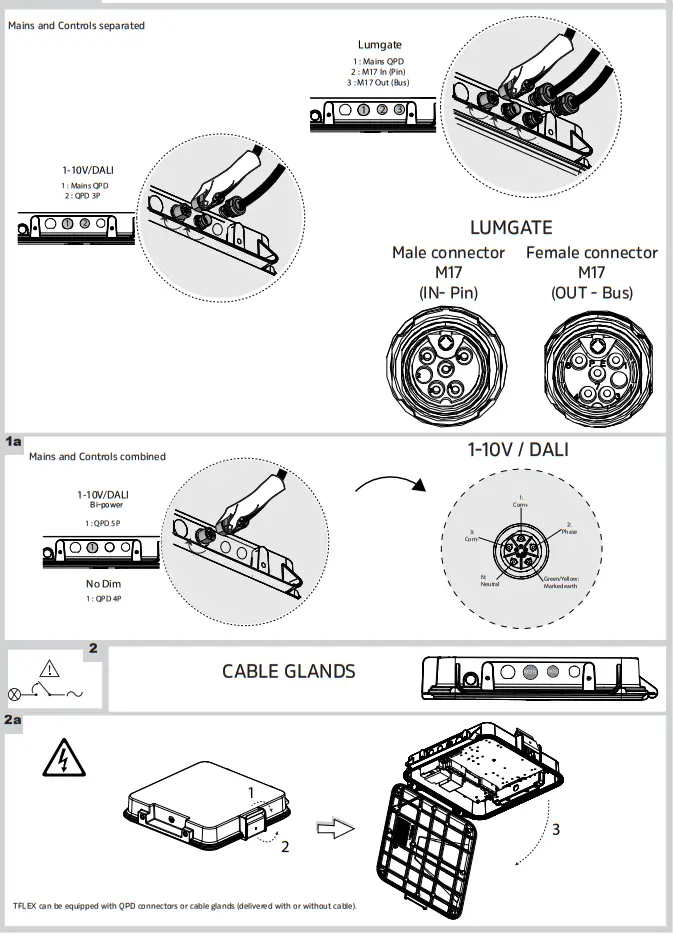

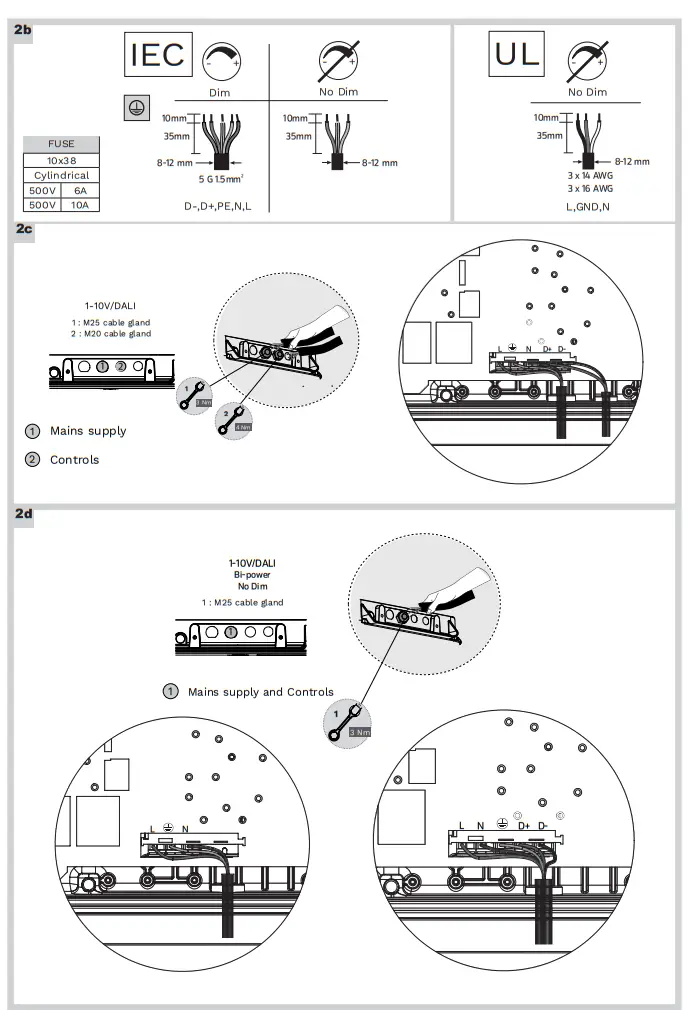

QPD CONNECTORS
SAFETY INSTRUCTIONS
The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person. Always switch off the power prior to installation, maintenance or repair activities.
RISK GROUP 2 – CAUTION! Hazardous optical radiation may be emitted from this product. Do not stare at the luminaire when operating as it may be harmful to the eyes. he luminaire should be positioned so that prolonged staring at the luminaire at a distance of less than 0.77m is not expected.
This product contains a light source of an energy efficiency class G or higher.
In case of PVC insulated mains cable, the installer MUST ensure that the WHOLE cable is protected against climatic conditions, especially UV rays and rain, by making sure that the cable is contained inside the luminaire and pole Y-connection: In case of damage to the wire, it has to be replaced only by the manufacturer, distributor or by an expert, to avoid risks.
01-55-960 | DOC-0018753 rev M | 08-2022
