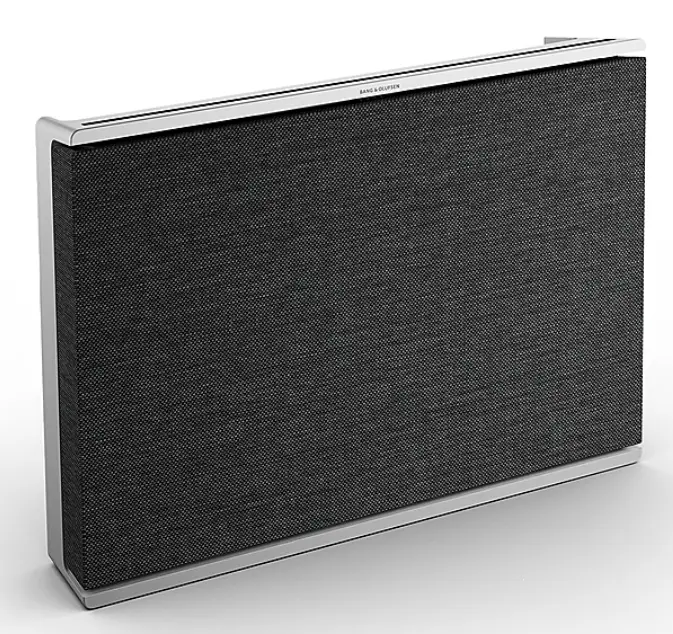

Bang Olufsen Beosound Level Connected Speakers

Contents hide

1 PRODUCT OVERVIEW

1.1 Superior sound that’s made to move

5 Documents / Resources

5.1 References

6 Related Posts

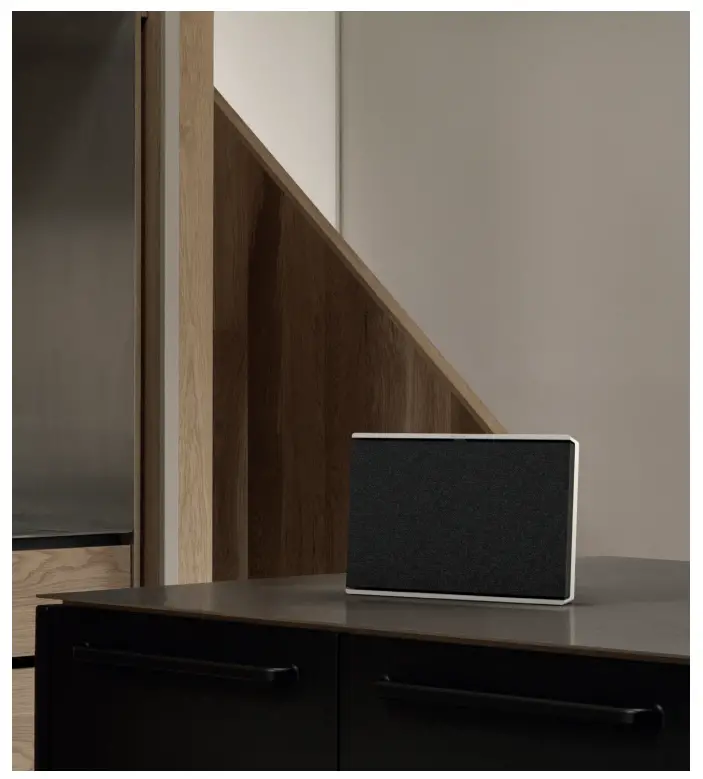

PRODUCT OVERVIEW

Superior sound that’s made to move

Any room. Any position. Any moment. Beosound Level lets you move with your music in new ways at home, without ever compromising on sound quality. Place it on its side, on its back, or hang it on the wall. Enjoy a flawless listening experience in beautiful, portable form.

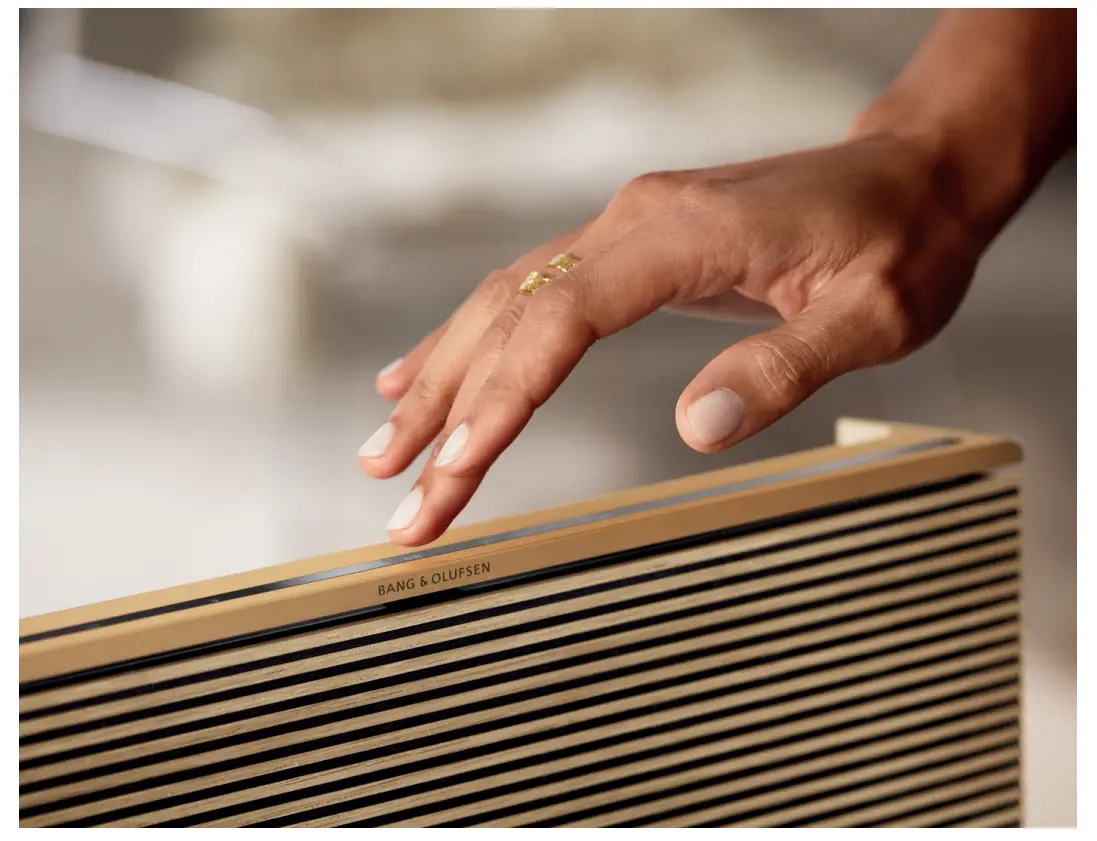

IMPORTANT FEATURES

Superior sound that adjusts to compensate for any position or room.
Compact and portable design. Lay it flat, on its side, or hang it on a wall.
Crafted with care: modular in design and made from high-quality materials.
Sleek, seamless charging options and up to 16 hours of battery life.
Part of Connected Speakers: Connect with other speakers and build your soundscape.

SPECIFICATIONS

BASIC	Product dimensions L x H x D 34.8 x 23 x 5.6 cm Weight 3.3 kg	Placement Standing upright Hanging on a wall Lying flat Recommended Room Size 10 – 50 m²
TECHNICAL	Power Amplifiers Non-clipped peak (W) 2 x Class D at 30 W for woofer 1 x Class D at 30 W for full range 1 x Class D at 15 W for tweeterSpeaker drivers 2 x 0.8” tweeter 1 x 2” full-range 2 x 4” woofer Maximum Sound Pressure Level @1m 96 dB SPL Bass Capability @1m 79 dB SPL Battery Rechargeable lithium ion battery with up to 16 hours/4 hours of playback Charging time 3 hours for 100% 2 hours for 80%	Frequency Range 39 – 23.000 HzPower Supply Power supply built-in. Polymer/fabric power cord included depending on colour tone. Features Active Room Compensation Position depended sound staging Thermal Protection Adaptive Bass Linearization Beosonic Exchangeable Lithium-ion battery Exchangeable front cover Proximity sensor Light sensor Microphones Yes
CONNECTIVITY	Wireless Networks Wi-fi/WLAN 802.11 b/g/a/n/ac (2.4 GHz & 5 GHz) Bluetooth type: 5.0Stereo Pairing Bang & Olufsen Stereo Pairing* Connections 1 x Line-in/optical combi-jack 1 x Ethernet 10/100 Mbit Charging via USB-C Service port via USB-C Easy Charge Solution Streaming Formats Chromecast built-inTM Apple AirPlay 2 Bluetooth audio streaming Spotify Connect	Integrated Music Services Bang & Olufsen RadioMultiroom Apple AirPlay 2, Chromecast and BeoLink Multiroom technologies are integrated and ready for you to create a wireless Multiroom setup with Beosound Level. Voice Assistant Google Assistant Remote Control** Beremote One BT Beoremote Halo Bang & Olufsen App
OTHER INFORMATION	Designer Torsten Valeur of Valeur Design

* Bang & Olufsen Stereo Pairing is factory default encoded using LC3plus high resolution Codec. LC3plus is licensed by Fraunhofer IIS https://www.iis.fraunhofer.de/audio

** Google and Chromecast built-in are trademarks of Google LLC. Google Assistant is not available in certain languages and countries.
