Vaporesso Xros Mini 16w Pod System Device User Manual

VAPORESSO XROS
User Manual

Thank you for choosing the Vaporesso product. Please read this instruction carefully before use to ensure a perfect experience.
If there is any additional requirement about this product, please consult the local agent or contact us through our website:
www.vaporesso.com

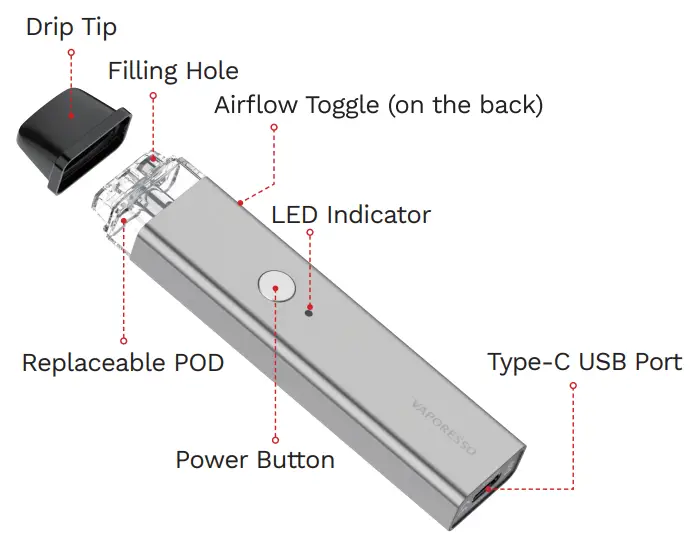

EXPLODED VIEW

SPECIFICATIONS

PACKING LIST

1 x VAPORESSO XROS Battery
1 x VAPORESSO XROS 0.8Ω POD (2ml)
1 x VAPORESSO XROS 1.2Ω POD (2ml)
1 x Type-C USB Cable
1 x User Manual
1 x Warranty Card
1 x Reminder Card

USE INSTRUCTIONS

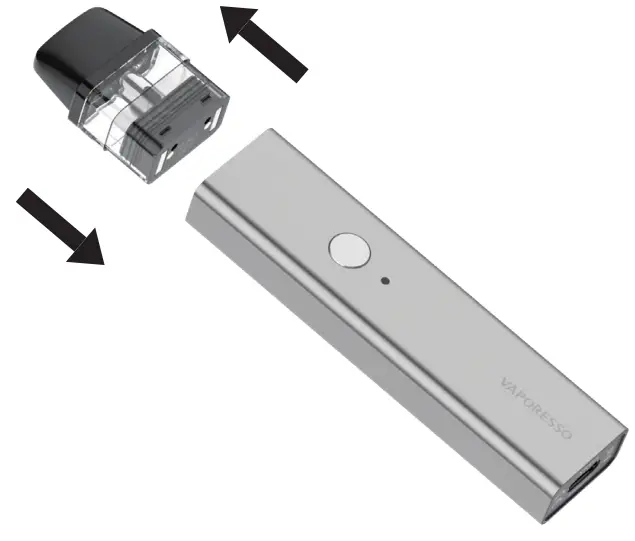

1. Replace the POD
   1) Pull out the used POD from the device;
   2) Put the new POD into the device firmly.

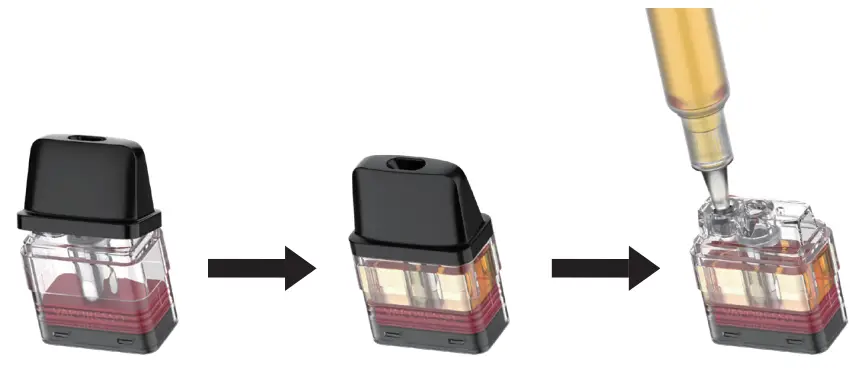

2. Fill the E-liquid – Snap off the drip tip from the POD;
   – Gently insert the e-liquid filling bottle tip into the filling slot;
   – Press down and squeeze the e-liquid through the slot;
   – Install the drip tip back and confirm it’s shut firmly;
   – Please wait 5 minutes for the e-liquid to soak into the coil completely.

3. Airflow Adjustment
   On the back of the device, there is an airflow control toggle, you can adjust the toggle according to your vaping habits for different airflow effects.
4. Power on/off the Device
   Click the power button 5 times in 2 seconds to power on or power off the device.
5. Start Vaping
   Inhale directly or press the power button to enjoy an extraordinary vaping experience.
6. Battery Level


   LED Color	Battery Status
   	High (70%-100%)
   	Medium (30%-70%)
   	Low (0%-30%)

7. Charge the Battery
   After connecting the Type-C cable to the device, the LED indicator will breathe in red light. Once the battery is fully charged, the indicator will turn into green light.

PROTECTIONS

Protections	Situation	Indicator
Low Resistance Protection	The device detects an ultra-low resistance.	× → Stop Output
Short-circuit Protection	The device detects a short circuit.
		× 5→Stop Output
No Load Protection	The device does not detect an atomizer.	× 5→ Stop Output
High Resistance Protection	The device detects an ultra-high resistance.
		× 5→Stop Output
Low Voltage Protection	The battery voltage drops too low.	× 3→ Stop Output
Over Charge Protection	The device is fully charged.	Stop Charging
Over-Discharge Protection	The battery voltage drops too low during vaping.	× → Stop Output
Auto-Shutoff Protection	Constantly vape for 8 seconds or more.	× 3→ Stop Output

CAUTIONS

1. Please turn off the device when it is not in use.
2. Do not leave the charging device unattended.
3. Do not drop, throw or abuse your device, which may cause damage.
4. Please use a standard USB output charger with a proper charging current and voltage range.
5. Keep away from the water or any flammable gas, or liquid.
6. Do not expose the device to direct sunlight, dust, moisture, or mechanical shock.
7. Do not expose the device to extreme temperatures.
   (Recommended temperature range: -10~60 ℃ /14~140 ℉ while using and -10~45 ℃ /14~113 ℉ while storing).
8. EEE Recycling: The product should not be treated as household waste, instead, it should be handed over to the applicable collection point for the recycling of electrical and
   electronic equipment.
9. Battery Recycling: The product battery should not be treated as household waste, instead, it should be handed over to the application used battery collection point for recycling.
10.  Only have your device repaired by Vaporesso. Do not attempt to repair it by yourself as damage or personal injury may occur.

WARNINGS

This refillable electronic cigarette is intended for use with compatible e-liquid, which may contain nicotine. Nicotine is an addictive substance and it is not suitable or recommended to use in the following cases:

1. This device is not suitable for:
   – Persons under the legal smoking age.
   – Persons experiencing heart disease, stomach or duodenal ulcers, liver or kidney problems, long-term throat disease, or difficulty breathing due to bronchitis, emphysema, or asthma.
   – Persons with an overactive thyroid gland or experiencing phaeochromocytoma (a tumor of the adrenal gland that can affect blood pressure).
   – Persons taking certain medications like Theophylline, Ropinirole or Clozapine and etc.
2. This device is not recommended for:
   – Non-smokers
   – Pregnant or breastfeeding women
3. You may experience the following results if you use nicotine-containing e-liquid with this product. If it happens, please consult a healthcare professional and show them this leaflet if possible:
   – Feeling faint – Nausea – Dizziness – Headache
   – Coughing – Irritation of the mouth or throat
   – Stomach discomfort – Hiccups
   – Nasal congestion – Vomition
   – Chest palpitations/pain or an irregular heart rate

This device should not be used by persons under the legal smoking age.

	@VaporessoEcig
	@Vaporesso_ecig
	Vaporesso
	[email protected]

www.vaporesso.com
Shenzhen Smoore Technology Limited
