Vaporesso Gen Air 40 Pod Mod Kit User Manual

USER MANUAL
VAPORESSO GEN AIR 40

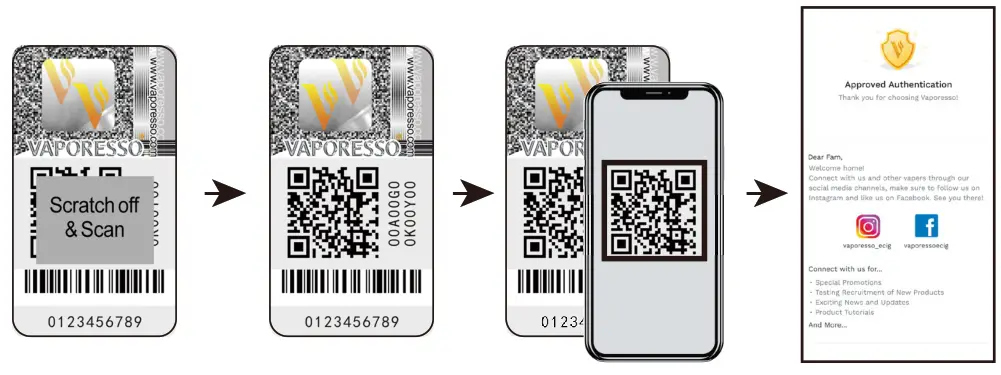

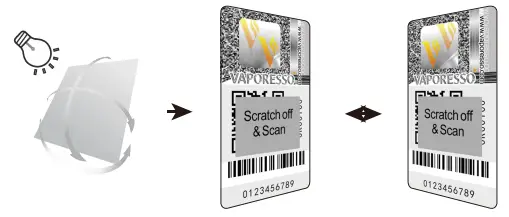

LASER ANTI-COUNTERFEITING LABEL INSTRUCTIONS
STEP 1 Check the label

Flip the label under light at a different angle, you will see the letter “V” position change.
STEP 2 Verify the QR code

1. Scratch
2. Scan QR code to verify

Thank you for choosing the Vaporesso product.
Please read this instruction carefully before use to ensure a perfect experience.
If there is any additional requirement about this product, please consult the local agent or contact us through our website: www.vaporesso.com

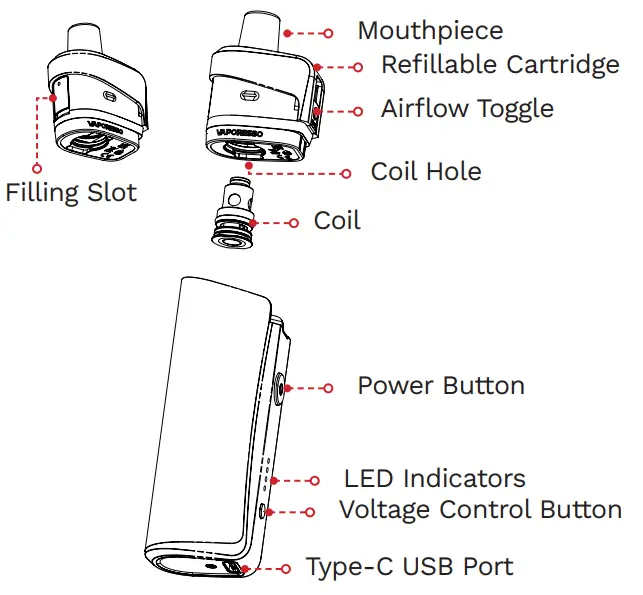

ENLARGED VIEW

SPECIFICATION

Dimensions: 103.05 x 31.55 x 20.5 mm
Cartridge Capacity: 4.5ml(Standard)/2ml (TPD)
Coil: GTX 0.4Ω MESH COIL (26-32W)
GTX 0.8Ω MESH COIL (12-16W)
Battery Capacity: Built-in 1800mAh
Output Wattage: 5-40W
Display: 4 x LED Indicators
Charging: Type-C, 5V/2.5A

USE INSTRUCTIONS

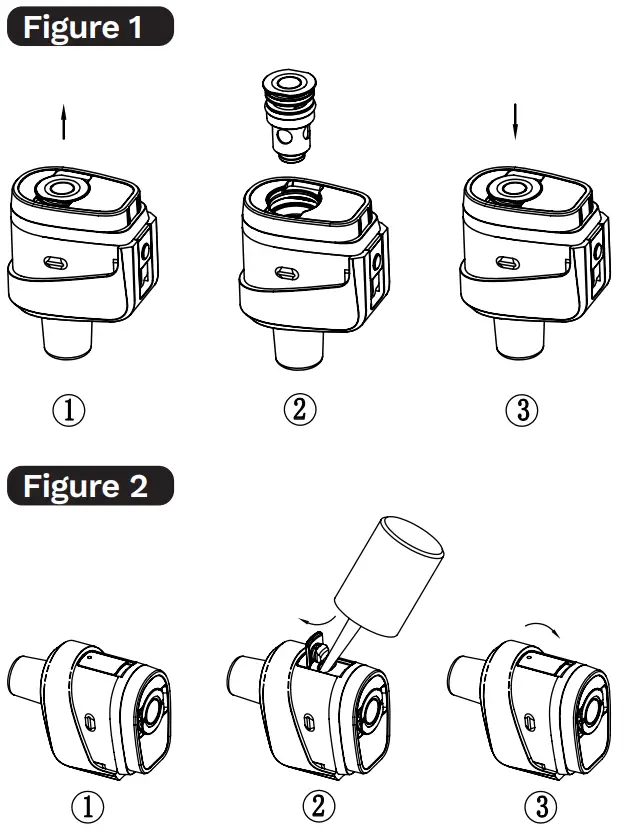

1. Coil Installation (Refer to FIGURE 1)
   Make sure the cartridge is empty before installing the coil. Insert the coil firmly into the cartridge.
2. Coil Replacement (Refer to FIGURE 1)
   Make sure the cartridge is empty before replacing the coil. Pull out the used coil and install a new one firmly.
3. Fill the E-liquid (Refer to FIGURE 2)
   Pull out the red silicone plug of the pod.
   Fill the e-liquid through the filling slot.
   Put the silicone plug back.
   *If it’s the first time filling the e-liquid, please wait 5 minutes for the coil to prime.
4. Adjust the airflow
   There is a black airflow control toggle on the side of the pod, you can adjust the toggle according to your habits for different airflow effects.
5. Install the cartridge
   Put the cartridge with the installed coil onto the battery. Make sure they are firmly connected.
6. Check the Battery Level
   The LED indicators will flash while vaping to remain the battery capacity.

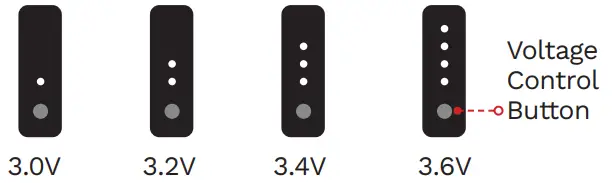

7. Voltage control
   Press the voltage control button to adjust the voltage in 4 stages.
8. Charge the device
   Connect the Type-C cable with the device to charge the battery, all the LEDs will be on gradually. When fully charged, all the LED indicators will be always on.
9. Power On/Off
   Press the power button 5 times within 2 seconds to power on or power off the device.
10. Start vaping
    In the locked state, hold the power button and inhale through the Mouthpiece. Release the power button and exhale.

PROTECTIONS

CAUTIONS

1. Please turn off the device when it is not in use.
2. Do not leave the charging device unattended.
3. Do not drop, throw or abuse your device, which may cause damage.
4. Please use a standard USB output charger with a proper charging current and voltage range.
5. Keep away from the water or any flammable gas, or liquid.
6. Do not expose the device to direct sunlight, dust, moisture, or mechanical shock.
7. Do not expose the device to extreme temperatures. (Recommended temperature range: -10~60℃ /14~140 ℉ while using and -10~45℃ /14~113 ℉ while storing).
8. EEE Recycling: the product should not be treated as household waste, instead, it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
9. Battery Recycling: the product battery should not be treated as household waste, instead, it should be handed over to the application used battery collection point for recycling.
10. Only have your device repaired by Vaporesso.
    Do not attempt to repair it by yourself as damage or personal injury may occur

WARNING
This refillable electronic cigarette is intended for use with compatible e-liquid, which may contain nicotine. Nicotine is an addictive substance and it is not suitable or  recommended to use in the following cases:

1. This device is not suitable for:
   – Persons under the legal smoking age.
   – Persons experiencing heart disease, stomach or duodenal ulcers, liver or kidney problems, long-term throat disease, or difficulty breathing due to bronchitis, emphysema,  or asthma.
   – Persons with an overactive thyroid gland or experiencing phaeochromocytoma (a tumor of the adrenal gland that can affect blood pressure).
   – Persons taking certain medications like
   Theophylline, Ropinirole or Clozapine and etc.
2. This device is not recommended for
   – Non-smokers
   – Pregnant or breastfeeding women
3. You may experience the following results if you use nicotine-containing e-liquid with this product. If it happens, please consult a healthcare professional and show them  this leaflet if possible:
   Feeling faint/Nausea /Dizziness/Headache / Coughing/Irritation of the mouth or throat/ Stomach discomfort/Hiccups/Nasal congestion/ Vomition/Chest  palpitations/pain or an irregular heart rate
   This device should not be used by persons under the legal smoking age.

www.vaporesso.com
