USER MANUAL
VAPORESSO GEN PT60

LASER ANTI-COUNTERFEITING LABEL INSTRUCTIONS

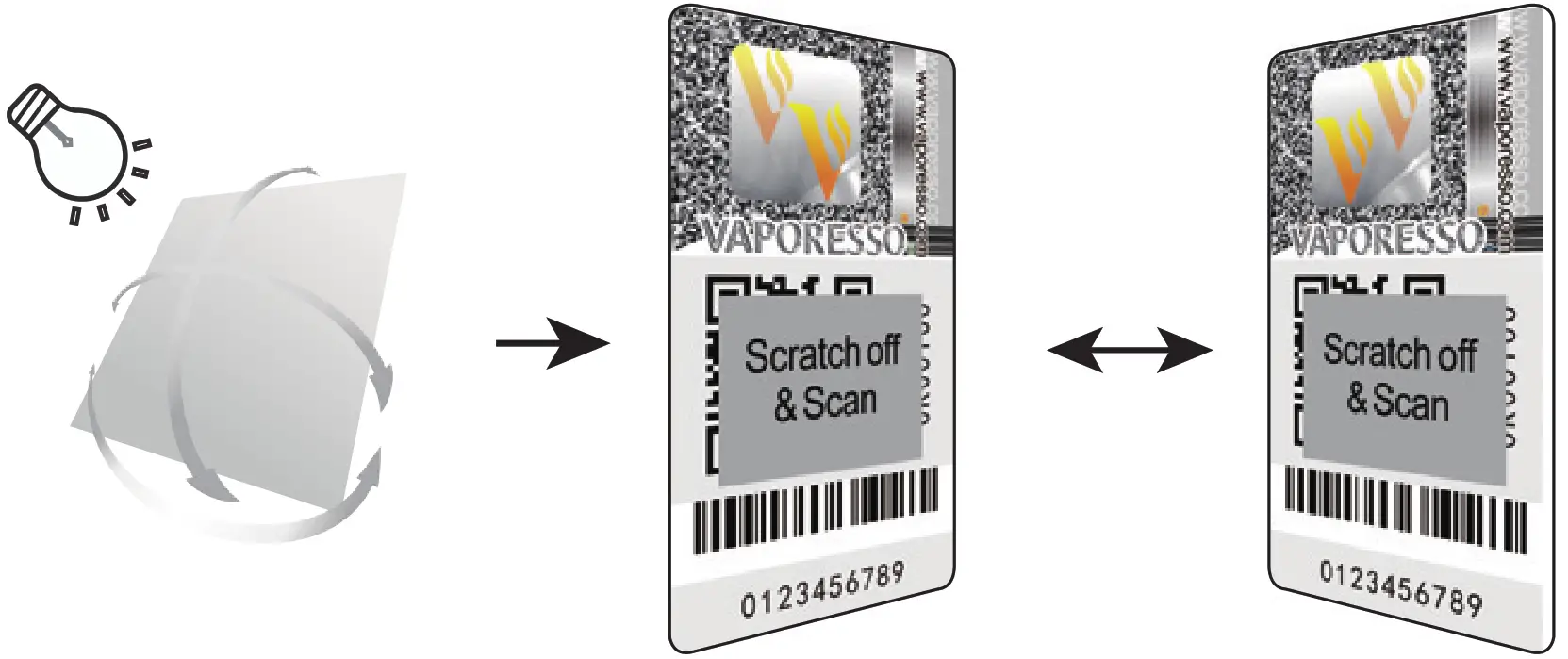

STEP 1 Check the label
Flip the label under light with a different angle, you will see the letter “V” position change.

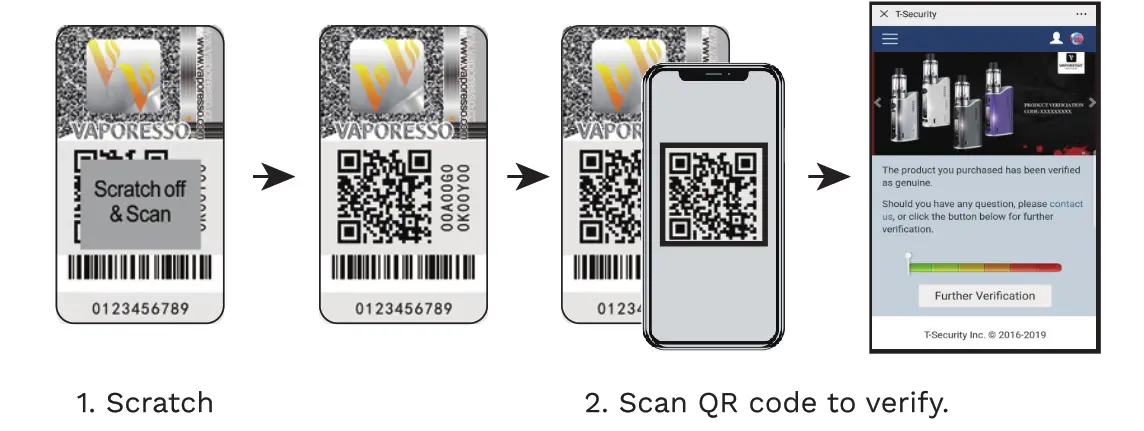

STEP 2 Verify the QR code

Thank you for choosing the Vaporesso product. Please read this instruction carefully before use to ensure a perfect experience. If there is any additional requirement about this product, please consult the local agent or contact us through our website: www.vaporesso.com

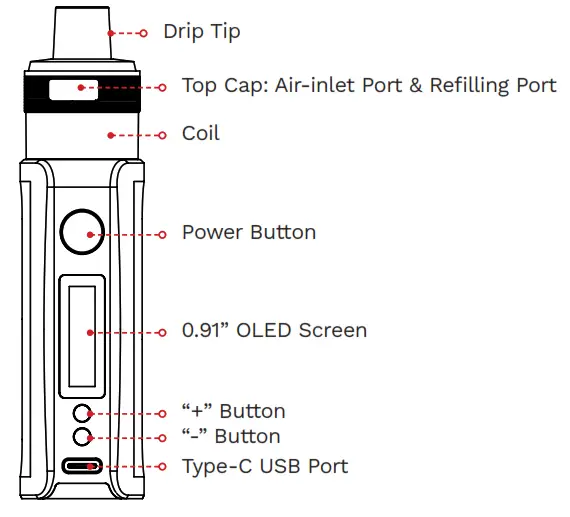

ENLARGED VIEW

SPECIFICATION

Dimensions: 112 x 35 x 28 mm
POD Capacity: 4.5m1/2ml(TPD)
Coils & Suggested Wattage:
GTX 0.20 MESH Coil (45-60W)
GTX 0.40 MESH Coil (26-32W)
Battery Capacity: 2500mAh
Output Power: 5-60W
Charging Current: DC 5V/2A,Type-C
Battery Display : 0.91″ OLED Screen

PACKING LIST

1 x VAPORESSO GEN PT60 Battery
1 x VAPORESSO xTANK POD (4.5m1/2ml TPD)
1 x GTX 0.20 MESH Coil (In-box)
1 x GTX 0.40 MESH Coil (In-box)
1 x Type-C Cable
1 x User Manual
1 x Warranty Card

Figer 1

Figer 2

Figer 3

USE INSTRUCTIONS

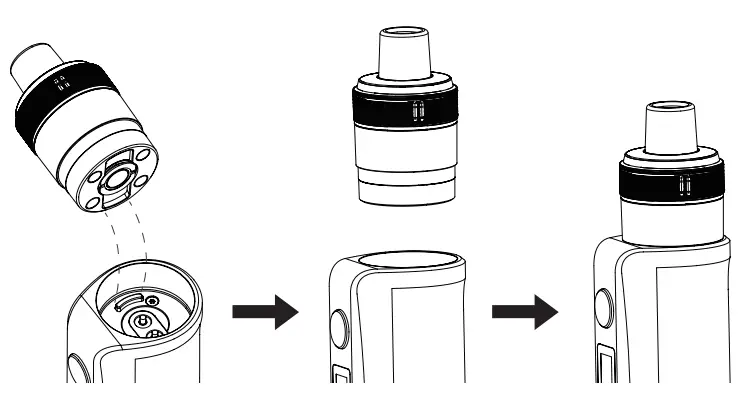

1. Install the POD
   Install the POD onto the battery at the correct place. Make sure they are firmly connected.
   * Refer to figure 1 above.

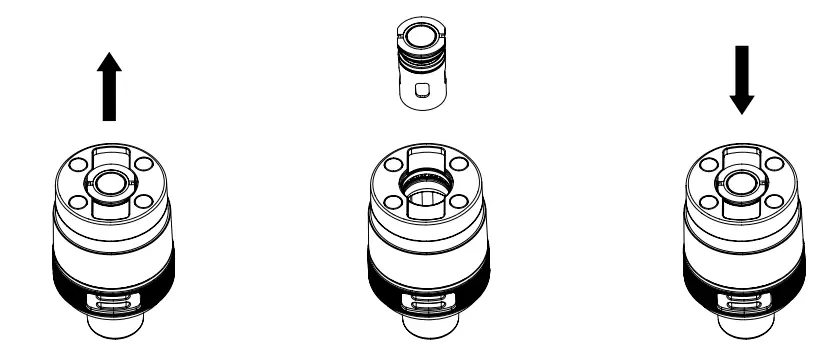

2. Replace the Coil
   – Take out the POD from the battery;
   – Pull out the used coil from the POD;
   – Install a new coil to the POD;
   – Reattach the POD into place.
   * Refer to the figure:2 above.

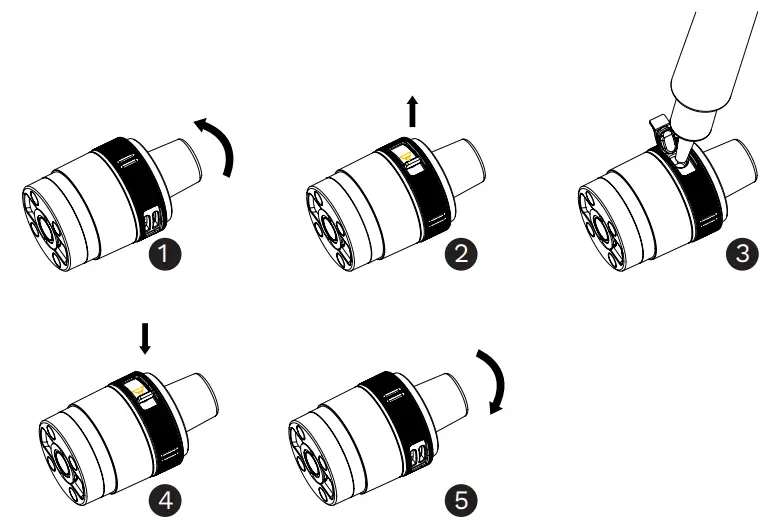

3. Fill E-liquid
   – Twist the top cap according to the arrow direction until the refilling port shows out;
   – Pull out the silicone plug and fill e-liquid through the hole, then twist the top cap in place after the filling is finished.
   – Please wait 5 minutes for the e-liquid to soak into the coil completely.
   * Refer to figure 3 above.
4. Adjust the Airflow
   To adjust the airflow volume, please rotate the top cap on the POD.
5. Power on the Device
   Click the power button 5 times in 2 seconds to power on or power off the device.
6. Power Adjustment
   GEN PT60 is using the powerful GTX coil platform, and the suggested power needs to be noticed before starting vaping.

   GTX Mesh Coils	GTX 0.2Ω MESH	GTX 0.4Ω MESH
   Suggested Power	45-60W	26-32W

7. Start Vaping
   Press the power button to enjoy an extraordinary vaping experience.
8. Charge the Battery
   After connecting the Type-C cable to the battery, the battery indicator and remaining charging time will be shown on the screen.
9. Settings
   SYSTEM LOCK/UNLOCK: Press the power button 3 times.
   PUFF: To clear the puff counter, please press the power button and “-” button;
   Flip Screen: To flip the screen direction, please press the power button and the “+” button.
   Press the “+” and “–” buttons together to enter the setting interface.
   VW: Wattage adjustment mode;
   VV: Voltage adjustment mode;
   SMART VW: The power of the device will be adjusted automatically according to the coils;
   DEFAULT: Restore factory settings;
   EXIT: Back to the main interface.

PROTECTIONS

CAUTIONS

1. Please turn off the device when it is not in use.
2. Do not leave the charging device unattended.
3. Do not drop, throw or abuse your device, which may cause damage.
4. Please use a standard USB output charger with a proper charging current and voltage range.
5. Keep away from the water or any flammable gas, or liquid .
6. Do not expose the device to direct sunlight, dust, moisture, or mechanical shock.
7. Do not expose the device to extreme temperatures. (Recommended temperature range: -10~60 ℃ /14~140 ℉ while using and -10~45℃ /14~113 ℉ while storing).
8. EEE Recycling: the product should not be treated as household waste, instead, it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
9. Battery Recycling: the product battery should not be treated as household waste, instead, it should be handed over to the application used battery collection point for recycling.
10. Only have your device repaired by Vaporesso. Do not attempt to repair it by yourself as damage or personal injury may occur.

WARNING

This refillable electronic cigarette is intended for use with compatible e-liquid, which may contain nicotine. Nicotine is an addictive substance and it is not suitable or recommended to use in the following cases:

1. This device is not suitable for:
   – Persons under the legal smoking age.
   – Persons experiencing heart disease, stomach or duodenal ulcers, liver or kidney problems, long-term throat disease, or difficulty breathing due to bronchitis, emphysema, or asthma.
   – Persons with an overactive thyroid gland or experiencing phaeochromocytoma (a tumor of the adrenal gland that can affect blood pressure).
   – Persons taking certain medications like Theophylline, Ropinirole or Clozapine and etc..
2. This device is not recommended for
   – Non-smokers
   – Pregnant or breastfeeding women
3. You may experience the following results if you use nicotine-containing e-liquid with this product. If it happens, please consult a healthcare professional and show them this leaflet if possible:
   Feeling faint/Nausea /Dizziness/Headache /Coughing/ Irritation of the mouth or throat/Stomach discomfort/ Hiccups/Nasal congestion/Vomition/Chest  palpitations/pain or an irregular heart rate

This device should not be used by persons under the legal smoking age.

www.vaporesso.com
