Oxva Xlim Pro Pod System Kit User Manual

OXVA Xlim Pro Pod System Kit

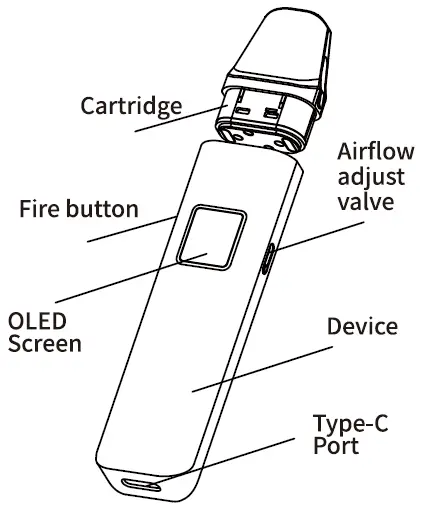

STRUCTURE

SPECIFICATION

• Size: 111 x25 x 14.3mm
• Cartridge capacity: 2ml
• Screen: 0.42 inch OLED
• Output Voltage: 3.2-4.2V
• Battery Type: Built-in 100 0mAh
• Charging: Type-C 5V/2A

GUIDANCE

1. FILLING JUICE Fill the e-juice into the cartridge.

TIPS

1. After filling the e-juice into a new cartridge, please wait for at least minutes before vaping to avoid dry burning.
   1. After filling the juice, please close it as soon as possible to avoid leaking.
2. POWER ON/OFF
   Press the fire button 5 times in 2s to turn it on/off.
3. VAPING
   While the device is on, press the fire button or draw to vape. The device will stop working when the vaping is longer than 8s due to safety protection.
4. ADJUST OUTPUT
   Press the fire button 3 times in 2s to adjust your preferred wattage.
5. LOCK/UNLOCK
   Press the fire button 4 times in 2s to lock/unlock the fire button.
6. LIGHTING ADJUSTMENT
   Press the fire button twice in 1 second to adjust the lighting effect.
7. RESET PUFFS
   Press the fire button 7 times in 2.5 seconds to reset the puff count.

LIGHT PROMPT

• Vape over 8s
  Blue light flashes 3 times and stops working.
• High Temp
  The red light flashes 5 times and stops working.
• Low Battery
  The red light flashes 10 times.
• Short Circuit
  The red light flashes 3 times.

STATEMENT

1. Please keep away from inflammable and explosive materials to avoid injury.
2. Please don’t leave the device unattended while charging.

WARRANTY POLICY

Thank you for purchasing the OXVA product. OXVA will provide repair or replacement to the original purchaser under warranty according to the following terms and conditions:

1. The warranty covers defects in materials or workmanship, under normal use, for a period of 90 days from the date of purchase. Warrantor provides repair or replacement for all the defective parts.
2. This warranty may be disqualified as a result of the following circumstances:
   • The customer does not provide this warranty card and the original receipt of purchase.
   • Merchandise failure or damage is caused by improper use or unauthorized adjustments.
   • Merchandise failure or damage as a result of excessive force or impact and non-recommended operating conditions. (see user manual)
   • Merchandise failure or damage caused by exposure to water or other conducting liquids.
   • Merchandise failure or damage caused by use with non-OXV A brand components or recommended liquids.
3. This warranty does not cover personal or consumable parts such as coil heads, USB cables, or mouthpieces.

PURCHASE INFORMATION

• Product Model:

Date of Purchase (Based on the date from receipt of purchase):

Store Information:

Customer Information:

Customer Address:

For more information please visit our website at www.oxva.com Or email us at [email protected].
