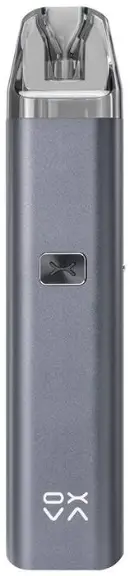

OXVA Xlim C Pod System Kit 25W

Xlim C Pod System Kit 25W

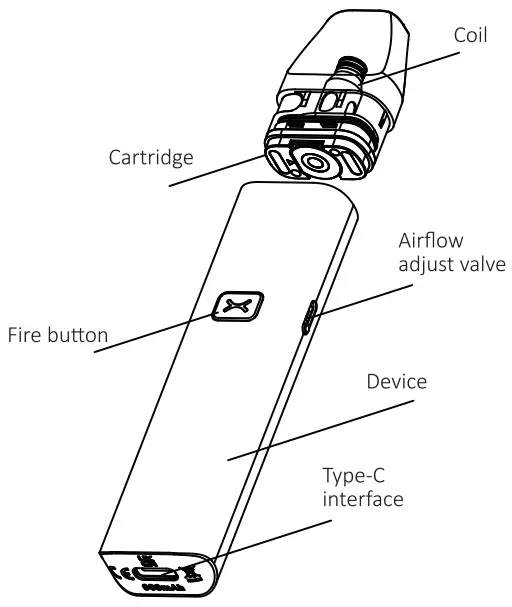

STRUCTURE

Structure

SPECIFICATION

Size14x24x114.5mm
Cartridge capacity2ml
Out put Voltage3.3V-4.2V
Battery TypeBuilt-in 900mAh
ChargingType-C SV/2A
XLIM C Coil0.60: 18-25W Al Meshed 0.80: 12-17W Al Meshed 1.20: 8-12W Al Meshed

GUIDANCE

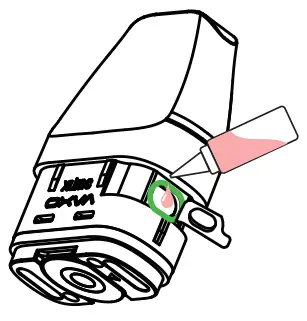

JUICE FILLING

Guidance

CHANGE COIL

Guidance

INSTRUCTIONS

  1. TURN ON/OFF
    Press the fire button 5 times in 2s to turn it on/off.
  2. VAPING
    While the device is on, press the fire button or draw to vape.
    The device will stop working when the vaping is longer than 8s
    due to safety protection.
  3. ADJUST OUTPUT
    Press the fire button 3 times in 2s to adjust your prefer wattage:
    High, Middle, Low.
  4. LOCK/UNWCK
    Press the fire button 4 times in 2s to lock/unlock the fire button.
  5. LIGHT PROMPT
Battery level65-100%Green Light
30-65%Blue Light
<30%Red Light
Vape over8sRed light flashes 3 times and stop working.
High TempRed light flashes 5 times and stop working.
Low BatteryRed light flashes 10 times.
Short CircuitRed light flashes 3 times.

ATTENTION

  1. Please keep away from inflammable and explosive materials to avoid injury.
  2. Please don’t leave the device unattended while charging.

WARRANTY POLICY

Thank you for purchasing OX:VA product. OX:VA will provide repair or replacement to the original purchaser under warranty according to the following terms and conditions:

  1. The warranty covers defects in materials or workmanship, under normal use, for a period of 90 days from the date of purchase. Warrantor provides repair or replacement for all the defective parts.
  2. This warranty may be disqualified as a result of the following circumstances:
    * The customer does not provide this warranty card and the original receipt of purchase.
    * Merchandise failure or damage is caused by improper use or unauthorized adjustments.
    * Merchandise failure or damage as a result of excessive force or impact and non- recommended operating conditions. (see user manual)
    * Merchandise failure or damage caused by exposure to water or other conducting liquids.
    * Merchandise failure or damage caused by use with non-OXVA brand components or recommended e-liquids.
  3. This warranty does not cover personal or consumable parts such as coil heads, USB cable, mouthpiece.

CUSTOMER SUPPORT

For more information please visit our website at
www.oxva.com
Or email us at [email protected]
Facebook: [email protected]
Instagram [email protected]
www.oxva.com
